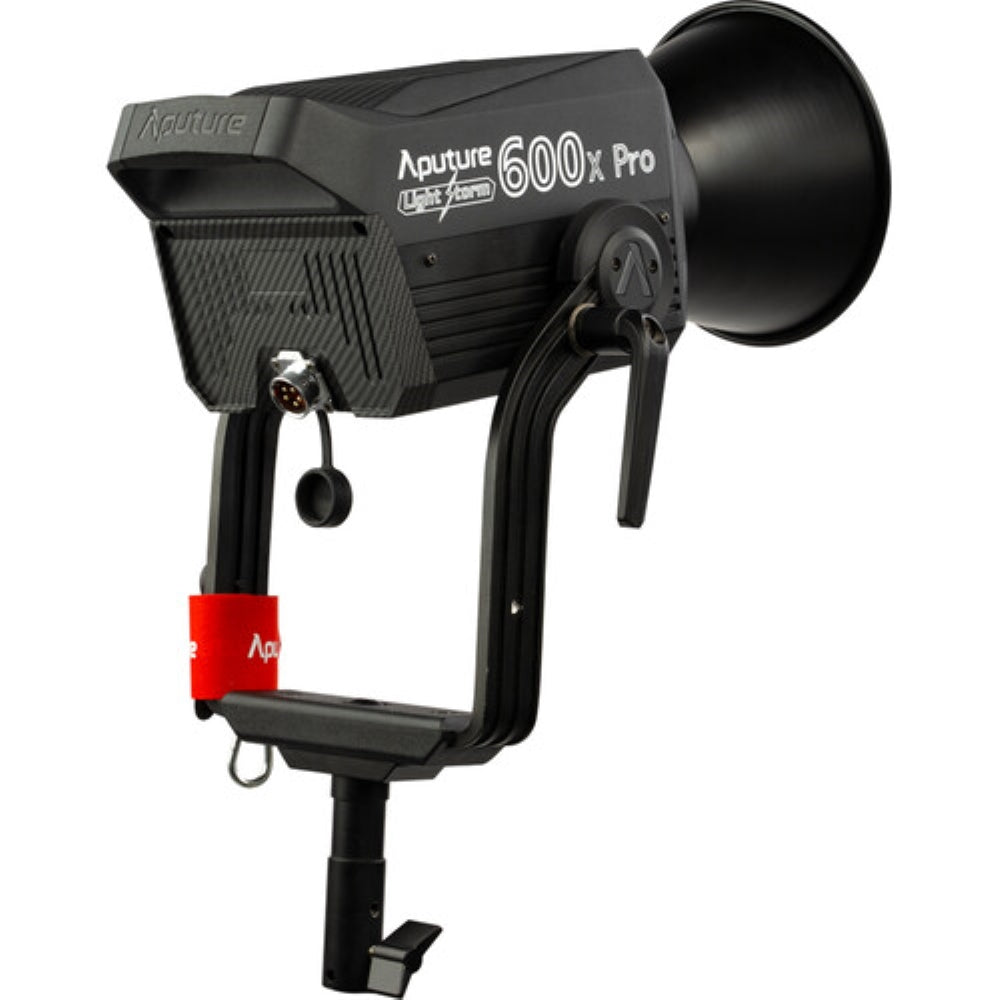

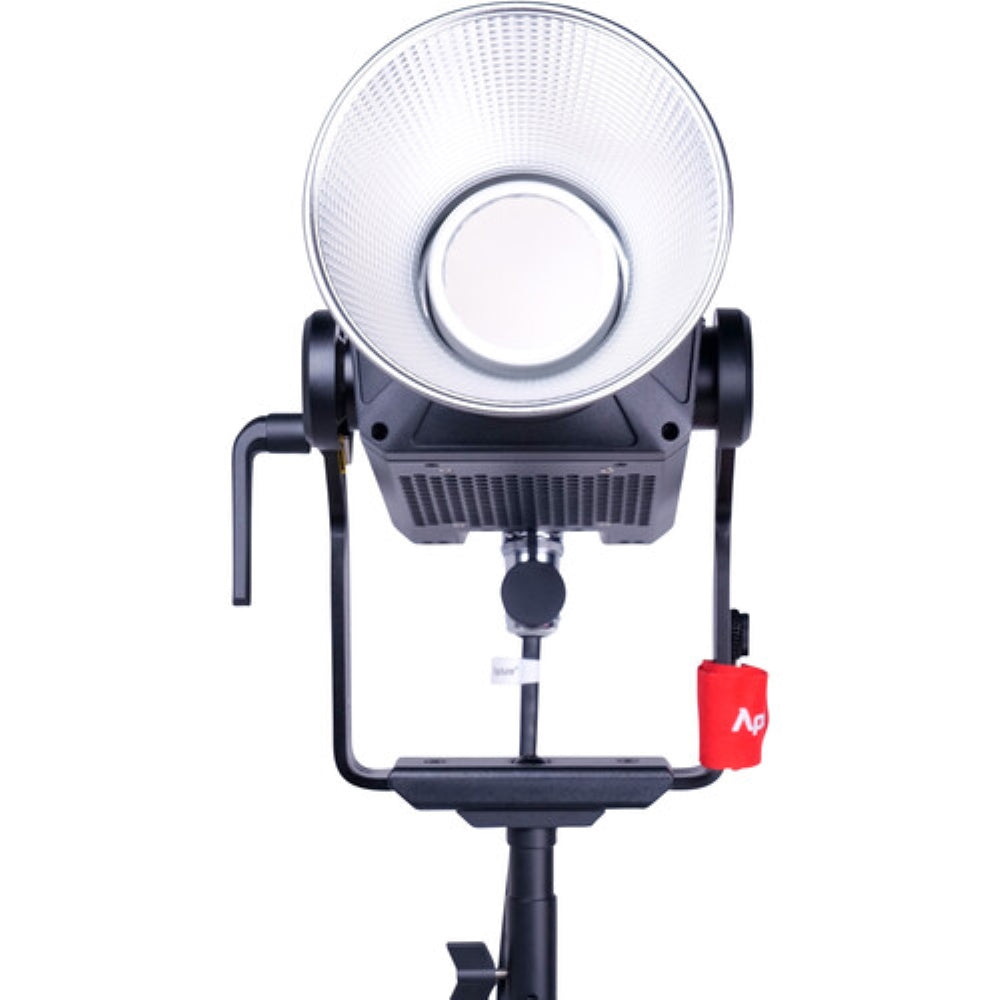

The Aputure LS 600x Pro Bi-Color LED Monolight represents a robust LED lighting solution, offering versatile color and power settings, complemented by its high output, which can be enhanced using the included 55° Hyper Reflector or an optional Fresnel attachment. This precision-engineered fixture boasts a wide variable color temperature range from 2700 to 6500K, along with impressive CRI/TLCI ratings of 96 and 98, ensuring exceptional color fidelity. In addition to its power capabilities, control is a fundamental aspect of the 600x Pro's design. Users can make adjustments directly on the fixture or remotely via the included 2.4 GHz wireless remote, the Sidus Link mobile application, and the integrated wireless DMX control, which is particularly advantageous for lights positioned overhead or in difficult-to-access locations. Furthermore, the LS 600x Pro features four dimming curves: Linear, Exponential, Log, and S-Curve, providing precise control over brightness levels.
The lighting unit is designed for global compatibility through its multi-voltage power supply. Additionally, it can operate using a 48V battery or two batteries rated at 14.4V, 26V, or 28.8V in the absence of AC power. Users have the option to mount and recharge the batteries while the light is in operation.
The 600x Pro boasts dust and water resistance, making it suitable for nearly any shooting condition. Aputure has meticulously incorporated a variety of special effects, including Paparazzi, Fireworks, Lightning, Faulty Bulb, TV, Pulsing, Strobe, Explosion, and Fire. Furthermore, Aputure has thoughtfully included a rolling case for convenient storage and transportation.
Features
- Lux is 63,900 at 3.3' with the included Hyper Reflector at 5600K
- Lux is 5,610+ at 9.8' with the included Hyper Reflector at 5600K
- Lux is 18,510+ at 9.8' with the F10 Fresnel at 5600K
- Variable CCT: 2700 to 6500K
- Precision color-blending optics
- Max and constant output power modes
- Stepless brightness control: 0-100%
- CRI 96, TLCI 98, SSI (D56) 74, SSI (Tungsten) 85
- Dust and water resistant
- Multiple Control Methods: 2.4 GHz remote, Sidus link
- Bluetooth app control, built-in wireless DMX, Art-Net, Ethernet, 5-Pin DMX512 In and Out
- Multi-voltage battery plates support 14.4V / 26V / 28.8V batteries
- Supports 48V/15A DC input power (3-pin XLR) including battery power stations and block batteries
- Optimized Output: LS 600 Series Hyper Reflector
- Utilizes universal Bowens mount
- Frequency modulation to remove flicker
- Curved, disk brake yoke with 360° rotation
- Dual Junior/Baby pin (28mm/16mm) for easy mounting
- Separate control box for a lighter lamp head
- Weatherproof head cable: 24.6', Locking Neutrik Power Cable: 19.7'
- Lightning Clamp quick release plate
- Four Dimming Curves:
- Linear
- Exponential
- Log
- S-Curve
- Nine Lighting FX:
- Paparazzi
- Fireworks
- Lightning
- Faulty Bulb
- TV
- Pulsing
- Strobe
- Explosion
- Fire
Light Fixture |
|
---|---|
Item Type | 1x LED Monolight |
Included Light Modifier | 1x Reflector |
Included Storage Case | Yes |
Photometrics | 3200K: 1080 fc / 11,630 Lux at 3.3' / 1 m 126 fc / 1364 Lux at 9.8' / 3 m 48 fc / 524 Lux at 16.4' / 5 m 4208 fc / 45,300 Lux at 3.3' / 1 m (with Reflector) 373 fc / 4020 Lux at 9.8' / 3 m (with Reflector) 132 fc / 1426 Lux at 16.4' / 5 m (with Reflector) 5600K: 1491 fc / 16,060 Lux at 3.3' / 1 m 174 fc / 1880 Lux at 9.8' / 3 m 67 fc / 728 Lux at 16.4' / 5 m 5936 fc / 63,900 Lux at 3.3' / 1 m (with Reflector) 521 fc / 5610 Lux at 9.8' / 3 m (with Reflector) 185 fc / 1996 Lux at 16.4' / 5 m (with Reflector) |
Color Temperature | 2700 to 6500K +/- 200K |
Color Modes | Daylight, Tungsten |
Color Accuracy Standard | CRI 96 TLCI 96 |
Dimming | Controller Included (Continuous) • 0 to 100% |
Cooling System | Passive |
Beam Angle | 55° |
Built-In Flash | No |
Preprogrammed Effects | Yes |
Umbrella Mount | No |
Front Accessory Mount | Bowens S |
Connectivity |
|
---|---|
Wireless Remote Control Type | Bluetooth Wi-Fi Wireless CRMX |
Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link Functionality: Remote Control |
Wireless Frequency | 2.4 GHz |
Wireless Range | 328.1' / 100 m |
Power & I/O |
|
---|---|
Power Source | AC Power (Cable Included) Battery (Not Included) |
Inputs/Outputs | Light Fixture 1x Proprietary Power Input Power Supply/Controller 1x powerCON TRUE1 TOP AC Power Input 1x XLR 3-Pin Power Input (48 VDC) 1x Proprietary Power Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
Battery Plate Type | 2x Gold Mount (Built-In) |
Battery | 2x Rechargeable (Not Included) |
Input Power | 100 to 240 VAC, 50 / 60 Hz 48 VDC at 15 A |
Included Adapter / Cable | 1x USA Type-A/B to powerCON TRUE1 TOP Cable (19.7' / 6 m) 1x Proprietary to Proprietary Cable (9.8' / 3 m) |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 720 W |
Mounting |
|
---|---|
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | 1x 1-1/8" Stud with 5/8" Receiver (Via Yoke Mount) |
General |
|
---|---|
Display | OLED (Via Included Power Supply/Controller) |
Environmental Resistance | Dust/Water-Resistant (Unrated) |
Operating Conditions | -4 to 113°F / -20 to 45°C |
Dimensions | 11.9 x 5.9 x 5.8" / 30.2 x 15 x 14.7 cm (Fixture without Yoke) 17.2 x 11.9 x 5.9" / 43.7 x 30.2 x 15 cm (Fixture with Yoke) 12.7 x 7 x 5.6" / 32.3 x 17.8 x 14.2 cm (Power Supply/Controller) |
Weight | 11.37 lb / 5.16 kg (Fixture with Yoke) 10.78 lb / 4.89 kg (Power Supply/Controller) 42.04 lb / 19.07 kg (Overall Kit) |
