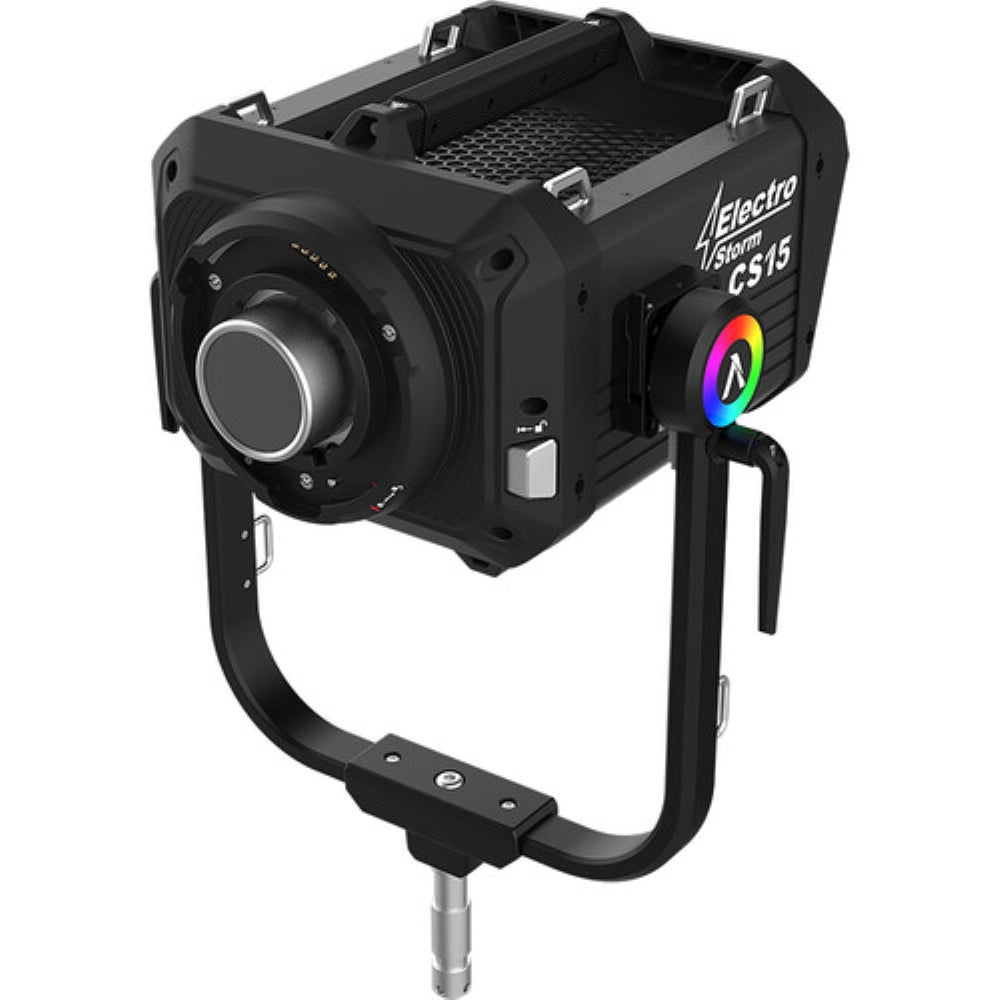

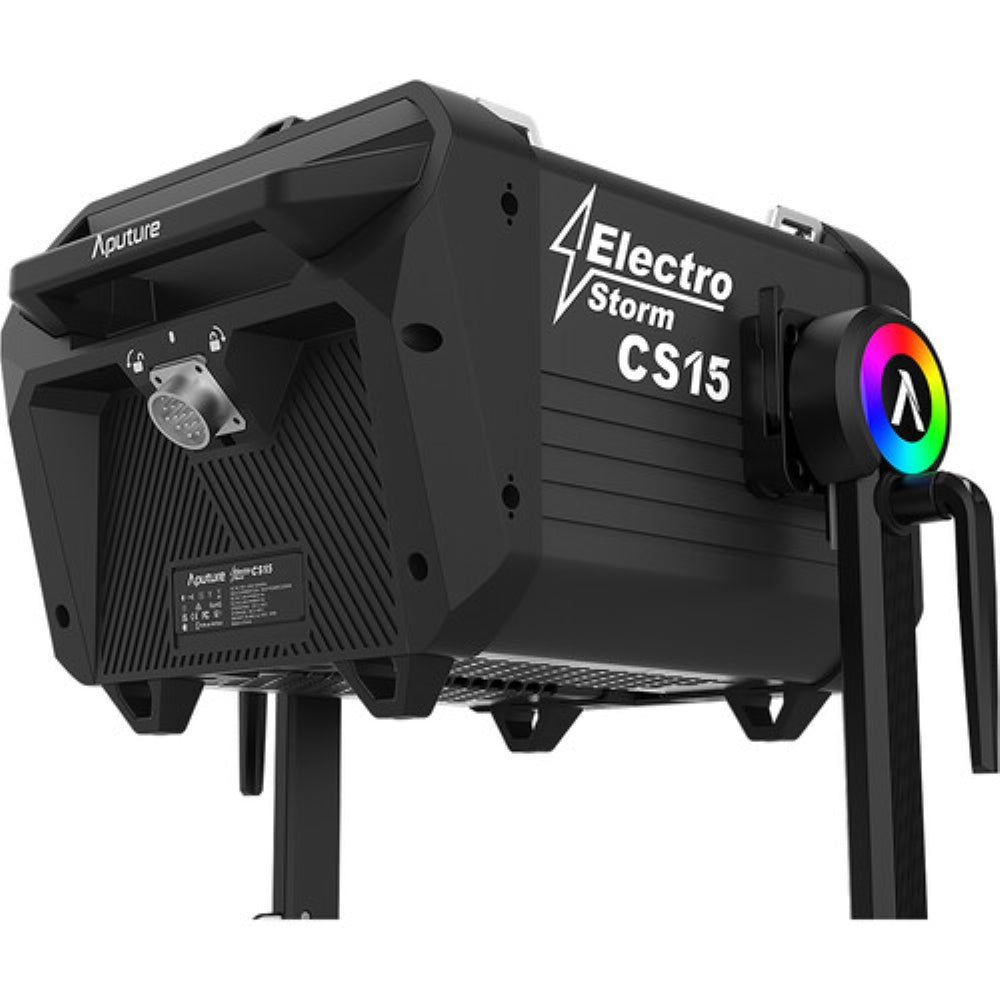

Engineered for the rigorous demands of film and television professionals, the Electro Storm CS15 RGB LED Monolight by Aputure is a full-color point-source lighting solution that delivers an impressive 1500W of exceptional color fidelity. The CS15 features a color temperature range of 2000-10,000K with tint adjustment capabilities, dual accessory mounts, and advanced connectivity options. Its durable IP65-rated construction ensures resistance to dust and weather, making it suitable for challenging filming conditions. Designed for optimization and versatility, this powerful RGB fixture is perfect for illuminating expansive areas, catering to the needs of filmmakers and lighting technicians alike. This particular CS15 model is equipped with a US plug and comes with a sturdy flight case for convenient storage and transport.
Chipsets and Color Accuracy
The full-color LED chipset delivers a power output exceeding 1500W, competing with the industry-standard 1800W HMIs. It features enhanced color controls across an extensive CCT range of 2000 to 10,000K. Additionally, it provides green-magenta adjustment and covers more than 90% of the colors within the Rec. 2020 color space. The dual-blue LED chipset design facilitates broad spectral reproduction, achieving SSI values of 86 for daylight and 89 for tungsten. This guarantees superior color quality across various shooting conditions. The CS15 can produce up to 32,600 lux at a distance of 9.8 feet when utilizing its included 35° reflector.
Professional Connectivity
The CS15 has been specifically crafted for professionals, featuring sophisticated connectivity options such as control through the Sidus Link app, LumenRadio CRMX, Art-Net, and sACN via etherCON, as well as 16-bit DMX512. These capabilities allow for a smooth integration of the fixture into current lighting workflows, granting lighting technicians and programmers comprehensive control over its functionality.
Expanded Mounting Options
The CS15 is equipped with dual accessory mounts, providing compatibility with both the universal Bowens Mount and the advanced electronic A-Mount. This distinctive feature positions it as one of the most versatile fixtures available, accommodating a diverse array of modifier options, including the adaptable Spotlight Max. The A-Mount is specifically engineered for robust modifiers, such as the optional F14 Fresnel, ensuring stability, durability, and enhanced color accuracy, while also facilitating motorized focus control. Additionally, the Aputure mount supports the optional 20° and 50° reflectors.
Advanced Liquid Cooling Technology
The CS15 utilizes cutting-edge liquid cooling technology to efficiently regulate heat dissipation and enhance light output. This state-of-the-art design ensures that users can fully harness the fixture's lighting capabilities while preserving peak performance.
Additional Benefits

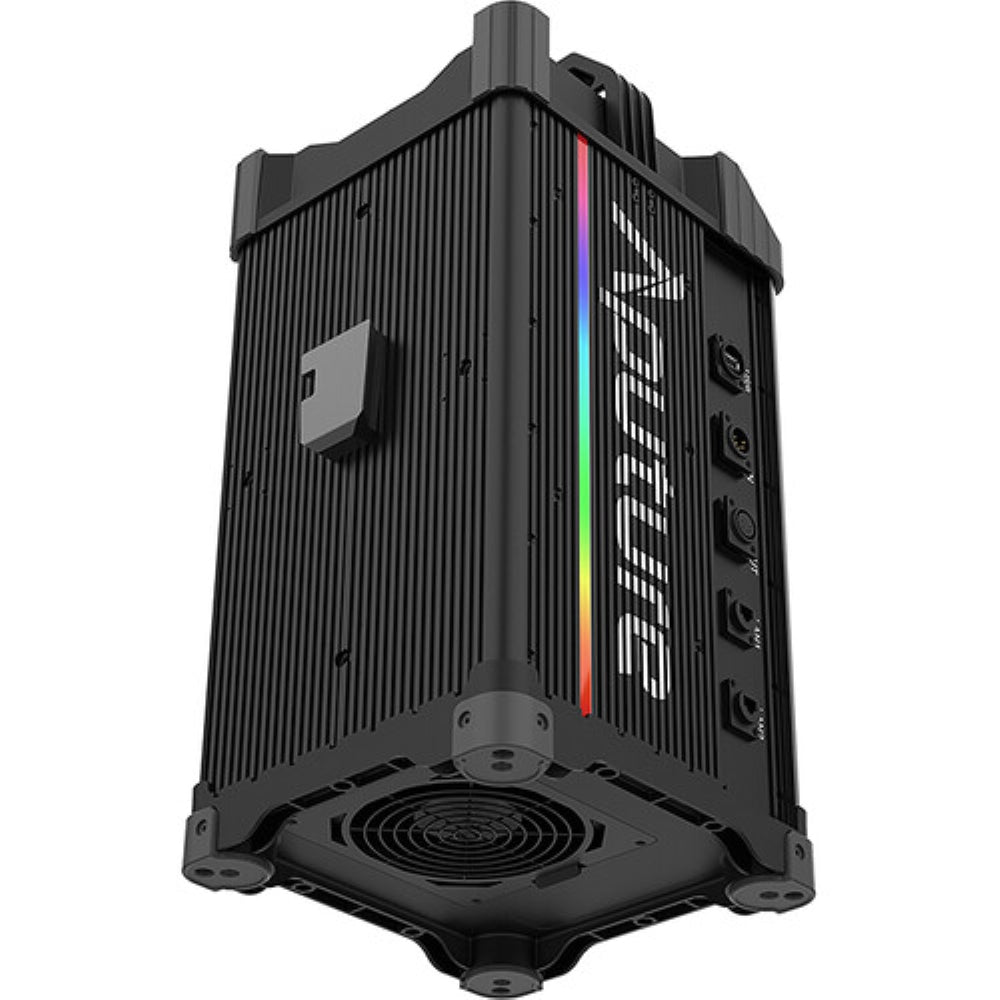

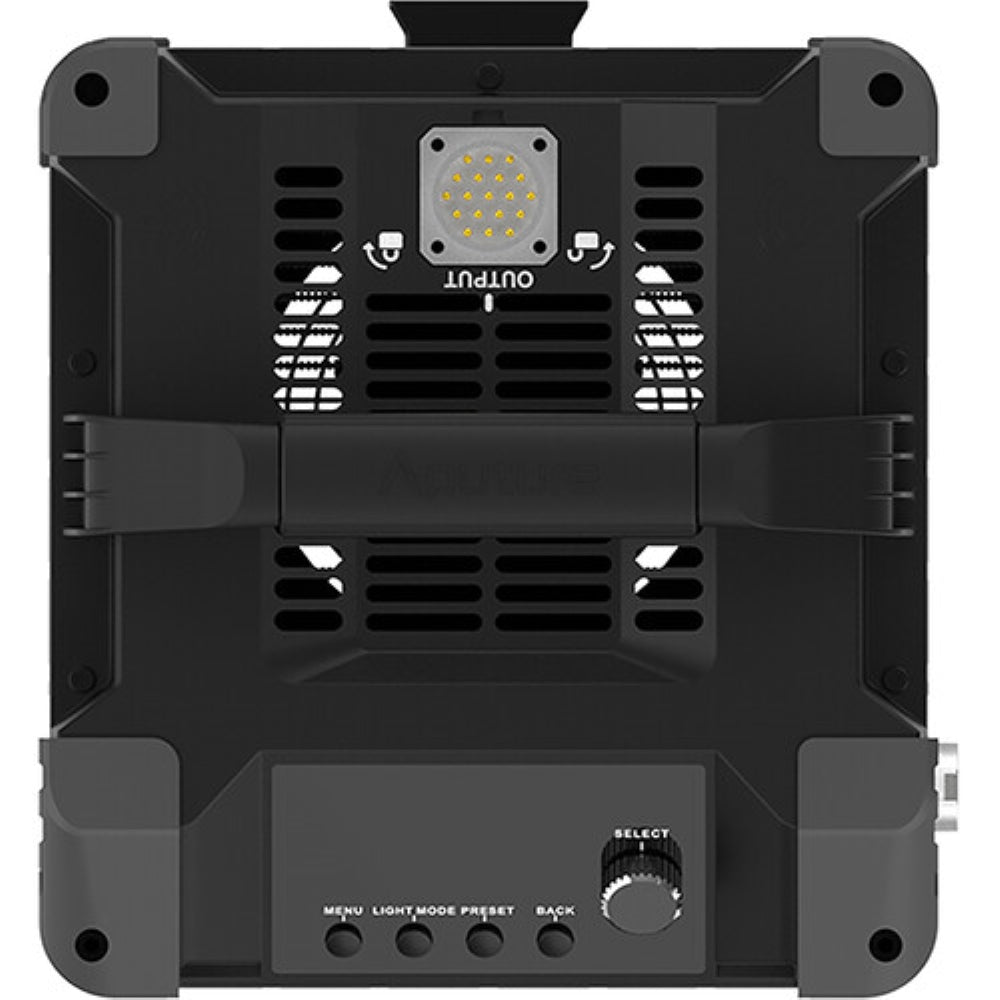

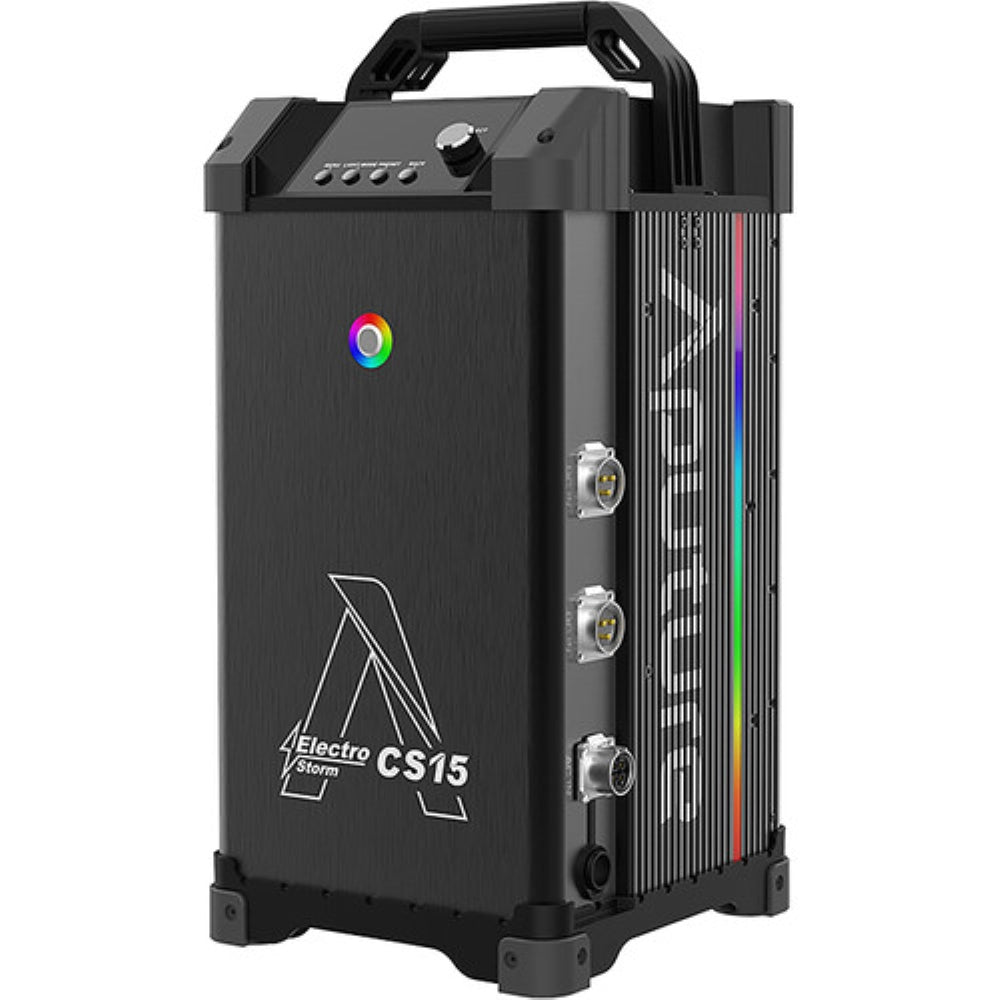

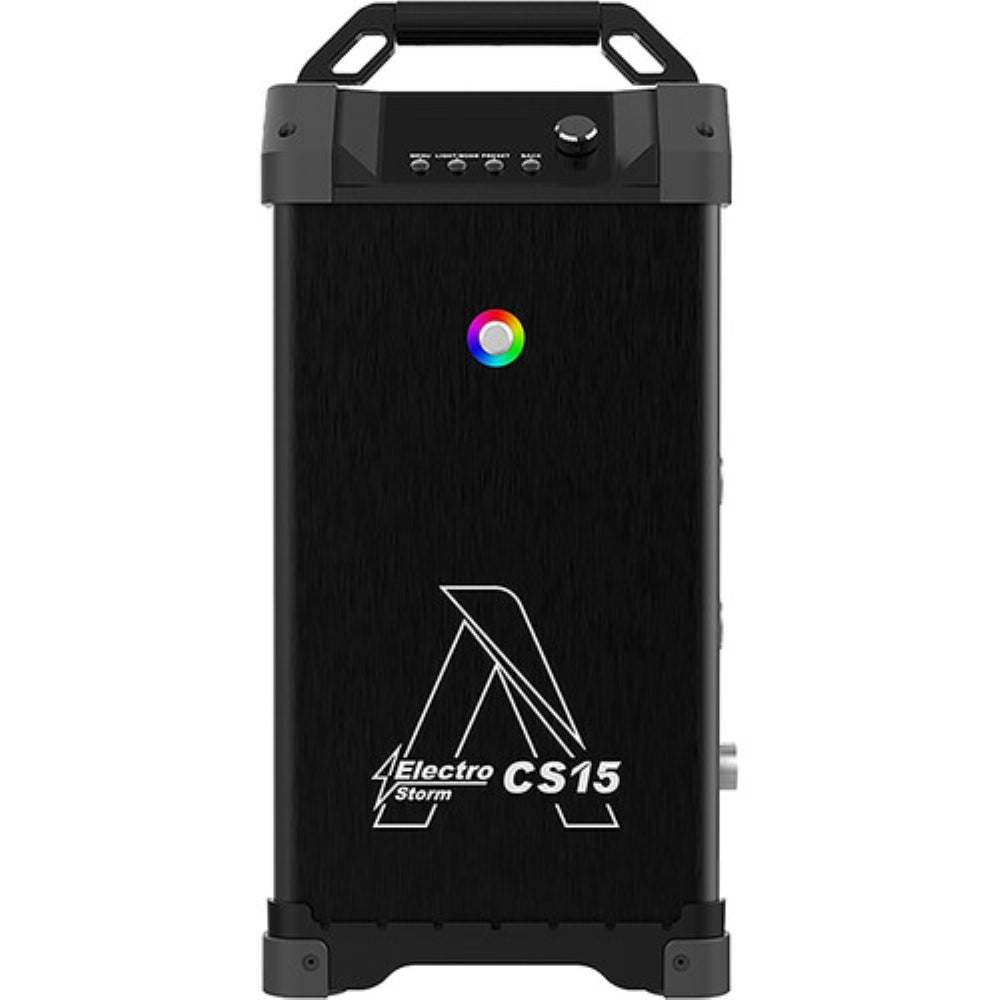

The fixture is equipped with 15 integrated lighting effects, XY color control, advanced HSI capabilities, over 300 gel presets, and both maximum and constant output modes. It offers stepless dimming from 0.1% to 100%, along with PWM and high-speed flicker-free dimming options. Enhancing its adaptability, the fixture supports battery operation through dual 48 VDC inputs. For user convenience, the CS15 includes a high-output control box with side and top-facing ports, and a handcart for the control box is provided for effortless transport. Additionally, users have the option to utilize a motorized yoke for seamless remote operation.
Light Fixture |
|
---|---|
Item Type | 1x LED Monolight |
Included Light Modifier | 1x Reflector |
Photometrics | 2000K: |
Color Temperature | 2000 to 10,000K 8645 fc / 93,060 Lux at 3.3' / 1 m (with Reflector)* 960 fc / 10,340 Lux at 9.8' / 3 m (with Reflector) 344 fc / 3710 Lux at 16.4' / 5 m (with Reflector) 3200K: 24,079 fc / 259,200 Lux at 3.3' / 1 m (with Reflector)* 2675 fc / 28,800 Lux at 9.8' / 3 m (with Reflector) 985 fc / 10,610 Lux at 16.4' / 5 m (with Reflector) 4300K: 26,011 fc / 279,990 Lux at 3.3' / 1 m (with Reflector)* 2890 fc / 31,110 Lux at 9.8' / 3 m (with Reflector) 1029 fc / 11,080 Lux at 16.4' / 5 m (with Reflector) 5600K: 27,256 fc / 293,400 Lux at 3.3' / 1 m (with Reflector)* 3028 fc / 32,600 Lux at 9.8' / 3 m (with Reflector) 1082 fc / 11,650 Lux at 16.4' / 5 m (with Reflector) 10000K: 22,992 fc / 247,500 Lux at 3.3' / 1 m (with Reflector)* 2554 fc / 27,500 Lux at 9.8' / 3 m (with Reflector) 933 fc / 10,050 Lux at 16.4' / 5 m (with Reflector) *Standardized Measurement Calculated Internally Based on Closest Distance |
Color Modes | RGB |
Color Accuracy Standard | SSI 86 at 5600K SSI 89 at 3200K CRI 98 TLCI 98 CQS 97 TM-30 Rf 93 TM-30 Rg 101 |
Dimming | Built-In Dimmer • 0.1 to 100% |

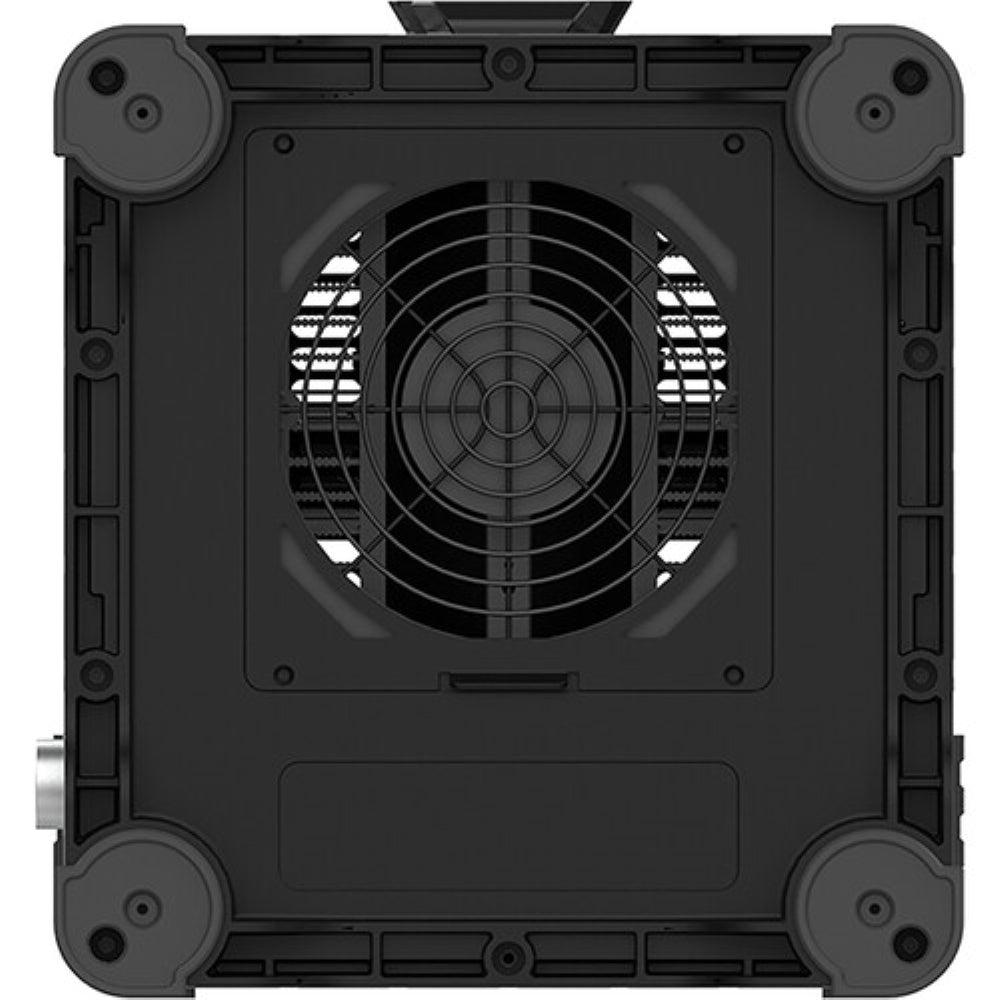

Cooling System | Fan |
Beam Angle | 62° Unmodified |
Built-In Flash | No |
Front Accessory Mount | Proprietary Bowens S |
Connectivity |
|
---|---|
Wireless Remote Control Type | Bluetooth Wireless CRMX |
Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link |
Wireless Range | 328.1' / 100 m |
Power & I/O |
|
---|---|
Power Source | AC Power (Cable Included) *Requires Power Supply/Controller (Included) Battery (Not Included) |

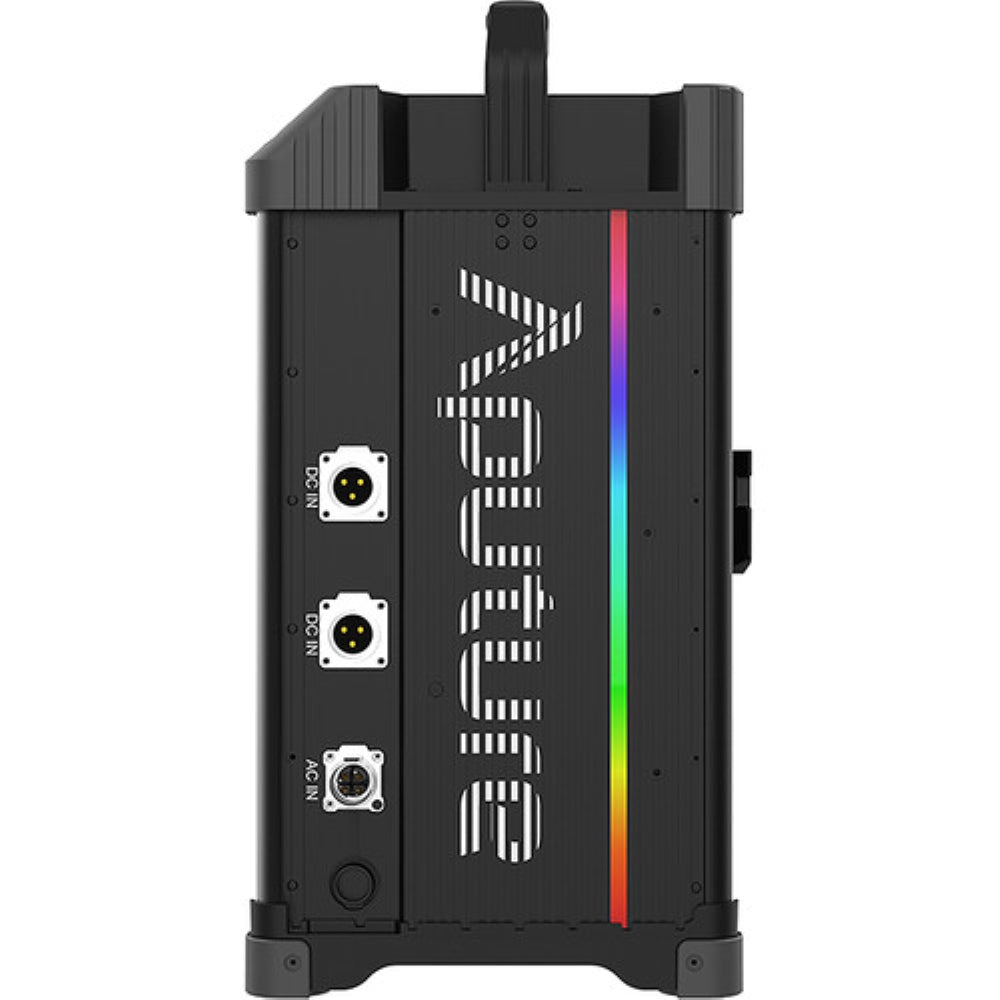

Inputs/Outputs | Power Supply/Controller 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x etherCON/RJ45 Remote/Network Input/Output |
Input Power | 100 to 240 VAC, 50 / 60 Hz 48 VDC at 19 A |
Included Adapter / Cable | Yes |
Power Consumption | 1500 W 2200 W (Maximum) |
Mounting |
|
---|---|
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | Not Specified by Manufacturer |
General |
|
---|---|
Display | Yes |
Operating Conditions | -4 to 113°F / -20 to 45°C |
Storage Conditions | -40 to 185°F / -40 to 85°C |

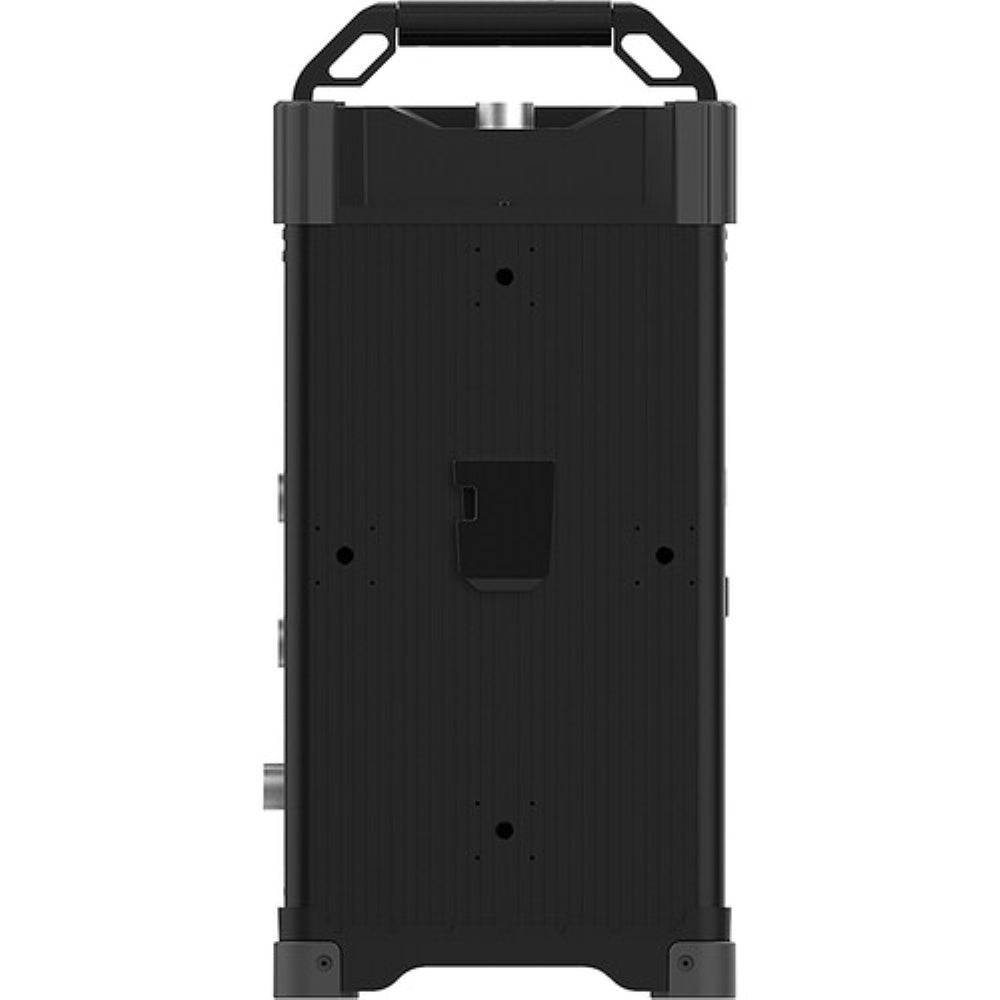

Dimensions | 18 x 13.9 x 11.1" / 45.7 x 35.2 x 28.1 cm (Fixture without Yoke) 21.7 x 10.7 x 10.3" / 55 x 27.3 x 26.2 cm (Power Supply/Controller) |
Weight | 39.7 lb / 18 kg (Fixture without Yoke) 41.9 lb / 19 kg (Power Supply/Controller) |
