Aputure INFINIBAR PB12 RGB LED Light Panel | 4'

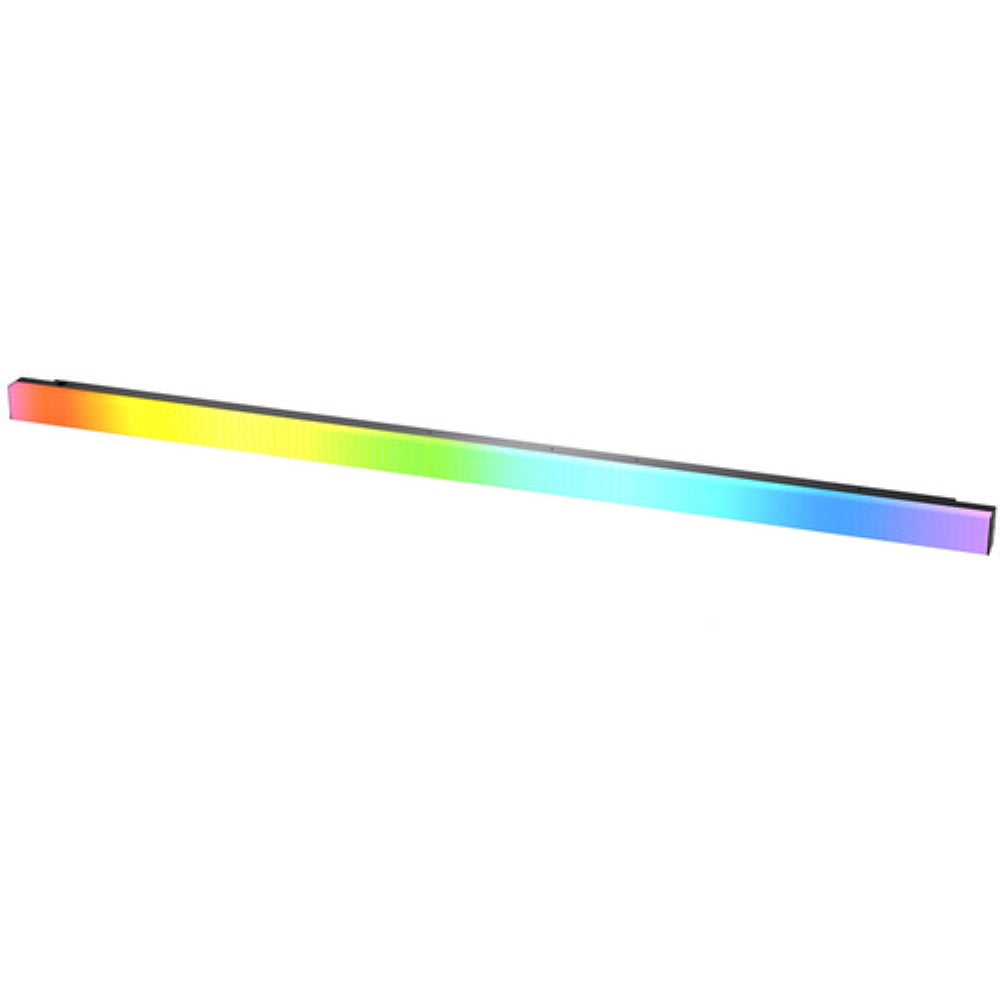

The 4' INFINIBAR PB12 RGB LED Light Panel from Aputure stands out as a versatile and precise lighting solution, ideal for professionals seeking dynamic and vibrant lighting designs. With 96 pixels offering exceptional color quality rated at CRI 96/TLCI 98 across various color modes, the INFINIBAR serves effectively as a key light, can be integrated directly into sets, or utilized with its connector ecosystem to craft innovative shapes and designs. This unit is equipped with a proprietary RGBWW chipset that allows for a color temperature range of 2000 to 10,000K, complete with full green-magenta adjustment. Additionally, it features advanced controls for hue, saturation, and intensity, enabling a broad spectrum of accurate and precise colors. Users can connect multiple INFINIBAR panels of any size using up to ten different connectors, which are sold separately, and synchronize them through the Sidus Link app, LumenRadio CRMX, or via wired DMX with an optional USB-C to DMX adapter.

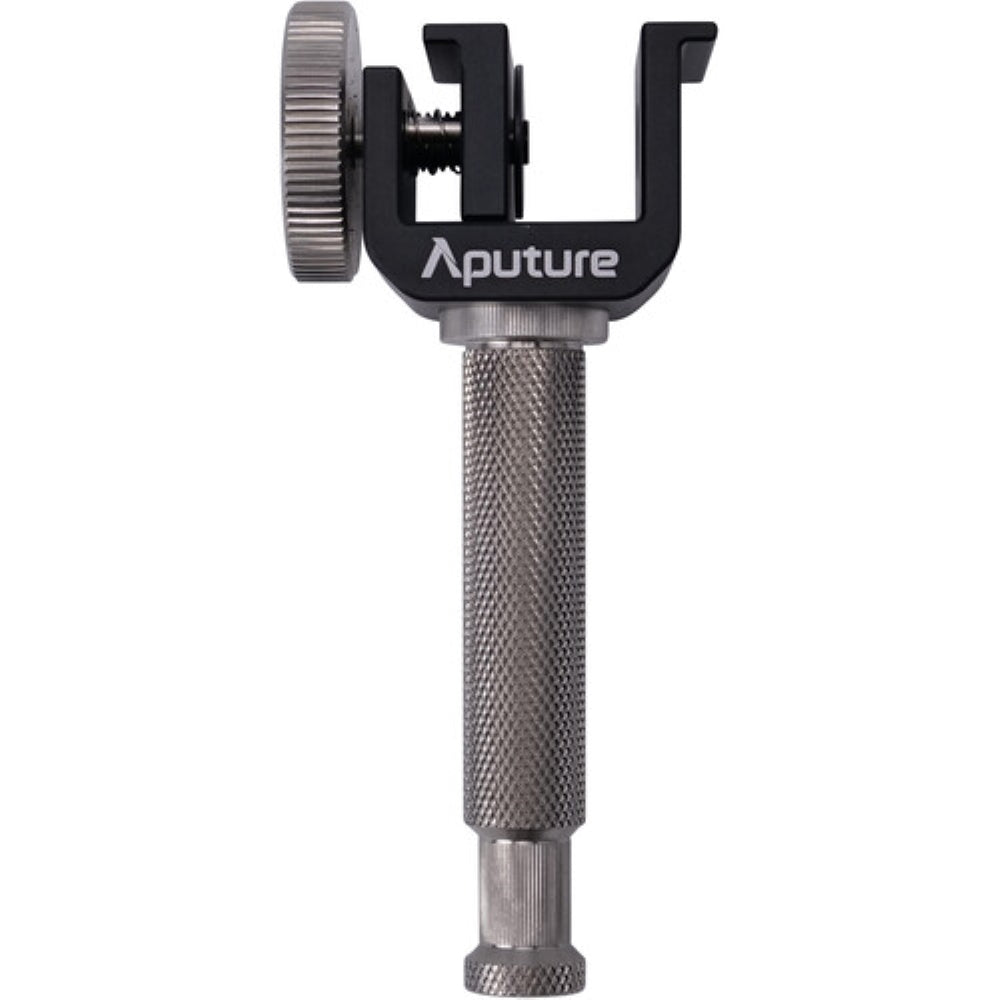

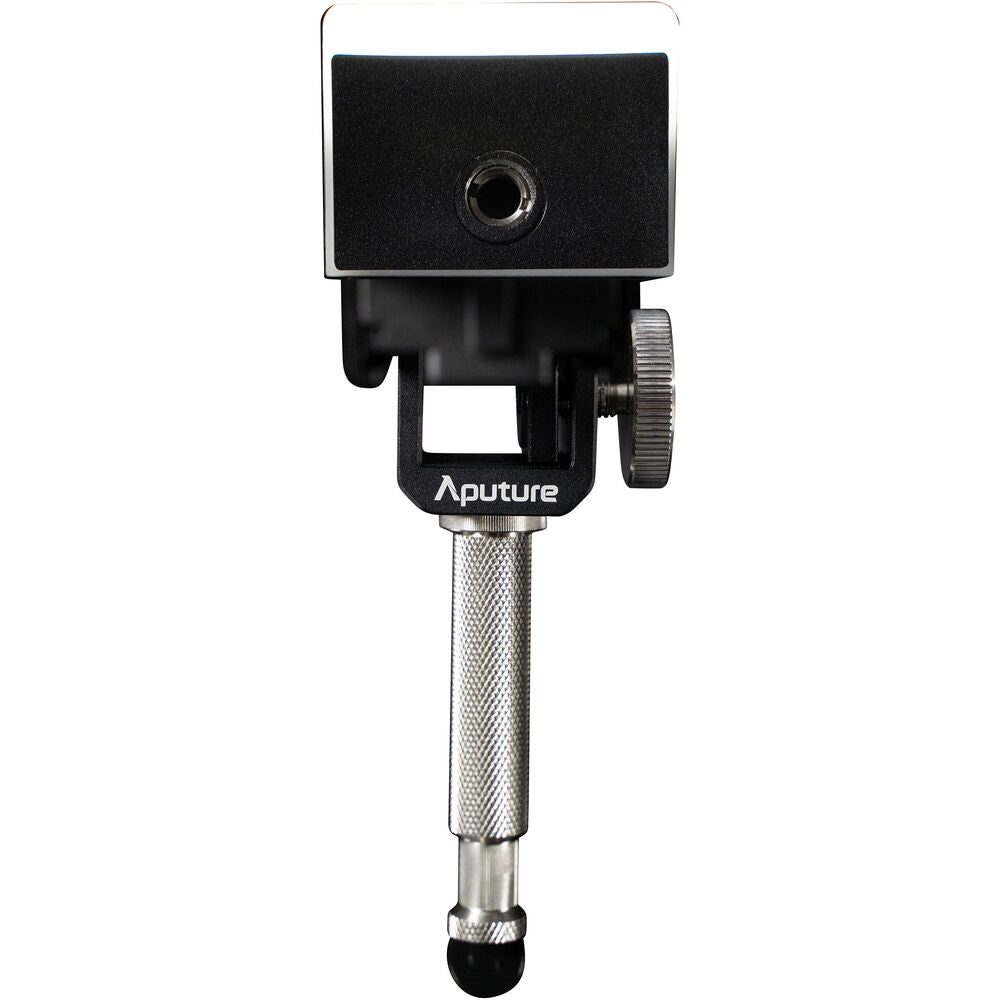

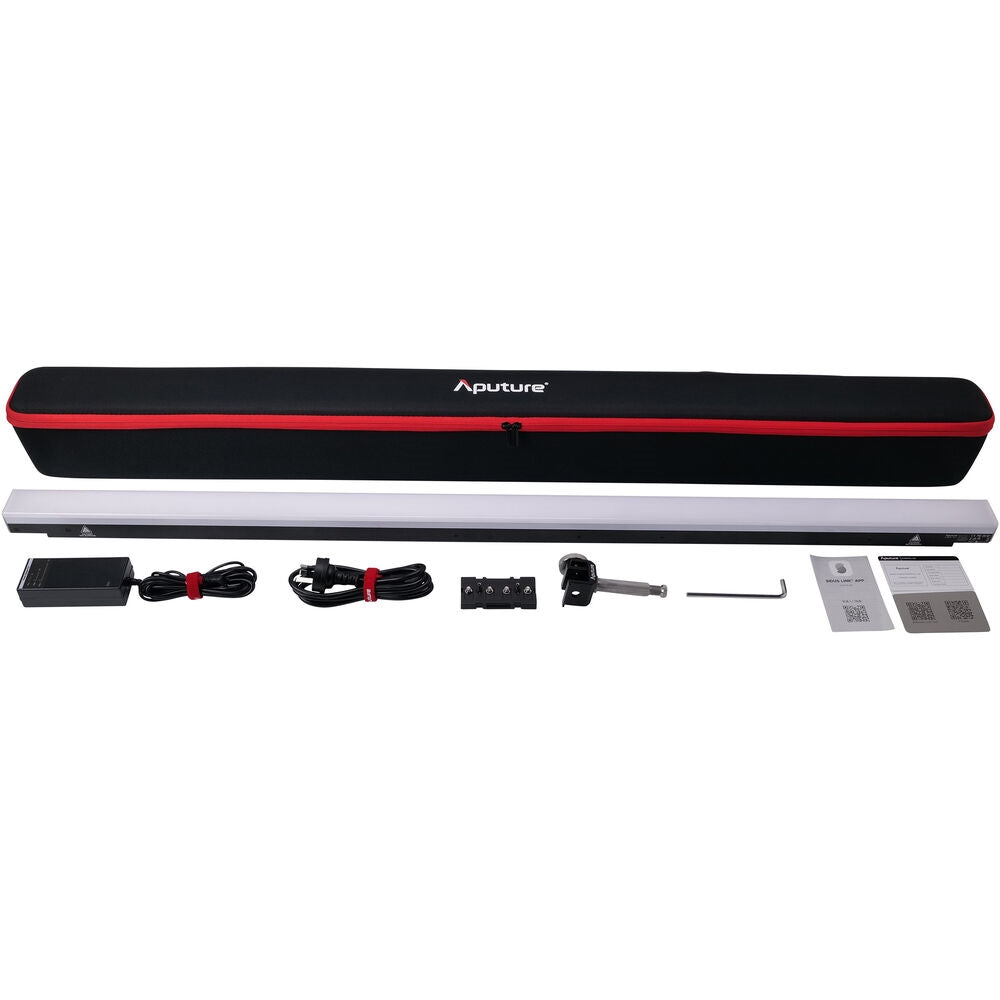

Weighing only 4.3 pounds, the INFINIBAR is constructed with a robust aluminum casing and comes with a Clamp to Baby Pin Adapter for mounting. It features two 1/4-20" female threads, magnetic spacers, and a Straight Connector designed for the INFINIBAR Rail system. The device can be powered by an integrated lithium battery, which provides full brightness for 80 minutes, or through the supplied AC adapter. Additionally, several units can be connected to a single power supply using the power-sharing connectors.

Color

• Fully tunable correlated color temperature (CCT) from 2000 to 10,000K with green and magenta adjustment


• High color standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103


• Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colors within Rec.2020 color space



Output

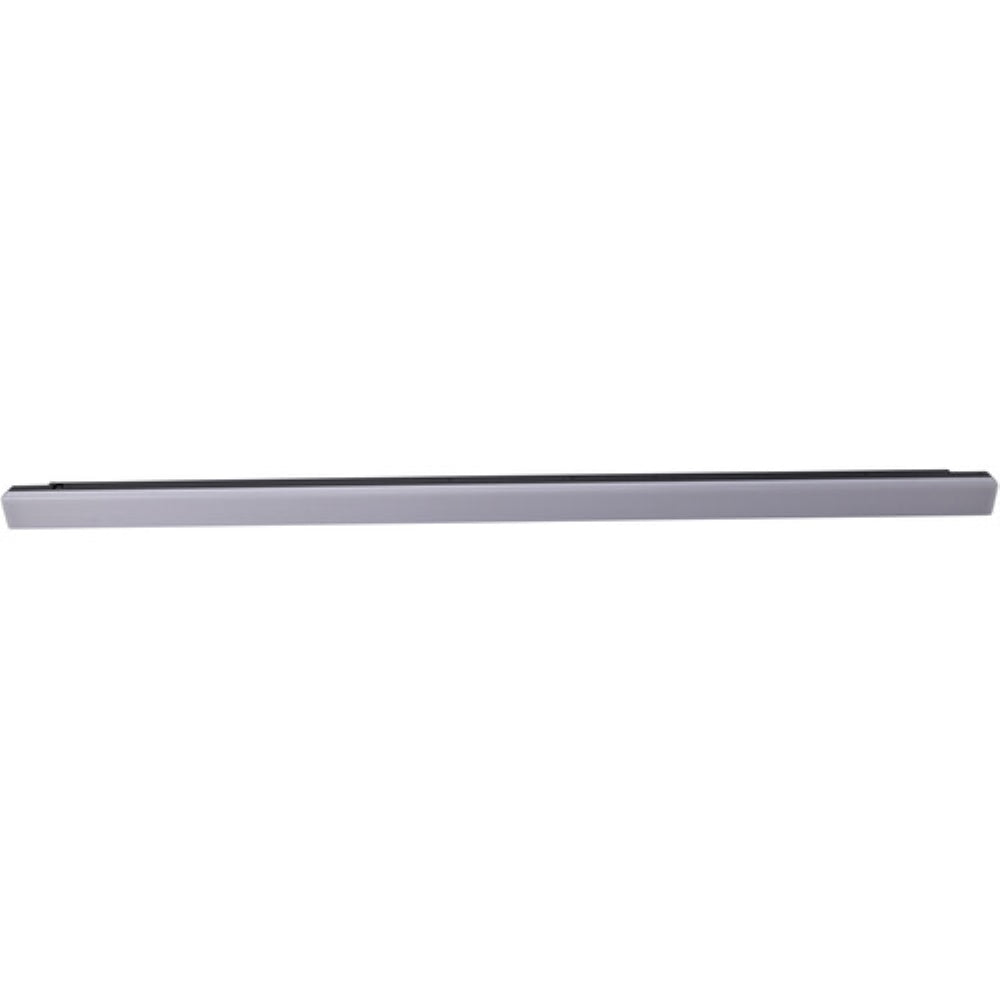

• 4' 27W panel light with proprietary RGBWW chipset and 96 individual pixels (or lighting zones)


• 617 lux at 7500K


• 0 to 100% brightness control at increments of .1%


• Nine built-in lighting effects:
  • Fireworks II
  • Fire II
  • Paparazzi II
  • Faulty Bulb II
  • TV III
  • Pulsing III
  • Cop Car III
  • Lightning III
  • Party II


• Seven pixel effects:
  • Color Fade
  • Color Cycle
  • 1-Pixel Chase
  • 2-Pixel Chase
  • 3-Pixel Chase
  • Rainbow
  • Pixel Fire



Power

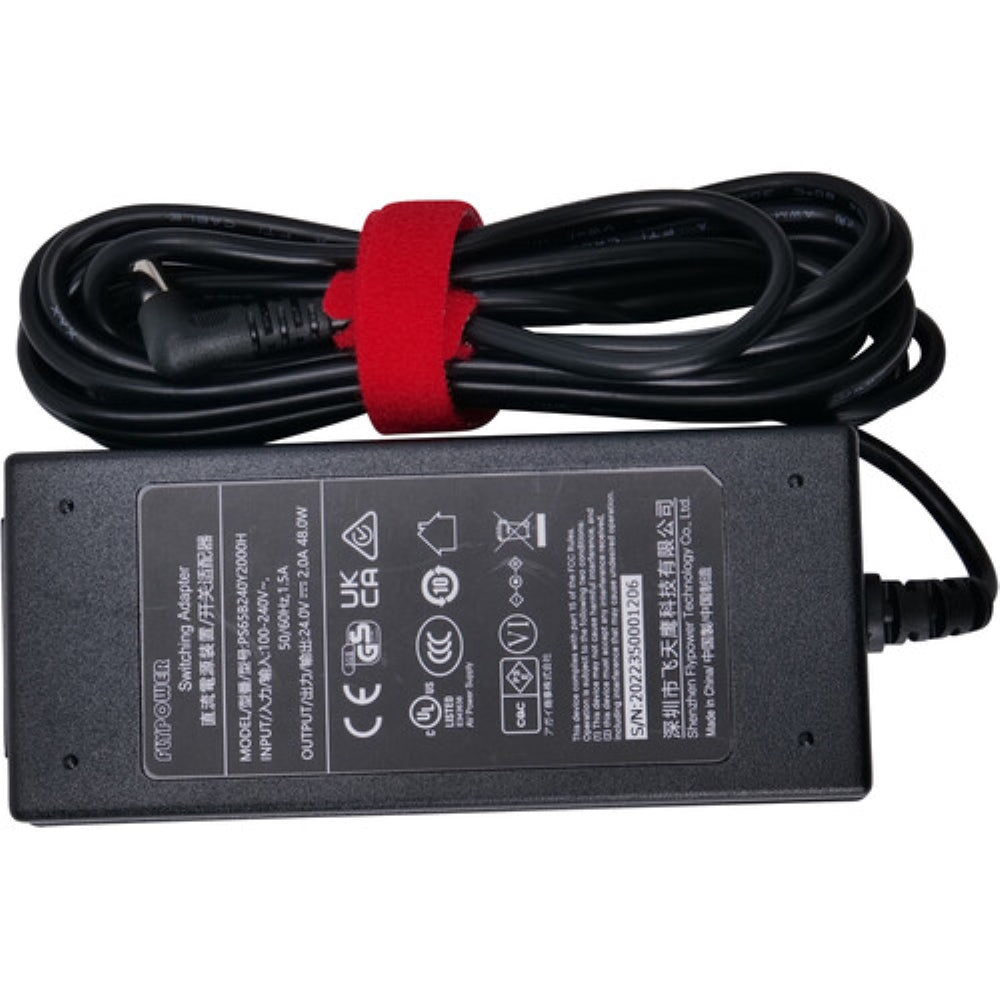

• AC adapter included


• Built-in 59.2Wh lithium battery lasts up to 80 minutes at maximum output


• Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours


• Share AC Power over multiple INFINIBARs with connector ecosystem



Connect and Control

• Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately

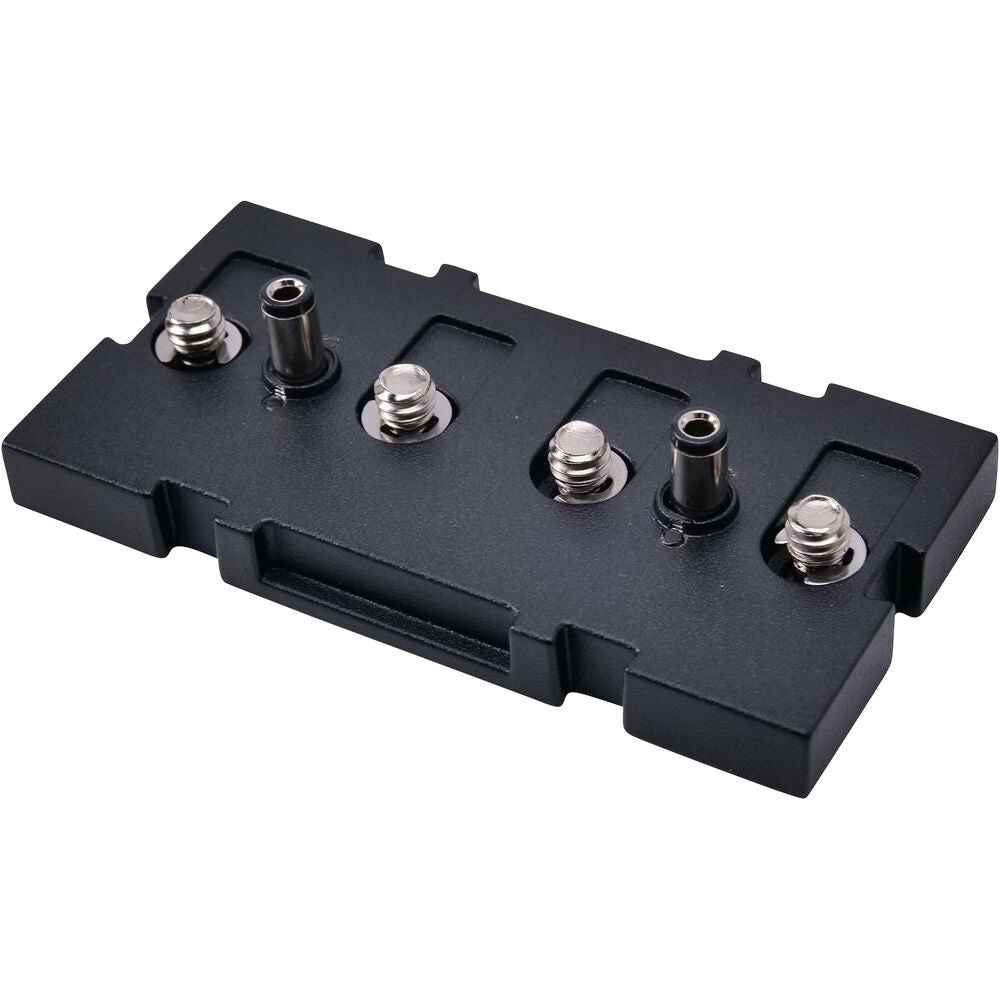

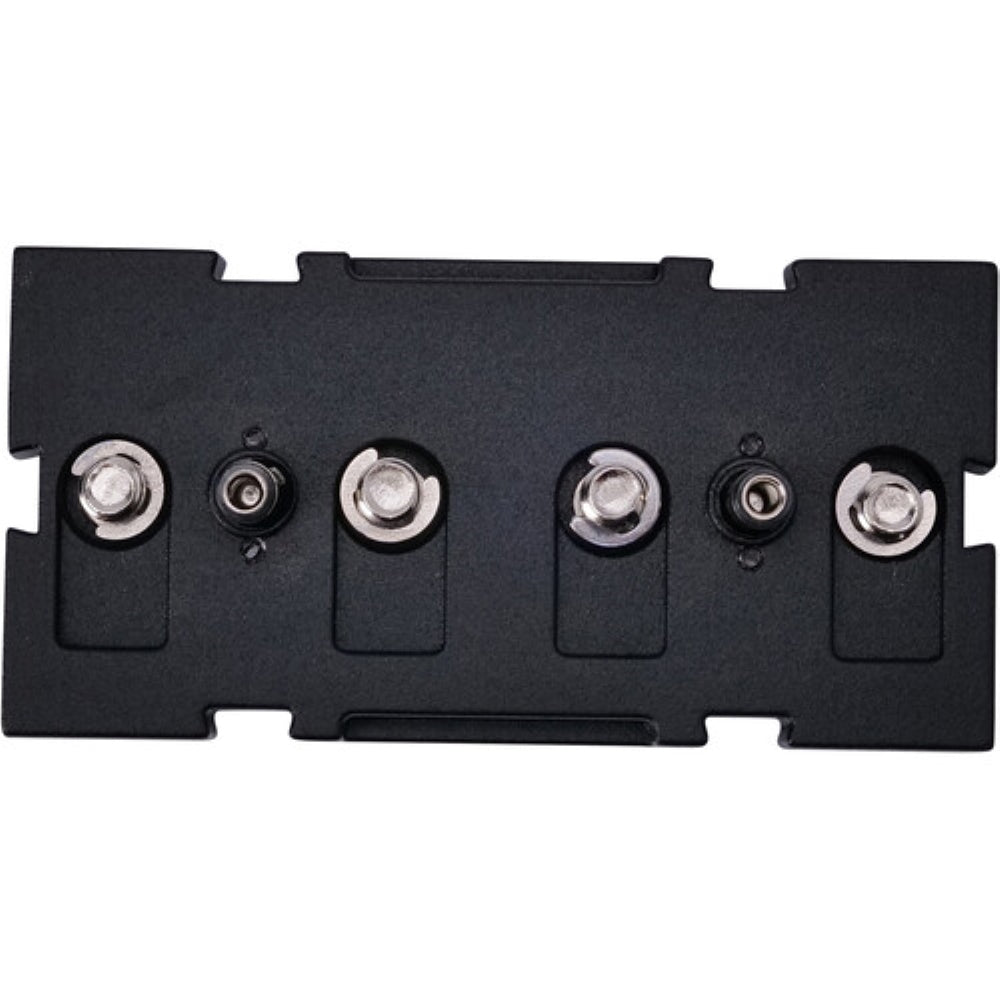

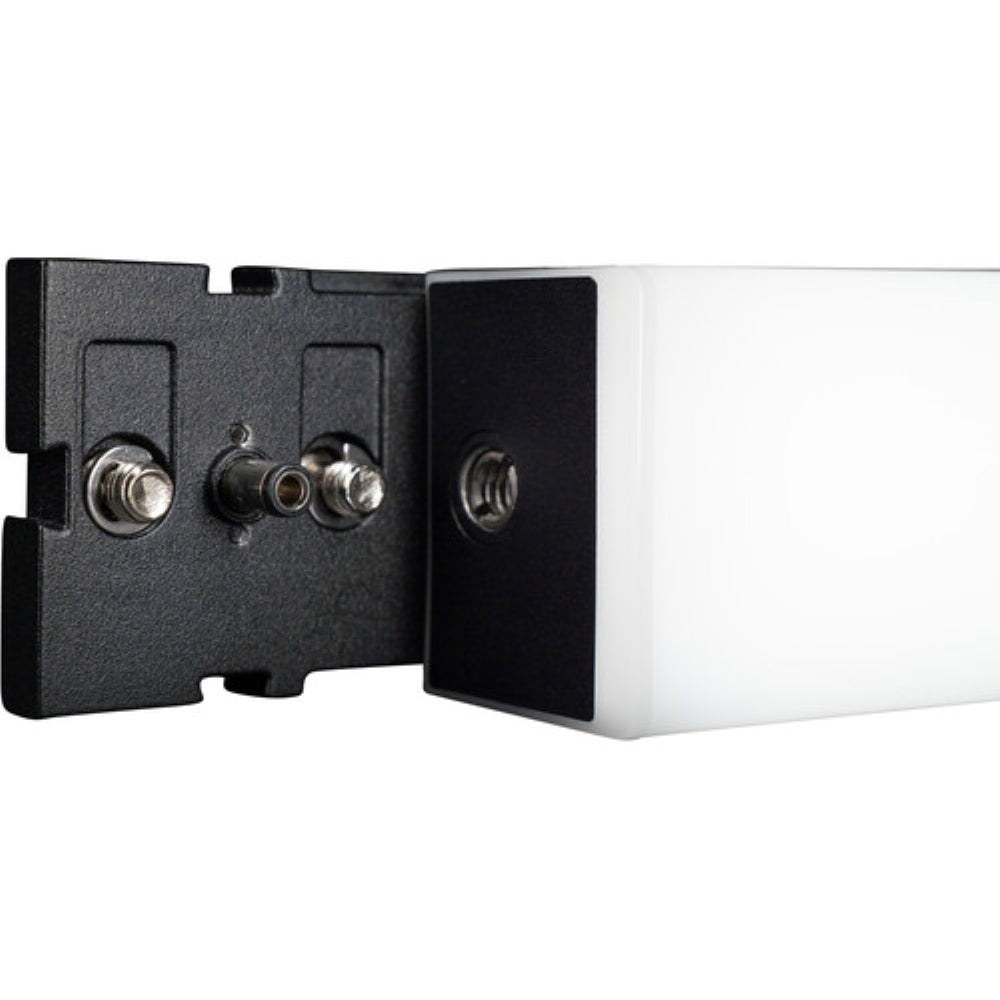

• Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)

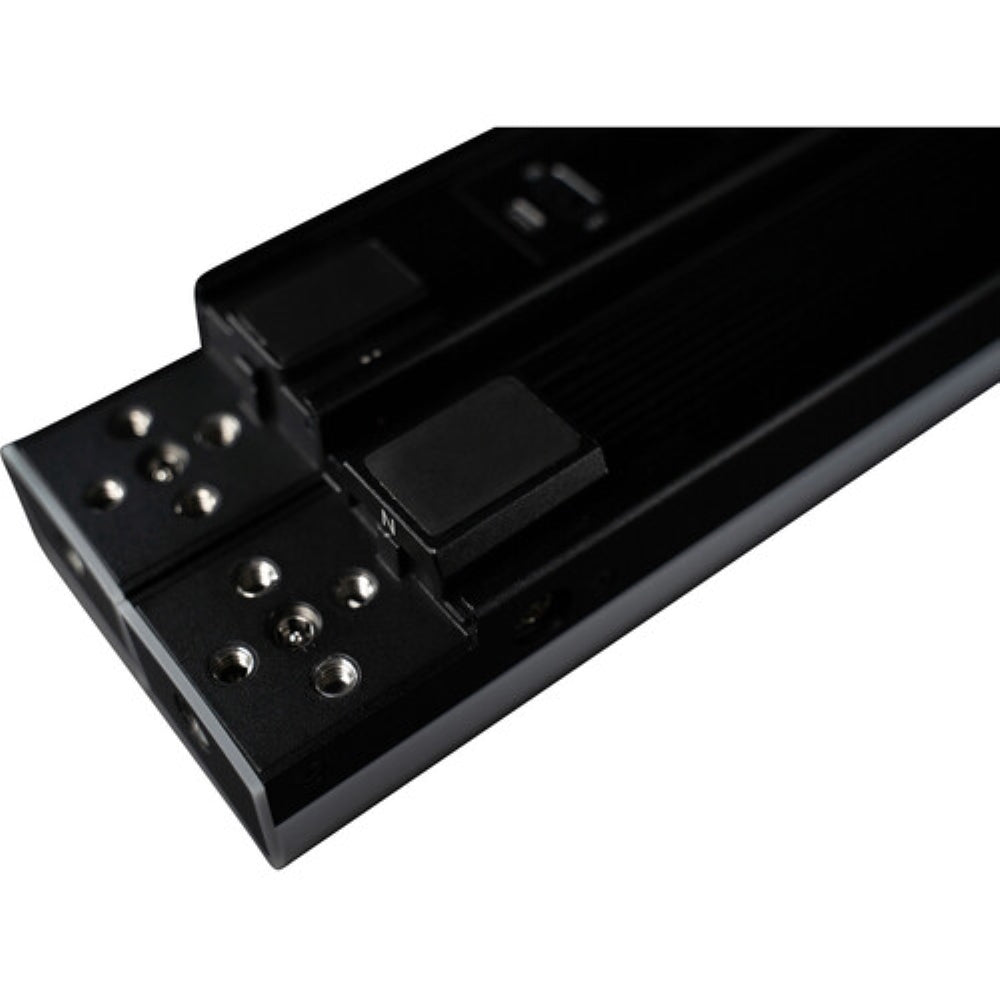

• Infinite blending design to reduce visible gaps when connecting multiple lights

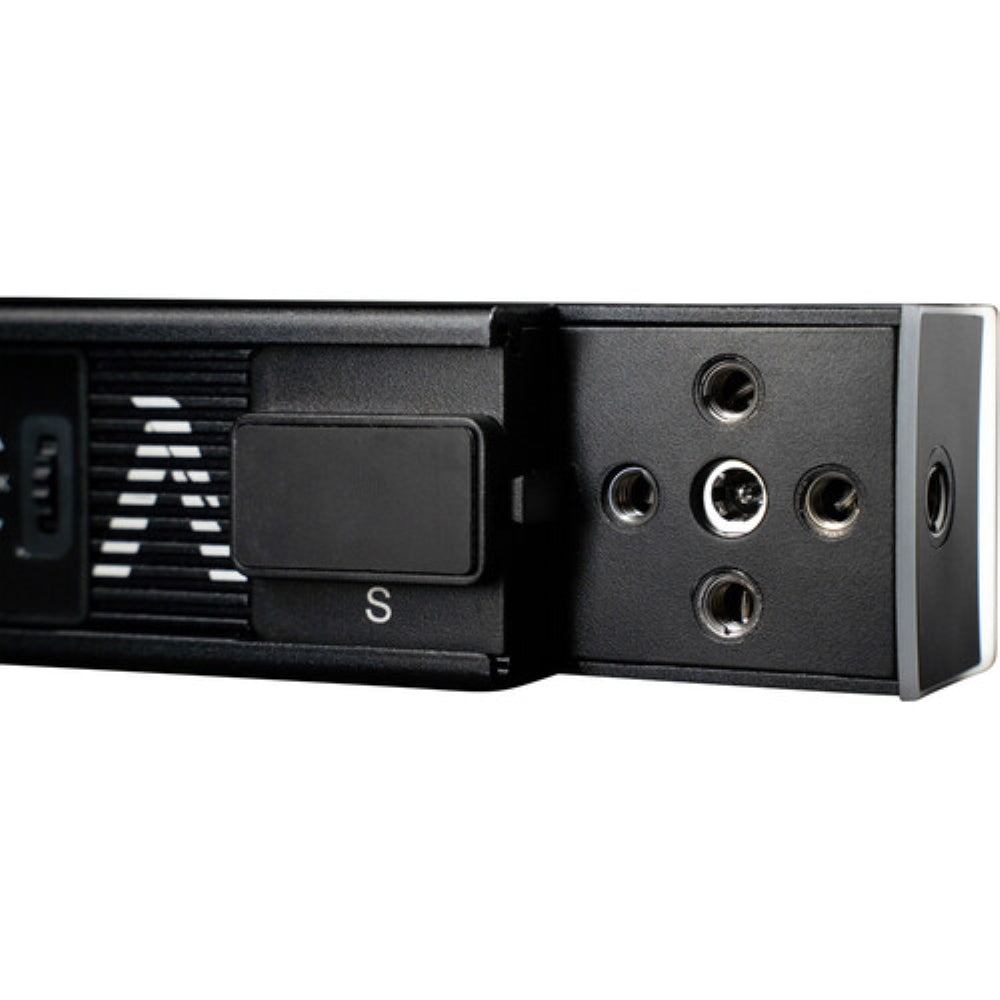

• Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system
