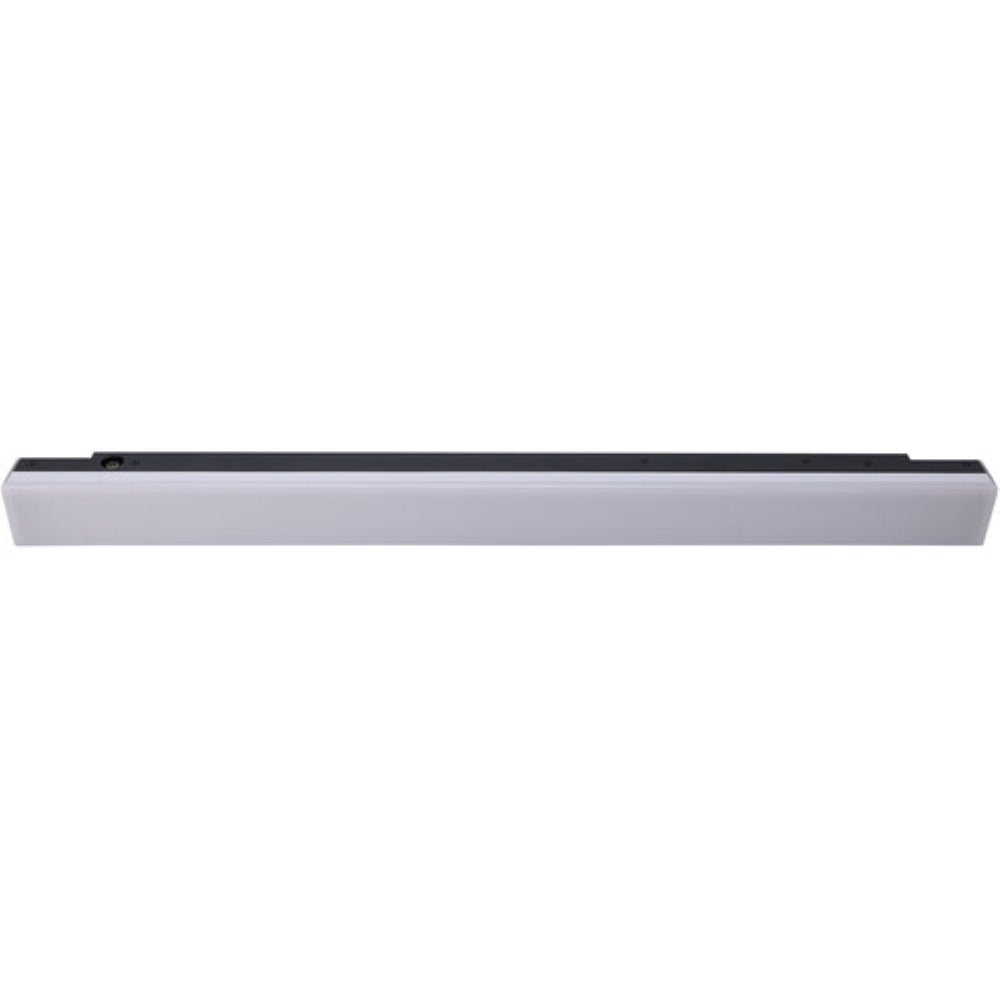

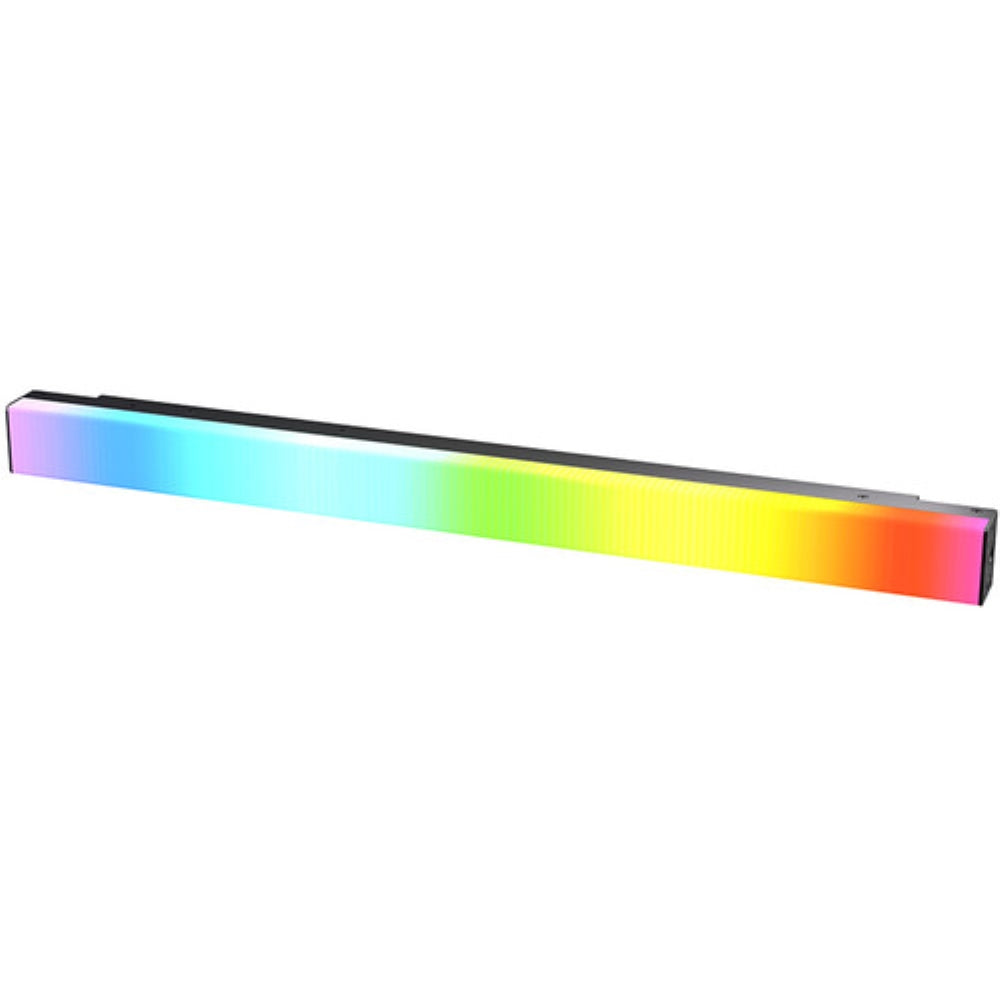

The 2' INFINIBAR PB6 RGB LED Light Panel from Aputure stands out as a versatile and precise lighting solution, ideal for professionals seeking dynamic and vibrant lighting designs. It boasts 48 pixels with exceptional color quality, achieving a CRI of 96 and TLCI of 98 across its various color modes. The INFINIBAR is engineered to function as a key light, seamlessly integrated into sets, or utilized with its connector ecosystem to craft innovative shapes and designs. Its proprietary RGBWW chipset allows for a color temperature range of 2000 to 10,000K, complete with full green-magenta adjustment. Additionally, it features advanced controls for hue, saturation, and intensity, enabling a broad spectrum of accurate and precise colors. Users can connect multiple INFINIBAR panels of any size using up to ten different connectors, which are sold separately, and synchronize them through the Sidus Link app, LumenRadio CRMX, or via wired DMX with an optional USB-C to DMX adapter.

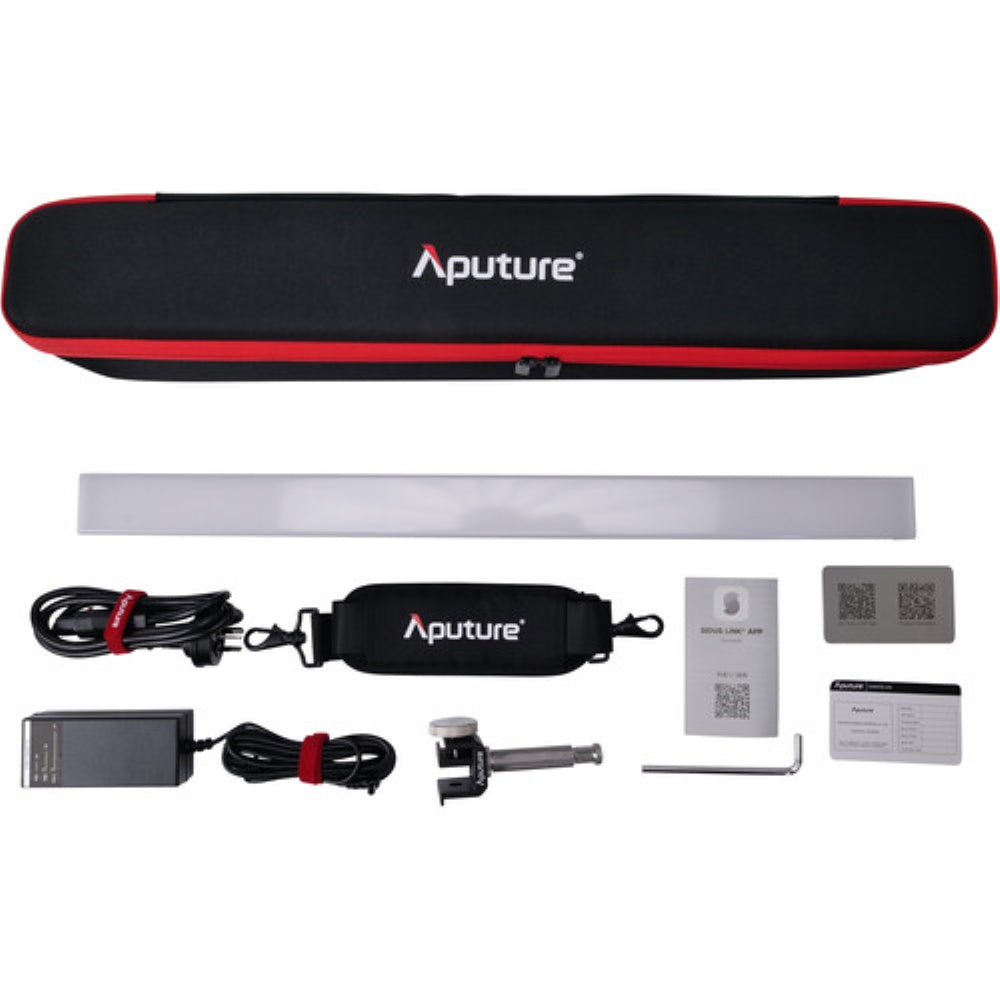

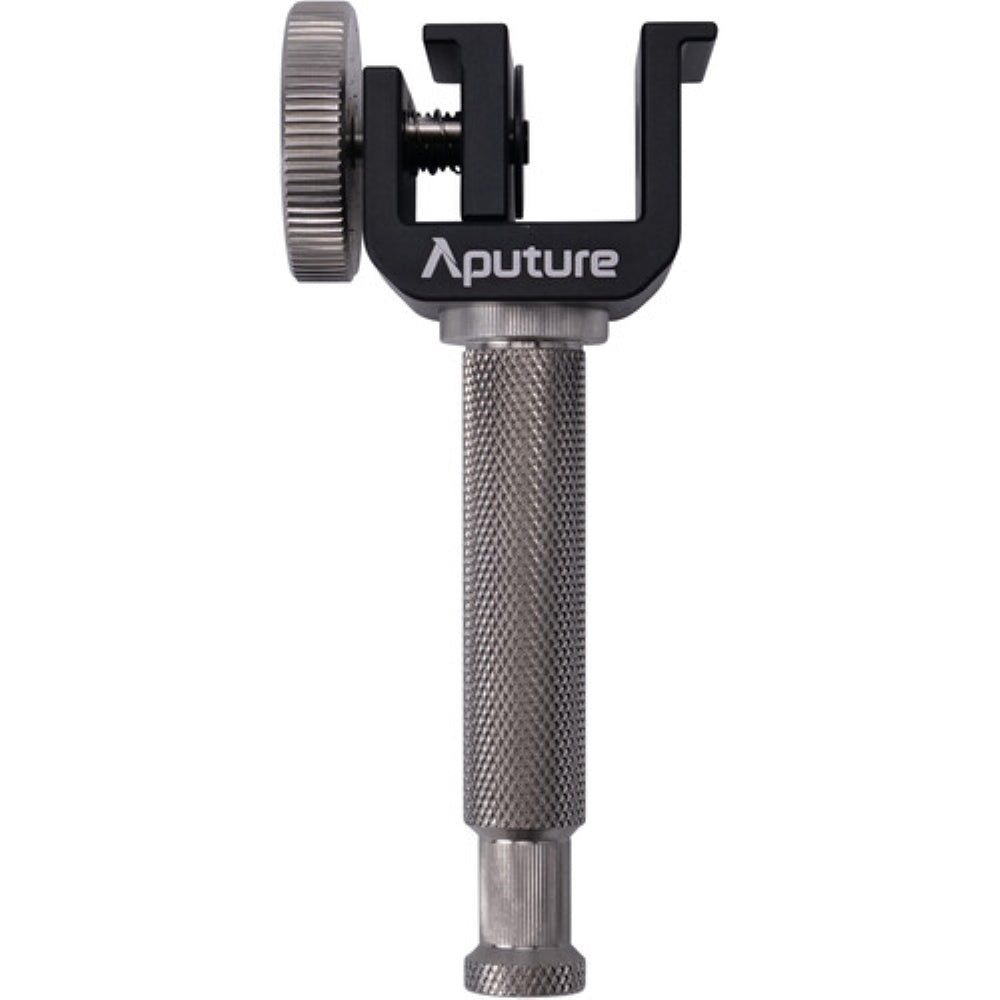

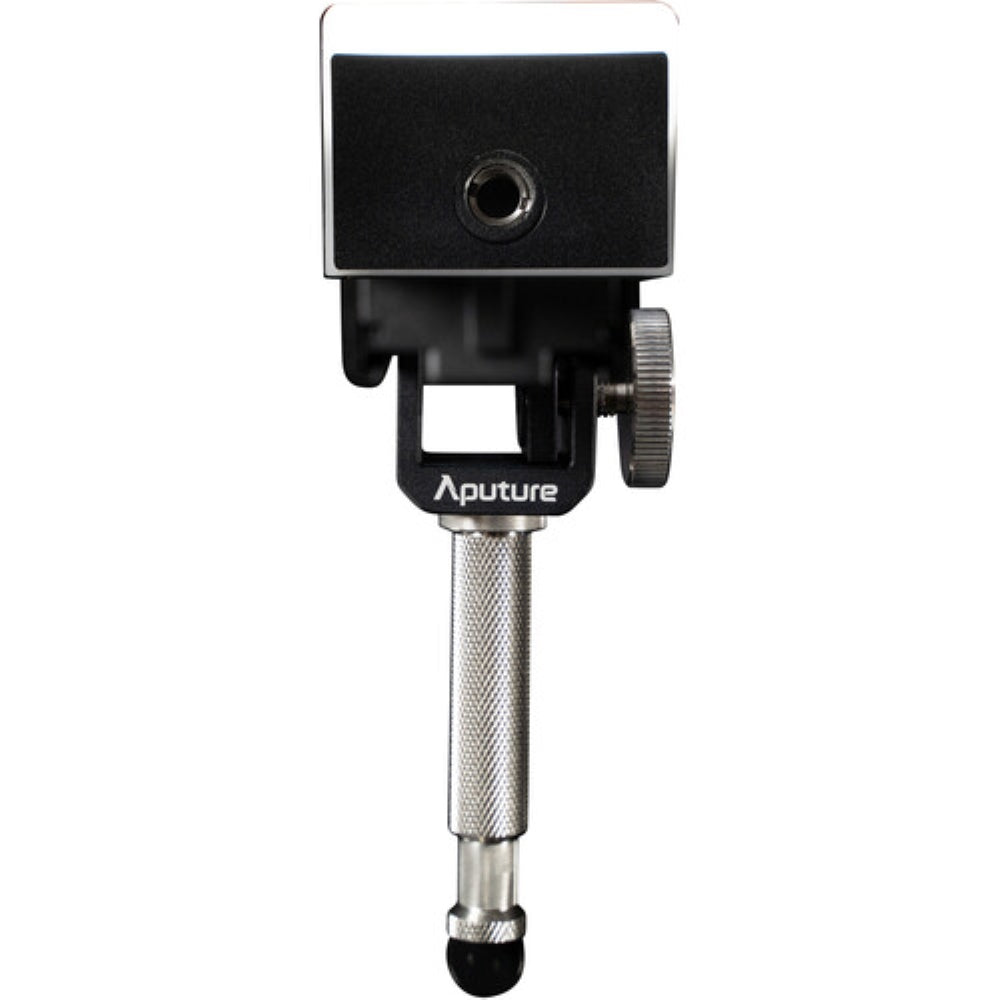

Weighing only 2.2 pounds, the INFINIBAR is constructed with a robust aluminum casing and comes with a Clamp to Baby Pin Adapter for mounting. It features two 1/4-20" female threads, magnetic spacers, and a Straight Connector compatible with the INFINIBAR Rail system. The device can be powered by its integrated lithium battery, which provides full brightness for 100 minutes, or through the supplied AC adapter. Additionally, several units can be connected to a single power supply using the power-sharing connectors.
Color
- Fully tunable correlated color temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
- High color standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
- Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colors within Rec.2020 color space
Output
- 2' 14W panel light with proprietary RGBWW chipset and 48 individual pixels (or lighting zones)
- 328 lux at 6500K
- 0 to 100% brightness control at increments of .1%
- Nine built-in lighting effects:
- Fireworks II
- Fire II
- Paparazzi II
- Faulty Bulb II
- TV III
- Pulsing III
- Cop Car III
- Lightning III
- Party II
- Seven pixel effects:
- Color Fade
- Color Cycle
- 1-Pixel Chase
- 2-Pixel Chase
- 3-Pixel Chase
- Rainbow
- Pixel Fire
Power

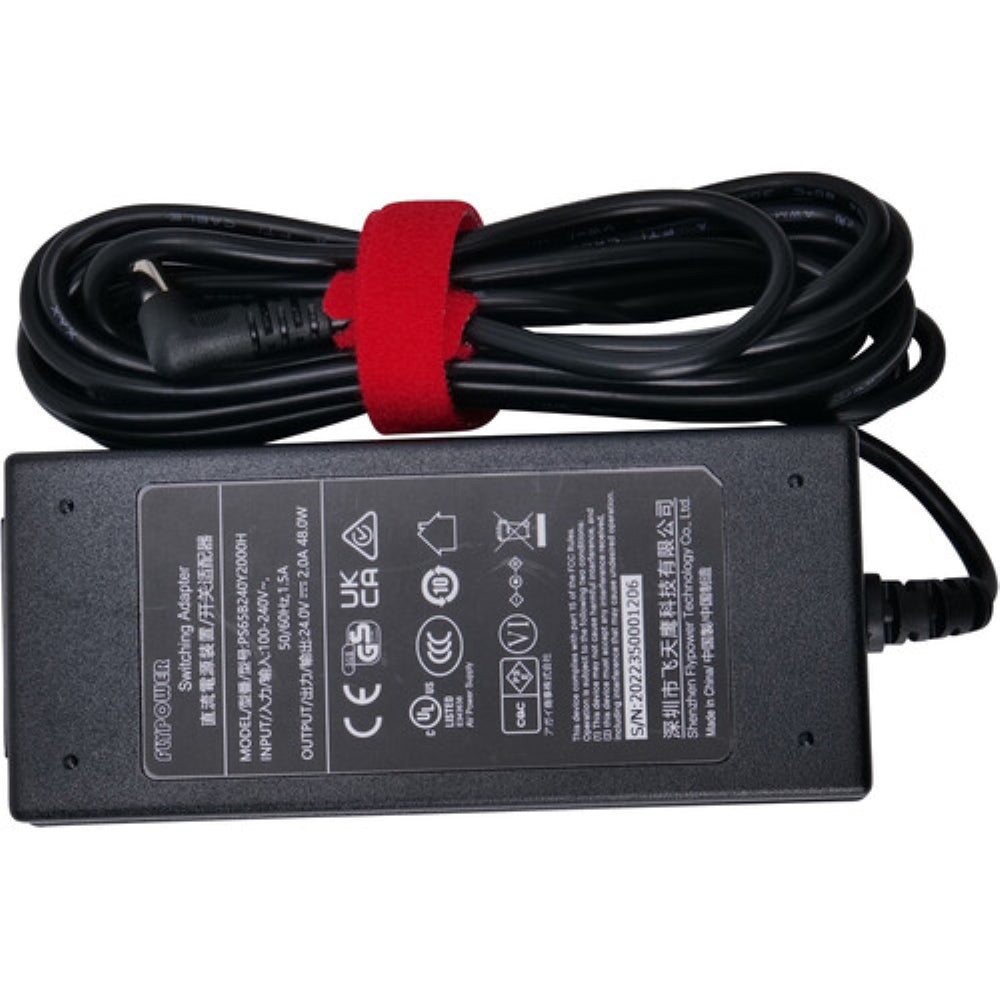

- AC adapter included
- Built-in 29.6Wh lithium battery lasts up to 100 minutes at maximum output
- Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours
- Share AC Power over multiple INFINIBARs with connector ecosystem
Connect and Control
- Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately

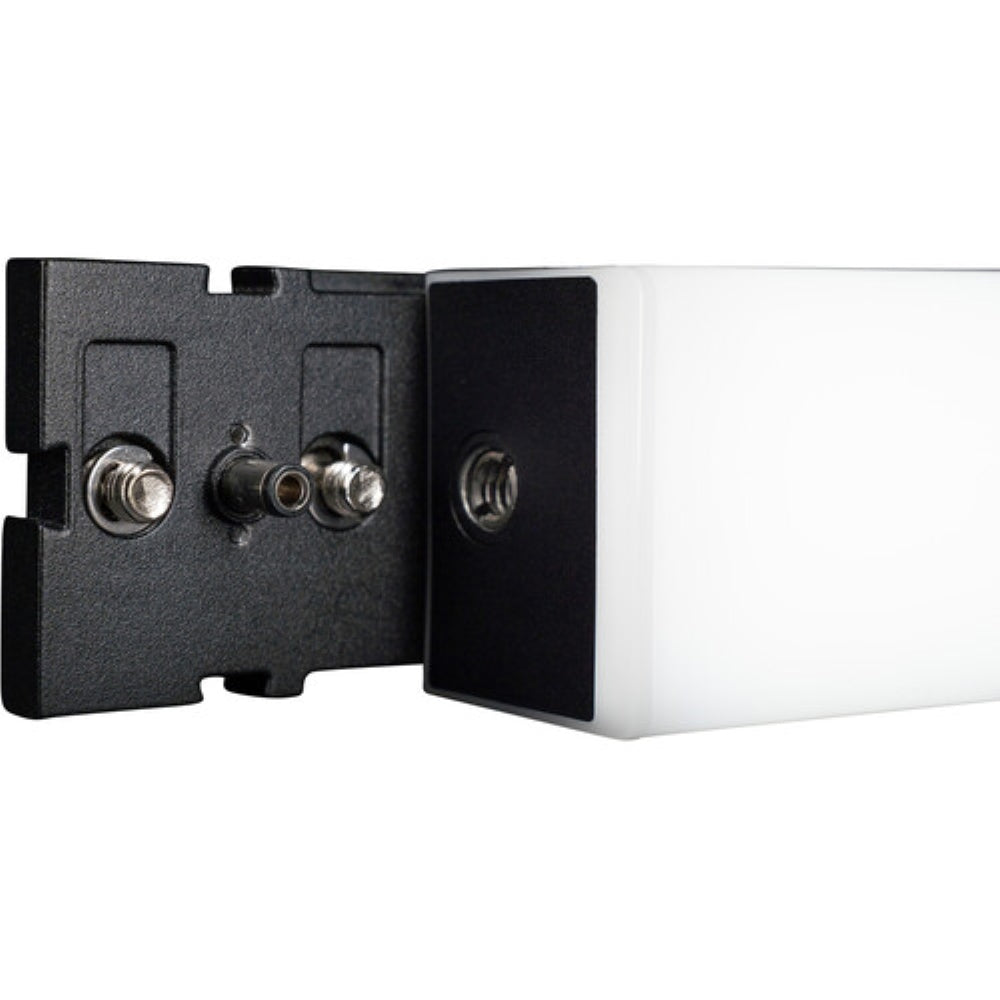

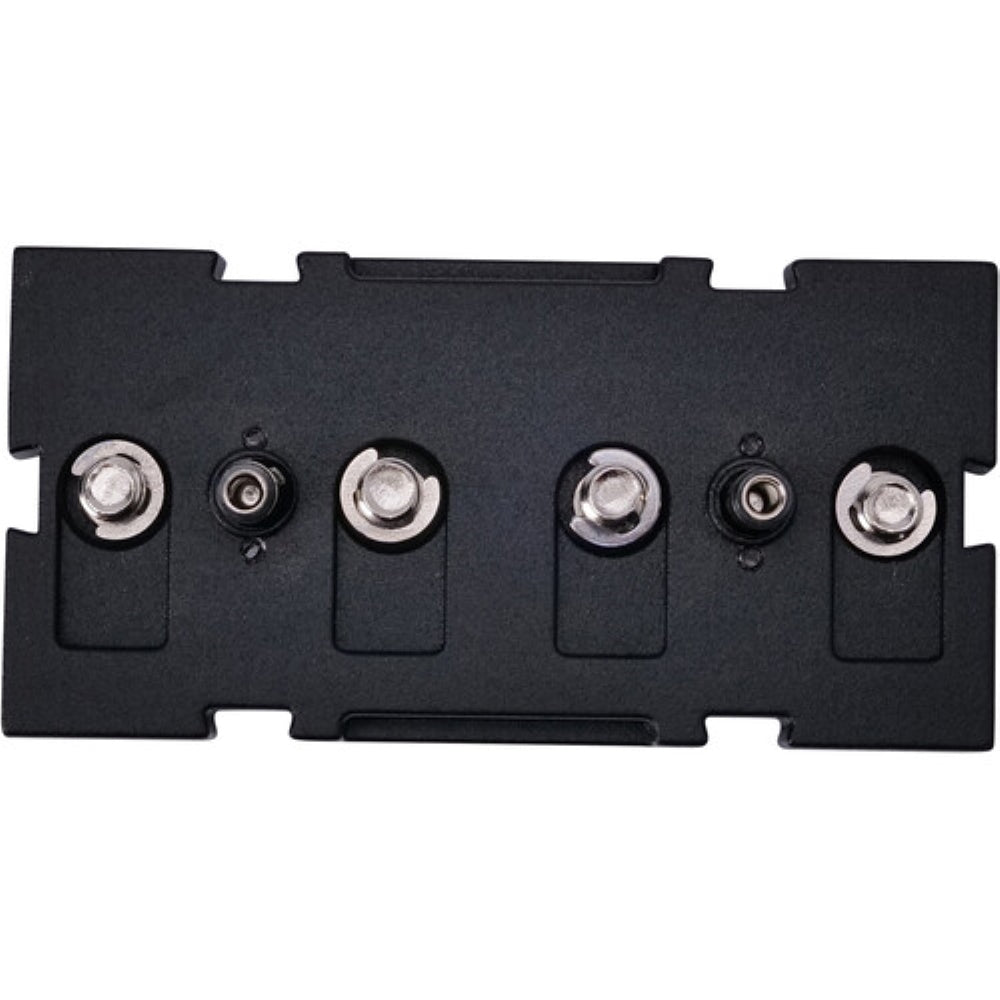

- Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)

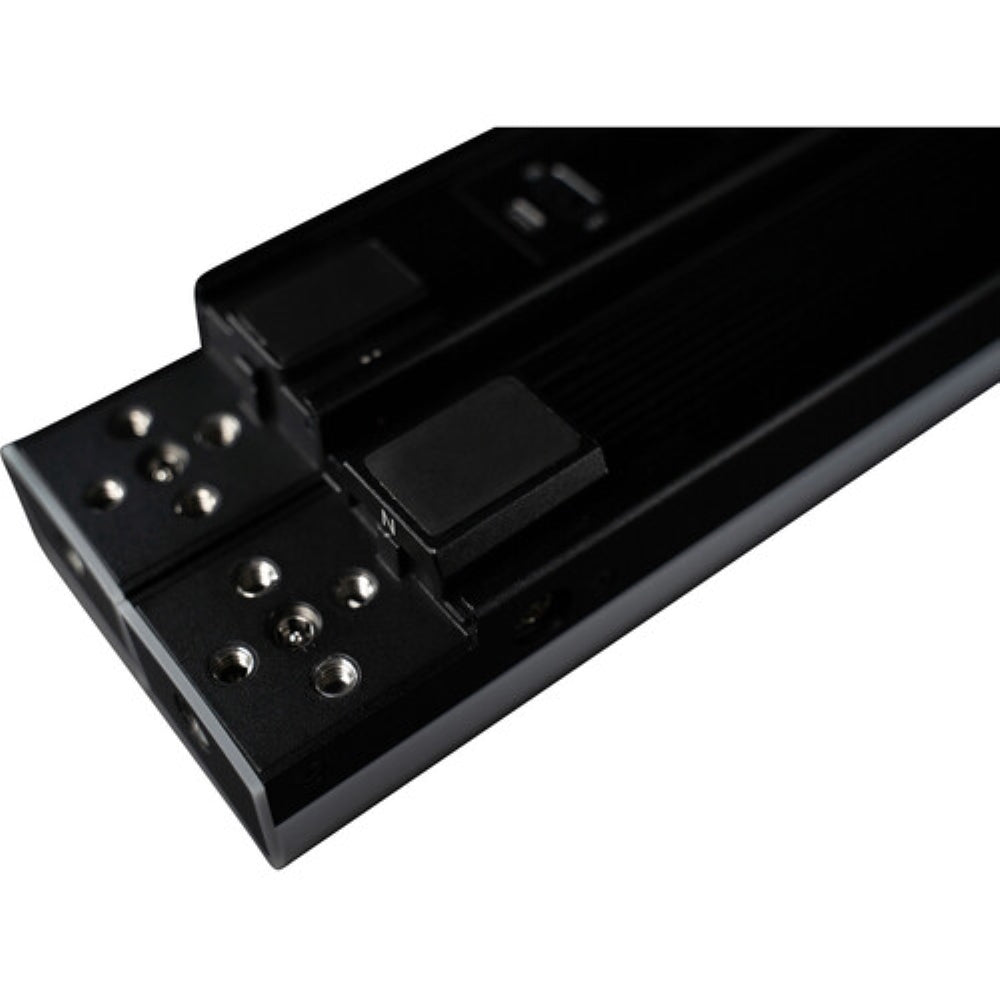

- Infinite blending design to reduce visible gaps when connecting multiple lights
- Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system
Light Fixture |
|
---|---|
Item Type | 1x LED Light Panel |
Included Storage Case | Yes |
Lumens | 1110 |
Photometrics | 120° at 3200K: 26 fc / 288 Lux at 3.3' / 1 m 87 fc / 940 Lux at 1.6' / 0.5 m 120° at 5600K: 29 fc / 317 Lux at 3.3' / 1 m 95 fc / 1026 Lux at 1.6' / 0.5 m |
Color Temperature | 2000 to 10,000K |
Color Modes | RGB, Daylight, Tungsten |
Color Accuracy Standard | CRI 96 TLCI 98 SSI 74 at 5600K SSI 85 at 3000K TM-30 Rf 94 TM-30 Rg 100 |
Dimming | Built-In Dimmer |
Cooling System | Passive |
Expected Lamp Life | 50,000 Hours |
Beam Angle | 120° |
Built-In Flash | No |
Pixel Zones | 48 |
Preprogrammed Effects | Yes |
Umbrella Mount | No |
Front Accessory Mount | No |
Connectivity |
|
---|---|
Wireless Remote Control Type | Bluetooth Wireless CRMX (LumenRadio) |
Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link |
Wireless Groups | No |
Wireless Range | 262.5' / 80 m (Bluetooth) |
Power & I/O |
|
---|---|
Power Source | AC Power (Cable Included) Battery (Built-In) |

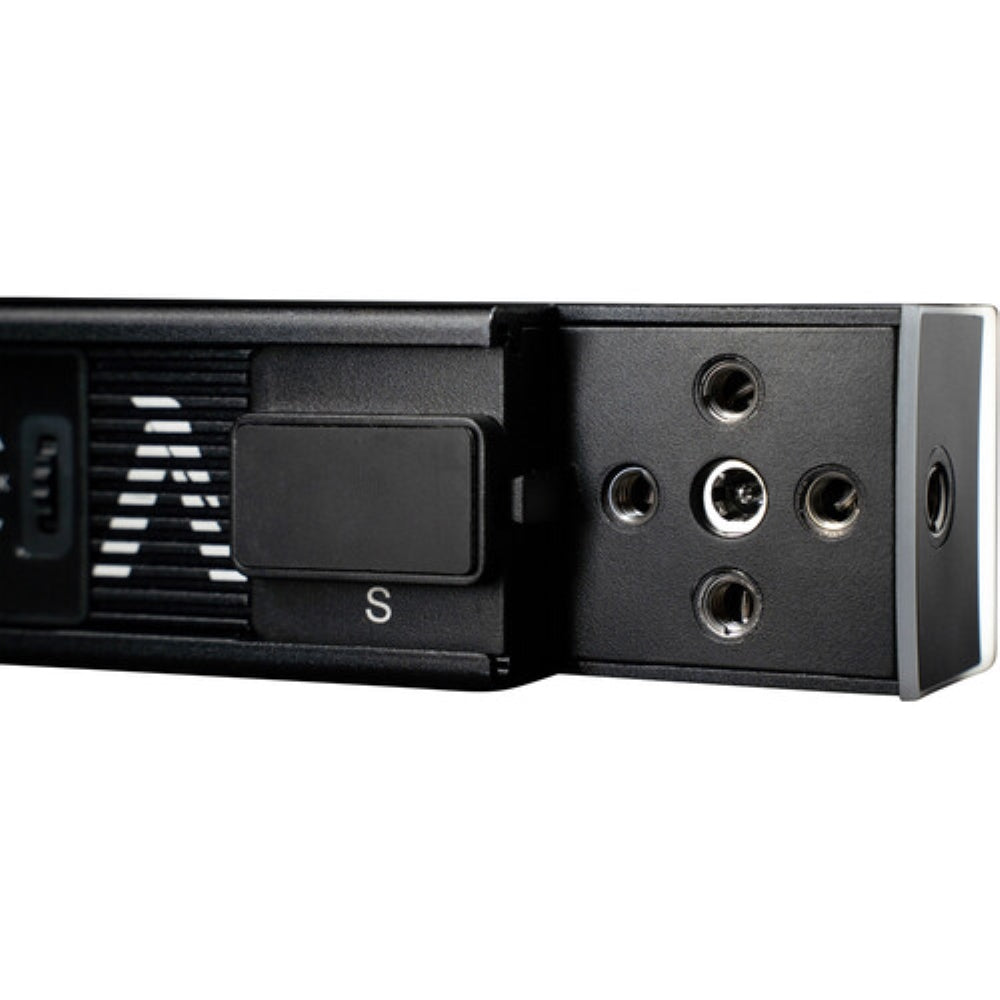

Inputs/Outputs | 1x Barrel / Coax Power Input 2x Barrel / Coax Power Input/Output 1x USB-C DMX/Firmware Input |
Battery | 1x Proprietary Rechargeable Lithium (Built-In) • Up to 80-Minute Runtime at 100% Brightness • 150-Minute Charge Time |
Battery Charging | AC to DC Adapter (Included) |
Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A 24 VDC at 1.8 A |
Included Adapter / Cable | 1x USA Type-A/B to Barrel / Coax AC to DC Adapter |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 18 W |
Mounting |
|
---|---|
Fixture Mounting | Support Mount 2x 1/4"-20 Female Thread |
General |
|
---|---|
Display | OLED |
Environmental Resistance | No |
Operating Conditions | 14 to 113°F / -10 to 45°C |
Dimensions | 23.8 x 1.8 x 1.7" / 60.4 x 4.5 x 4.3 cm |
Weight | 2.2 lb / 1 kg (Fixture) |
