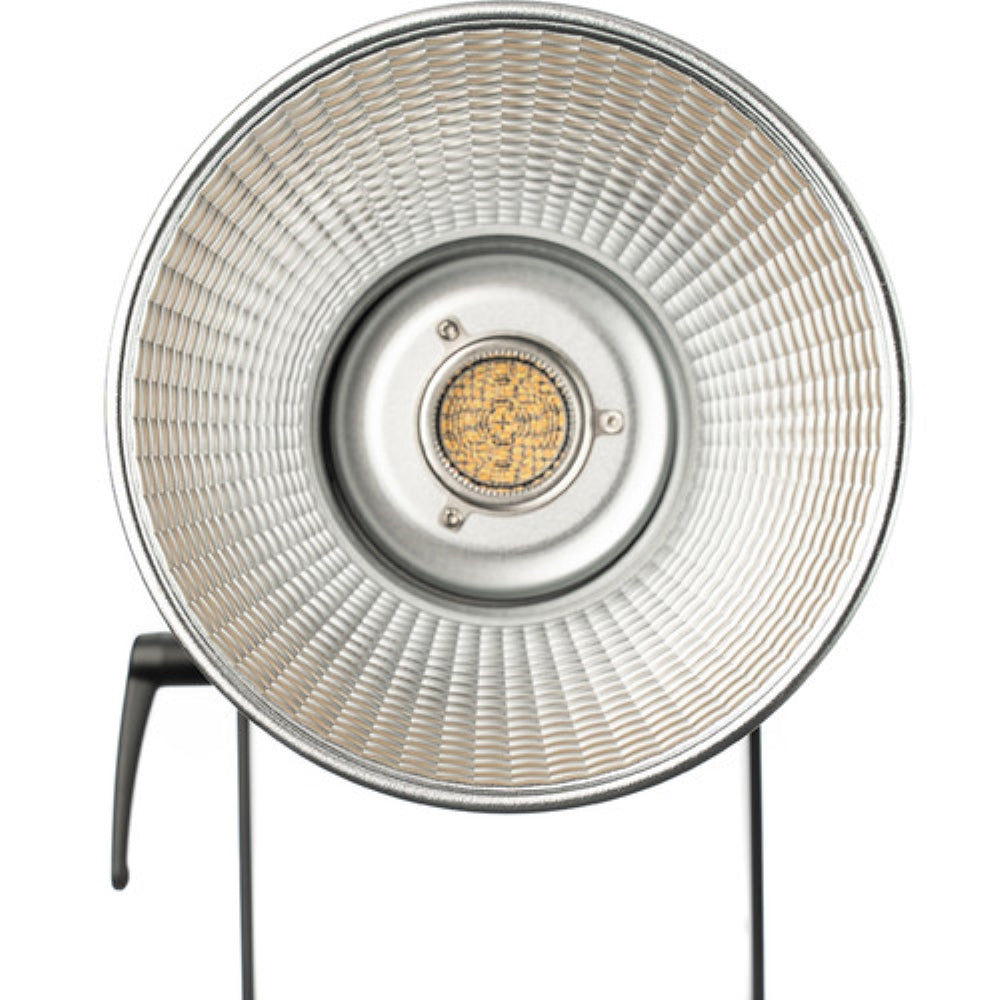

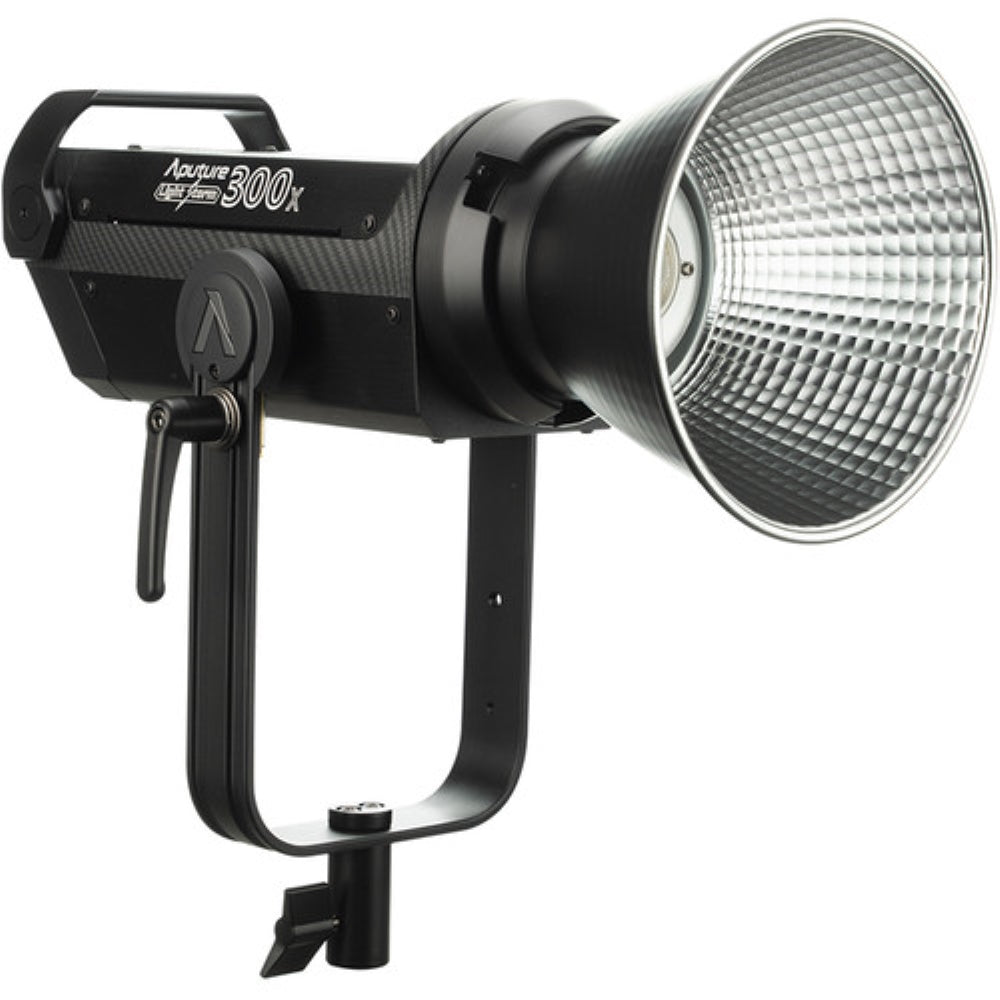

The Aputure LS 300x Bi-Color LED Monolight represents a significant advancement in bi-color lighting technology, featuring an extensive vari-white CCT range of 2700-6500K. This allows for the production of warmer tungsten hues as well as cooler daylight whites. The light's intensity can be adjusted seamlessly, transitioning from a powerful primary source to a delicate fill light, all while maintaining a flicker-free performance throughout its dimming capabilities. With the included 55° Hyper Reflector, it can achieve an impressive output of up to 20,500 lux at a distance of 3.3 feet. The Controller Box, which connects to the LS 300x head via a 9.8-foot extension cable, facilitates easy adjustments to settings, regardless of the light's position. Additionally, the self-regulating, multi-voltage controller is compatible with single or dual V-mount batteries, making it ideal for use in remote environments.
Robust Bi-Color Performance
The integration of advanced optical color-blending technology with Aputure's dual-color LED chipset offers remarkable versatility from a single LED fixture. A uniquely engineered color-blending optical component positioned in front of the chipset merges the LED output into a unified point light source. The light output is highly efficient, achieving a CRI of 96, a TLCI of 96, and surpassing the industry benchmarks with SS1 at 85 and D55-SSI at 74. Such efficiency ensures that colors and skin tones are rendered with an exceptional level of precision.
Local Control, DMX, 2.4 GHz Wireless, and Bluetooth Remote Control Options

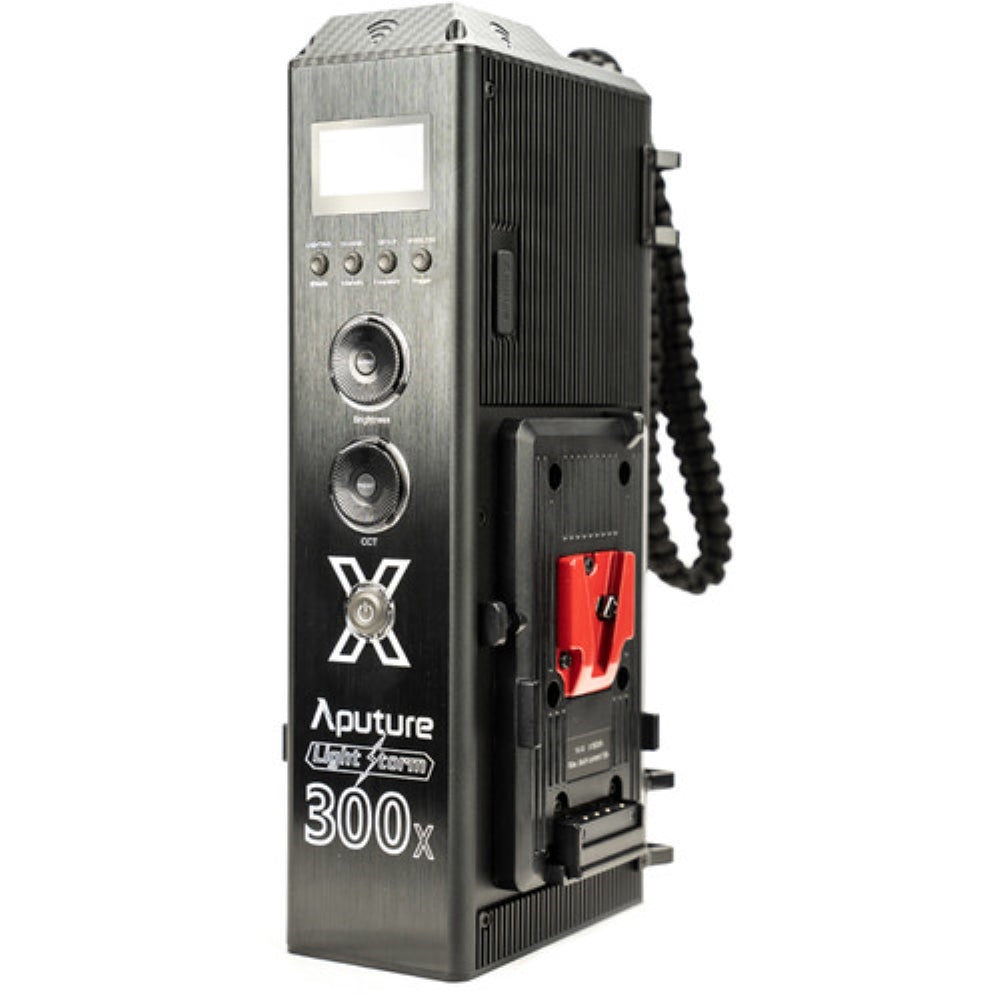

The Controller Box features user-friendly local controls and a vibrant LCD display, enabling accurate and consistent setups on-site. Furthermore, the output can be managed through the provided 2.4 GHz wireless remote, or the light can be connected to a DMX network using the 5-pin XLR in/out ports. Additionally, with Aputure's integrated Sidus Mesh network chipset, all functions of the 300x can be accessed via the Sidus Link app, which is available for free download on iOS and Android devices. The app facilitates the saving of presets, adjustment and triggering of lighting effects, luminance, and CCT, as well as the installation of firmware updates, all conveniently from a smartphone or tablet.
Dual Output Modes
Constant Output Mode allows precision CCT adjustment while maintaining constant luminance, and even shift color temperature seamlessly during a scene. Max Output Mode will maximize CCT and dimming levels within the 4000-5500K range.
Bowens S-Mount Versatility
The Bowens-S mount, designed for integration, facilitates the use of a vast array of modifiers, enabling users to narrow, diffuse, or shape the light in various ways to meet diverse applications or artistic intentions.
Four Available Dimming Modes
- Linear
- Exponential
- Logarithmic
- S-Curve
5 Available Common CCT Presets
- 2700K
- 3200K
- 4200K
- 5500K
- 6500K
Nine Customizable Built-In Lighting Effects
- Paparazzi
- Fireworks
- Lightning
- Faulty Bulb
- TV
- Pulsing
- Strobe
- Explosion
- Fire
Light Fixture |
|
---|---|
Item Type | 1x LED Monolight |

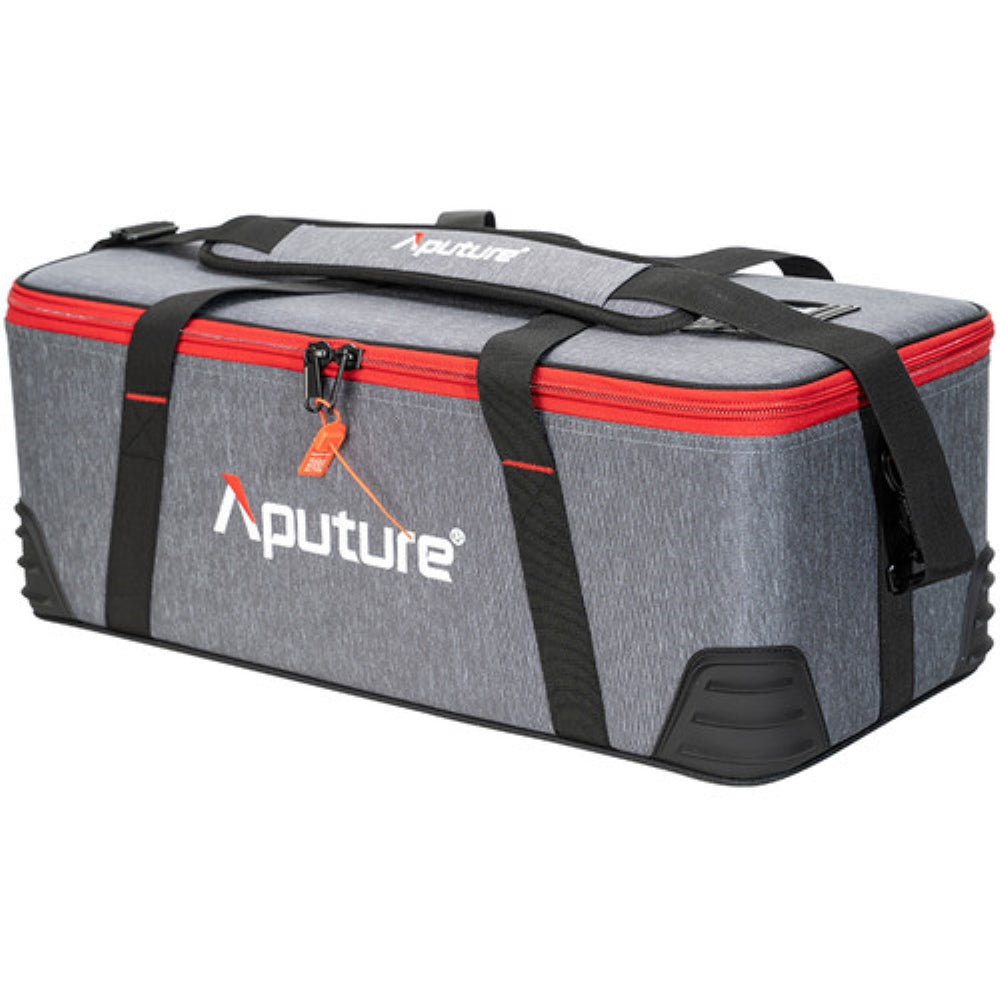

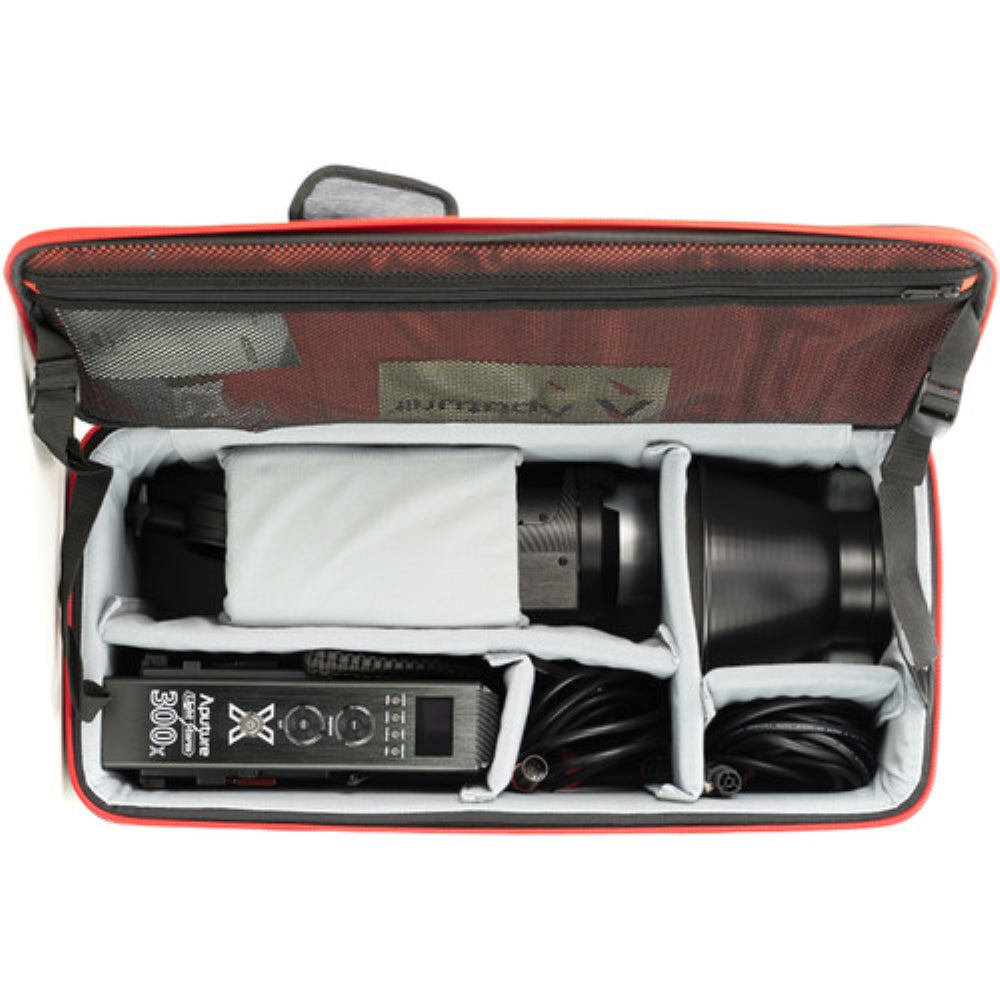

Included Storage Case | Yes |
Lumens | 56,000 |
Photometrics | 105° at 3200K: 473 fc / 5100 Lux at 3.3' / 1 m 53 fc / 580 Lux at 9.8' / 3 m 20 fc / 220 Lux at 16.4' / 5 m 105° at 5600K: 585 fc / 6300 Lux at 3.3' / 1 m 65 fc / 700 Lux at 9.8' / 3 m 23 fc / 250 Lux at 16.4' / 5 m 3200K: 1504 fc / 16,200 Lux at 3.3' / 1 m (with Reflector) 120 fc / 1300 Lux at 9.8' / 3 m (with Reflector) 41 fc / 450 Lux at 16.4' / 5 m (with Reflector) 5600K: 1904 fc / 20,500 Lux at 3.3' / 1 m (with Reflector) 157 fc / 1700 Lux at 9.8' / 3 m (with Reflector) 51 fc / 550 Lux at 16.4' / 5 m (with Reflector) |
Color Temperature | 2700 to 6500K |
Color Modes | Daylight, Tungsten |
Color Accuracy Standard | CRI 96 TLCI 96 CQS 95 |
Dimming | App-Controlled / Controller Included / DMX (Continuous) • 0 to 100% |
Cooling System | Fan |
Beam Angle | 105° |
Built-In Flash | No |
Preprogrammed Effects | Yes |
Umbrella Mount | No |
Front Accessory Mount | Bowens S |
Connectivity |
|
---|---|
Wireless Remote Control Type | Bluetooth Radio/RF *Remote Included |
Mobile App Compatible | Yes: Android & iOS App Name: Sidus Link Functionality: Remote Control |
Wireless Channels | 3 |
Wireless Groups | 4 |
Wireless Frequency | 2.4 GHz |
Wireless Range | 328.1' / 100 m |
Power & I/O |
|
---|---|
Power Source | AC Power (Cable Included) Battery (Not Included) |
Inputs/Outputs | Light Fixture 1x XLR 5-Pin Power Input Power Supply/Controller 1x powerCON Power Input 1x XLR 5-Pin Power Output 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |

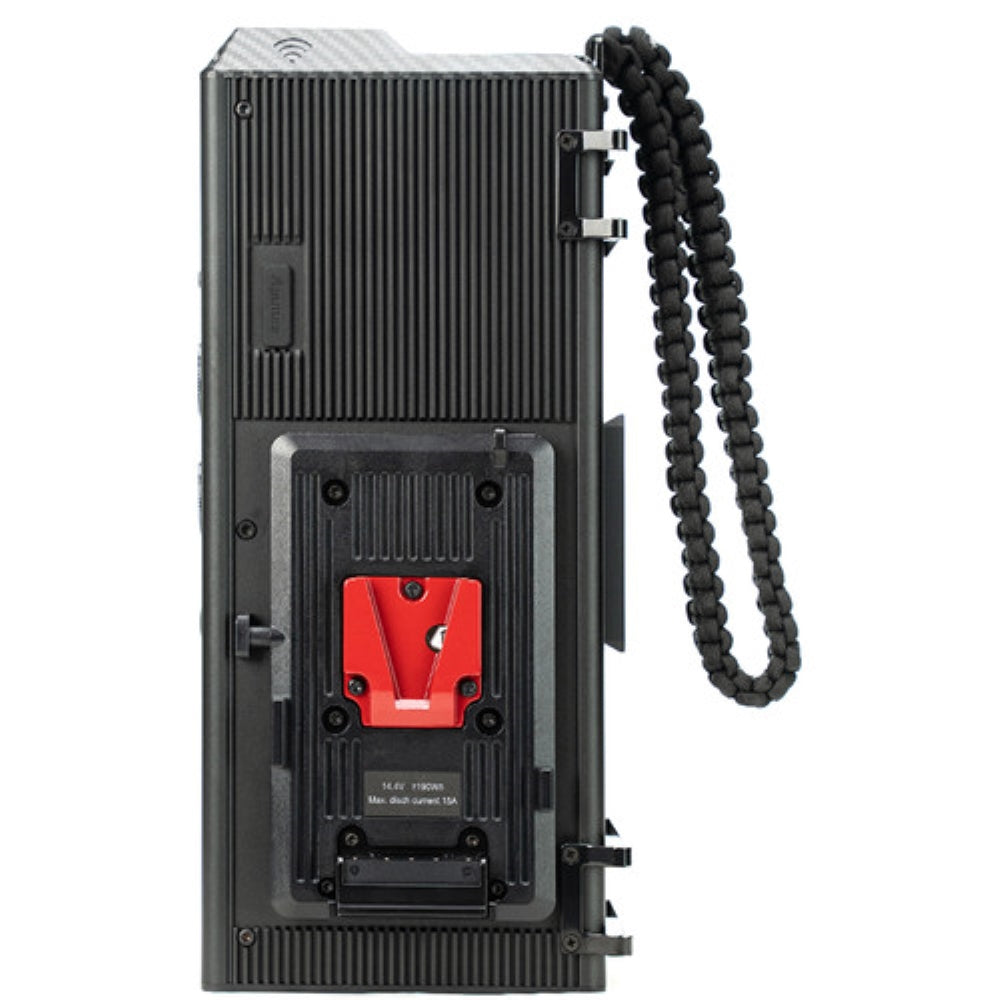

Battery Plate Type | 2x V-Mount (Built-In) |
Battery | 2x V-Mount Rechargeable, 14.4 VDC (Not Included) |
Input Power | 100 to 240 VAC, 50 / 60 Hz |
Included Adapter / Cable | 1x USA Type-A/B to powerCON Cable (19.7' / 6 m) 1x XLR 5-Pin Male to XLR 5-Pin Female Cable (9.8' / 3 m) |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 350 W |
Mounting |
|
---|---|
Yoke Type | Manually-Operated Yoke (180° Tilt) |
Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
General |
|
---|---|
Display | LCD |
Environmental Resistance | No |
Certifications | RoHS, CE, CE RED, KC, PSE, FCC, cTUVus |
Materials | Aluminum (Housing) |
Dimensions | 11 x 5 x 3.8" / 27.9 x 12.7 x 9.7 cm ( Power Supply / Controller ) 13.6 x 11.7 x 8.5" / 34.5 x 29.8 x 21.6 cm ( Fixture ) |
Weight | 25.13 lb / 11.4 kg |
