Atomos Ninja 5.2" 4K HDMI Recording Monitor

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja 5.2" 4K HDMI Recording Monitor is a 5.2" on-camera monitor and recorder ideal for use on your next set. This monitor supports DCI 4K HDMI footage and can even record ProRes RAW up to 6K with compatible cameras. The Ninja retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your preexisting equipment.

AtomOS 11 Operating System

Designed specifically for the latest Ninja, the AtomOS 11 operating system enhances your monitor with advanced features and a refined icon interface for a more user-friendly experience. It offers a variety of monitor assistance functions, including Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colorized exposure, Safe Areas, RecordAssist, PlayBackAssist, SegmentPro, and Cine Guides. Additionally, the AtomHDR processing engine facilitates real-time Log to PQ/HLG previewing.

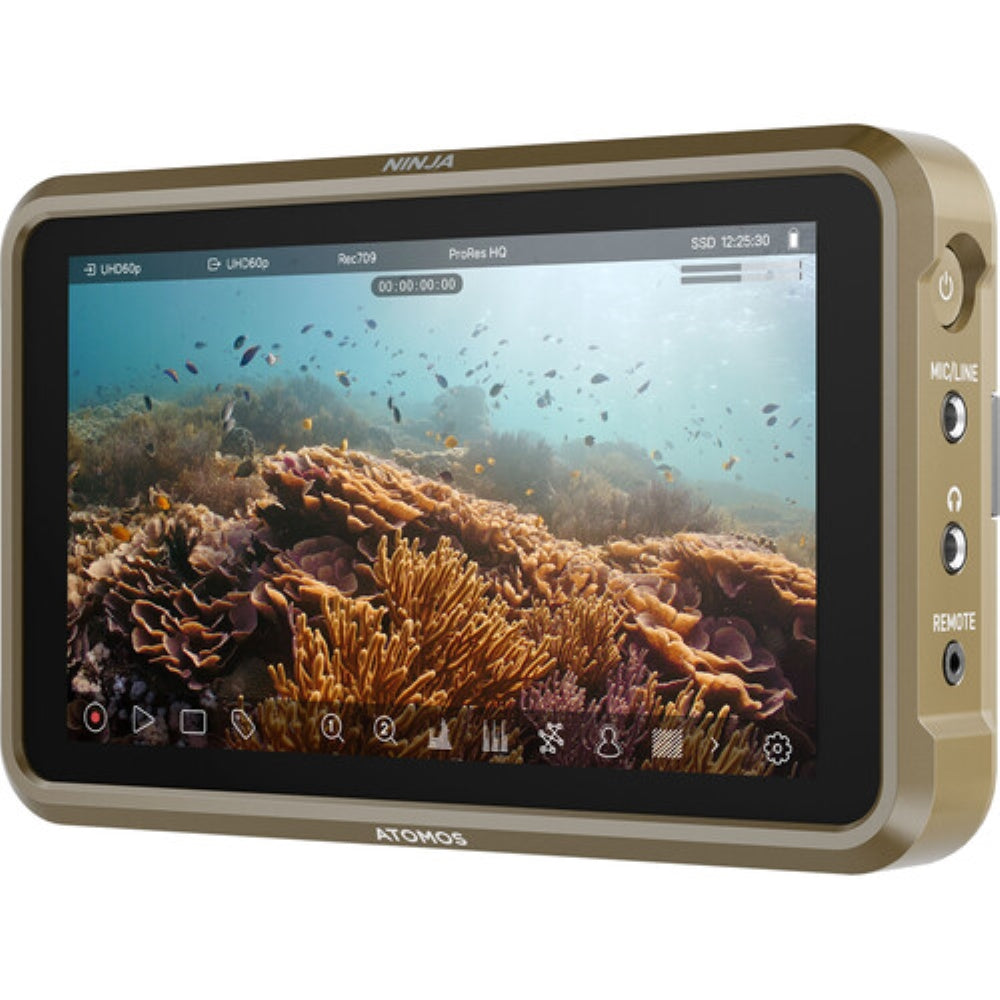

5.2" Touchscreen Display

The Ninja is equipped with a 5.2-inch IPS touchscreen that boasts a resolution of 1920 x 1080 and a brightness level of 1000 cd/m², making it suitable for use in bright daylight conditions. Its 10-bit color processing, adherence to the Rec.709 color gamut, and compatibility with Calibrite ColorChecker Display Pro/Plus calibration facilitate precise color accuracy and high-quality monitoring of your footage.

Comprehensive Color

The Ninja supports the use of select Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon log formats. Upload custom 3D LUTs to the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

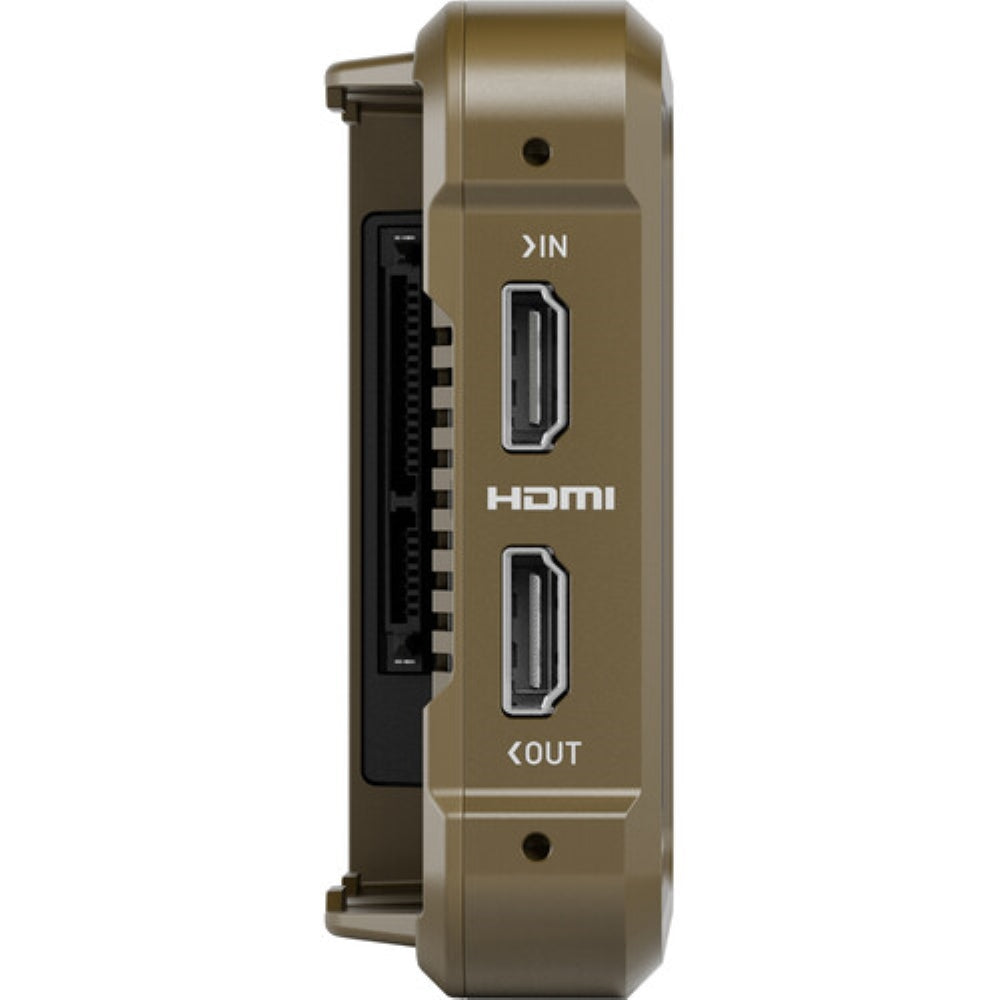

HDMI Interface, ProRes RAW Recording

The HDMI input and output ports of the Ninja are capable of handling DCI 4K video at 60 frames per second across monitoring, recording, and playback functionalities. Additionally, select cameras are compatible with 3.5K RAW footage at 60 frames per second. The Ninja supports RAW recording via HDMI for over 55 different camera models, accommodating resolutions up to 6K at 30 frames per second.

Record 4K HDR Gaming

The Ninja can be configured as a stand-alone system for UHD 4K, HDR, and high frame rate gaming capture. Record, monitor, and instantly review your gameplay for posting to YouTube or other platforms.

Optional Atomos CONNECT Module

The Ninja is compatible with the separately available Atomos CONNECT module to access cloud workflows like C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. The CONNECT module adds 12G-SDI connectivity, AirGlu wireless timecode and control, Wi-Fi 6, and GigE Ethernet to your monitor interface. This allows you to send video signals to live streaming platforms, via NDI, and to custom RTMP/S destinations. You can also convert HDMI to SDI and SDI to HDMI video using the CONNECT module.

AtomX Cast

Utilize the AtomX CAST to convert your Ninja into a compact, fully equipped production studio. This device facilitates sophisticated multi-input switching from four 1080p HDMI sources, allows for the integration of graphic overlays, and provides the option to employ a USB UVC webcam output, thereby enhancing web conferencing and live streaming capabilities.

SSD Recording

The Ninja is designed to work seamlessly with the Atomos Master Caddy II and Master Caddy III 2.5" hard drive units, enabling direct recording to these drives. Additionally, recording is possible on compact AtomX SSDmini drives and CFAST II cards by utilizing a separately sold adapter.

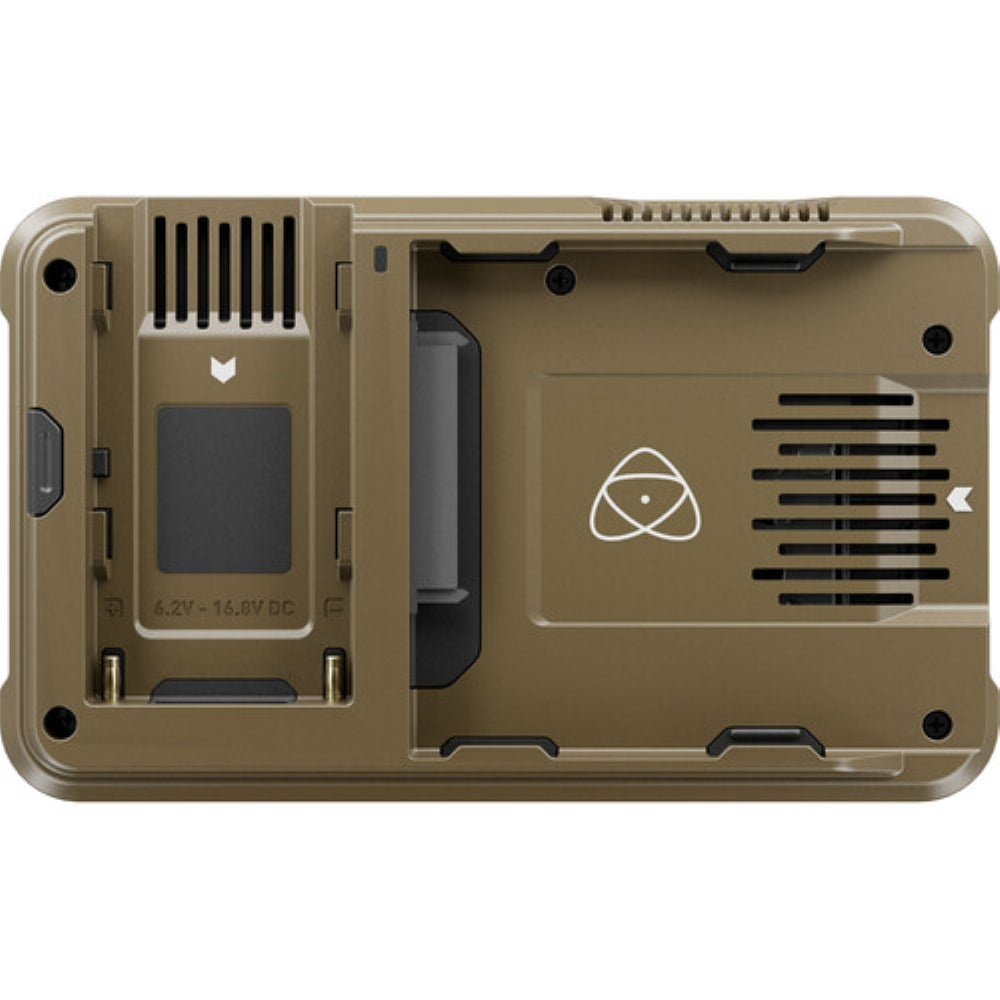

Power Options

An L-series battery plate on the back of the Ninja can support NP-F L-series batteries outputting 5.8 to 7.2V. A USB-C port supports 30W PD power delivery with the included cable. Use the included dummy eliminator to power the monitor via DC power sources.

Control Options

• Multifunction control buttons work in tandem with the touchscreen interface for intuitive onboard control.


• Auto HDMI camera trigger is supported by Canon and Sony cameras using Atomos Open Standard.


• Unlock Bluetooth and RF-driven remote control with the optional CONNECT module.


• LANC control and calibration can be accessed using a separately available USB-C to serial connection cable.
