Atomos Shogun 7 HDR Pro/Cinema Monitor-Recorder-Switcher

The 7" Shogun HDR Classic Cinema Monitor-Recorder-Switcher represents one of the newest additions to the Atomos Shogun series of onboard camera video monitor-recorders. This versatile device combines monitoring, recording, and switching functionalities into a single, compact unit. With an exceptionally bright display of 3000 cd/m², it supports input of DCI/UHD 4K60 video and is equipped with both HDMI and SDI input and output options, making it an ideal choice for cinema capture, live events, and broadcast productions.

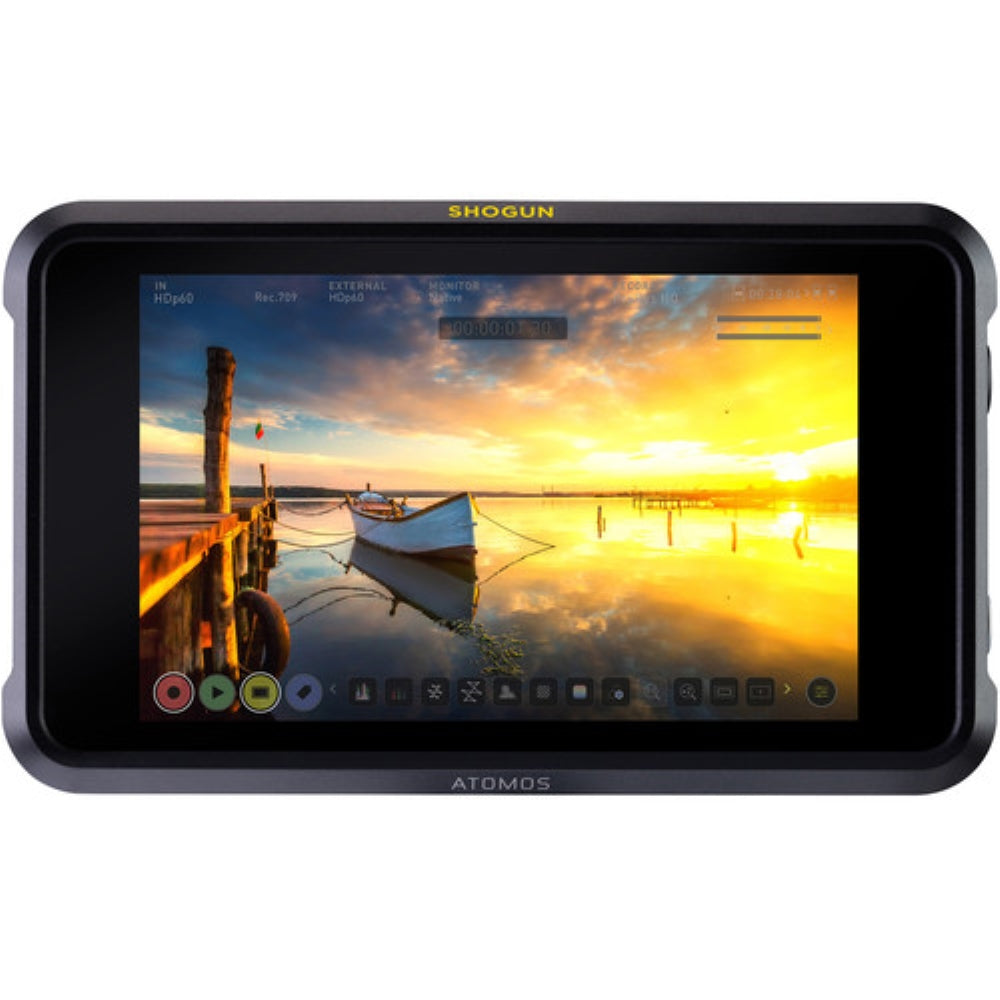

Ultrabright Screen

• 7.2" large 1920 x 1200 resolution display


• 1,000,000:1 contrast ratio


• 3000 cd/m² brightness


• Play back your recently captured shots on the same pristine screen for reviewing

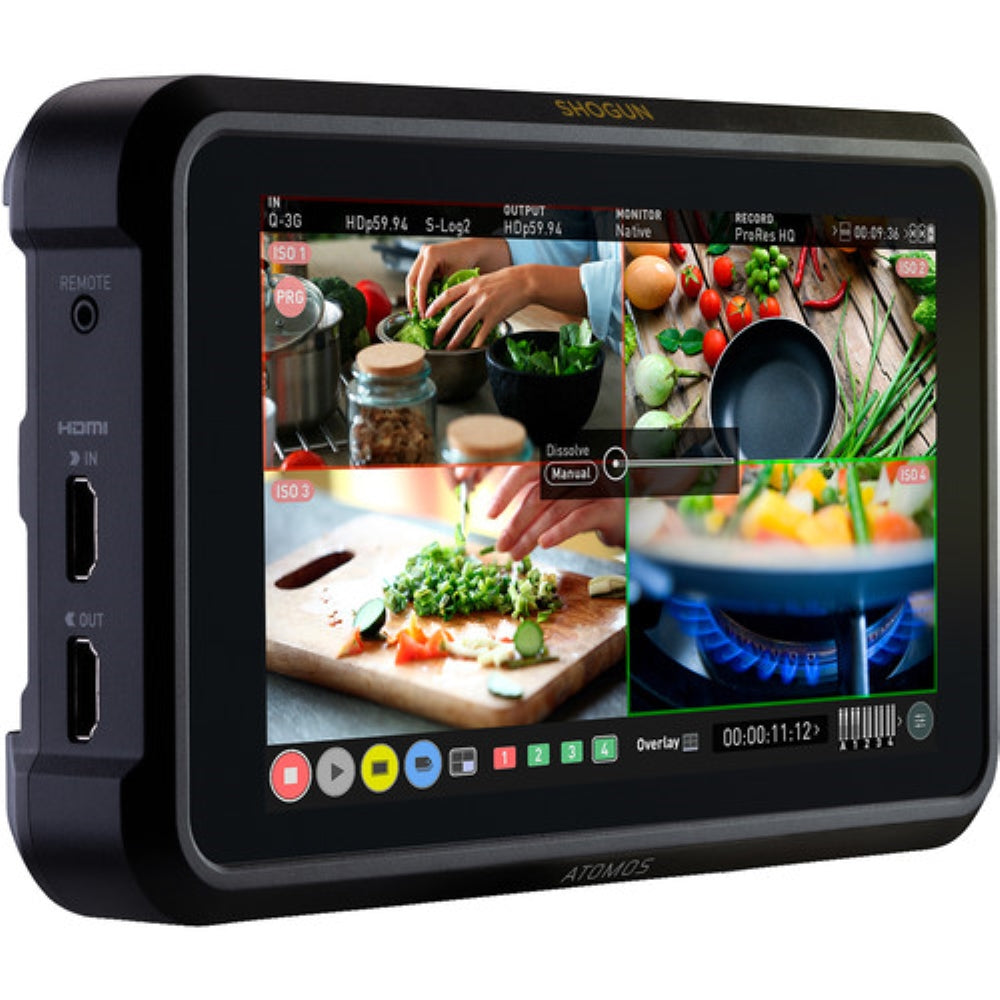

Multicamera Switching

• Four SDI inputs transform the Shogun Classic into a portable, quad-view live switcher and recorder on your multicamera shoots


• Record a fifth program channel of your switched feed and display the resulting mixed output (via HDMI or SDI) live


• You can even output the switched feed for live streaming


• Switching is completely asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras



HDR I/O and Color Management

• Deliver content via live HDMI out, in real time, from any HDR camera to a compatible HDR TV or monitor


• Monitor every pixel of SDR or HDR as it's captured and view it in 10-bit HDR


• Add the monitor to a high-end ARRI, RED, or Sony VENICE, and you'll get accurate HDR monitoring and all the tools you need to get your job done



Recording

• Use with your DSLR or mirrorless camera via HDMI to record up to 4K60 Apple ProRes and AVID DNx codecs for easy editing and archival quality


• Record up to four 1080p60 streams simultaneously as separate ISOs while cueing and switching in real time with a simple touch of the screen

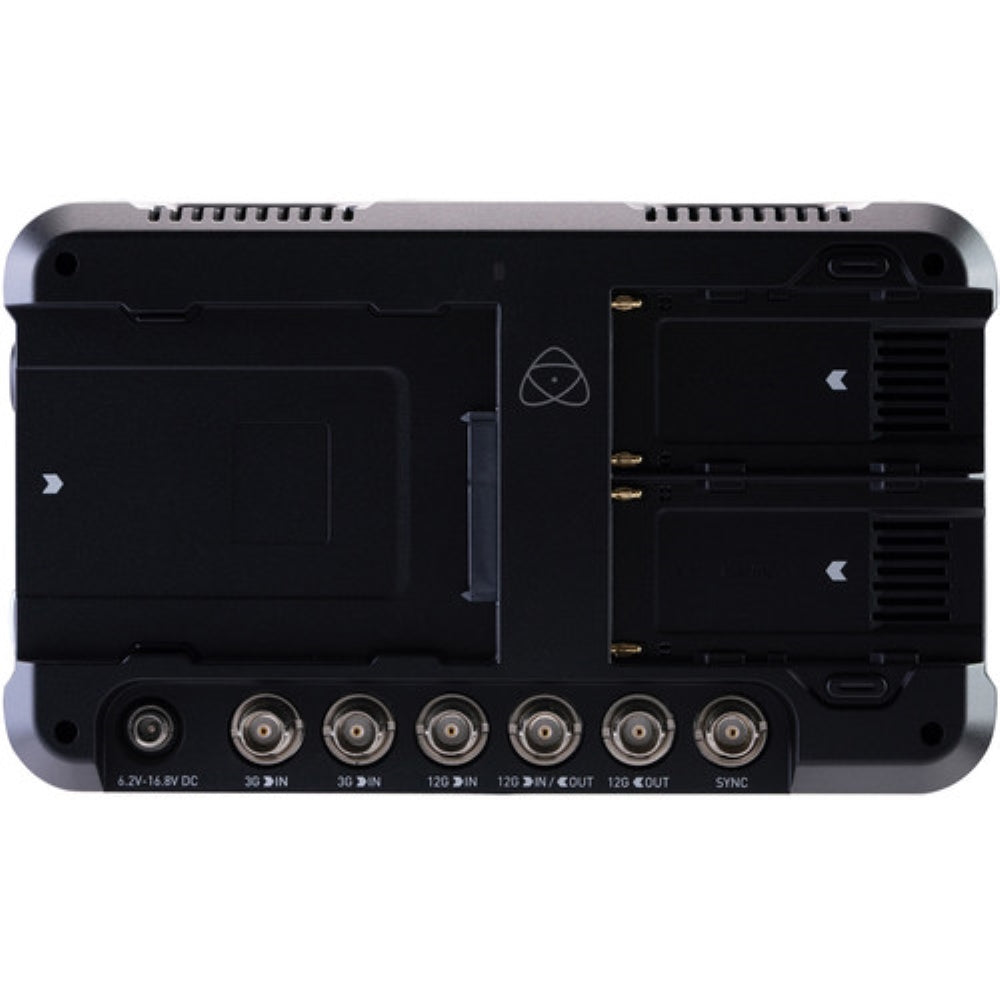

Additional Features

• LTC input via BNC


• 2-pin XLR audio input for 2-channel input and output


• Dual L-series battery plates


• 1/4"-20 mounting thread


• Fan and heat sink cooling


• Remote start/stop trigger via 2.5mm LANC jack


• 3.5mm headphone output


• Includes Master Caddy II; supports Master Caddy II and SSDmini



Monitoring Tools

The 7" Shogun Classic features numerous built-in monitoring tools, including:

• Custom 3D LUTs


• False color


• Focus peaking


• HDR exposure


• Pixel magnification (1:1, 2:1)


• RGB parade


• Vectorscope


• Frame guides


• Zebra


• Waveform


• Safe areas


• Markers


• Vertical flip


• Atomos Calibrator with Display Pro HL and Display Plus HL


• Downscaling to HD and crop


• Interlaced and PSF to progressive


• Anamorphic de-squeeze
