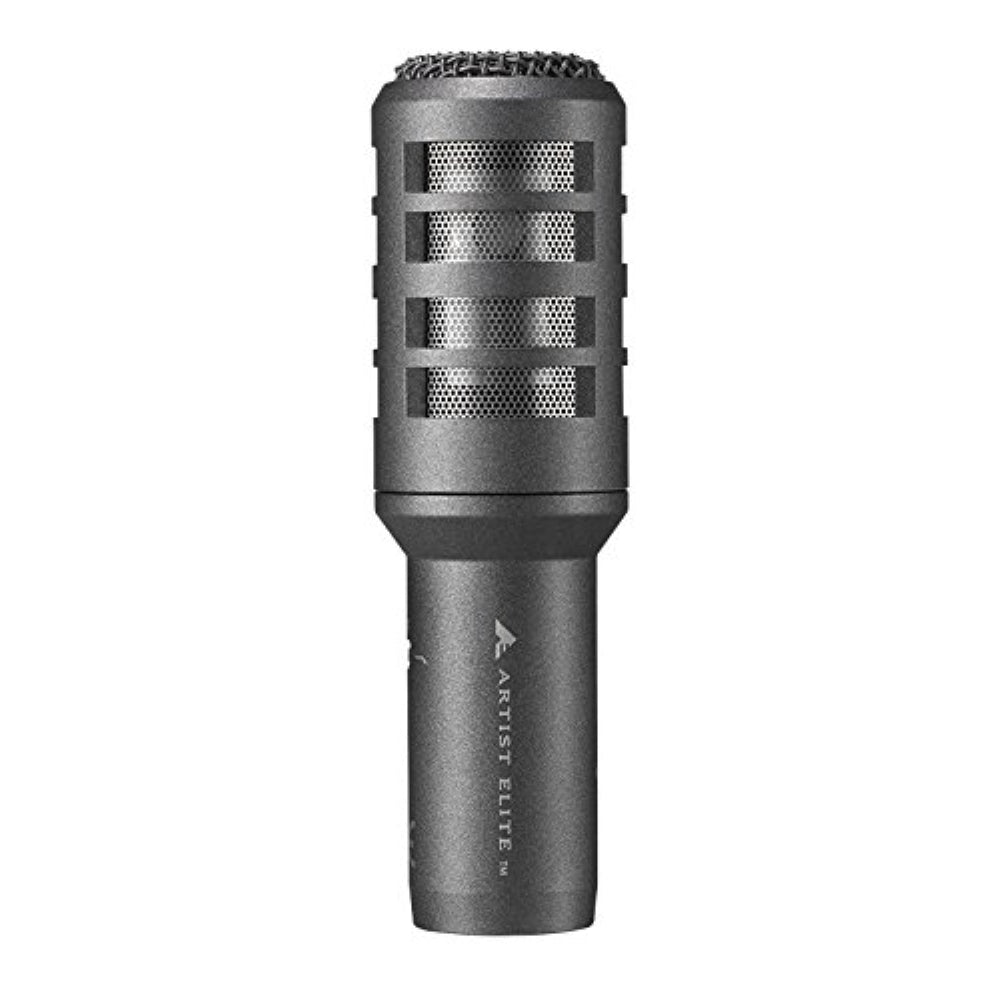

Audio-Technica AE2300 Cardioid Dynamic Instrument Microphone
The Audio-Technica AE2300 is a cardioid instrument microphone that features a proprietary double-dome diaphragm construction, giving it high-frequency and transient response that exceeds typical dynamic microphones. With a rugged, low-profile design and the ability to handle high SPLs, the AE2300 is a versatile performer, able to accurately capture sound from guitar amps, brass and woodwinds, and drums and percussion instruments with equal clarity and precision. The double-dome diaphragm construction allows the AE2300 to maintain directionality across the entire frequency range, while introducing only the slightest off-axis coloration (frequency response is nearly identical at 0, 90 and 180°) for phase cohesion in multiple-mic setups. The microphone is also equipped with a switchable low-pass filter that cuts out harsh, high-frequency noise, such as hiss from a guitar amp or hi-hat bleed into the snare, without negatively affecting the overall tone of an instrument. This mic is an especially useful tool in live settings to get a clear, focused sound.
- Excels in high-SPL applications
 - Proprietary double-dome diaphragm construction that improves high-frequency and transient response
 - Maintains directionality across the entire frequency range
 - Minimal off-axis coloration (frequency response is nearly identical at 0, 90, and 180°) helps to maintain phase cohesion in multiple-microphone setups
 - Switchable low-pass filter removes harsh, high-frequency hiss without negatively affecting the overall tone of an instrument

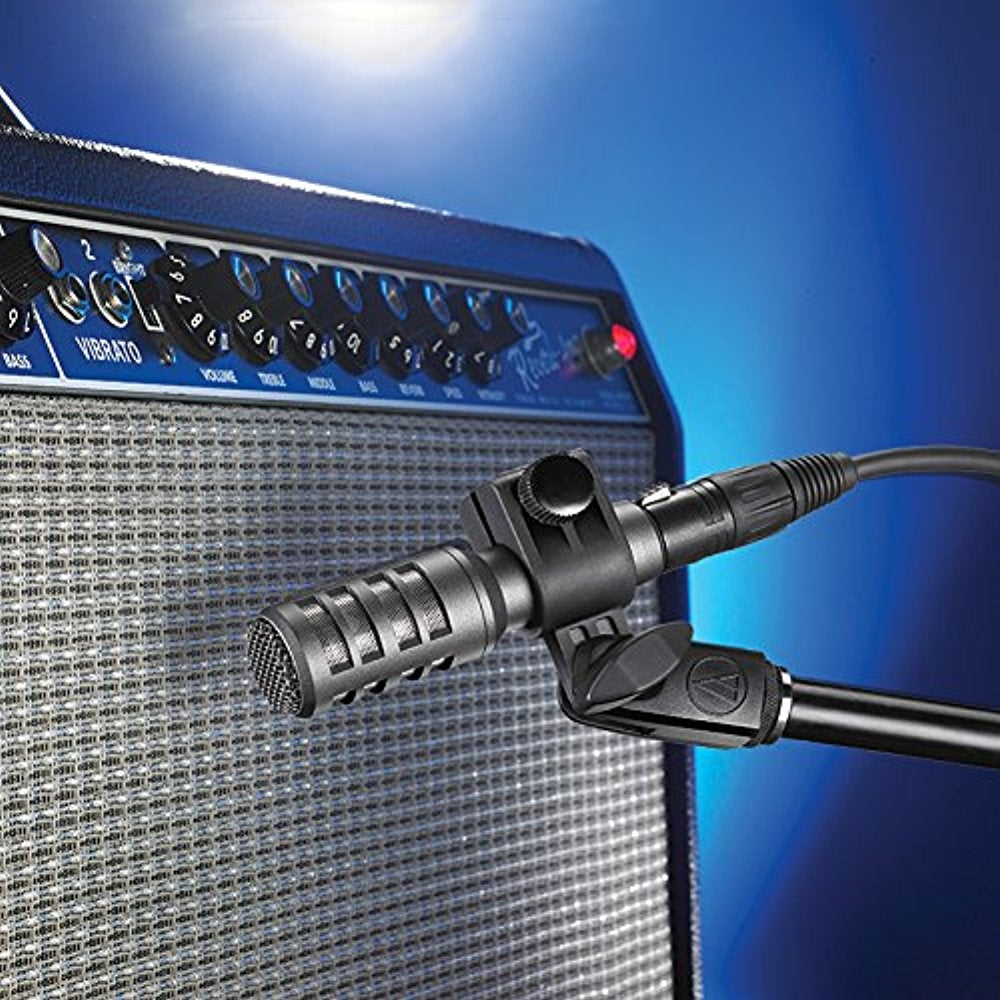

 - Low-profile design allows microphone to be placed easily and unobtrusively in a wide variety of setups
 - Rugged, brass-metal construction ensures dependable performance in live-music applications
 - Includes AT8471 isolation stand clamp for 5/8"-27 threaded stands, 5/8"-27 to 3/8"-16 threaded adapter, and a soft protective pouch

            Microphone |
        |
|---|---|
| Primary Applications | Live Sound, Studio Recording |
| Microphone Type | Stand/Boom Mount |
| Intended Sound Sources | Electric Guitar, Drums, Horns |
| Sound Field | Mono |
| Element Type | Dynamic |
| Polar Pattern | Cardioid |
            Performance |
        |
|---|---|
| Frequency Range | 60 Hz to 20 kHz |
| Impedance | 250 Ohms |
| Sensitivity | -57 dBV/Pa |
            Connectivity |
        |
|---|---|
| Analog Output | 1x XLR 3-Pin |
            Power |
        |
|---|---|
| Power Sources | No Power Required |
            Physical |
        |
|---|---|
| Mounting Thread Size | 5/8"-27 Female (3/8"-16 Female with Included Adapter) |
| Dimensions | ø: 1.1 x L: 3.7" / ø: 27.94 x L: 94 mm |
| Weight | 4.87 oz / 138 g |
