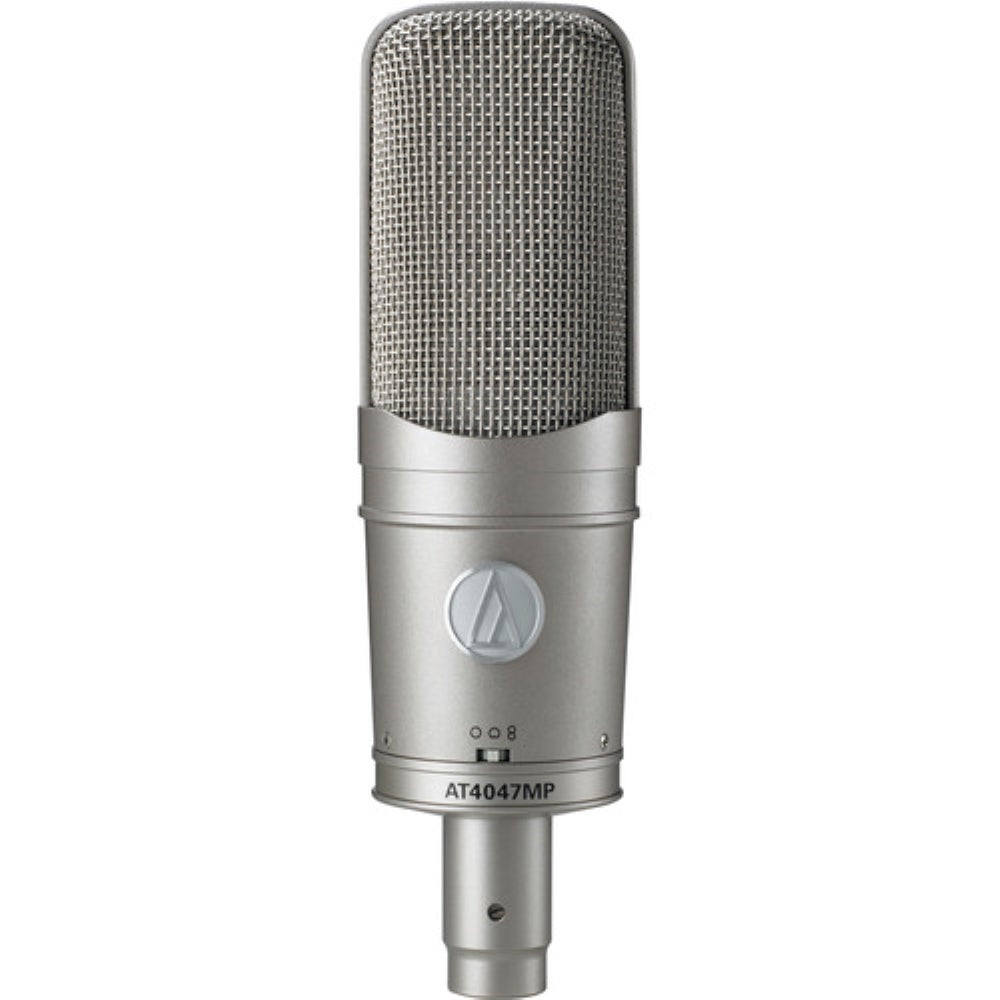

Audio-Technica AT4047MP Multi-Pattern Condenser Microphone
Audio-Technica AT4047MP Multi-Pattern Condenser Microphone
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The AT4047MP Multi-Pattern Condenser Microphone from Audio-Technica delivers vintage sound in a multi-pattern design with selectable omnidirectional, cardioid, and figure-eight polar patterns. The microphone's transformer-coupled output and specially tuned element provide sonic characteristics similar to early F.E.T. studio microphone designs. With a wide dynamic range, low self-noise, and high SPL capability, the microphone is suitable for vocals, strings, acoustic guitar, instrument ensembles, small vocal groups, and voiceovers.
- Three switchable polar patterns: cardioid, omnidirectional, and figure-of-eight
- Engineered to meet the critical acoustic requirements of professional recording, broadcast, and sound reinforcement

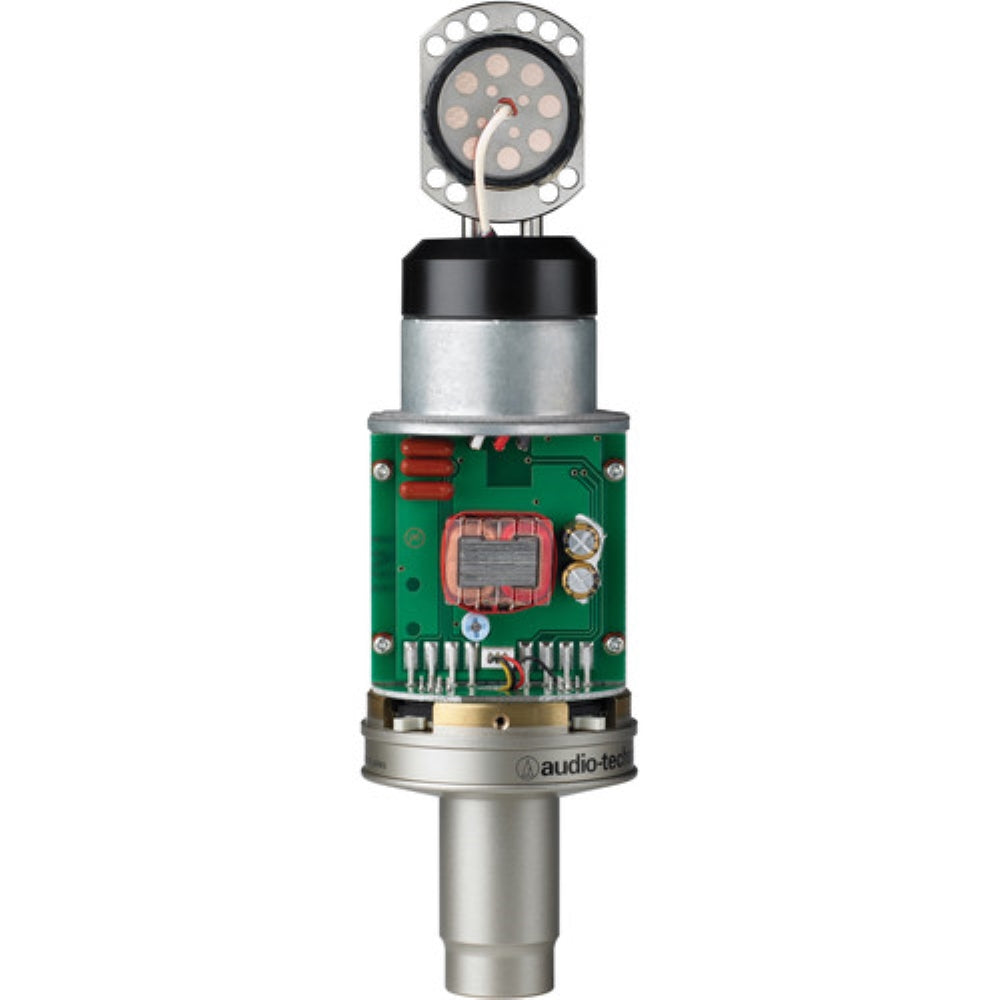

- Transformer-coupled output and specially tuned element provide sonic characteristics similar to early F.E.T. studio microphone designs
- Low self-noise, wide dynamic range, and high SPL capability
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections

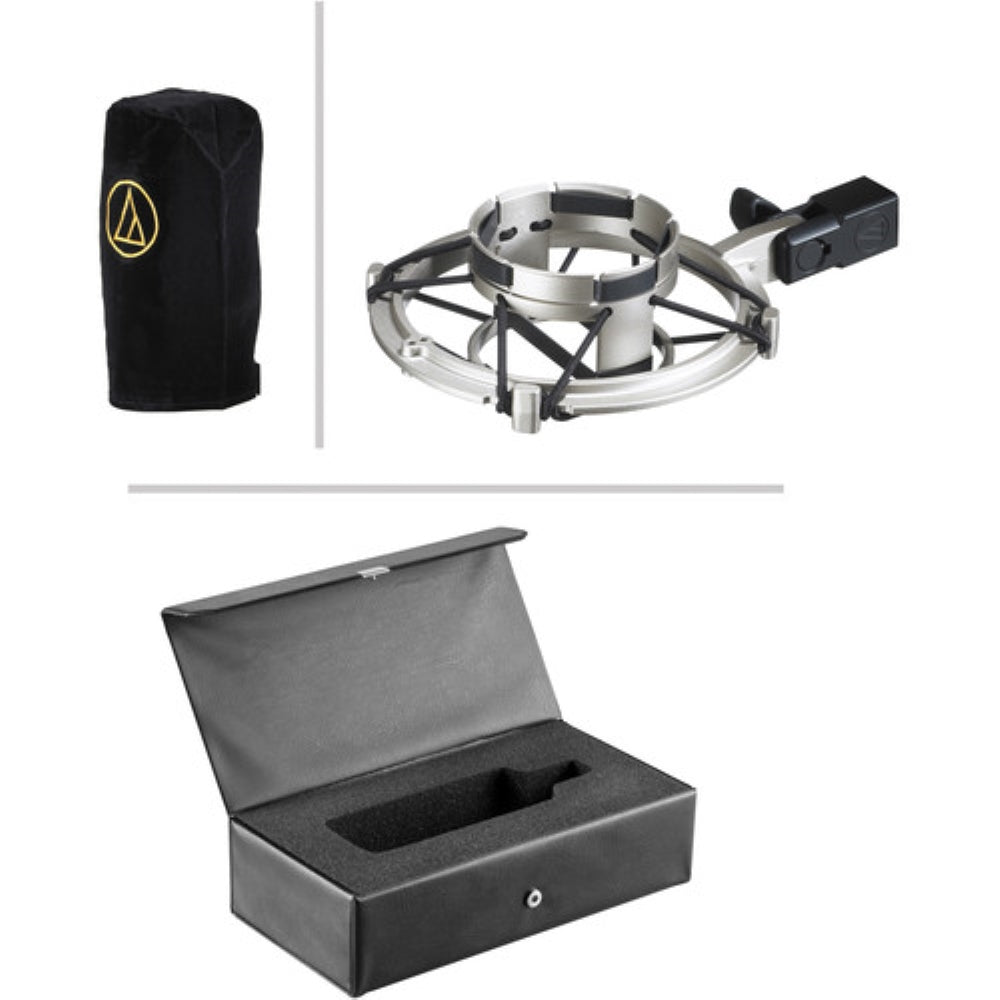

- Custom shock mount provides superior isolation
- Integral 80 Hz high-pass filter switch and 10 dB pad switch
- Certified by the METAlliance (Music Engineering and Technology Alliance)
Microphone |
|
---|---|
Microphone Type | Large Diaphragm |
Intended Sound Sources | Instruments, Speech, Vocals |
Element Type | Condenser |
Polar Pattern | Cardioid / Figure-8 / Omnidirectional |
Pattern Selection | Switched |
Orientation | Side Address |
Circuitry | Solid-State |
Pad | -10 dB |
High-Pass Filter | 80 Hz, 12 dB/Octave |
Performance |
|
---|---|
Frequency Range | 20 Hz to 18 kHz |
Maximum SPL | 155 dB SPL |
Sensitivity | 7.9 mV/Pa |
Dynamic Range | 141 dB |
Equivalent Noise Level | 14 dB |
Connectivity |
|
---|---|
Analog Output | 1x XLR 3-Pin |
Power |
|
---|---|
Power Sources | Phantom Power |
Operating Voltage | 48 V |
Physical |
|
---|---|
Color | Silver |
Mounting Thread Size | 5/8"-27 Female |
Dimensions | ø: 2.1 x L: 7.4" / ø: 53.34 x L: 188 mm |
Weight | 18.48 oz / 524 g |
