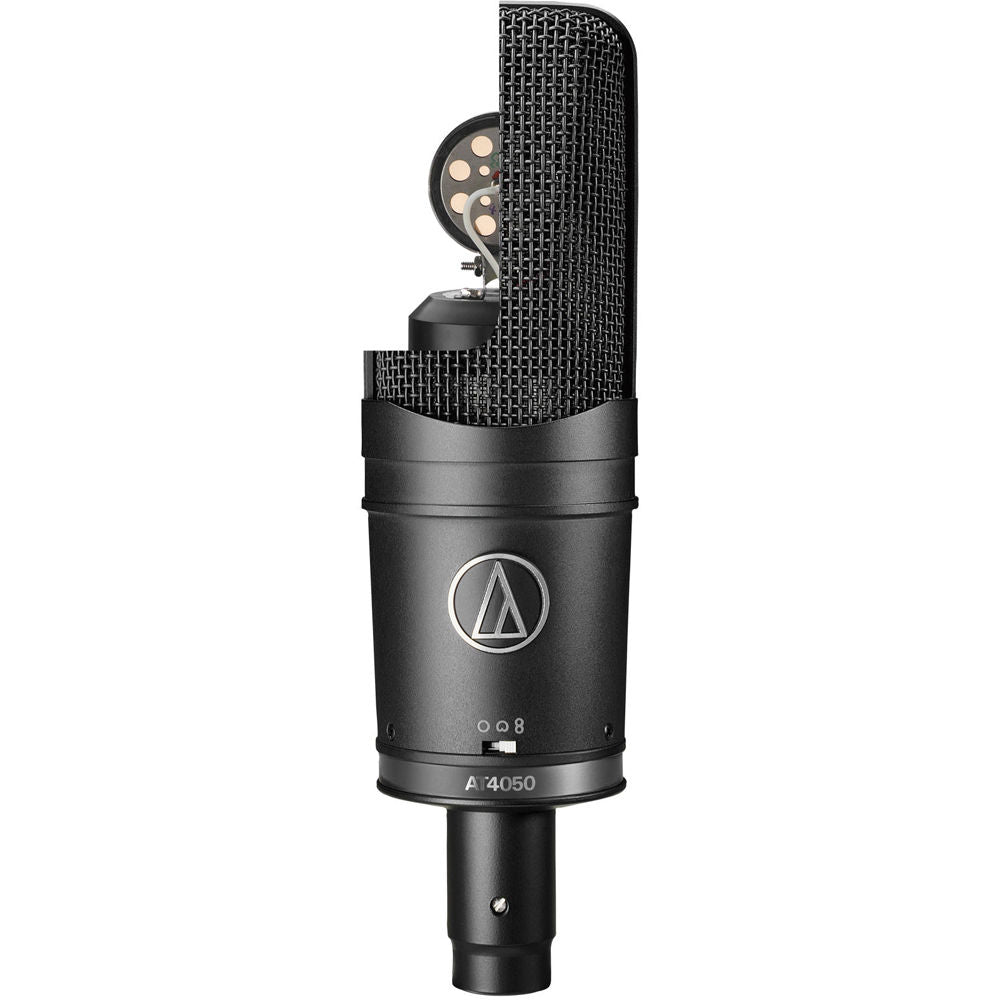

The AT4050 Multi-Pattern Condenser Microphone from Audio-Technica is a large-diaphragm side-address externally polarized condenser microphone with three switchable polar patterns: cardioid, omnidirectional, and figure-8. It can be used to capture audio for broadcast, studio, and sound reinforcement applications. The AT4050 is powered by 48V phantom power and built with a 3-pin XLR output connector. It is equipped with a -10 dB pad that lowers the microphone sensitivity and provides higher SPL capability. This makes it applicable in a wide range of applications like vocals, piano, strings, drum overheads, and guitar amp capture. Its dual large diaphragms are gold-vaporized and aged for consistent, high-quality performance. Furthermore, a precision-machined, nickel-plated brass acoustic element baffle provides solid element stability and maximum sensitivity. The AT4050 includes a shockmount, a microphone dust cover, and a protective carrying case.
A Condenser for All Occasions
With three switchable polar patterns, the large-diaphragm Audio-Technica AT4050 exhibits a remarkable combination of qualities—high-SPL capability with transparent airy highs, and mids complemented by rich low-end qualities.
True Condenser Capsule
The AT40540 side-address condenser microphone features dual large diaphragms that are gold-vaporized and aged in house for consistent, outstanding performance. It boasts an externally polarized (DC bias) condenser design.
Transformerless Circuitry
The AT4050's low-noise circuitry is transformerless, resulting in fast transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.
Three Polar Patterns
The availability of three polar patterns at the flip of a switch allows the AT4050 to serve studios as a versatile all-around workhorse.
- The omnidirectional polar pattern is sensitive to sound coming from all directions. Select the omni pattern to pick up several voices or instruments on the same microphone, to diminish proximity effect, and to preserve the location’s ambient sound.
- The cardioid polar pattern is more sensitive to sound originating directly in front of the element, making it useful in controlling feedback, reducing pickup of unwanted sounds and providing isolation between performers.
- The figure-8 polar pattern is more sensitive to sound originating in the front and back of the microphone, rejecting sounds from the sides. It is often used in conjunction with advanced stereo miking techniques.

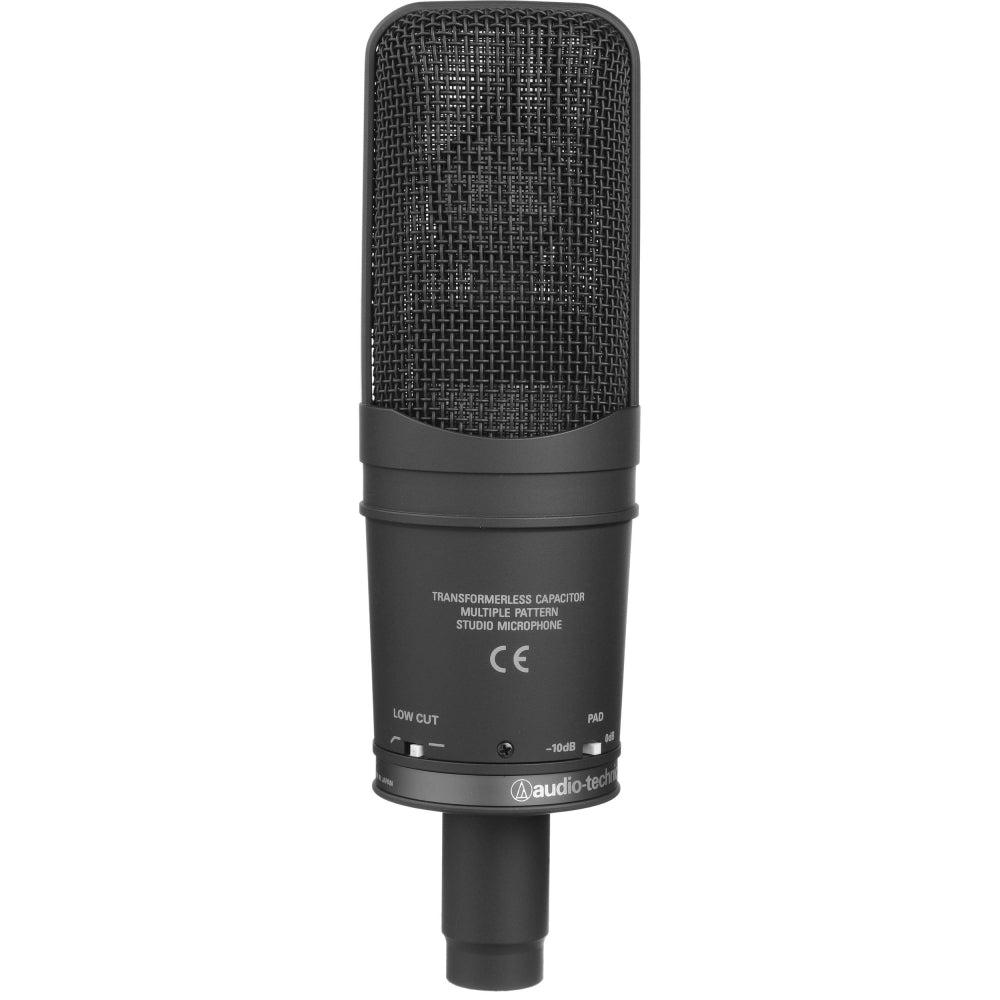

Selectable Settings
Equipped with a switchable 80 Hz high-pass filter and -10 dB pad, the AT4050 easily handles high sound-pressure levels (up to 159 dB) and avoids the pickup of low-frequency ambient noise (such as traffic, air-handling systems, etc.), room reverberation, and mechanically coupled vibrations.

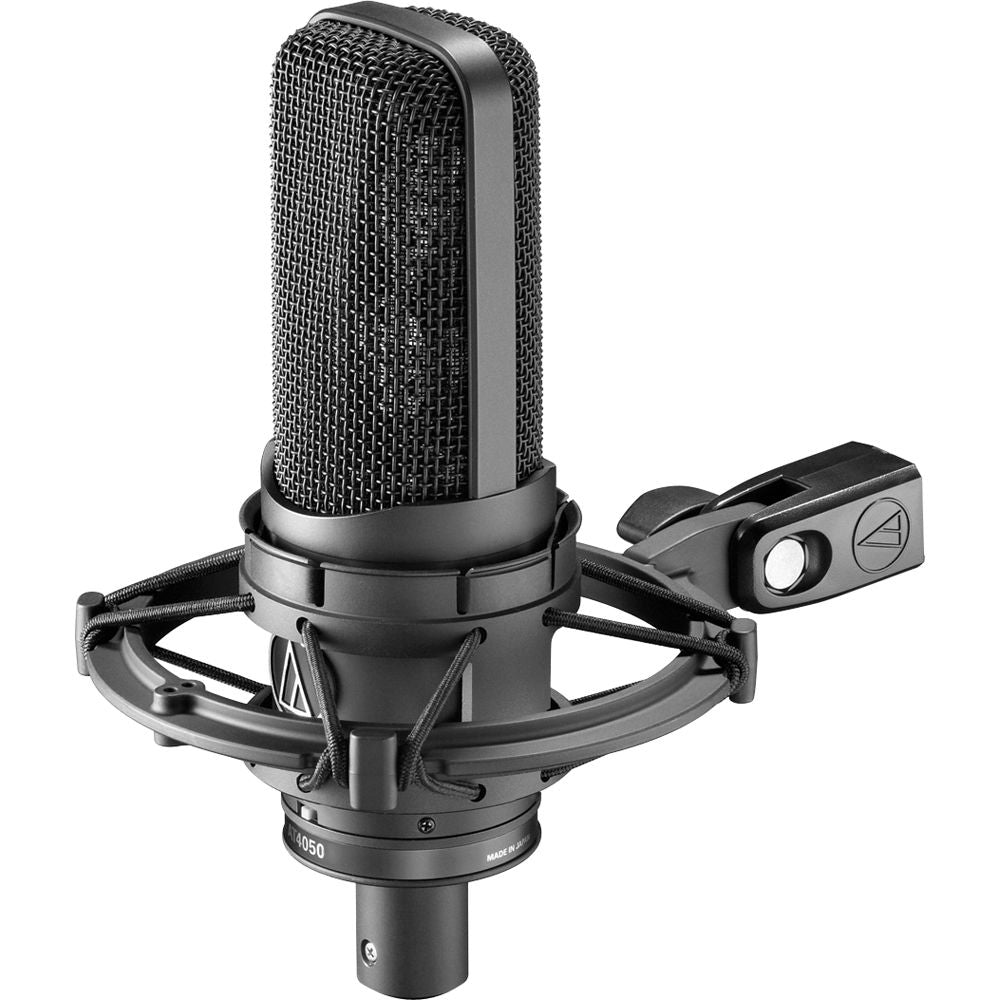

Custom Shockmount
The AT4050 features the AT8449a shockmount, providing maximum protection against noise caused by shock and handling of the microphone and stand.
Features at a Glance
- Transparent uppers/mids balanced by rich low-end qualities combine with advanced acoustic engineering for extensive performance capabilities
- Externally polarized (DC bias) true condenser design with dual diaphragms to maintain precise polar pattern definition across the full frequency range of the microphone
- 2-micron, vapor-deposited gold diaphragms undergo a five-step aging process, so the optimum characteristics achieved remain constant over years of use
- Omnidirectional, cardioid, and figure-8 polar patterns
- Exceptionally low noise, wide dynamic range, and high SPL handling
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- Precision-machined, nickel-plated-brass, acoustic-element baffle provides enhanced element stability and optimal sensitivity
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Custom shockmount provides superior isolation
- Switchable 80 Hz high-pass filter and -10 dB pad
- Operates on 48V phantom power
- XLR 3-pin output connector
Microphone |
|
---|---|
Primary Applications | Studio Recording |
Microphone Type | Large Diaphragm Mic / Stand/Boom Mount |
Intended Sound Sources | Vocals, Instruments |
Sound Field | Mono |
Element Type | Electret Condenser |
Polar Pattern | Cardioid / Figure-8 / Omnidirectional |
Pattern Selection | Switched (Adjustable on Mic) |
Orientation | Side Address |
Circuitry | Solid-State |
Pad | -10 dB |
High-Pass Filter | 80 Hz, 12 dB/Octave |
On-Board Controls | High-Pass Filter, Pad, Polar Pattern |
Performance |
|
---|---|
Frequency Range | 20 Hz to 18 kHz |
Maximum SPL | 149 dB SPL (1 kHz, 1% THD) |
Impedance | 100 Ohms |
Sensitivity | -36 dBV/Pa (Open Circuit Voltage) |
Dynamic Range | 132 dB (1 kHz, at Max SPL) |
Signal-to-Noise Ratio | 77 dB A-Weighted (1 kHz) |
Equivalent Noise Level | 17 dB SPL A-Weighted |
Connectivity |
|
---|---|
Analog Output | 1x XLR 3-Pin Male (on Mic) |
Power |
|
---|---|
Power Sources | Phantom Power |
Physical |
|
---|---|
Color | Black |
Dimensions | ø: 2.1 x L: 7.4" / ø: 5.3 x L: 18.8 cm |
Weight | 1.12 lb / 0.51 kg |
