Audio-Technica AT8022 X/Y Stereo Phantom and Battery Powered Field Microphone

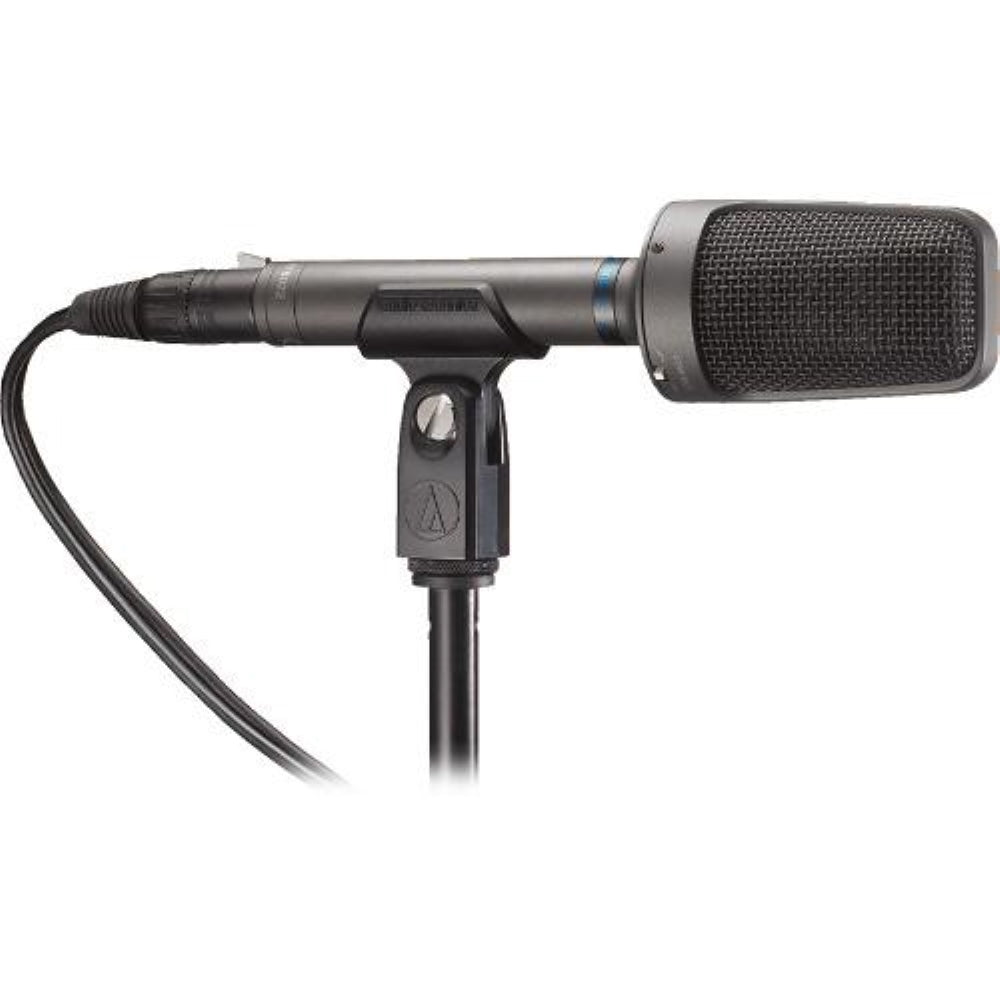

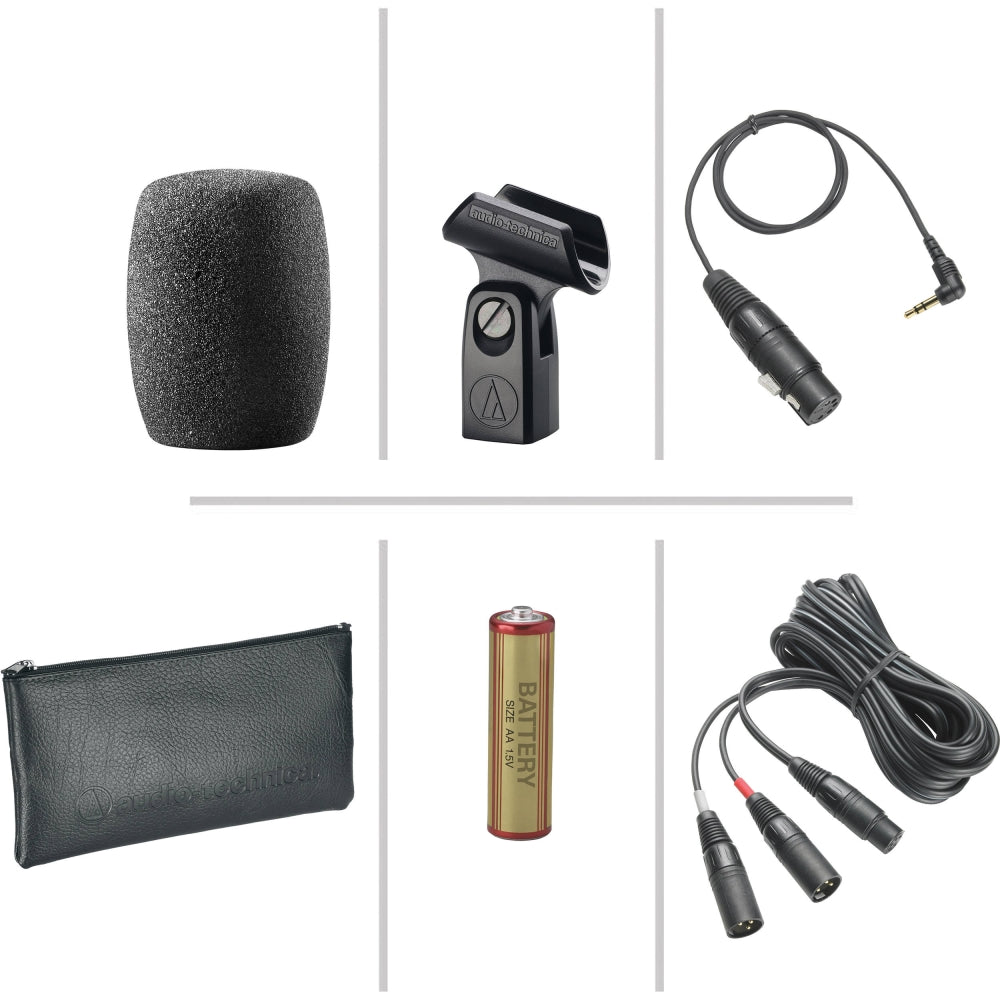

The Audio-Technica AT8022 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The microphone is powered with external phantom power or a 1.5V AA battery making it ideal for use with cameras and portable recording devices. The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing. The microphone features a 5-pin XLR output connector. Dual 3-pin XLR and single 1/8" (1.5mm) stereo mini cables are supplied. Also included is a stand adapter, windscreen and protective pouch.
- Stereo recording of ambiance, musical performances, vocals, and more
 - Powered with a 1.5V AA battery or phantom power
 - Dual 3-pin XLR and 1/8" stereo mini cables are supplied

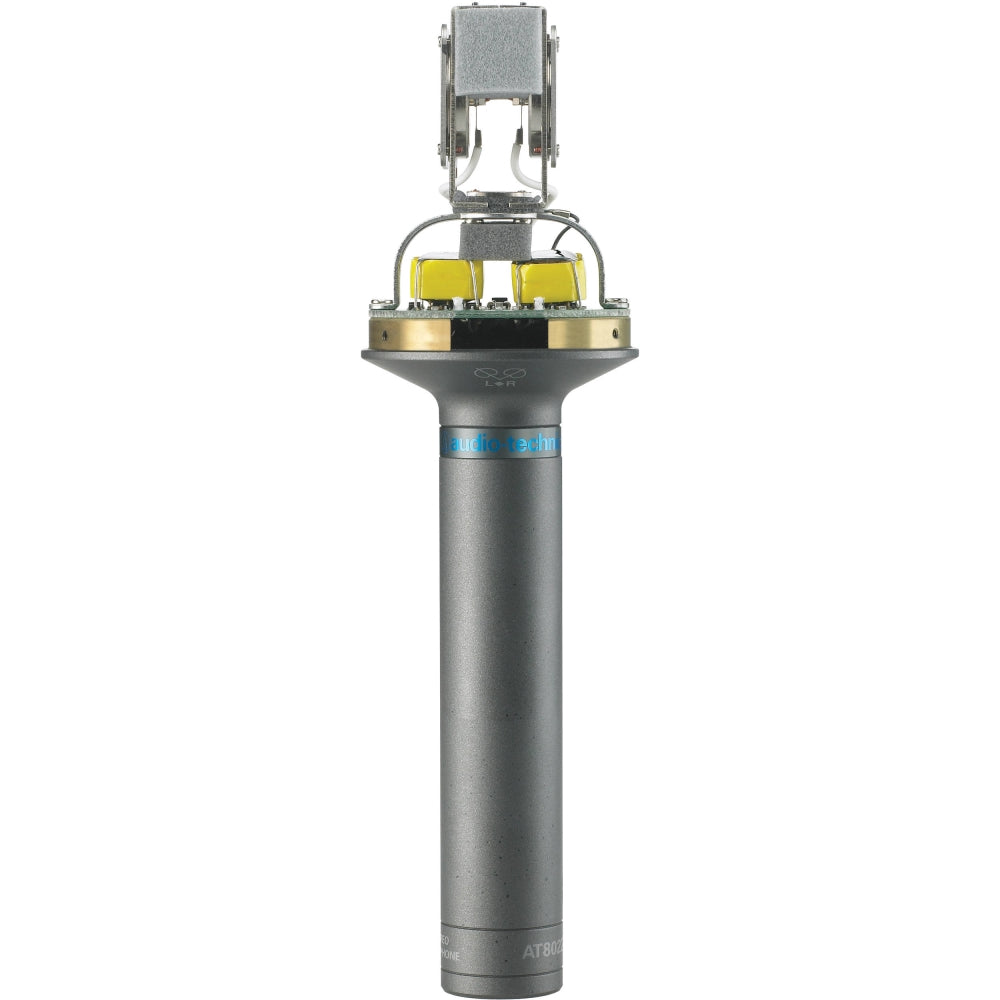

 - Coincidence element mounting for smaller capsule profile
 - Rugged construction

            Microphone |
        |
|---|---|
| Sound Field | Stereo |
| Element Type | 2x Electret Condenser |
| Polar Pattern | Cardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | No |
| High-Pass Filter | 80 Hz, 18 dB/Octave |
| Gain Adjustment | No |
| On-Board Controls | On/Off |
            Performance |
        |
|---|---|
| Frequency Range | 20 Hz to 15 kHz |
| Maximum SPL | 128 dB SPL (Phantom Power, 1 kHz, 1% THD) 120 dB SPL (Battery Power, 1 kHz, 1% THD)  |

| Sensitivity | -38 dB (Phantom Power) -38 dB (Battery Power)  |

| Dynamic Range | 109 dB (Phantom Power, 1 kHz, at Max SPL) 101 dB (Battery Power, 1 kHz, at Max SPL)  |

            Connectivity |
        |
|---|---|
| Analog Output | 1x XLR 5-Pin Male (on Mic) |
| Cable Length | 6.5' / 2.0 m |
            Power |
        |
|---|---|
| Power Sources | Phantom Power |
| Operating Voltage | 11 to 52 V |
| Battery Type | 1x AA (Not Included) |
            Physical |
        |
|---|---|
| Color | Black |
| Mounting Thread Size | 5/8"-27 Female |
| Dimensions | ø: 1.9 x L: 7.3" / ø: 47.6 x L: 186 mm |
| Weight | 0.5 lb / 247 g |
| On-Mic Controls | Low Cut/HPF |
