Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone
Audio-Technica AT8024 Stereo/Mono Camera-Mount Microphone
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
For capturing audio the AT8024 Stereo/Mono Camera-Mount Microphone by Audio Technica can be used in several environments, on DSLR and video cameras, for applications such as weddings, conferences, sports events, and more. It features a selectable line-cardioid mono, and internally matrixed mid-side stereo mode and provides the flexibility to focus the recording on a single sound source, or to widen the field for more sonic realism. The AT8024 can deliver much improved audio than the supplied camera's internal microphone.

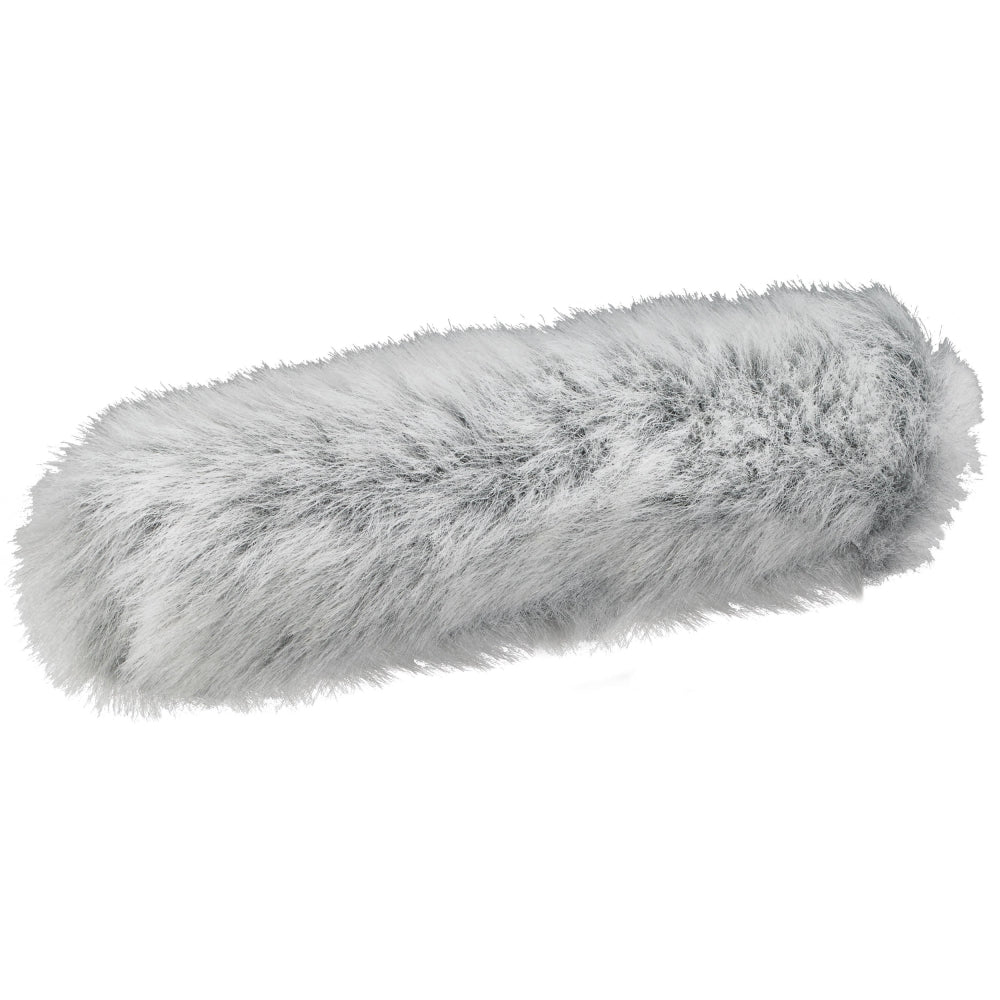

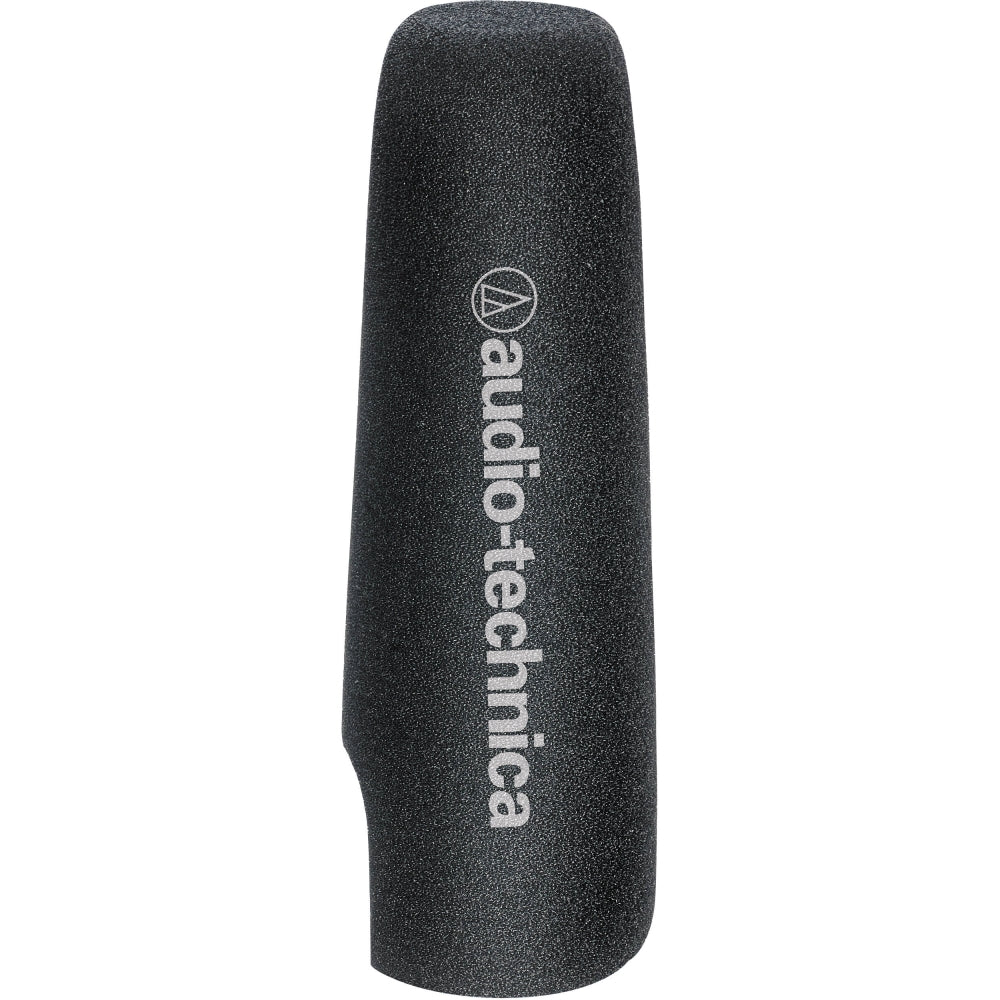

The AT8024 is built with a three-position adjustable input pad (-20 dB, -10 dB, 0 dB) to capture soft and very loud sound passages without distortion. A switchable low-frequency roll-off reduces pickup of undesired ambient noise, room reverberation, and mechanically coupled vibrations. The microphone is powered by a single AA battery for optimal performance with high max SPL, and features an integral camera shoe mount that attaches to DSLRs and shoe-equipped camcorders. A 39" coiled cable with a 1/8" mini-jack, AA battery, windshield, fuzzy windscreen are included.
- Designed for use with DSLR and other video cameras, delivering better sound quality than the camera's internal microphone
- Selectable line-cardioid mono or mid-side stereo modes provide the flexibility to capture high-resolution audio in any environment
- Three-position adjustable input pad and switchable low-frequency roll-off
- Integral rubber shock mounts isolate the microphone from vibration and mechanical camera noise
- Compact, lightweight design with integral shoe mount
- Red/green LED power indicator
- Includes windscreen, fuzzy windscreen and AA battery
Microphone |
|
---|---|
Sound Field | Mono / Stereo |
Element Type | Electret Condenser |
Polar Pattern | Hypercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | No |
High-Pass Filter | 80 Hz, 12 dB/Octave |
Filter & EQ | Low-Cut Filter: 80 Hz, 12 dB/Octave |
On-Mic Controls | Pad, Low Cut/HPF, Mono/Stereo |
Performance |
|
---|---|
Frequency Response | 40 Hz to 15 kHz |
Maximum SPL | 128 dB (1 kHz, 1% THD) |
Sensitivity | -37 dB |
Dynamic Range | 106 dB (at Max SPL) |
Connectivity |
|
---|---|
Analog Output | 1x 1/8" / 3.5 mm TRS Male |
Cable Length | 39" / 99.1 cm |
Power |
|
---|---|
Power Sources | Plug-In Power |
Operating Voltage | 1.5 V |
Battery Type | 1x AA (Included) |
Physical |
|
---|---|
Color | Black |
Dimensions | ø: 0.9 x L: 6.8" / ø: 24 x L: 172 mm |
Weight | 4 oz / 114 g |
