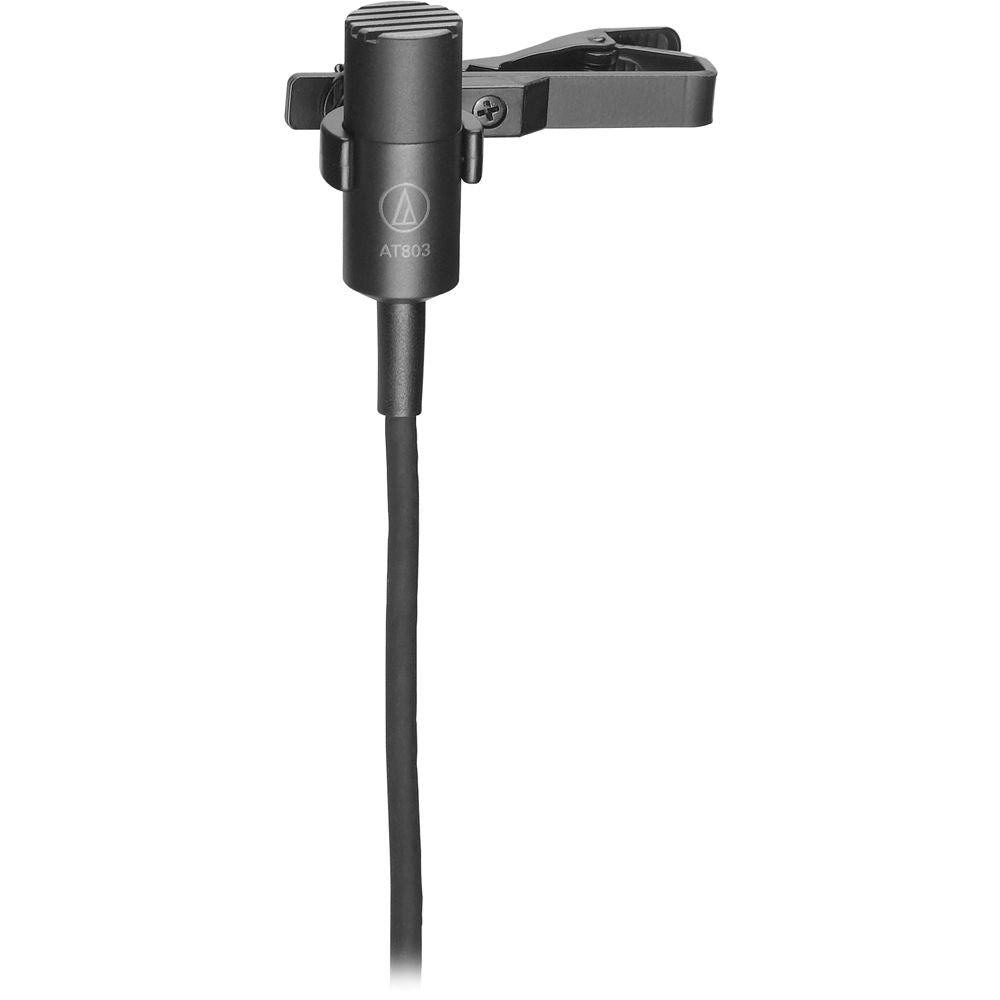

The Audio-Technica AT803B is a miniature condenser lavalier microphone intended to be worn on the clothing of performers for excellent yet unobtrusive sound pickup. The wide range capability of the AT803B ensures clean, accurate reproduction with high intelligibility for lecturers, singers, stage, and TV performers.
- Designed for clip-on and musical instrument use
- Small size is ideal for applications requiring minimum visibility

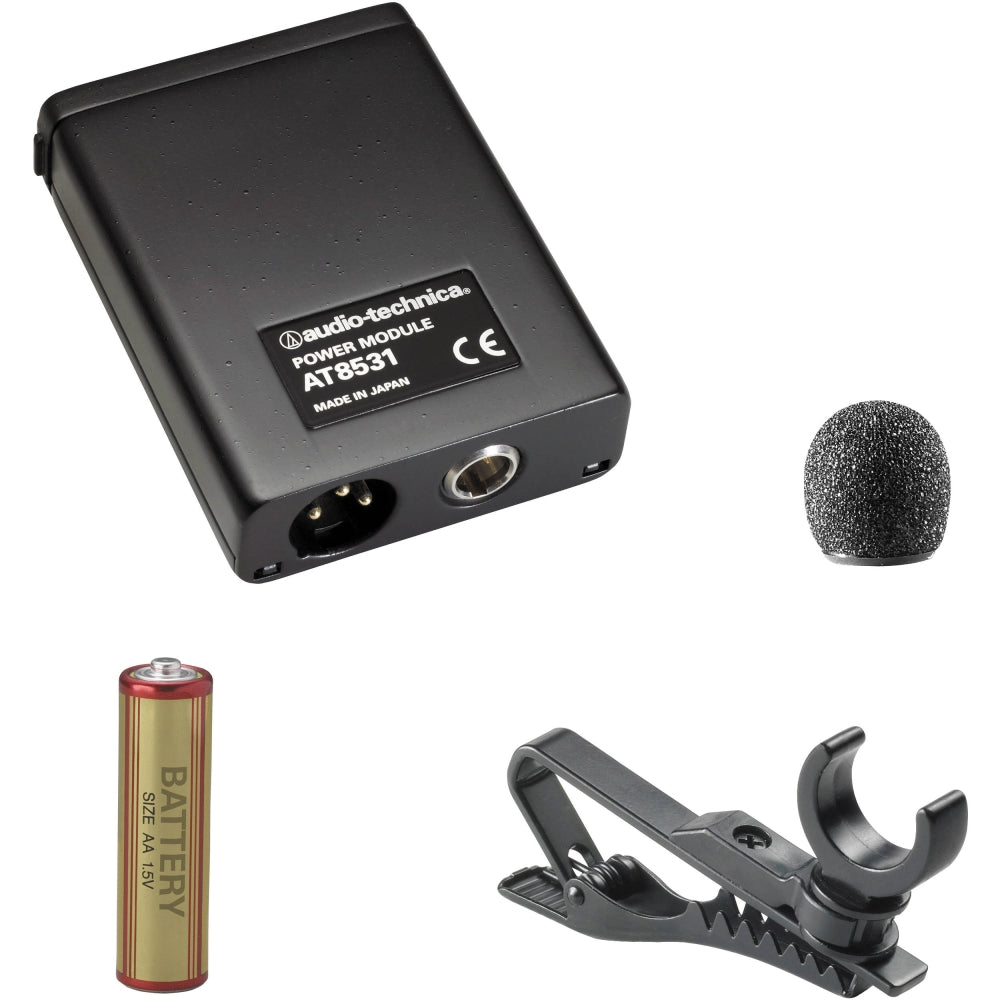

- Operates on battery or phantom power
- 6' cable permanently attached between microphone and power module
Microphone |
|
|---|---|
| Microphone Type | Lavalier |
| Intended Sound Sources | Speech |
| Sound Field | Mono |
| Element Type | Electret Condenser |
| Polar Pattern | Omnidirectional |
Performance |
|
|---|---|
| Frequency Range | 30 Hz to 20 kHz |
| Maximum SPL | 135 dB SPL (Phantom Power) 121 dB SPL (Battery Power) |
| Sensitivity | -44 dB (Phantom Power, Open Circuit Voltage) -46 dB (Battery Power, Open Circuit Voltage) |
| Dynamic Range | 107 dB (Phantom Power, Typical, 1 kHz) 93 dB (Battery Power, Typical, 1 kHz) |
Connectivity |
|
|---|---|
| Analog Output | 1x XLR 3-Pin Male (on Preamp) |
| Cable Length | 6' / 1.83 m |
Power |
|
|---|---|
| Power Sources | Phantom Power |
| Operating Voltage | 11 to 52 V (Phantom Power) |
Physical |
|
|---|---|
| Color | Black |
| Environmental Resistance | No |
| Dimensions | ø: 0.4 x L: 0.98" / ø: 10.2 x L: 25 mm (Microphone) H: 3.31 x W: 2.48 x L: 0.87" / H: 84.07 x W: 62.99 x L: 22.1 mm (Power Supply) |
| Weight | 0.1 oz / 2.8 g (Microphone) 4.9 oz / 139 g (Power Supply) |
