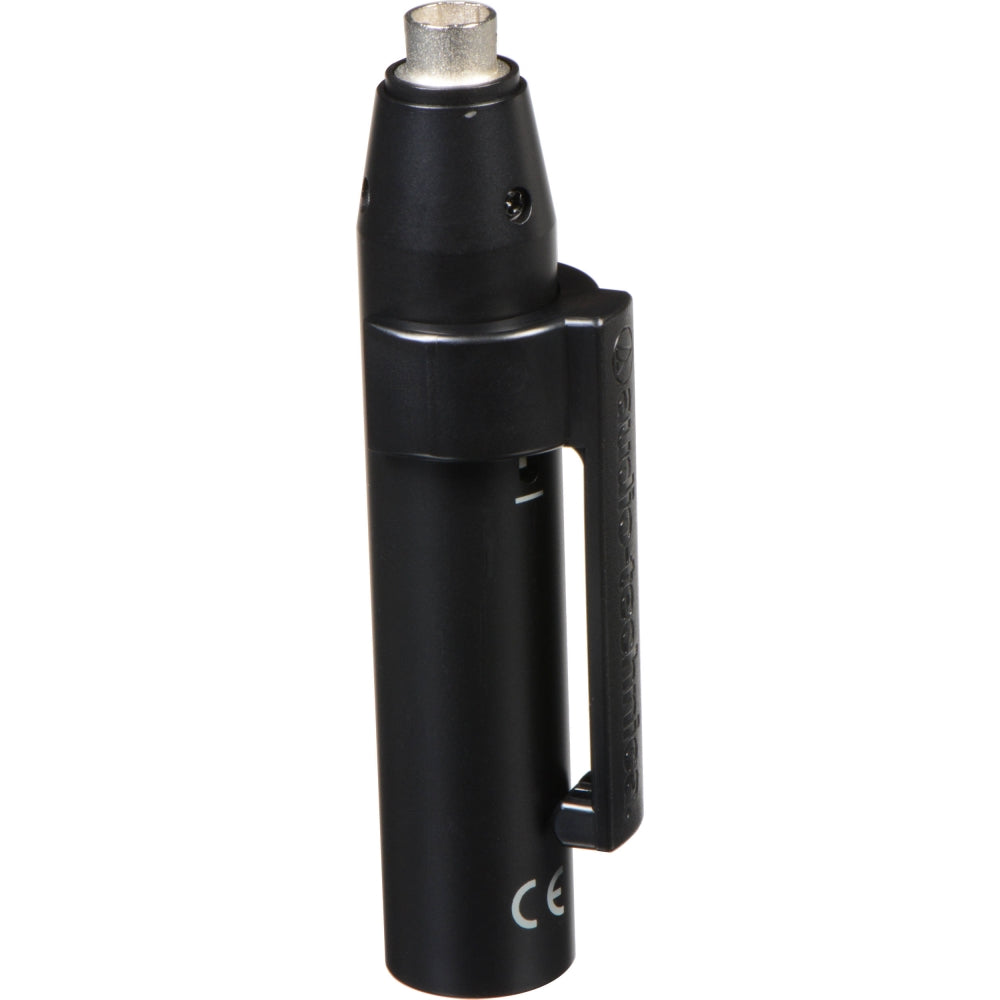

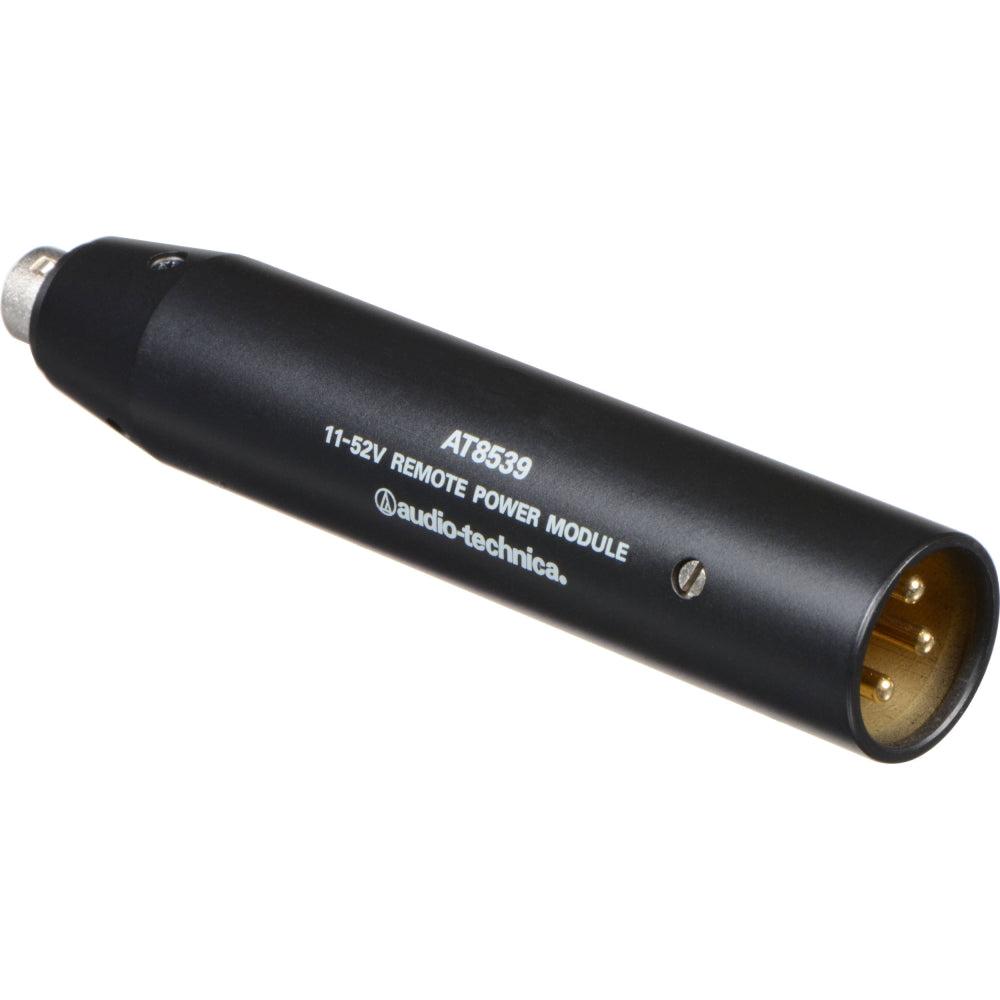

The Audio-Technica AT8539 is a power supply that can be used with any Audio-Technica wireless microphone to operate as a wired microphone. The power supply features an HRS-type 4-pin input connector on one end and a standard 3-pin XLR output connector for direct connection to a standard microphone input on the other.
In addition, the AT8539 offers a low-cut filter to help minimize the pickup of unwanted low frequencies. The power module is constructed of rugged steel for maximum durability and optimum shielding from hum. A snap-on belt clip is included.
Audio-Technica AT8539 |
|
|---|---|
| Input Connector | HRS-type 4-pin |
| Output Connector | 3-pin XLRM-type |
| Impedance | 250 ohms |
| Low-Cut Filter | 80 Hz, 18 dB/octave |
| Phantom Power | 11-52 VDC, 2 mA typical |
| Switch | Flat/roll-off |
| Dimensions | 3.84 x 0.74" (97.6 x 18.9 mm) |
