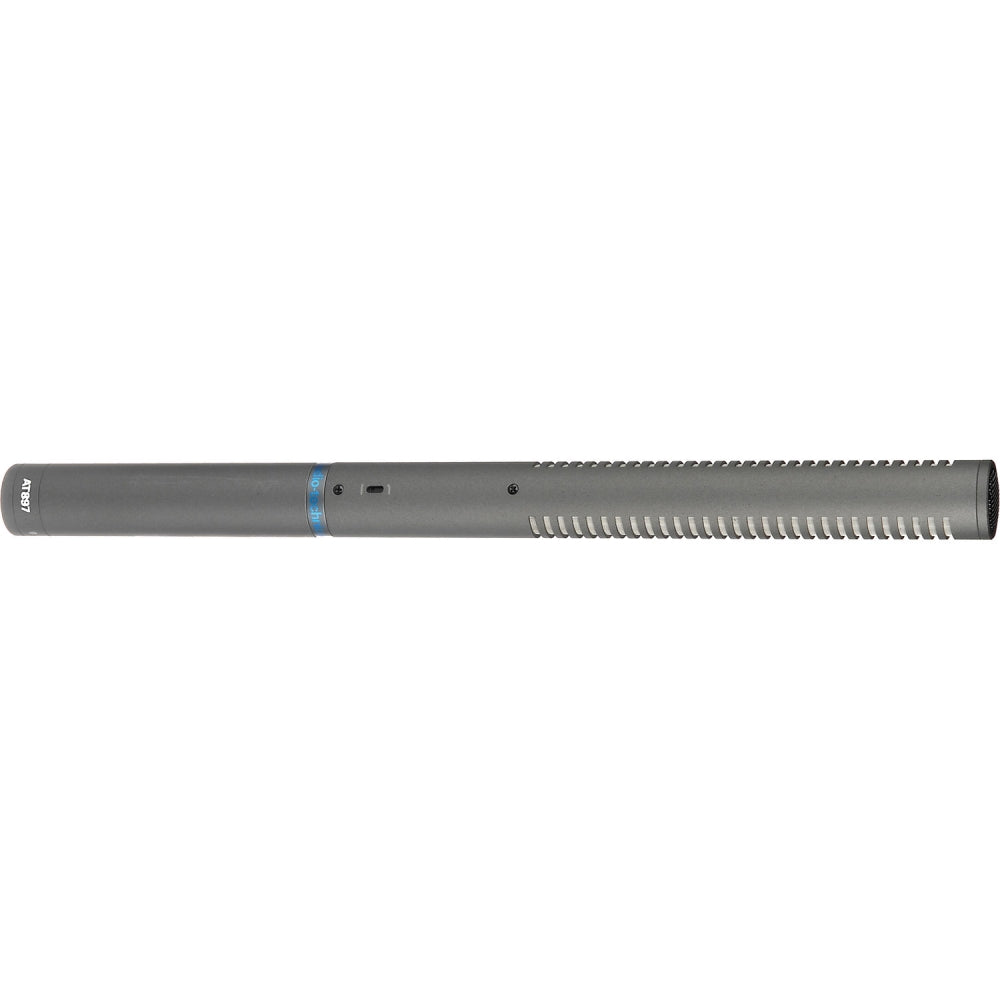

Audio-Technica AT897 Shotgun Microphone
Well suited for indie films, nature recording, and documentary projects, the Audio-Technica AT897 shotgun microphone features smooth on-axis tone and great off-axis sound rejection while its housing remains short enough for camera-mounted operation. Plus, it can be operated via phantom power or a battery for flexible compatibility. The AT897's moderate sensitivity delivers optimal performance when paired with high-gain, low-noise microphone preamps. With a selectable low-cut filter at 80 Hz, the AT897 is capable of delivering clear sound while attenuating rumble and bass buildup. Plus, its full-spectrum frequency response utilizes a gentle increase in high frequencies to enhance intelligibility. The durable housing ensures rugged dependability while maintaining a light weight that won't burden your boompole or camera, and the included accessories accommodate mounting the AT897 to a mic stand, boompole, or camera-mount microphone holder.
Quality Sound
The 11" long AT897 uses an interference tube and a supercardioid polar pattern to yield focused on-axis directionality while attenuating rear-entry sound and rejecting sound at the sides. This makes the AT897 far more effective at capturing distant sources than the omnidirectional mics found in most cameras.
Bass Roll-Off
The high-pass filter can be set to flat or 80 Hz to roll off low-frequency noise from common sources such as air conditioners and traffic.
Battery or Phantom Powered
Thanks to its 3-pin XLR output and compliance with 11 to 52 VDC phantom powering, the AT897 is compatible with a variety of handheld audio recorders, field recorders, and mixer adapters as well as built-in preamps on many camcorders and cinema cameras. When using devices that don't offer phantom power, the AT897 may be powered by a single AA battery (included).
Ideal for Boompole Mounting

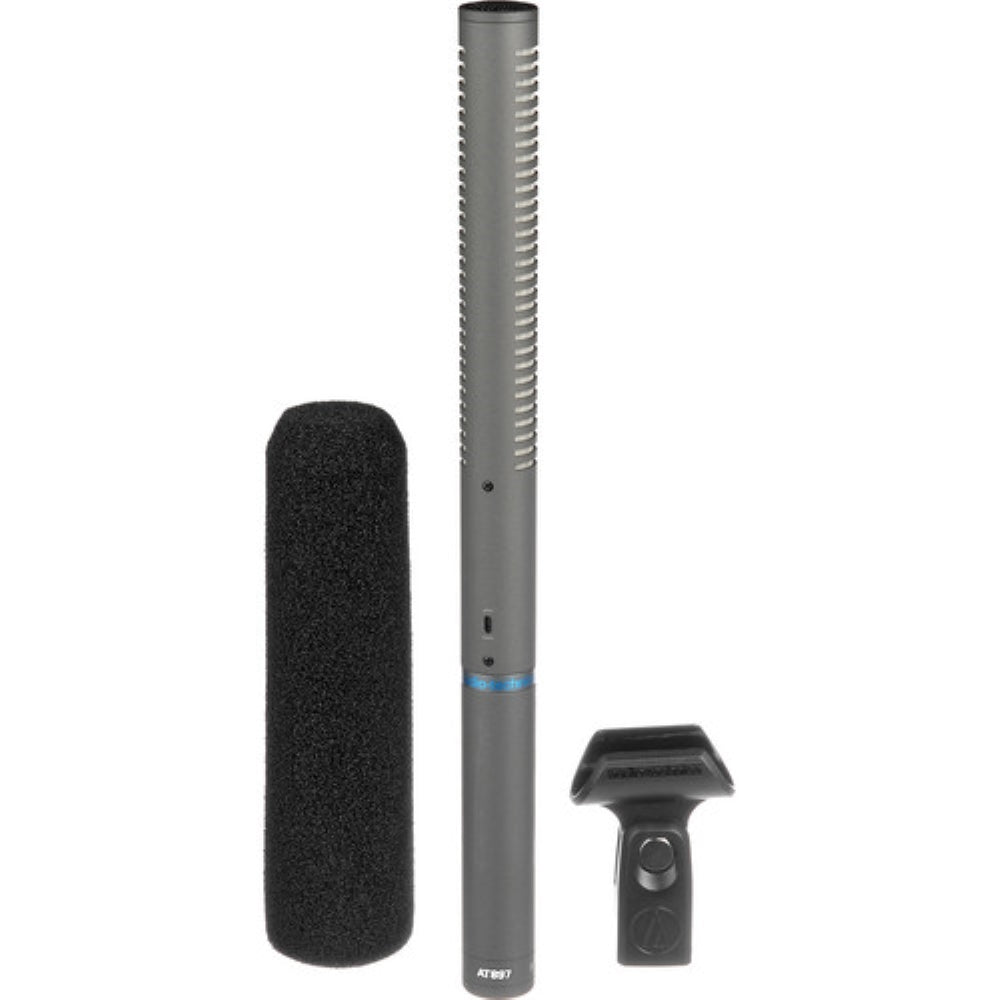

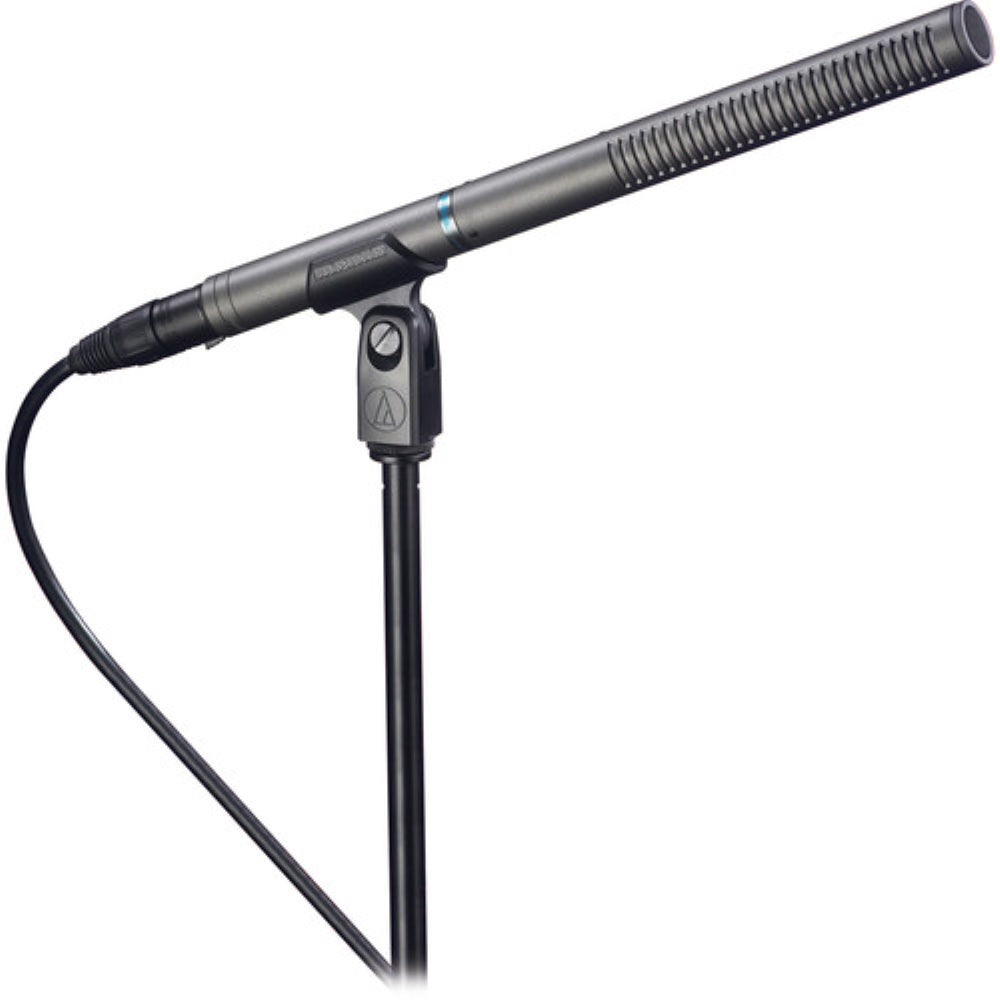

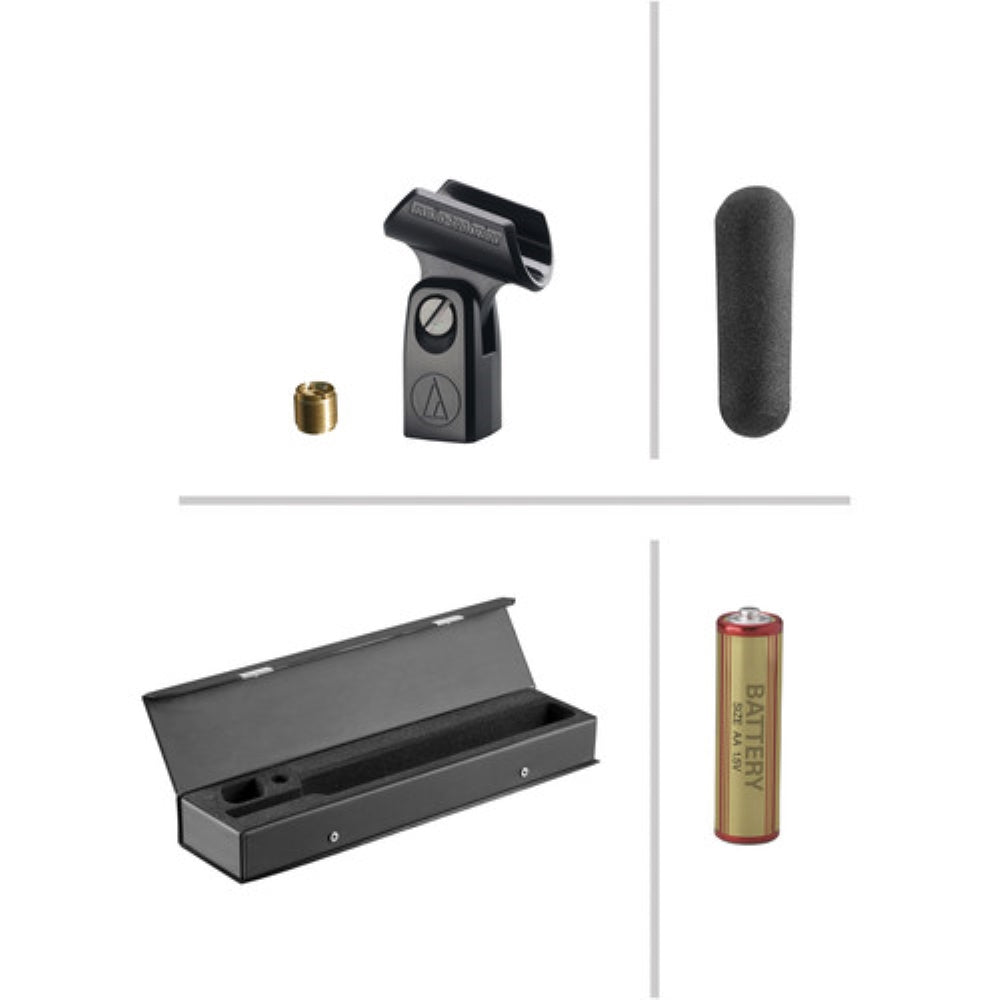

The AT897 includes a mic clip for easy placement on a mic stand or boompole. Alternatively, mount the AT897 in the Audio-Technica AT8415 shockmount (available separately) to impede the transfer of vibrations between your boompole and the mic. The AT897 also includes two rubber O-rings that expand the microphone's diameter to fit the larger mic holders found on many high-end cameras.
Windscreen Minimizes Wind Noise

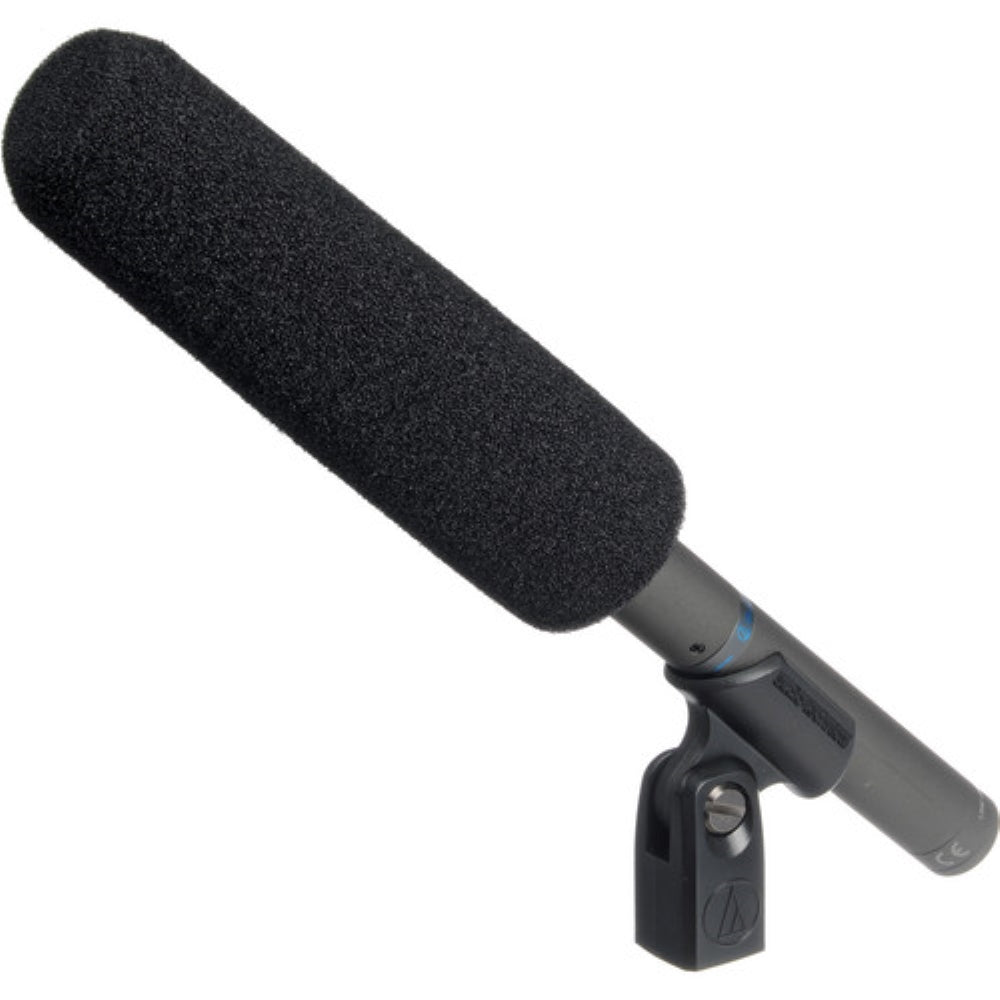

The AT897 has a foam windscreen to reduce unwanted wind noise from breezes, fans, heaters, and air conditioners. Enhanced attenuation of wind noise is possible with the addition of an optional windshield such as the Rycote 15 cm Super-Softie, which also provides high immunity to rain. For maximum reduction of handling noise and wind noise in indoor or outdoor environments, consider the separately available Rycote Windshield Kit 4, a complete windjammer, windshield, and shockmount suspension system.
Microphone |
|
---|---|
Sound Field | Mono |
Element Type | Condenser |
Polar Pattern | Lobar / Supercardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | No |
High-Pass Filter | 80 Hz, 18 dB/Octave |
Filter & EQ | Low-Cut Filter: 80 Hz, 18 dB/Octave |
Gain Adjustment | No |
On-Mic Controls | Low Cut/HPF |
Performance |
|
---|---|
Frequency Response | 20 Hz to 20 kHz |
Maximum SPL | 129 dB (Phantom Power, 1 kHz, 1% THD) 115 dB (Battery Power, 1 kHz, 1% THD) |
Off-Axis Rejection | >5 dB at 60° >20 dB at 120° 20 dB at 180° |
Sensitivity | -40 dBV/Pa (Phantom Power, Open Circuit Voltage) -41 dBV/Pa (Battery Power, Open Circuit Voltage) |
Dynamic Range | 112 dB (Phantom Power, 1 kHz, at Max SPL) 98 dB (Battery Power, 1 kHz, at Max SPL) |
Connectivity |
|
---|---|
Analog Output | 1x XLR 3-Pin |
Power |
|
---|---|
Power Sources | Phantom Power |
Operating Voltage | 11 to 52 V |
Battery Type | 1x AA (Included) |
Physical |
|
---|---|
Color | Black |
Mounting Thread Size | 5/8"-27 Female (3/8"-16 Female with Included Adapter) |
Dimensions | ø: 0.83 x L: 10.98" / ø: 21 x L: 279 mm |
Weight | 5.11 oz / 145 g (Microphone) |
