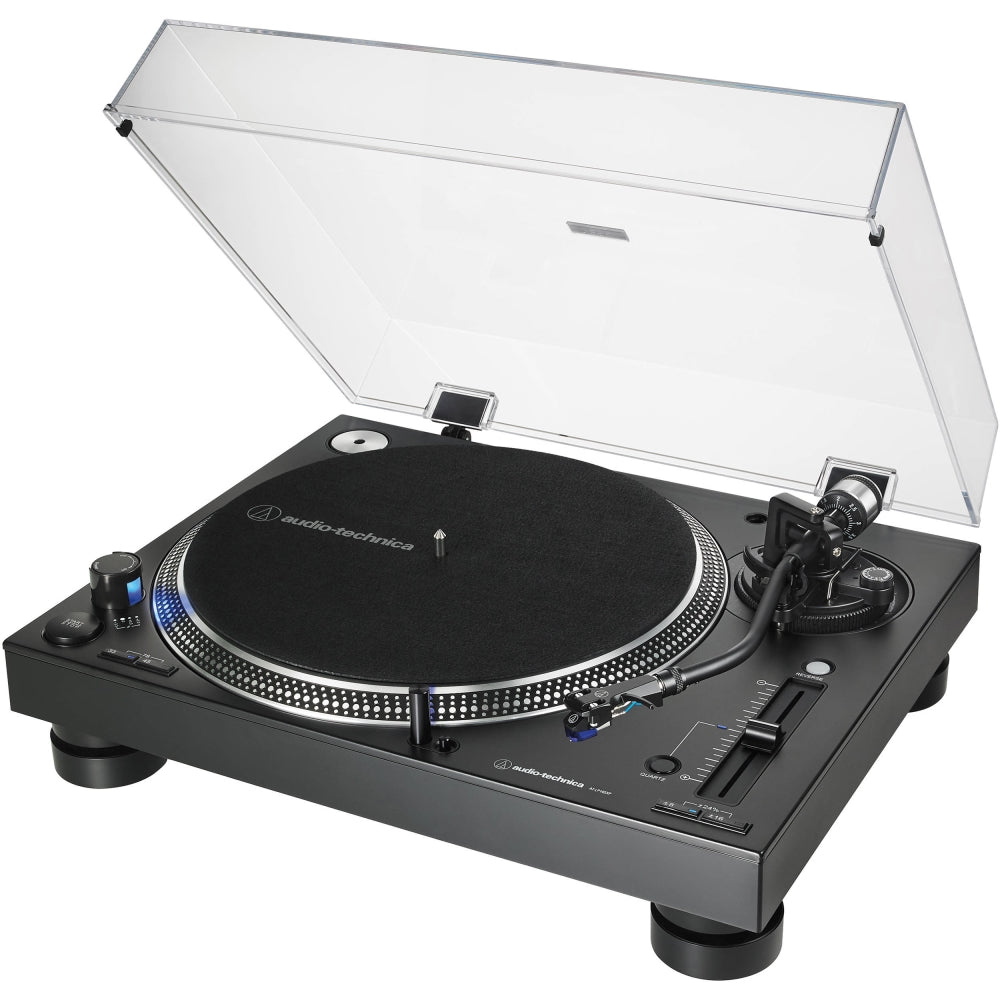

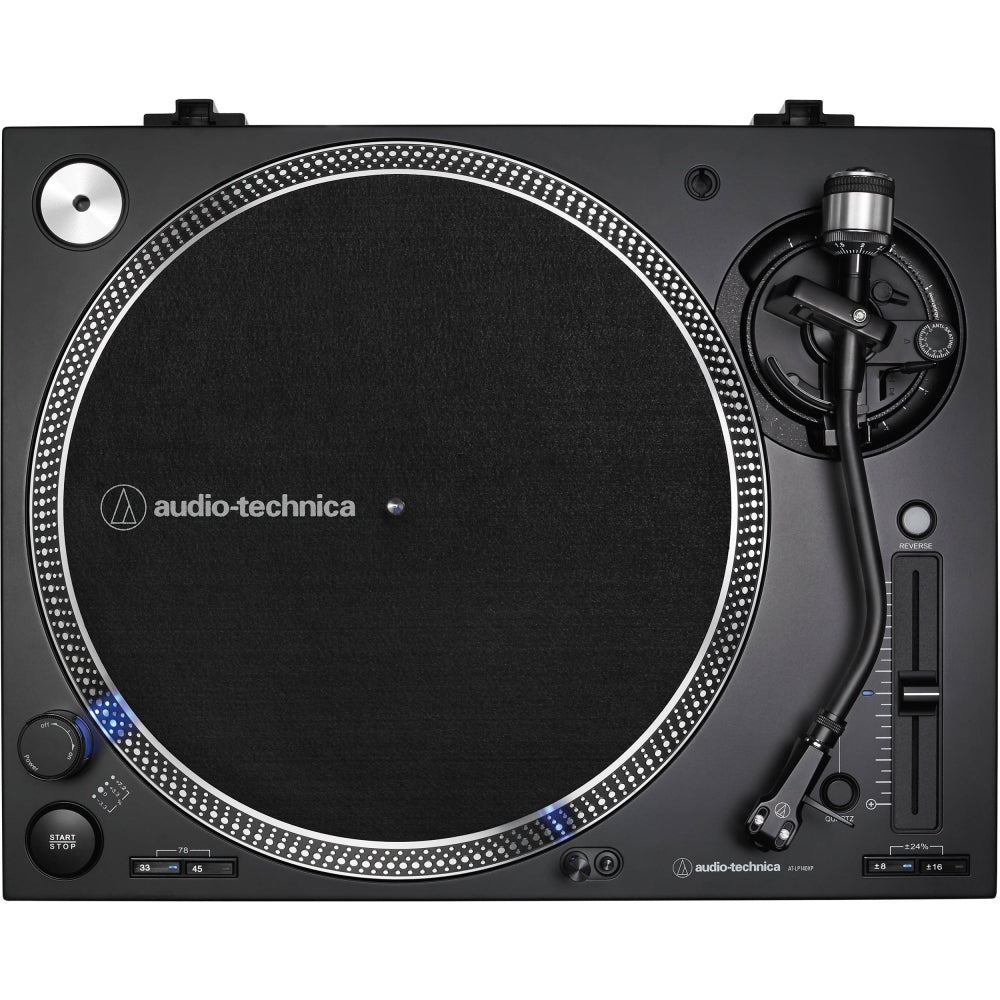

The black Audio-Technica Consumer AT-LP140XP Direct Drive Professional DJ Turntable offers a variety of features ideal for nightclub DJ booths as well as mobile and home DJ setups. Constructed from durable cast aluminum, the AT-LP140XP is equipped with a high-torque DC motor and a balanced S-shaped tonearm. Additionally, it comes with the AT-XP3 DJ cartridge, which is pre-mounted on an AT-HS6 universal 1/2"-mount headshell.
The Audio-Technica AT-LP140XP is equipped with several advanced professional features, such as a start/stop button, options for forward and reverse playback, and a high-precision quartz-controlled pitch lock. It also offers a pitch change slider control with adjustment ranges of ±8%, ±16%, and ±24%. Additional features include a stroboscopic platter with a speed indicator, a retractable plug-type stylus target light, and a removable hinged dust cover. Furthermore, the turntable comes with a counterweight, a felt mat, and a 45 rpm adapter.
- Experience high-fidelity audio and professional DJ performance
- Direct-drive, high-torque servo motor with speed stabilization
- Fully manual operation
- Adjustable dynamic anti-skate control
- Selectable 33 1/3/45/78 rpm speeds
- Professional anti-resonance, mass-damped, die-cast aluminum platter with felt mat
- AT-HS6 universal ½" mount headshell and AT-XP3 DJ cartridge with 0.6 mil conical bonded stylus
- Balanced S-shaped tonearm with hydraulically damped lift control, height adjustment, and lockable rest
- Dedicated phono-level output (5.5 mV)
- Stroboscopic platter with speed indicator
- Forward/reverse operation and variable pitch control with quartz speed lock
- Retractable plug-type target light for easier cueing in low light
- Damped base construction for reduced low-frequency feedback coloration
- Includes: detachable RCA output cable (dual RCA male to dual RCA male), power cable, 45 rpm adapter, counterweight, felt mat, and removable hinged dust cover
Cartridge Specifications |
|
---|---|
Cartridge | AT-XP3 |
Frequency Response | 20 Hz to 18 kHz |
Channel Separation | >20 dB at 1 kHz |
Tracking Force | Vertical Tracking Force: 2.0 to 4.0 g (3.0 g Standard) |
Stylus | Stylus Construction: Bonded Round Sank Stylus Shape: 0.6 mm Conical Stylus Cantilever: Carbon Fiber-Reinforced ABS |
Output | 5.5 mV at 1 kHz, 5 cm/sec |
Channel Balance | 2.0 dB (1 kHz) |
Mount | 0.5" / 12.7 mm |
Replacement Stylus | ATN-XP3 |
Turntable |
|
---|---|
Type | 3-Speed, Fully Manual |
Motor | Direct Drive High-Torque DC Motor |
Speeds | 33 1/3, 45, 78 rpm |
Pitch Control Range | ±8%, ±16%, and ±24% |
Turntable Platter | Die-Cast Aluminum |
Torque | Starting Torque: >2.2 kgf cm |
Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) |
Signal-to-Noise Ratio | >50 dB |
Output Level | 5.5 mV nominal at 1 kHz, 5 cm/sec |
Tonearm |
|
---|---|
Type | Balanced S-Shaped Tonearm with Detachable Headshell |
Effective Arm Length | 9.1" / 230.5 mm |
Overhang | 0.6" / 16.0 mm |
Tracking Error Angle | <3° |
Cartridge Weight | Applicable Cartridge Weight: 3.5 to 8.5 g |
Anti-Skating Range | 0 to 4 g |
Replacement Stylus | ATN-XP3 |
General Specifications |
|
---|---|
Power | Power Supply Requirements: 115/230 VAC, 60/50 Hz Power Consumption: 11 W |
Dimensions | 17.8 x 13.9 x 6.2" / 452.1 x 352.0 x 158.5 mm |
Weight | 22.0 lb / 10.0 kg |
