Audio-Technica ATW-1101/H92 System 10 Digital Wireless Omni Earset Microphone System | Black, 2.4 GHz

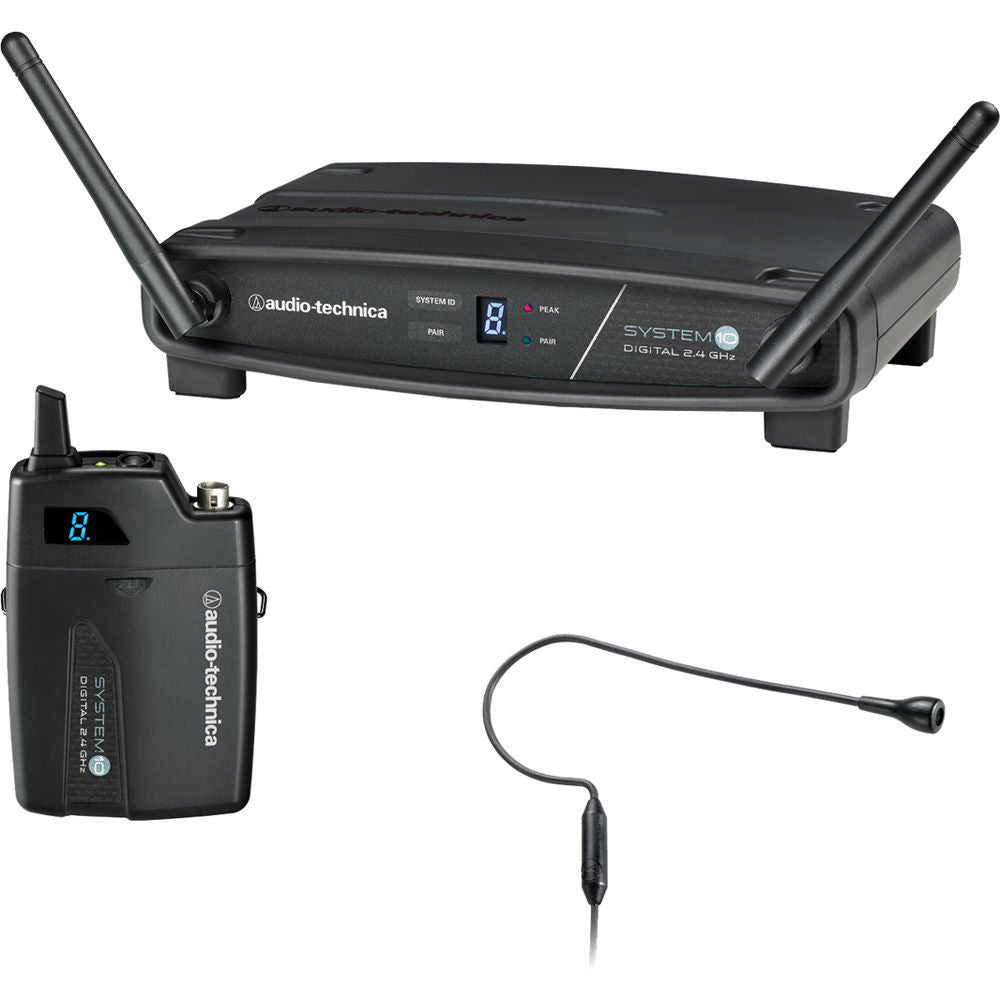

The Audio-Technica ATW-1101/H92 System 10 is a digital wireless earset microphone system featuring an ATW-R1100 tabletop receiver. The portable system is well suited for quick setup in educational facilities, conference rooms, small venues, and houses of worship as well as web broadcast studios. The easy-to-use system comes preconfigured at the factory, ready to operate right out of the box with no setup required. Three levels of diversity reception and automatic frequency selection provide seamless, reliable performance with clear digital audio for presenters, lecturers, clergy, and performers. The ATW-1101/H92 includes a bodypack transmitter and a black PRO 92cW omnidirectional condenser earset mic for hands-free speech. The lightweight, low-profile earset delivers improved clarity and additional protection against feedback when compared to a lavalier mic. The transmitter provides up to 7 hours of continuous use with two AA batteries, at a maximum range of 100'. For setups with multiple presenters, up to 8 mic channels can operate simultaneously in the same space.

Clear Speech with Digital Audio and Omnidirectional Earset Mic

• The System 10 offers full-bandwidth, 24-bit/48 kHz digital audio with none of the audio artifacts associated with analog companding.


• The black PRO 92cW earset microphone uses a flexible, contoured earpiece that hooks over either ear for a comfortable fit.


• The earset with a condenser microphone capsule is ideal for lecturers and other applications requiring clear, articulate vocal projection.


• The mic's omnidirectional polar pattern ensures that the sound remains consistent, even when the speaker's head moves away from the mic.



Easy to Set Up, Easy to Operate

Automatic Frequency Selection

• Just power up the components, and the receiver automatically seeks out a clean frequency and pairs up with the transmitter, saving you the hassle of scanning and syncing.


• While in use, the system continually monitors activity in the 2.4 GHz Wi-Fi range and automatically switches to a clean frequency to avoid interference if necessary.

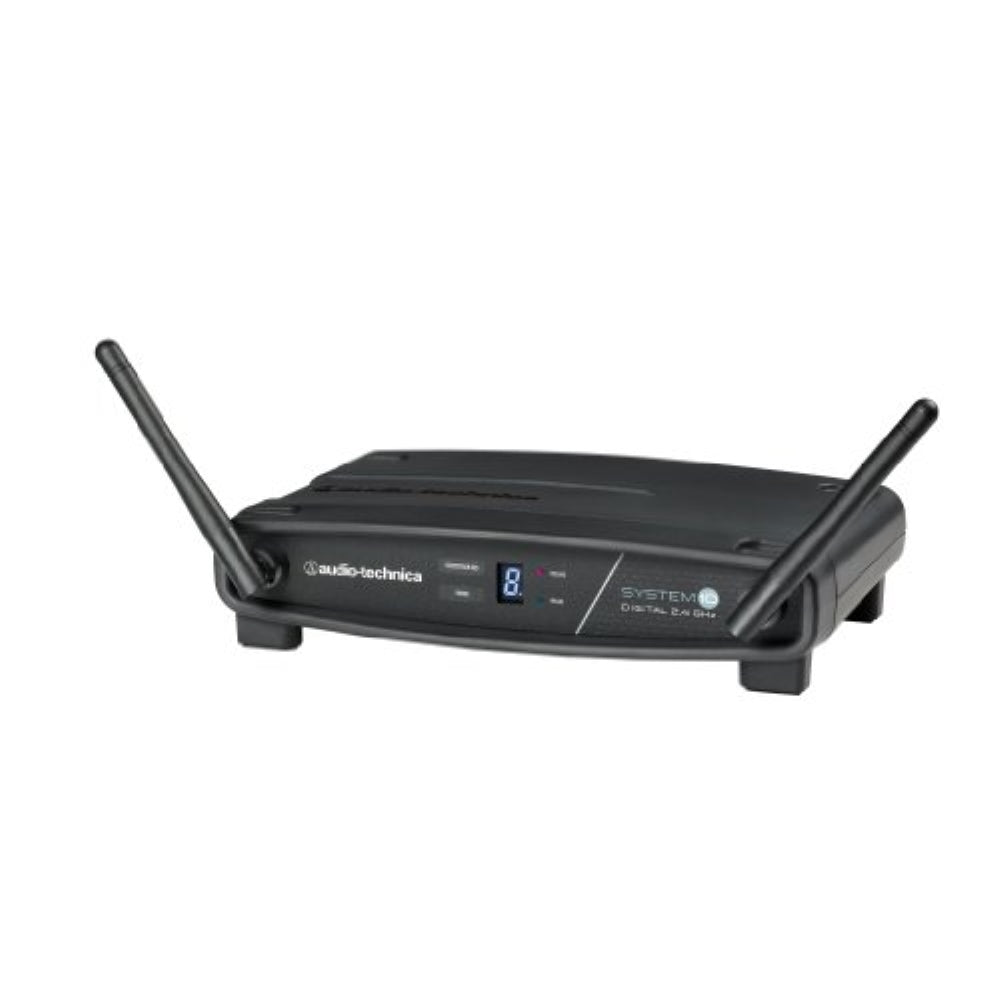

Lightweight, Portable Receiver Chassis

• The tabletop receiver chassis features lightweight, plastic housing designed to let you stack multiple receivers on top of each other for convenience.


• The chassis' front-panel LEDs show pairing statuses and warn you if the transmitter's input level is set too high and causing distortion.


• A System ID number display indicates which transmitter is associated with a given receiver.


• Rear-panel connections include balanced XLR and unbalanced 1/4" output connections as well as an output level control.

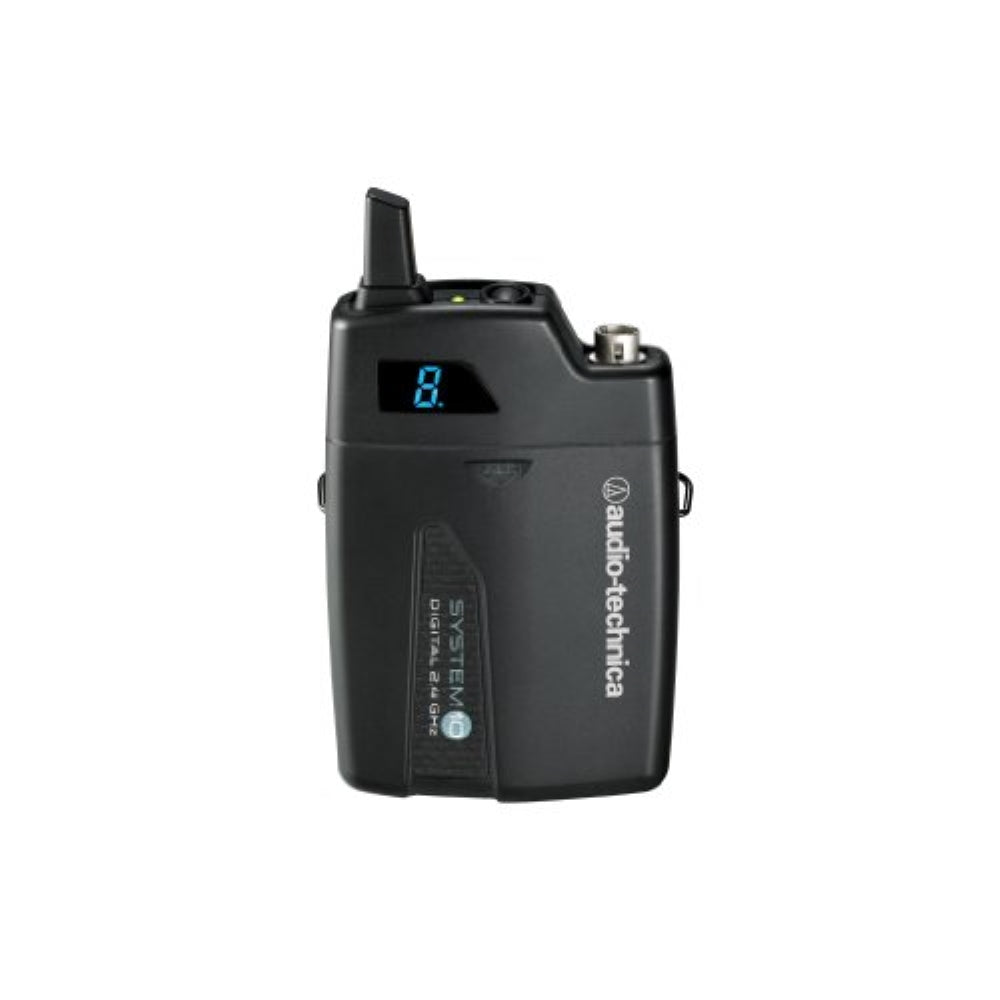

Lightweight Bodypack Transmitter

• The transmitter is housed in lightweight, plastic chassis equipped with a Hirose 4-pin locking connector and a belt clip.


• An internal input trim control can be set, using the included screwdriver, to match the sensitivity of your microphone or audio source for distortion-free input.


• With just a quick press, the power switch on the transmitter doubles as a mute function. This function can be locked out to prevent an accident.



Pairing Multiple Transmitters

• With this peer-to-peer system, the transmitter can only transmit to one receiver at a time. However, up to 8 transmitters can be paired with a receiver ahead of time. This is useful in situations when you have multiple presenters, one after another, and you need to have them miked up and ready to go. All you'll have to do is turn one transmitter Off and the next one On.



Three Levels of Diversity Assurance to Avoid Dropouts

Triple Diversity Reception Maximizes Wireless Signal Integrity

• Space Diversity: The receiver compares the signal showing up at its two antennas and chooses the strongest one.


• Time Diversity: The transmitter sends the digital signal in two imperceptibly different time slots and compares the two.


• Frequency Diversity: The digital audio is sent over two different frequencies at the same time and the system chooses the cleaner one.



2.4 GHz Wi-Fi Band

• Unlike traditional analog wireless systems, the System 10 operates in the 2.4 GHz ISM band, away from interruptions and dropouts caused by TV and radio channel interference.



Add Functionality to Your System

Audio-Technica offers a variety of lavalier, headset, instrument cable, and handheld microphone options to adapt your System 10 as your needs evolve.

Presenters

• The PRO 8HEcW headset microphone uses a pivot-mounted flexible mic boom that descends from either the left or right side. The headset features a low-visibility headband and cushioned support pads to provide a stable, secure fit.


• The low-visibility, miniature MT830cW lavalier microphone delivers a natural sound optimized for speech intelligibility and features an omnidirectional polar pattern that ensures consistent sound, even when the speaker's head is moving during a presentation.


• The AT831cW mini cardioid lavalier mic offers a narrower, feedback-resistant pickup pattern for louder events.



Vocalists/Presenters

• The ATW-T1002 handheld transmitter/mic is available for presenters and performers who prefer the flexibility of a handheld microphone.



Video Conferencing

• The ATW-T1006 boundary transmitter/mic is designed for tabletop use, ideal for applications such as video-conferencing where minimum visibility is required.



Conferences/Boardrooms

• The ATW-T1007 base transmitter can be used with a gooseneck mic on a table for situations where wired mics are impractical.



Guitarists

• The AT-GcW guitar cable lets you connect the bodypack transmitter to a guitar or bass.
