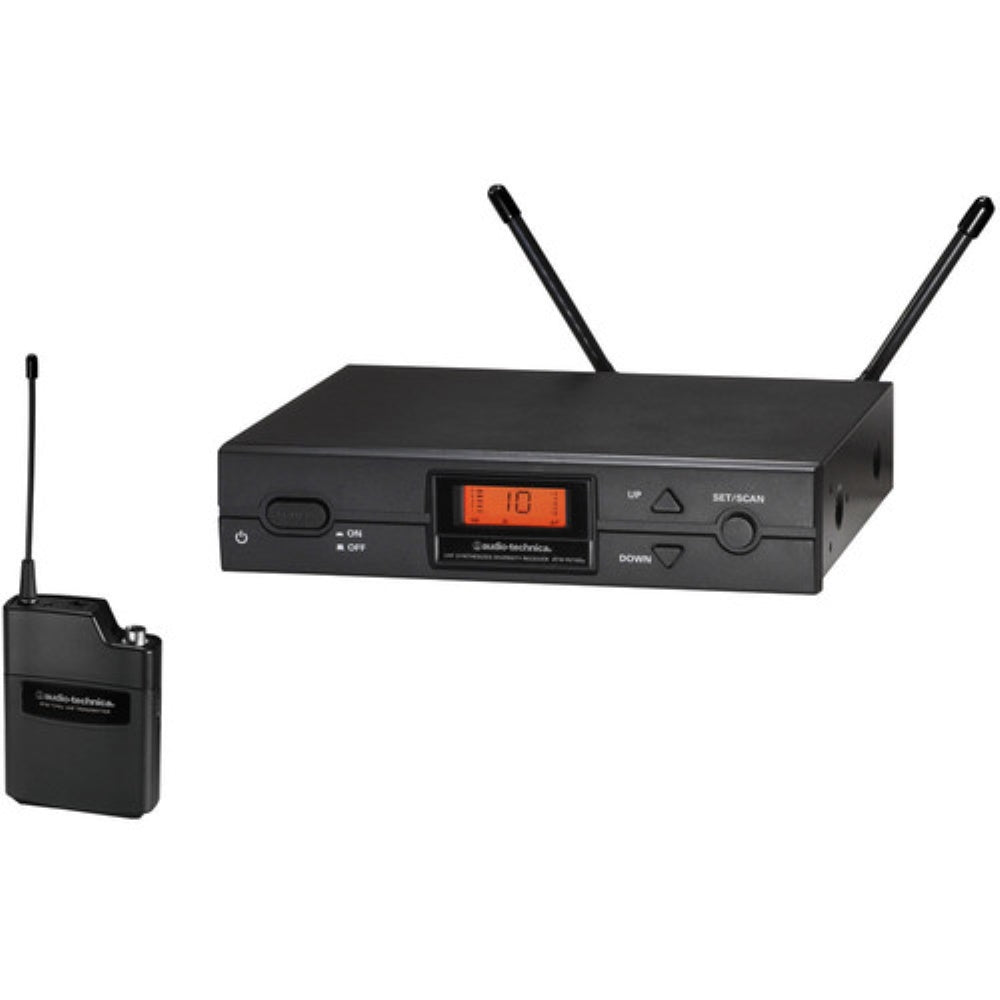

The ATW-2110b Wireless UHF Bodypack System from Audio-Technica bridges the gap between affordable wireless technology and professional level quality. It includes an ATW-T210 UniPak bodypack transmitter and an ATW-R2100 diversity UHF receiver that can be used when paired with a lavalier microphone in a variety of applications for live stage, fixed installations, rehearsals, public speaking, A/V rental houses, places of worship, and more. The ATW-R2100 receiver features True Diversity operation and selects between two receiver sections, reducing dropouts and radio frequency interference. Furthermore, it features 10 user selectable UHF frequencies, allowing 10 systems to be used simultaneously. Single touch frequency scanning automatically selects clear frequencies in the area. The rear panel features a balanced XLR output and an unbalanced 1/4" phone connection. A back-lit LCD provides channel, AF, RF and diversity status information. The ATW-T210 UniPak transmitter is a lightweight bodypack microphone transmitter that operates on the same frequencies as the receiver. The transmitter features a 4-pin Hirose connection input that is compatible with Audio-Technica "CW" lavaliers and headworn microphones, and select instrument cables. The transmitter operates up to 9 hours on two 1.5V AA batteries.
System |
|
|---|---|
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 10 |
| Included Transmitters | 1x Bodypack |
| Diversity | True Diversity |
| RF Frequency Band | I: 487.125 to 506.5 MHz |
| RF Bandwidth | 19 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 328.1' / 100 m |
| Max Transmitters per Band | 10 |
| Built-In Recorder | No |
| Timecode Support | No |
| Dynamic Range | >110 dB |
| Encryption | No |
| Deviation | ±40 kHz (Peak) |
| Modulation | FM |
| THD | <1 % |

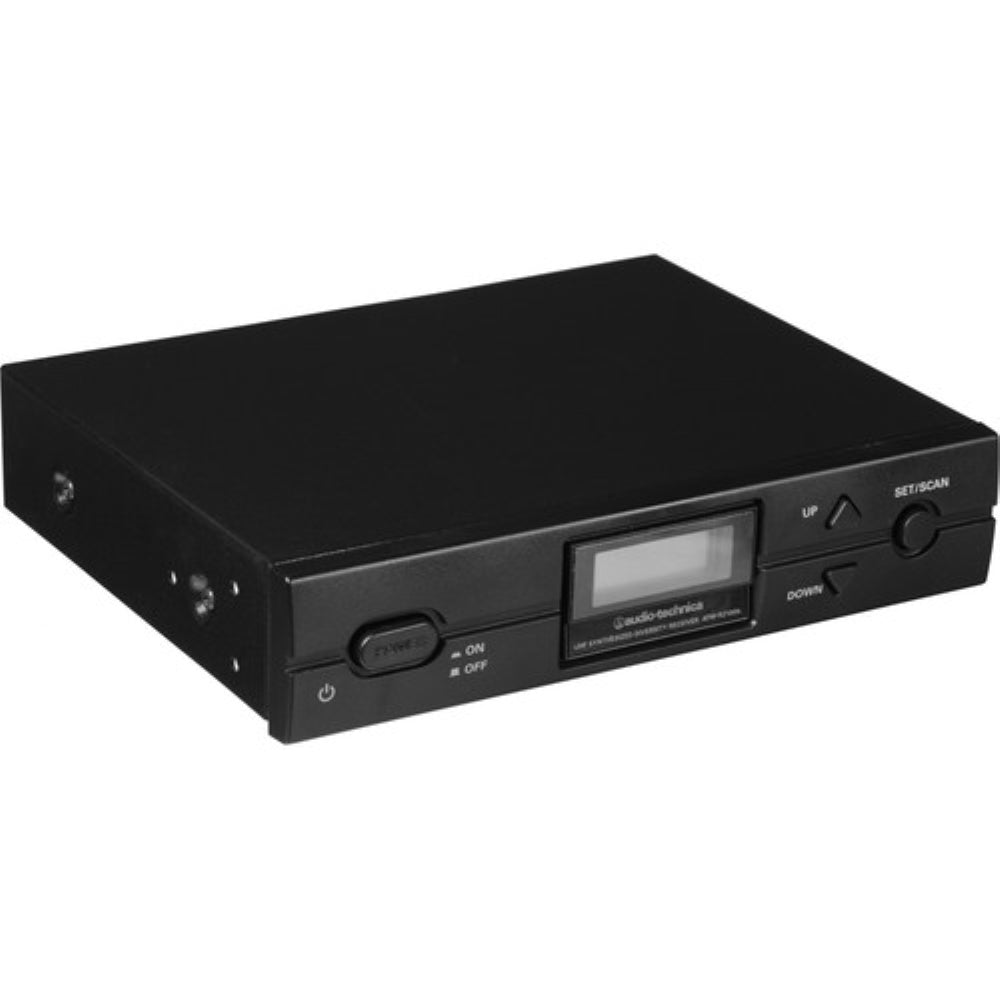

Receiver |
|
|---|---|
| Receiver Type | Tabletop / Rackmount |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1RU |
| Antenna | 2x External, BNC (Rear-Mount) |
| Antenna Bias Voltage | 12 VDC, 60 mA (per Antenna) |
| Number of Audio Channels | 2 |

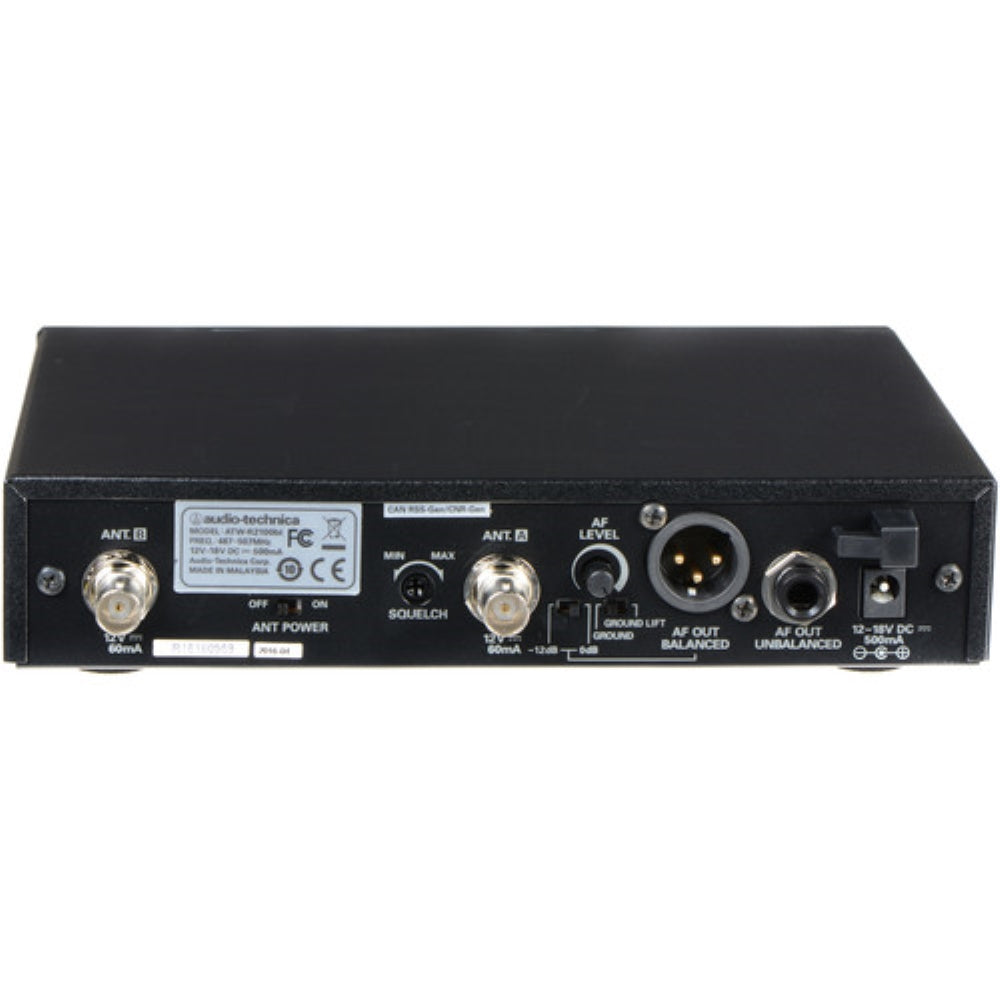

| Audio I/O | 1x XLR 3-Pin Male Balanced Mic Output 1x 1/4" TS Unbalanced Mic Output |
| Pad | 12 dB |
| Audio Output Level | XLR Output: +9 dBV 1/4" Output: +4 dBV |
| Phantom Power Protection | No |
| Frequency Response | 100 Hz to 15 kHz +1/-3 dB |
| Network I/O | No |
| Network Protocols | No |
| Word Clock I/O | No |
| USB/Lightning Connectivity | No |
| Standalone Audio Interface Capable | No |
| Impedance | Antenna: 50 Ohms |
| Approximate RF Sensitivity | 20 dBuV |
| Squelch | Adjustable |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 18 VDC at 500 mA (Included) |

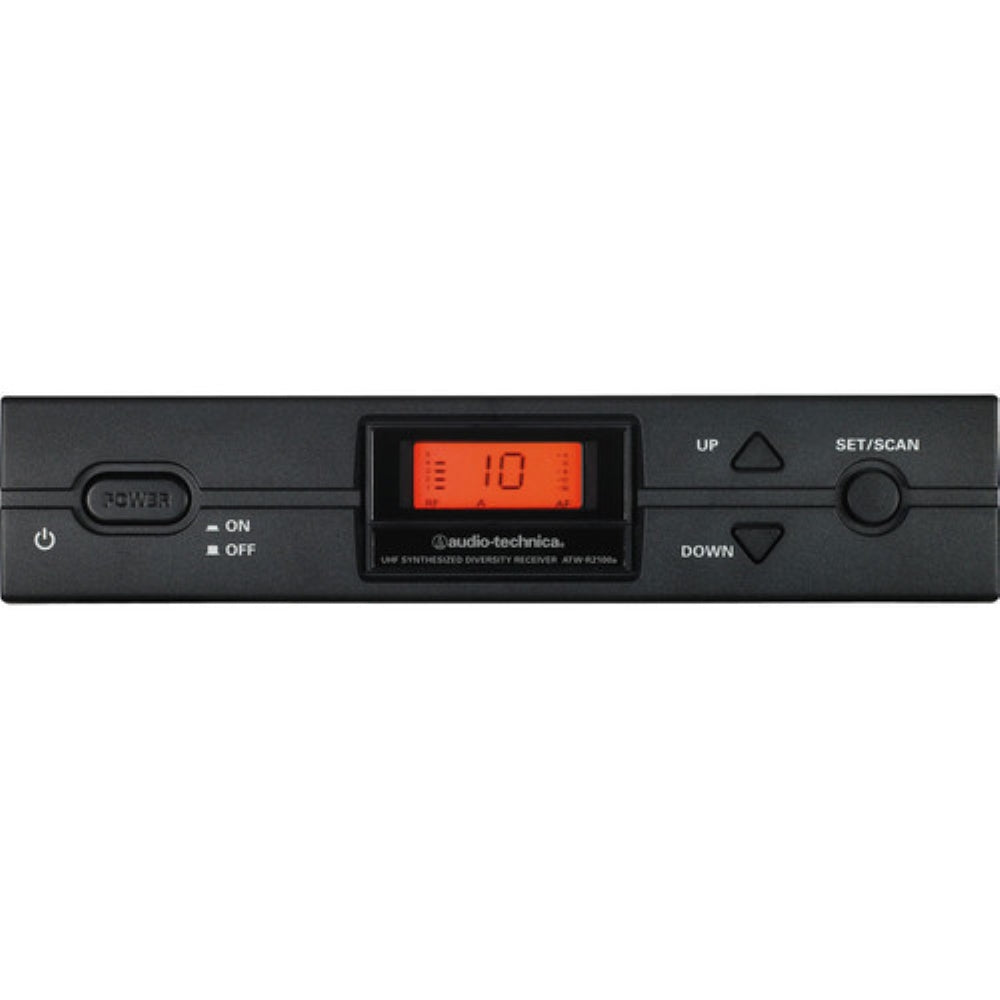

| Display & Indicators | 1x Backlit LCD (AF Level, Channel, Diversity, RF Level) |
| Housing | Metal |
| Operating Temperature | 41 to 113°F / 5 to 45°C |
| Dimensions | 8.3 x 1.7 x 6.4" / 210 x 44 x 162 mm |
| Weight | 35.3 oz / 1 kg |

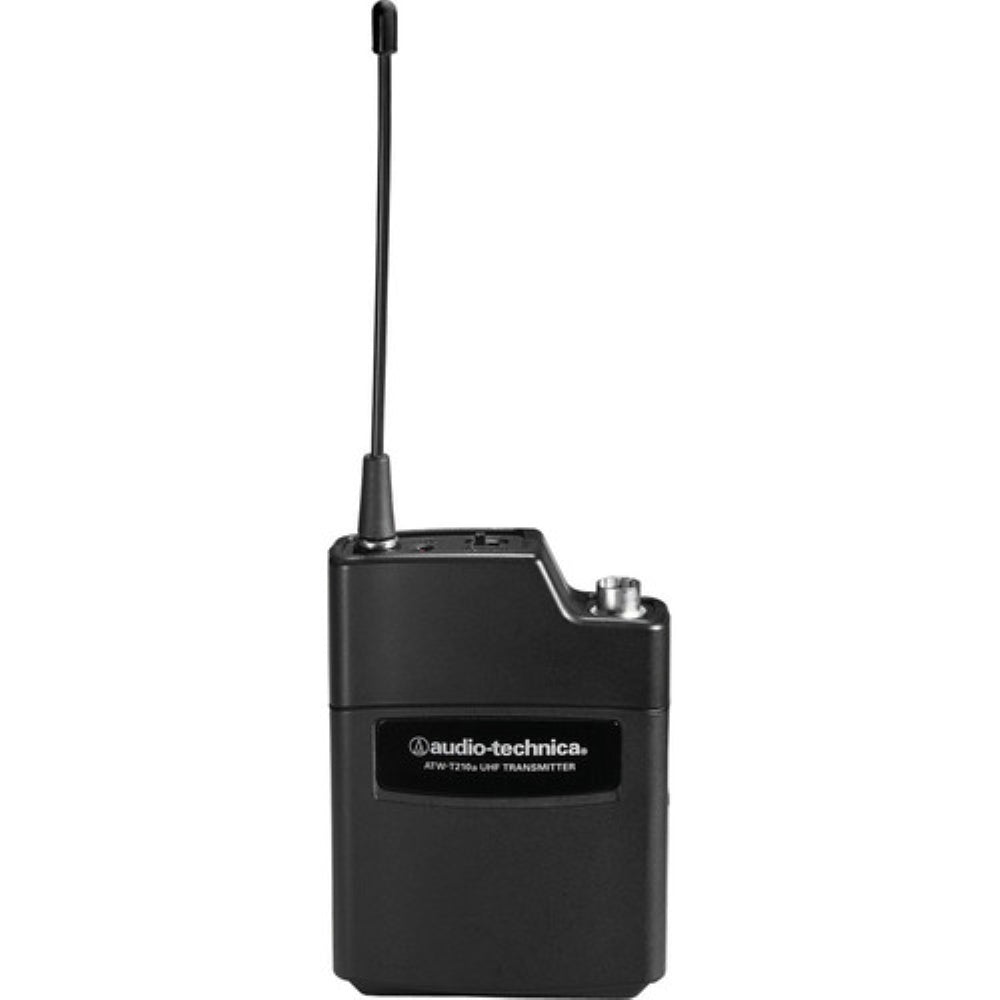

Transmitter |
|
|---|---|
| Transmitter Type | Bodypack |
| RF Output Power | 10 / 30 mW (Switchable, at 50 Ohms) |
| Audio I/O | 1x Hirose cW-Style 4-Pin Female Unbalanced Input (Locking) |
| Included Cable Connector | No |
| Plug-In Power | 9 V |
| Pad | No |
| Muting | Off/On Switch |
| Auto-Level Control | Yes |
| Signal Processing | No |
| Frequency Response | 100 Hz to 15 kHz +1/-3 dB |
| Sync Method | 2.4 GHz QPSK |
| Antenna | 1x Flexible Whip |
| Power Requirements | Battery |
| Battery Type | 2x AA (Not Included) |
| Approx. Battery Life | Low: 9 Hours High: 7 Hours |
| USB/Lightning Connectivity | No |
| Display & Indicators | 1x LED (Battery Status, Sync) |
| Dimensions | 2.6 x 3.6 x 0.9" / 66 x 92.3 x 22.5 mm |
| Weight | 2.9 oz / 81 g (without Batteries) |
