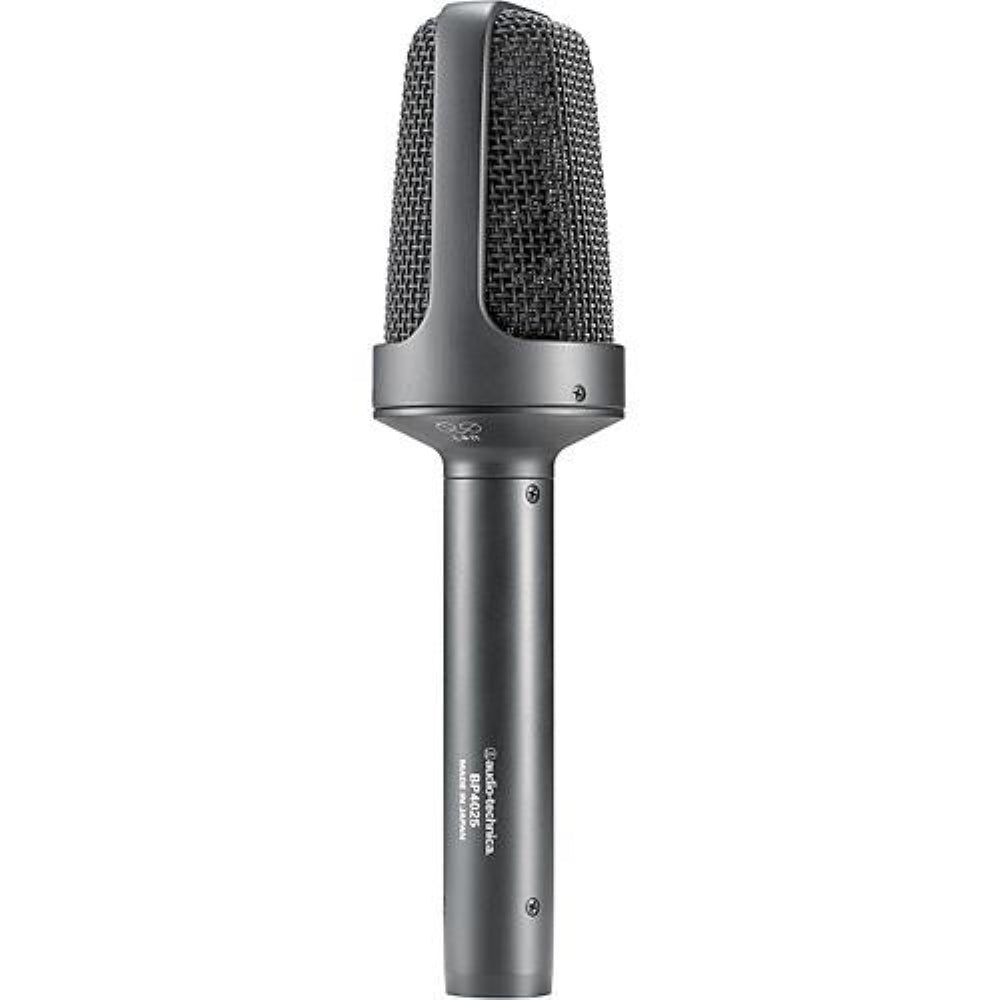

Audio-Technica BP4025 X/Y Stereo Field Recording Microphone
The Audio-Technica BP4025 X/Y Stereo Microphone captures ambiance, live performances and any audio source with accurate stereo imaging and detailed frequency response. The capsule features two condenser capsules mounted in an X/Y configuration. Its innovative coincident capsule configuration produces accurate stereo image in a smaller housing.
The BP4025 terminates to a 5-pin XLR output and the supplied cable provides dual 3-pin XLR connectors for stereo connections to cameras, mixer channels, portable recorders, etc. The microphone requires 11-52VDC phantom power and includes the 5-pin to dual 3-pin XLR cable, stand adapter, windscreen and protective pouch.
- Stereo recording of ambiance, musical performances, vocals, and more
- 5-pin output and dual 3-pin XLR cable is supplied
- Coincidence element mounting for smaller capsule profile
- Rugged construction
Audio-Technica BP4025 |
|
|---|---|
| Transducer | Fixed-charge back plate permanently polarized condenser |
| Polar Pattern | X/Y Stereo |
| Frequency Response | 20Hz to 17kHz |
| Dynamic Range (Typical) | 131dB, 1kHz at Max SPL |
| Signal-to-Noise Ratio | 80dB, 1kHz at 1Pa |
| Maximum Input Sound Level | 145dB SPL, 1kHz at 1% T.H.D.; 155dB SPL, with 10 dB pad (nominal) |
| Power Requirements | 11-52VDC, 7mA typical (both channels total) |
| Output Impedance | 170 ohms |
| Output Connectors | 5-pin XLR Output (5-Pin to dual 3-Pin XLR Cable Supplied) |
| Pad | -10dB |
| Low Frequency Roll-Off | 80Hz, 12dB / octave |
| Dimensions | 7.32 x 1.87" (186.0 x 47.5mm) |
| Weight | 9.5 oz (269g) |
