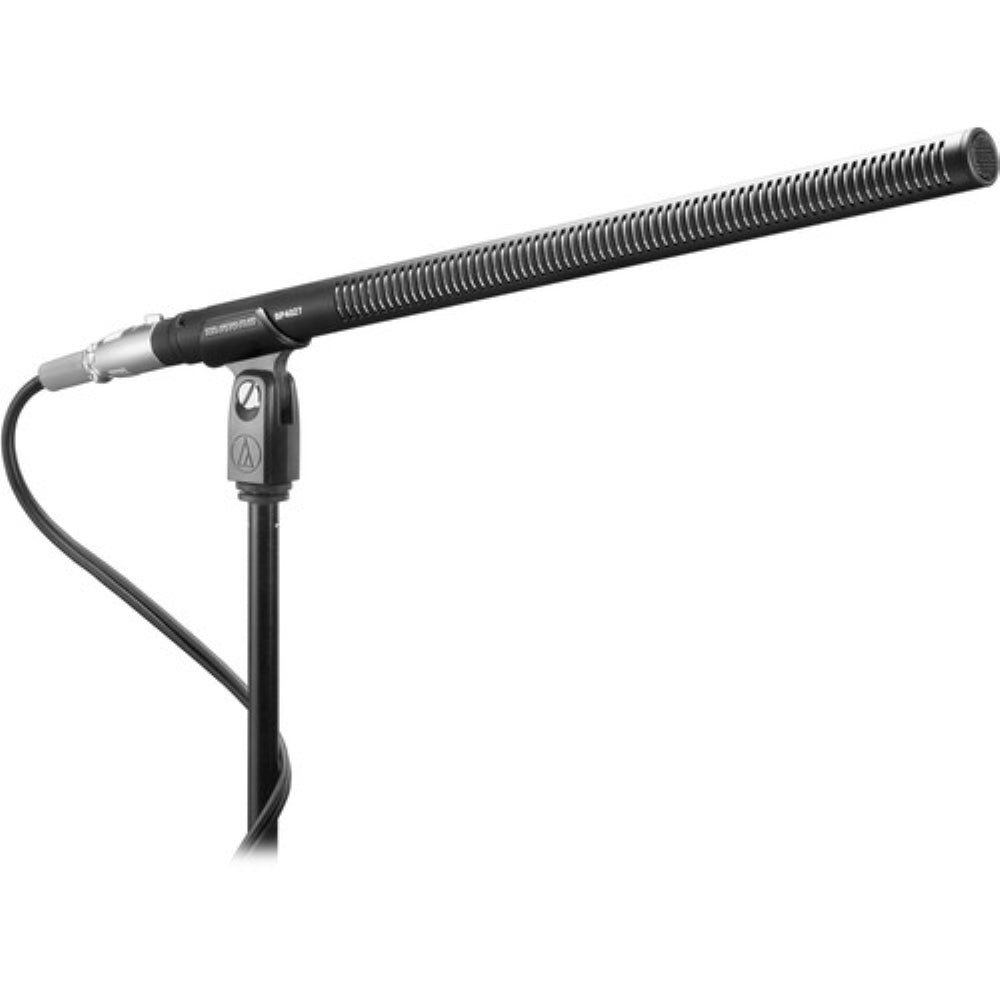

Audio-Technica BP4027 (AT815ST) - Stereo Shotgun Condenser Microphone
The BP4027 (AT815ST) Stereo Shotgun Microphone from Audio-Technica is a direct result of input Audio Technica received from broadcasters over the last few years. After extensive testing of this microphone by television broadcast professionals, as well as at Olympic test events, this microphone became a favorite among broadcasters, sound recordists and videographers.
- Designed for broadcasters, videographers and sound recordists
- Compact, lightweight design is perfect for camera-mount use
- Independent Line-cardioid and Figure-of-eight condenser elements
- Switchable low-frequency roll-off
- Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
Microphone |
|
|---|---|
| Sound Field | Stereo |
| Element Type | Electret Condenser |
| Polar Pattern | Figure-8 / Hypercardioid |
| Pattern Selection | Switched (Adjustable on Mic) |
| Orientation | End Address |
| Pad | No |
| High-Pass Filter | Yes |
| On-Board Controls | High-Pass Filter, Polar Pattern |
Performance |
|
|---|---|
| Frequency Range | 30 Hz to 20,000 Hz |
| Maximum SPL | 126 dB SPL (1 kHz, 1% THD) |
| Sensitivity | -36 dB |
| Dynamic Range | 102 dB (1 kHz, at Max SPL) |
| Signal-to-Noise Ratio | 70 dB (1 kHz, at 1 Pa/94 dB SPL) |
Connectivity |
|
|---|---|
| Analog Output | 1x XLR 5-Pin Male |
| Cable Length | 24" / 0.6 m |
Power |
|
|---|---|
| Power Sources | Phantom Power |
Physical |
|
|---|---|
| Color | Black |
| Mounting Thread Size | 5/8"-27 Female |
| Dimensions | ø: 0.8 x L: 15" / ø: 21 x L: 380 mm |
| Weight | 5 oz / 142 g |
