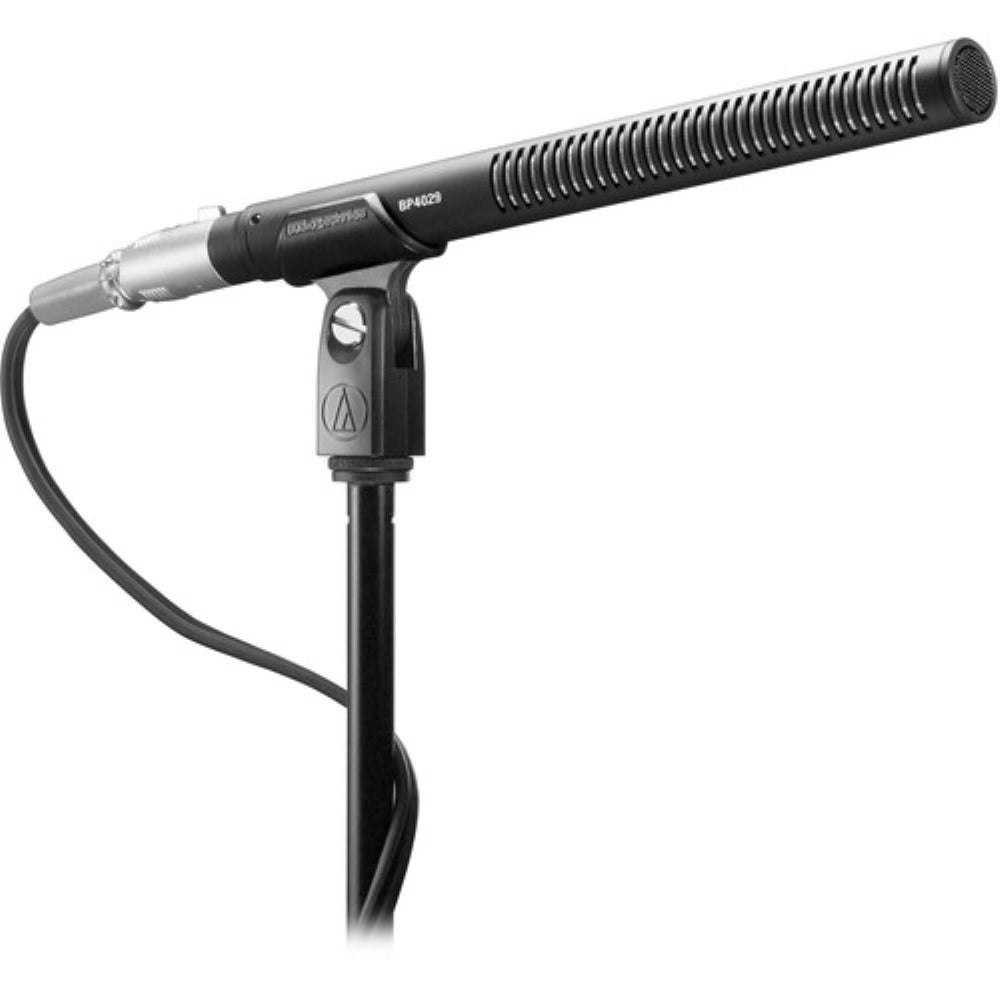

Audio-Technica BP4029 Mid-Side Short Stereo Shotgun Microphone
The BP4029 (AT835ST) Stereo Shotgun Microphone from Audio-Technica offers two internally-matrixed modes which provide traditional "left-right" stereo. To accommodate varying acoustic environments, the user may select between a "wide" pattern (LR-W) with increased ambient pickup, and a "narrow" pattern (LR-N) which offers more rejection and less ambience.
In M-S mode, the BP4029 provides independent Mid and Side signals. This allows the Mid-Side balance to be adjusted as desired at the recording desk or mixing electronics, reducing the amount of equipment necessary in the field.
- Independent line-cardioid and figure-of-eight condenser elements
- Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
Microphone |
|
|---|---|
| Sound Field | Stereo (Mid/Side, A/B Configuration) |
| Element Type | Condenser |
| Polar Pattern | Cardioid / Figure-8 |
| Pattern Selection | Switched |
| Orientation | End Address |
| Circuitry | Solid-State |
| High-Pass Filter | 80 Hz, 12 dB/Octave |
| Gain Adjustment | No |
Performance |
|
|---|---|
| Frequency Range | 40 Hz to 20 kHz |
Connectivity |
|
|---|---|
| Analog Output | 1x XLR 5-Pin |
| Cable Length | 24" / 0.61 m |
Power |
|
|---|---|
| Power Sources | Phantom Power |
| Operating Voltage | 11 to 52 V |
Physical |
|
|---|---|
| Color | Black |
| Mounting Thread Size | 5/8"-27 Female (3/8"-16 Female with Included Adapter) |
| Dimensions | ø: 0.83 x L: 9.29" / ø: 21 x L: 236 mm |
| Weight | 3.63 oz / 103 g |
| On-Mic Controls | Low Cut/HPF |
