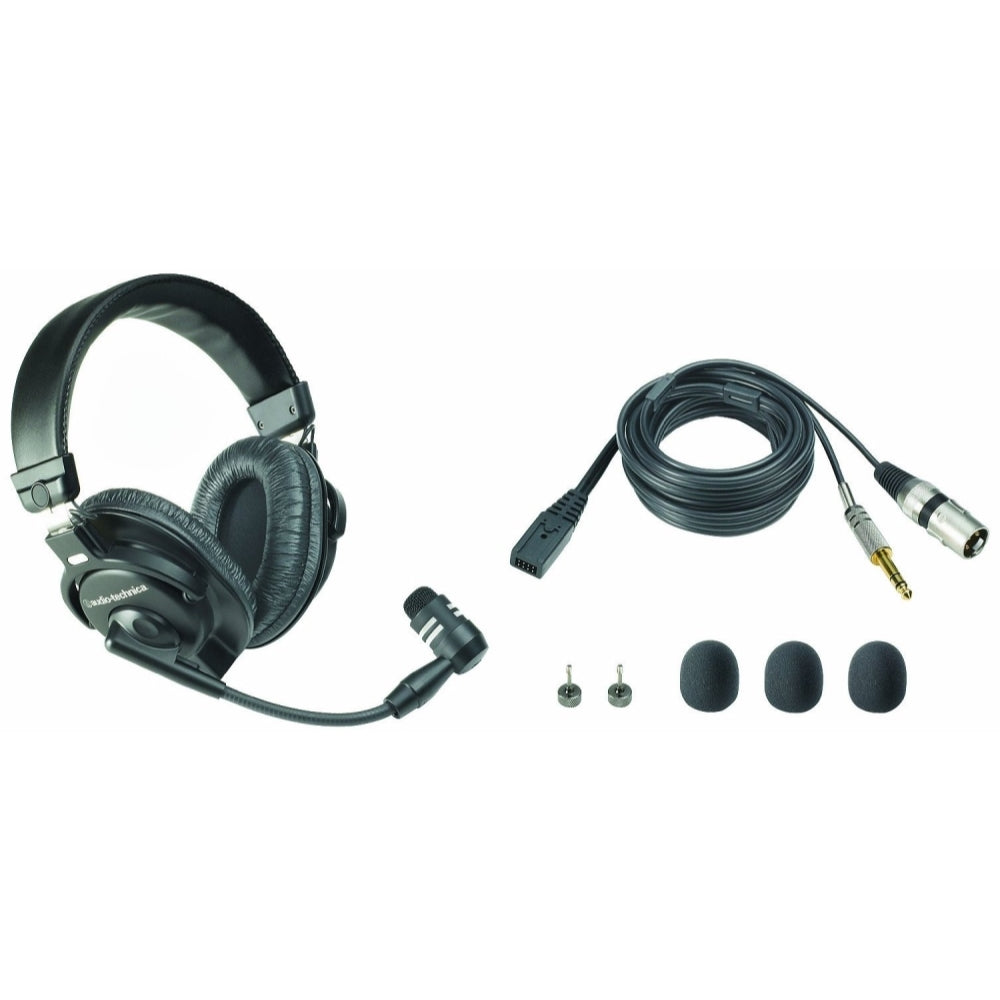

Audio-Technica BPHS1 Broadcast Stereo Headset
The Audio-Technica BPHS1 Broadcast Stereo Headset is designed for monitoring and speech capturing for news broadcasts, direction, sports commentary and more. The BPHS1 features a closed-back circumaural headset that minimizes outside ambiance and provides high intelligibility. The attached boom microphone features a frequency response tailored for speech capturing. Its cardioid polar pattern minimizes off-axis noise and feedback. A 1/4" phone connection is featured for the headphones, and an XLR connection is provided for the mic.
- Microphone features polar pattern and frequency response tailored for natural, highly intelligible vocal reproduction
- Closed-back circumaural ear cups help seal out crowd noise and other background distractions
- Neodymium magnets in microphone and headphones for high output level & detailed sound reproduction
- Rugged design with user-replaceable cable and ear pads
- Cardioid pickup pattern of the dynamic microphone rejects off-axis sounds
- Boom-mounted microphone can be positioned on the left or right side
- Adjustable cushioned headband and lightweight design for long-wearing comfort
- 3-pin XLRM-type connector for microphone, 1/4" phone 3-conductor for headphones
Headphone |
|
|---|---|
| Number of Earpieces | Dual Earpiece |
| Driver Type | Dynamic |
| Impedance | 65 Ohms |
Performance |
|
|---|---|
| Frequency Response | 20 Hz to 20 kHz |
| Sensitivity | 100 dB |
| Maximum Power Handling | 1600 mW |
Microphone |
|
|---|---|
| Microphone Type | Dynamic |
| Pickup Pattern | Cardioid (Unidirectional) |
| Frequency Response | 40 Hz to 20 kHz |
| Sensitivity | -57 dB1.4 mV |
| Impedance | 560 Ohms |
Wired Connectivity |
|
|---|---|
| Audio Connector | 1/4"" XLR 3-Pin |
