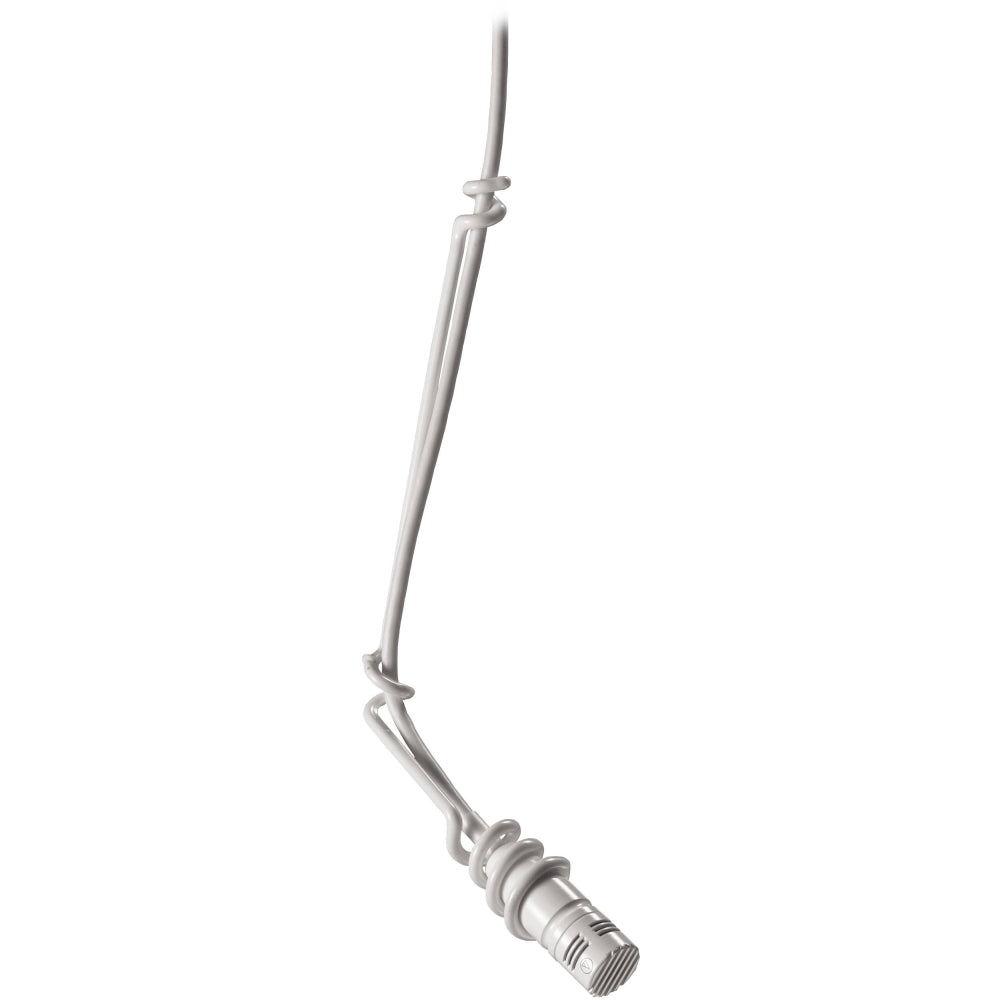

Audio-Technica U853RW UniPoint Series Cardioid Condenser Hanging Microphone | Phantom Power Only, White
Audio-Technica U853RW UniPoint Series Cardioid Condenser Hanging Microphone | Phantom Power Only, White
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
From the Audio-Technica UniPoint Series, the U853R Hanging Microphone is designed for accurate signal reproduction in theaters, houses-of-worship, conference halls, boardrooms, schools, professional recording applications and more. The U853R features a flexible steel hanger that grips the suspended cable and capsule, enabling easy microphone placement without excess hardware. The U853's capsule features a wide frequency response and highly sensitive cardioid capsule. The cardioid pick up pattern provides a focused pick up area by minimizing noise and ambiance at the off-axis sections of the microphone. The result is a focused pick up without residual room noise and feedback. The wide, linear frequency response ensures transparent, accurate reproduction of both vocals and instruments.
A low frequency roll-off switch eliminates rumble and noise associated with room ambiance, acoustics, wind, proximity effect, etc. The U853R's rich audio quality, detailed signal reproduction, small profile and flexibility make it an excellent choice for capturing choirs, theatrical performances, lectures, sermons, etc.

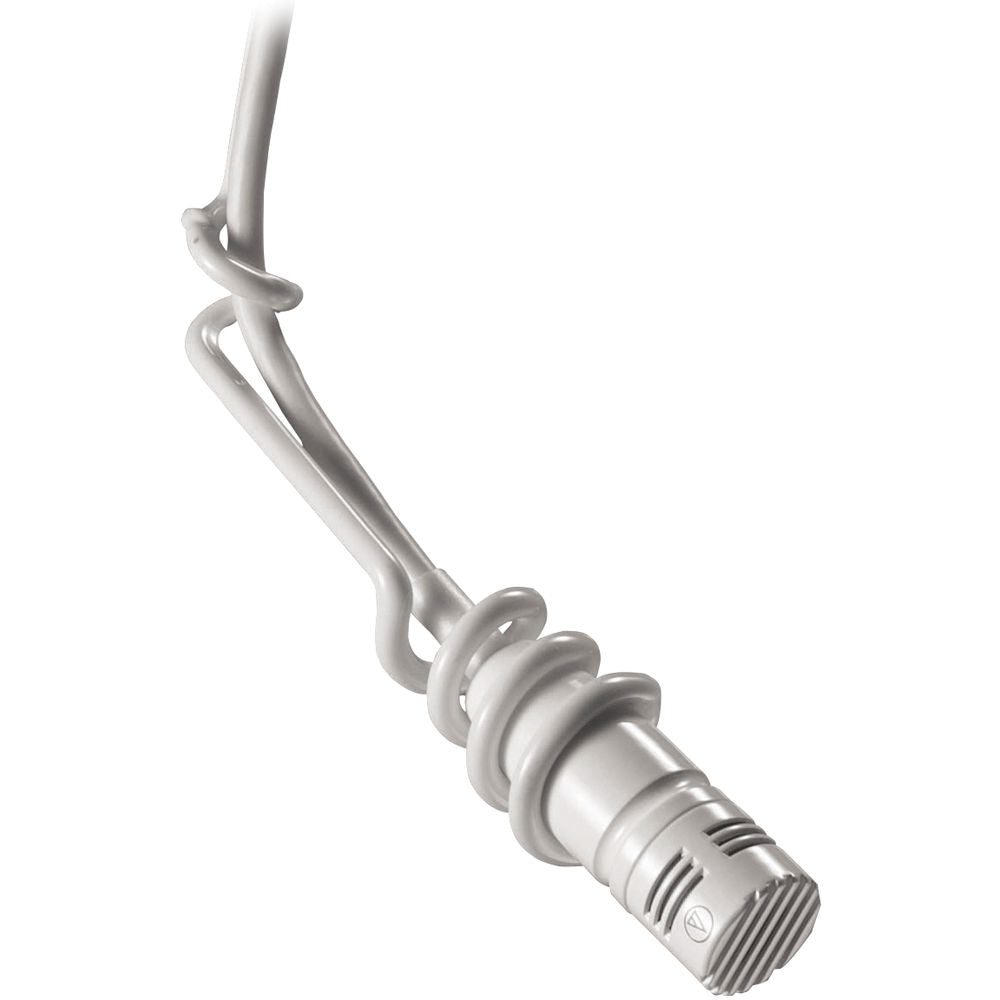

Flexible Steel Suspension Hanger
The steel hanger wraps around the ceiling suspended cable and capsule. The flexible design enables flexible positioning and placement.
Interchangeable Capsules
The UniPoint series features interchangeable capsules. A cardioid capsule is included although hyper-cardioid, omni-directional and UniLine capsules are available as options.
Cardioid Polar Pattern
The included cardioid capsule provides a focused pick up pattern while minimizing noise and ambiance that can cause feedback.
UniSteep Filter
Switchable low-frequency roll-off filter eliminates low-frequency residual noise at 80Hz.
RFI Shielding
UniGuard RFI-shielding protects the microphone against noise caused by radio-frequency interference in the area.
Microphone |
|
---|---|
Primary Applications | Live Sound |
Microphone Type | Hanging |
Sound Field | Mono |
Element Type | Electret Condenser |
Polar Pattern | Cardioid |
Orientation | End Address |
Circuitry | Solid-State |
Pad | No |
High-Pass Filter | 80 Hz, 18 dB/Octave |
Gain Adjustment | No |
Performance |
|
---|---|
Frequency Range | 30 Hz to 20 kHz |
Maximum SPL | 133 dB SPL (Phantom Power, 1 kHz, 1% THD) |
Dynamic Range | 109 dB (Phantom Power, 1 kHz, at Max SPL) |
Connectivity |
|
---|---|
Analog Output | 1x XLR 3-Pin Male (on Power Supply) |
Cable Length | 25' / 7.6 m |
Power |
|
---|---|
Power Sources | Phantom Power |
Operating Voltage | 11 to 52 V (Phantom Power) |
Physical |
|
---|---|
Color | White |
Mounting Thread Size | 5/8"-27 Female |
Dimensions | ø: 0.48 x L: 1.34" / ø: 12.19 x L: 34 mm (Microphone) ø: 0.74 x L: 3.66" / ø: 18.9 x L: 92.9 mm (Power Supply) |
Weight | 0.5 oz / 14 g (Microphone) 2.9 oz / 81 g (Power Supply) |
