Blackmagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitor

Enhance your camera's capabilities with professional monitoring and superior recording through the Video Assist 3G-SDI/HDMI 7" Recording Monitor by Blackmagic Design. This device boasts a vibrant 7-inch display with a resolution of 1920 x 1200 and a brightness of 300 cd/m², facilitating precise framing and focusing of your shots. It is equipped with 3G-SDI and HDMI inputs, allowing for the recording of video output from both professional and consumer cameras. The monitor supports video resolutions up to 1080p60 in 10-bit 4:2:2 format, along with the ability to handle up to 16 channels of embedded 24-bit 48 kHz audio. Additionally, it includes two balanced 3-pin mini-XLR inputs that support 48V phantom power for high-quality audio recording. The firmware update 3.3.1 introduces a video output via the USB Type-C port, enabling the use of your connected camera as a webcam. It also enhances audio functionality with XLR audio mapping to various channels, external timecode support, and selective channel monitoring.

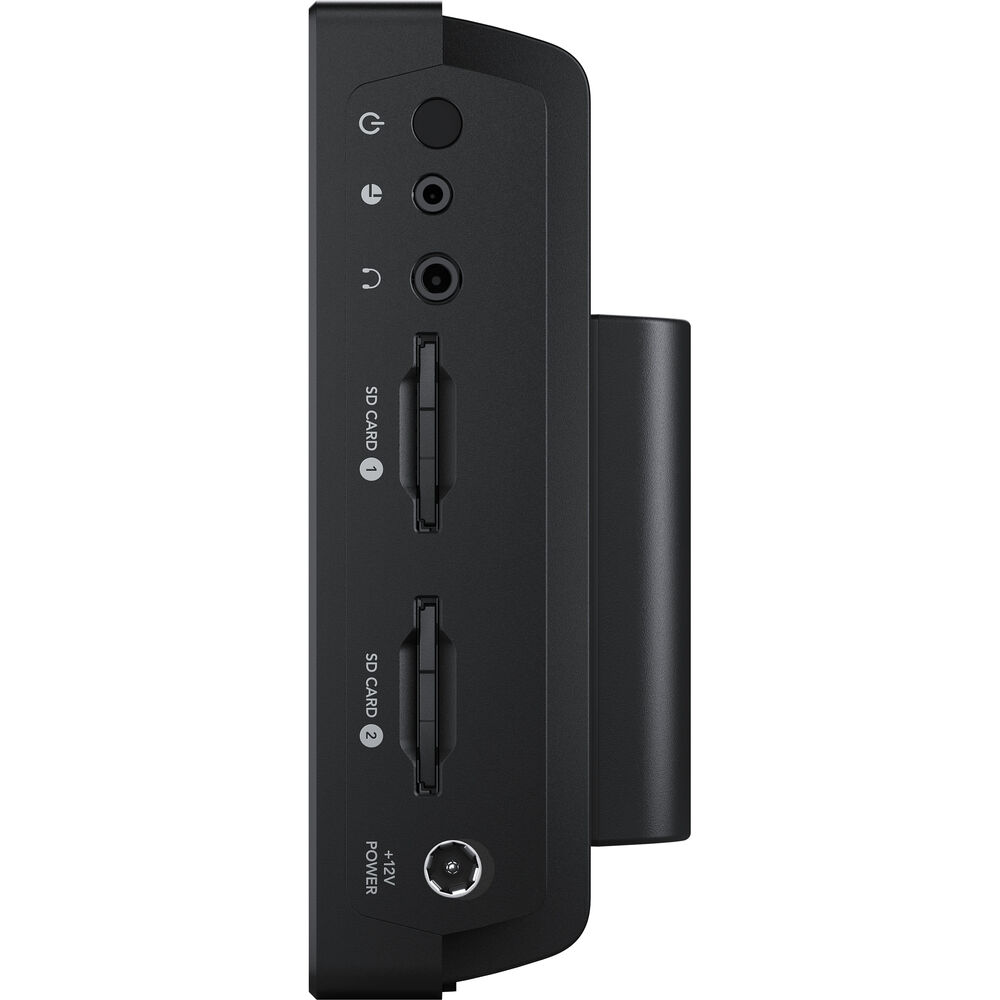

The Video Assist 3G 7" records onto SDXC/SDHC memory cards through dual UHS-I SD card slots. The USB Type-C port can be utilized for recording, configuration, and firmware upgrades. Video recording is accomplished using industry-standard codecs such as Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD.

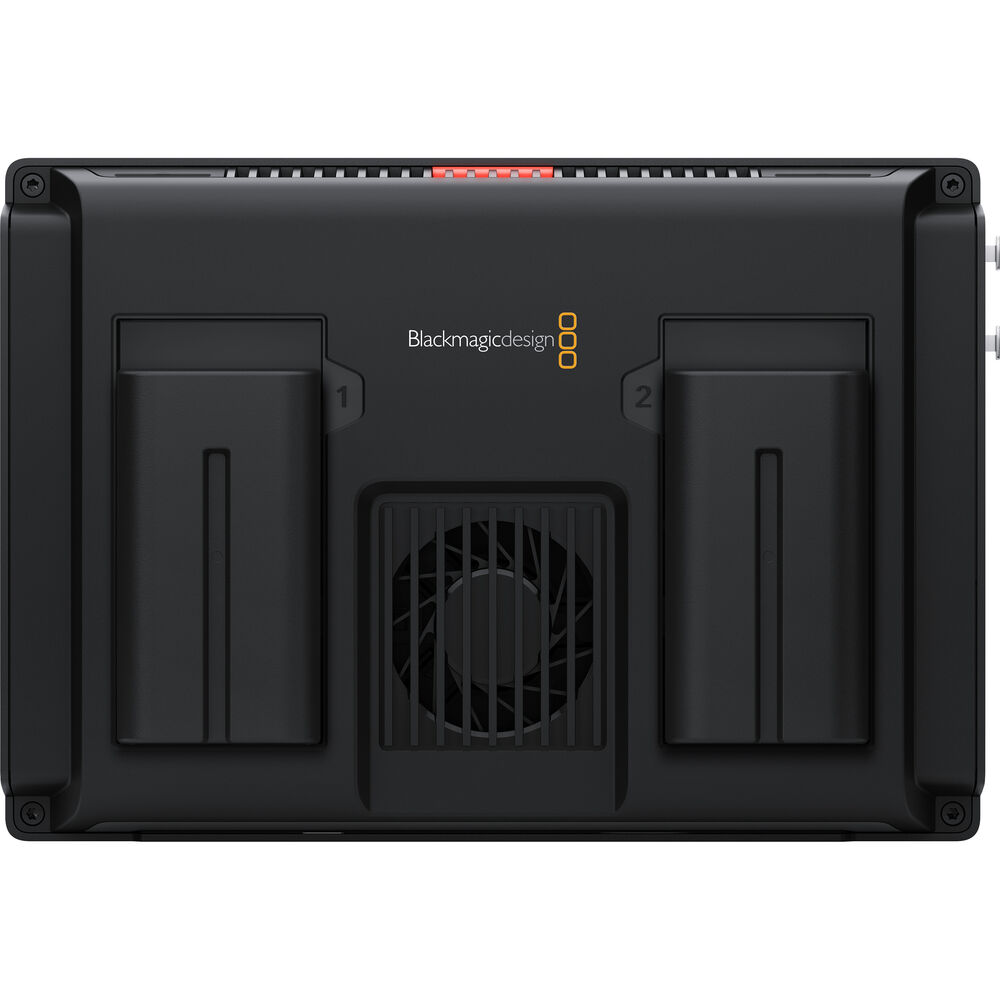

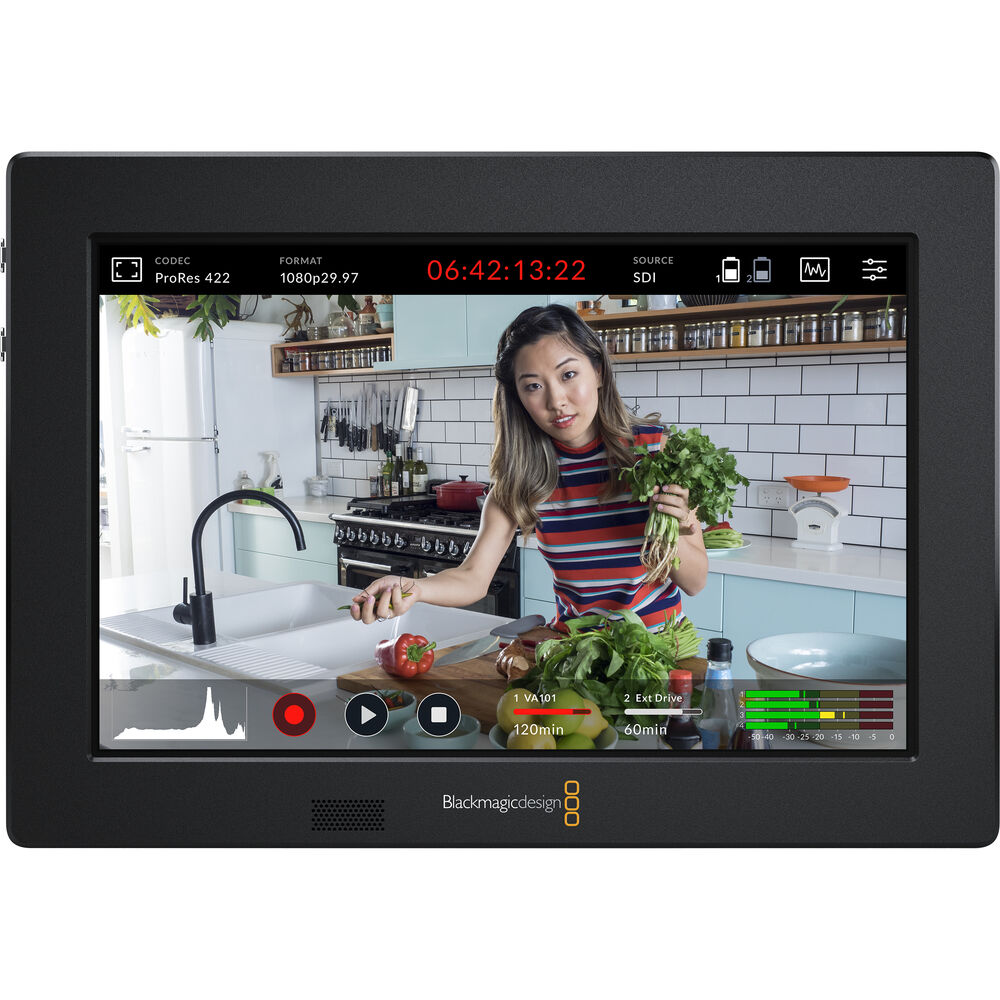

This monitor features a touchscreen interface that allows for easy adjustment of settings and access to monitoring tools, including histogram, waveform, RGB parade, vectorscope, and various other scopes and exposure aids. A tally light positioned on the top of the monitor indicates when it is operational and recording. Users can select from 11 languages to facilitate navigation of on-screen text displays and menu options. The monitor can be powered using the included 12V power adapter or with separately purchased Sony L-Series type batteries in the dual battery slots.

• Supports video formats up to 1080p60


• Can be used to upgrade viewing and recording options with older cameras


• 7" touchscreen LCD screen with customizable overlays

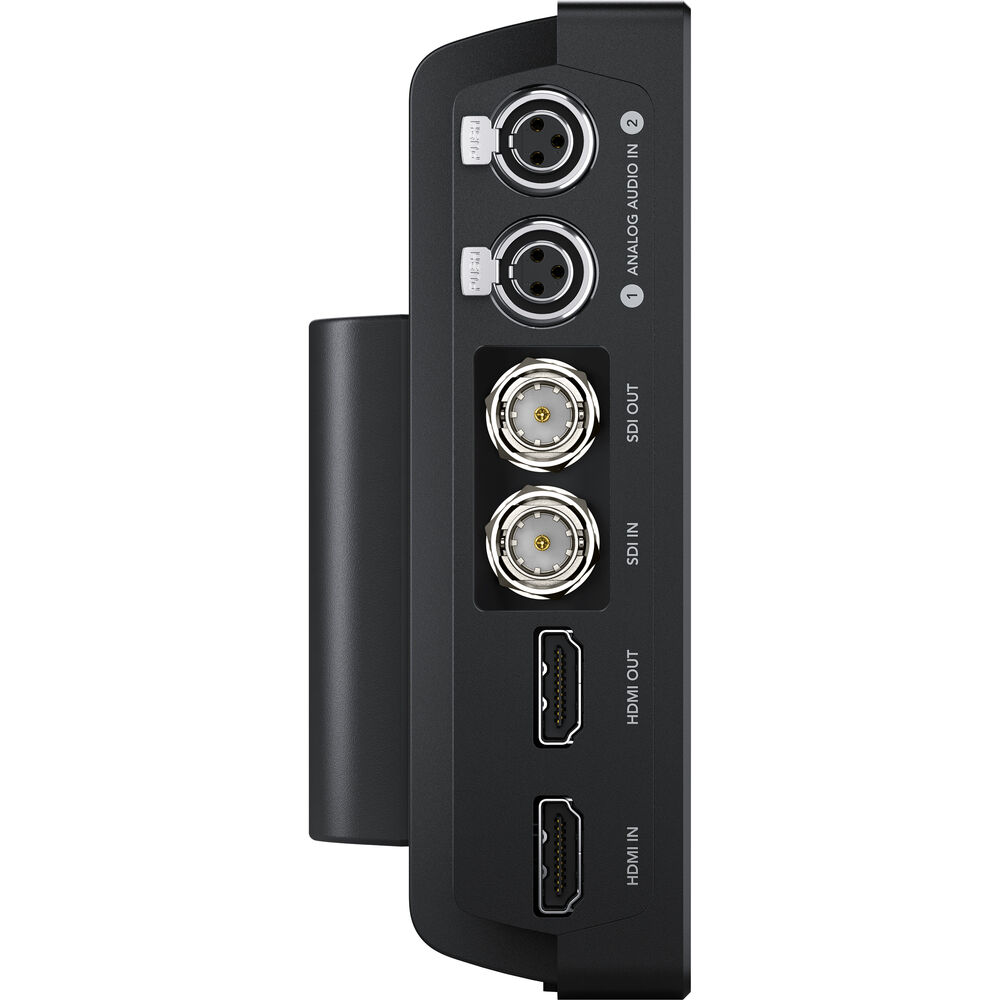

• 3G-SDI and HDMI input ports with loop-through outputs


• 3D LUT support for customized viewing


• Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam


• Direct metadata entry


• Dual SD card slots for ProRes recording


• Multiple display tools including focus peaking, zebra, and false color


• Waveform, vectorscope, histogram, and RGB parade


• XLR audio mapping to different channels


• External XLR timecode


• Ability to select which audio channels you are monitoring



Multiple Language Displays

Choose from 11 languages for easier use of on-screen text displays and menu options:

• English


• Chinese


• French


• German


• Italian


• Japanese


• Korean


• Portuguese


• Russian


• Spanish


• Turkish



Minimum macOS System Requirements

• macOS 10.15 Catalina


• macOS 10.14 Mojave


• USB 2.0 port for updates





Minimum Windows System Requirements

• Microsoft Windows 10 64-bit


• USB 2.0 port
