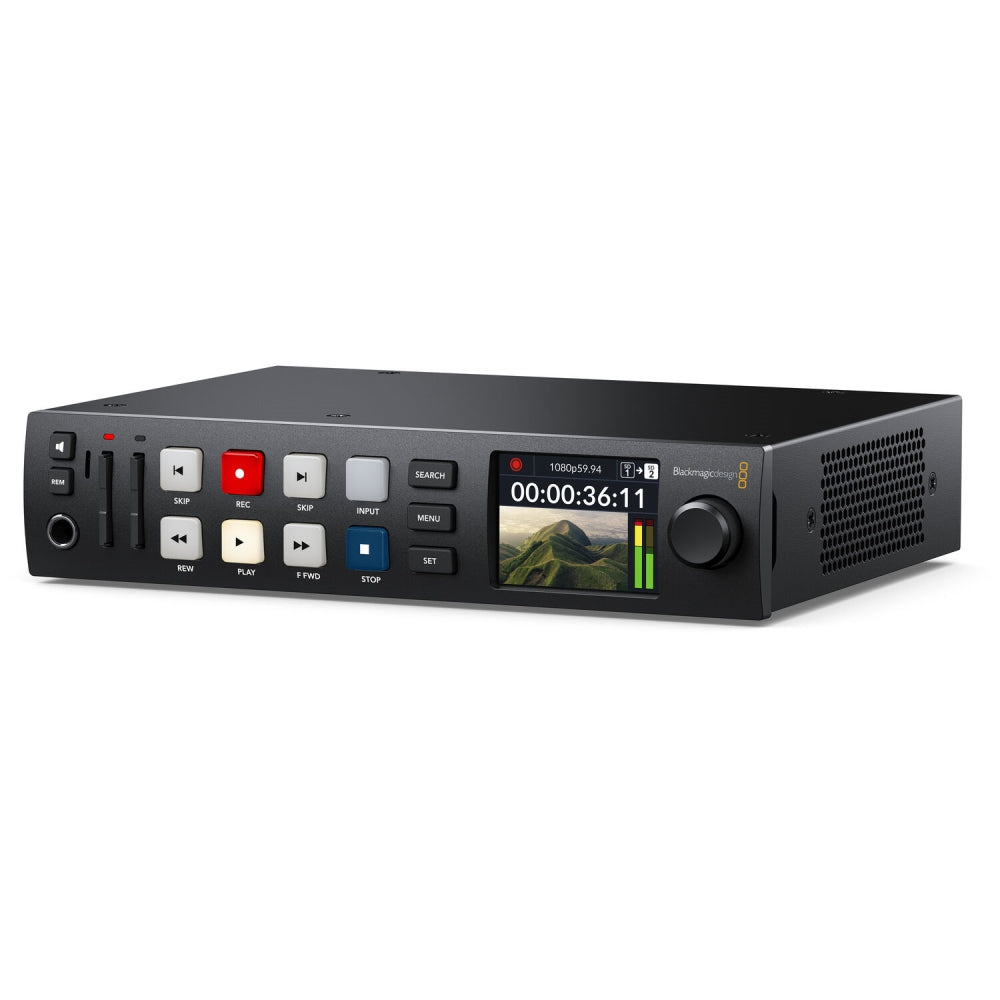

Utilize the Blackmagic Design HyperDeck Studio HD Plus, a compact broadcast-quality record/playback deck, for your on-location shoots, studio sessions, or as part of a rack setup. This 1 RU tall recorder occupies half a rack width and operates on a power range of 100 to 240 VAC or can be powered by an optional 12 VDC supply for enhanced portability. It is equipped with one 6G-SDI input, one HDMI 2.0 input, two 6G-SDI outputs, and one HDMI 2.0 output, making it a formidable recording and playout solution. Additionally, it features a loop-through output, a 3G-SDI monitor output, and reference and timecode in/out capabilities, ensuring seamless integration into a broadcast environment.
The device is equipped with two SD card slots, enabling nearly limitless recording duration. Additionally, it supports recording to USB drives through the USB-C output port. The HyperDeck Studio HD Plus includes a front-panel button interface and a jog/shuttle wheel, providing an analog scrubbing experience. It also supports RS-422 control for external management, and users can operate the unit via the USB port or through Ethernet at 1G speeds, facilitating quicker deck control and file transfers through the RJ45 connector. An integrated LCD on the front panel allows for video monitoring.
UHD 4K Recording and Playback
The HyperDeck Studio HD Plus records UHD and DCI 4K video at up to 30 fps. The 6G-SDI outputs allow fill and key playback up to 1080p60
Video Inputs
6G-SDI and HDMI 2.0 inputs
Video Outputs
Two SDI outputs support 1080p60 and 2160p30, and a loop-through output sends the input signal downstream to monitors, switchers, or other devices
HDR
The HyperDeck Studio HD Plus supports HDR video and 33-point LUTS on the 3G-SDI output
Supported Codecs
-
ProRes: Apple ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime
-
DNxHD: DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
-
H.264: H.264 SDI 4:2:2 10-bit, H.264 High 420 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all progressive formats up to 1080p60

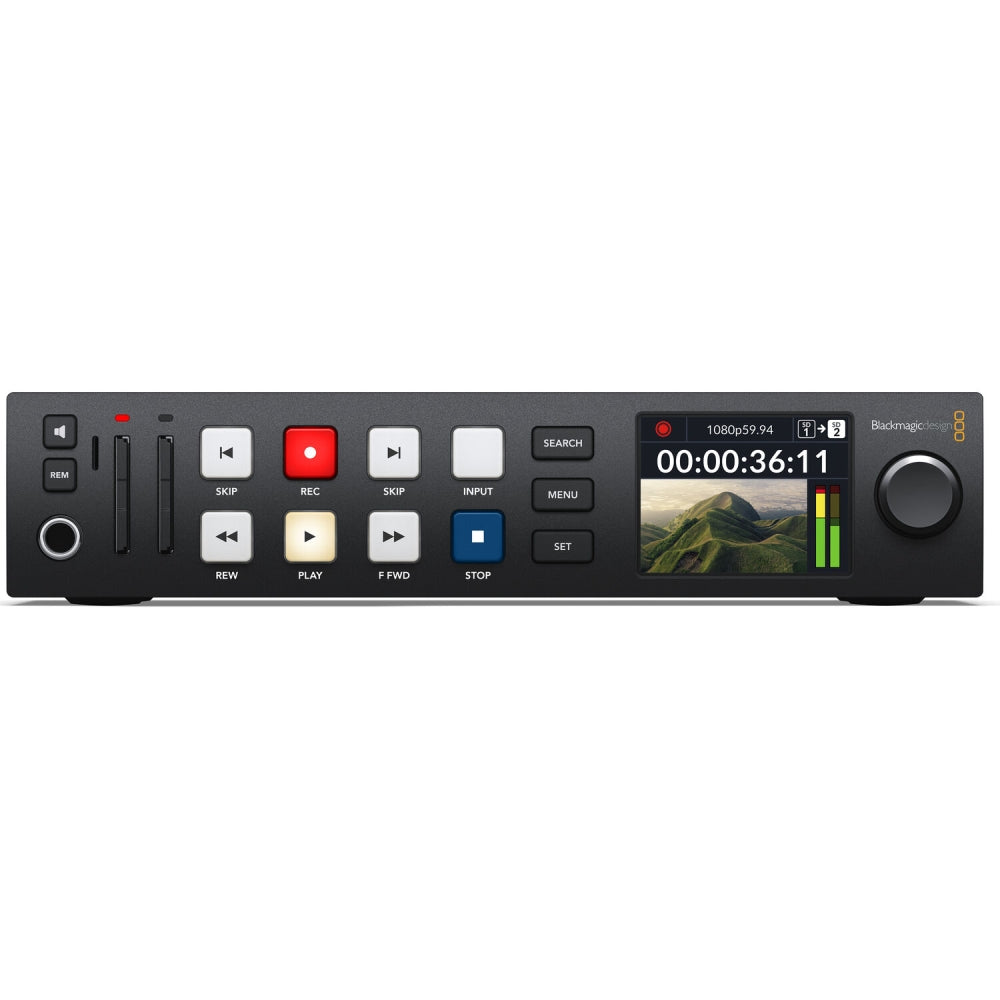

VTR-Style Controls
Features VTR-style front-panel controls for record and playback; a built-in jog/shuttle wheel provides analog-style control over your playback. Broadcast-style deck control front-panel buttons connect to a dedicated RS-422 output.
Remote
The unit is controllable via RS-422 control and over the Ethernet or USB port
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or play back video
Audio Output
The unit features a built-in speaker as well as a 1/4" headphone jack
Included Software
The HyperDeck Studio HD Plus includes Blackmagic OS and Blackmagic HyperDeck Setup

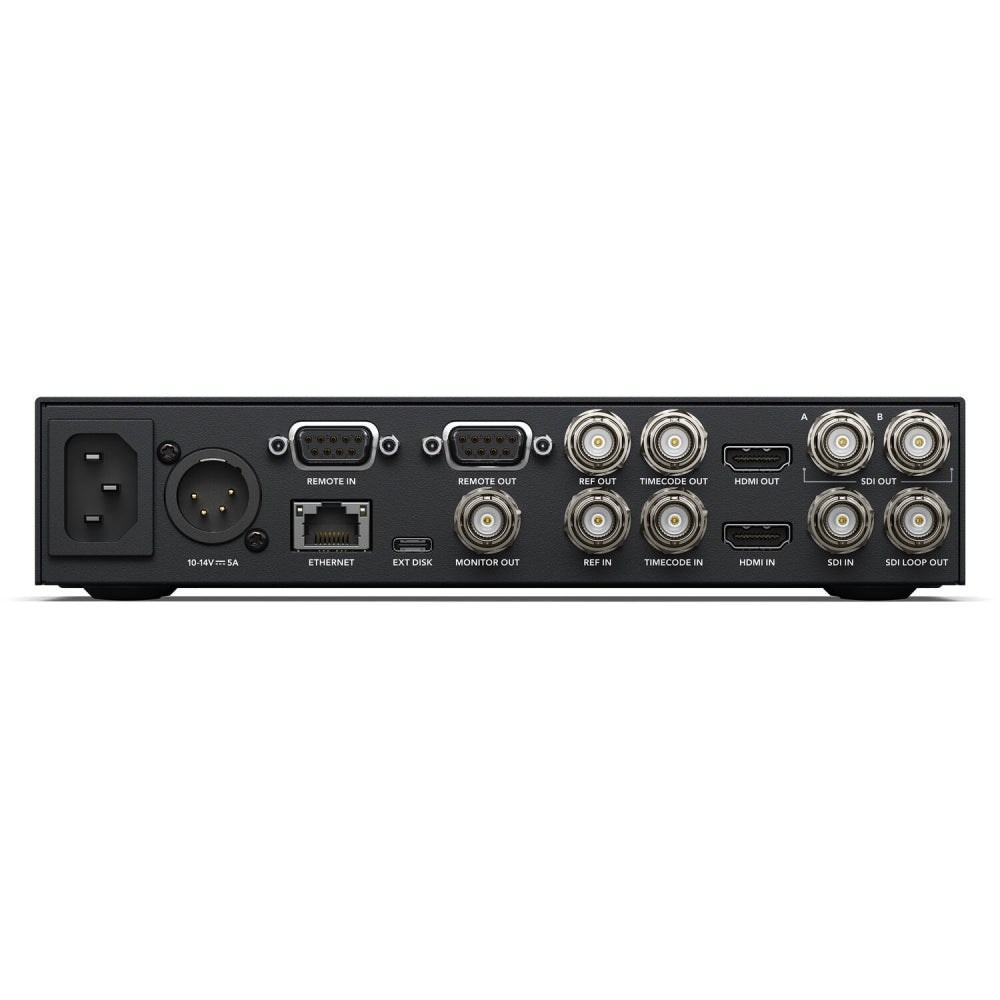

Connectivity |
|
---|---|
Video Inputs | 1 x BNC, 6G-SDI 1 x HDMI 2.0 Type A |
Video Output | 1 x BNC, 6G-SDI Loop-Out 2 x BNC, 6G-SDI 1 x HDMI Type A, 2.0 1 x USB Type-C (Webcam or External Recording of SD, HD, 2K DCI) 1 x BNC, 3G-SDI (Monitor Out) |
Timecode | In: 1 x BNC Out: 1 x BNC |
Reference | Tri-Sync or Black Burst Input Connector: 1 x BNC Output Connector: 1 x BNC |
Audio Input | None (Embedded Audio Only, 16 Channels) |
Audio Output | Headphone: 1 x 1/4" Phone |
Device Control | 2 x RS-422 Deck Control Port on DB9 Female |
Ethernet | 1 x RJ45 for Remote Operation |
Media Interface | 2 x SD Slots Media Type: UHS I and UHS II Format: ExFAT or HFS+ |
Standards |
|
---|---|
Supported Resolutions | 4K 4096 x 2160p: 30/29.97/25/24/23.98 3840 x 2160p: 30/29.97/25/24/23.98 2K 2048 x 1080p: 0/29.97/25/24/23.98 HD 1920 x 1080p: 60/59.94/50/30/29.97/25/24/23.98 1920 x 1080i: 60/59.94/50 1280 x 720p: 60/59.94/50 SD NTSC PAL |
SDI Compliance | SMPTE 259M / 292M / 296M / 372M / 424M / 425M Level A and B SMPTE 2084 SMPTE 2108‑1 |
SDI Metadata Support | HD RP188 and Closed Captioning CEA‑708 HDR Metadata Supported on SDI |
Video Sampling | 4:2:2 YUV |
Color Depth | 10-Bit |
Color Space | REC 601 REC 709 REC 2020 33-Point 3D LUTS Can Be Applied to SDI Monitor Out |
HDR Support | Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084 |
Multi Rate Support | Autodetection of SD, HD, and 6G-SDI |
Audio Sampling | Television Standard 48 kHz, 24-Bit |
Supported Codecs | ProRes
|
System Requirements |
|
---|---|
Operating System | macOS: 10.15(Catalina), 11.5 (Big Sur) or Later Windows: 10 64-Bit |
General |
|
---|---|
Rack Height | 1 RU |
Power Supply | AC 100 to 240 VAC, 50/60 Hz DC 12 VDC; 1 x Locking 5.5 mm Barrel Consumption 100 W Max |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Relative Humidity | 0 to 90% Non-Condensing |
Dimensions | 8.27 x 6.96 x 1.74" / 21.01 x 17.68 x 4.42 cm |
Weight | 1.8 lb / 0.82 kg |
