Blackmagic Design ATEM Mini Pro ISO HDMI Live Stream Switcher

The ATEM Mini Pro ISO HDMI Live Stream Switcher from Blackmagic Design, is a versatile four-input live production switcher equipped with a built-in control panel, specifically designed for multicamera live streaming in HD quality over the internet through an Ethernet connection. It includes a USB output that facilitates the recording of the program output, as well as the individual HDMI inputs onto an external USB drive (not provided). Beyond capturing the program stream and separate inputs, the ATEM Mini Pro ISO also records both embedded audio and analog audio inputs, creating a DaVinci Resolve project file of your live stream. This feature enables you to import your live production into DaVinci Resolve for further modifications or enhancements using the source material stored on your USB drive.

The ATEM Mini Pro ISO maintains the same dimensions, button arrangement, and rear panel connection interfaces as the ATEM Mini Pro, but it incorporates new electronics that facilitate ISO recording and the creation of DaVinci project files. This model supports all features available in the ATEM Mini Pro, including upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. Additionally, it offers media player support for fill and key images, accommodating up to 20 still images in formats such as PNG, TGA, BMP, JPEG, and TIFF. The ATEM Software Control Panel is utilized for control and configuration, enabling monitoring of data rates, audio levels, configuration settings, and the status of the live feed. Furthermore, the panel allows for the setup of streaming to an optional Blackmagic Design Streaming Bridge from any location worldwide, provided there is an internet connection.

General

• Connecting a USB drive to the ATEM Mini Pro ISO's USB port enables capturing the switched program stream, as well as up to four isolated (ISO) recordings of input video, as well as embedded audio, analog input audio, graphics, and a DaVinci Resolve project file of your switched program

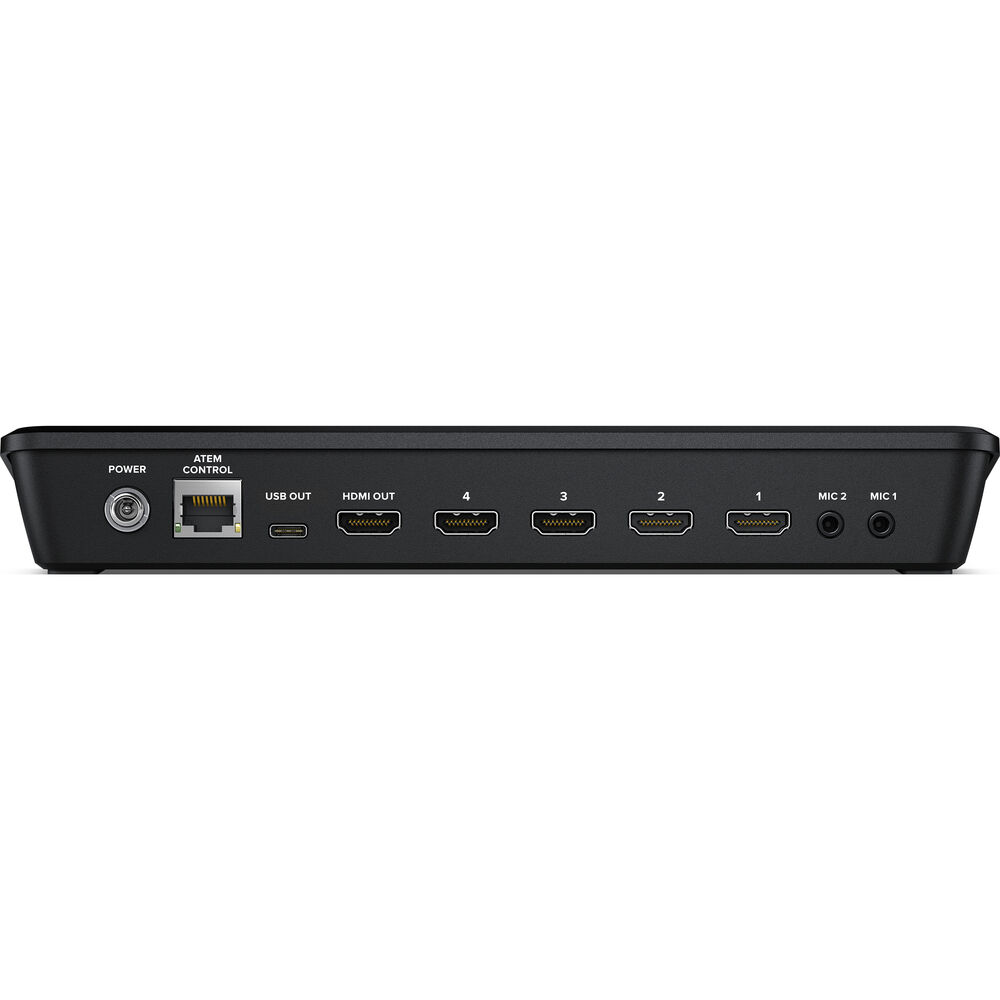

• The device has the same footprint, layout, and connections as the ATEM Mini Pro


• Stream video up to 1080p HD

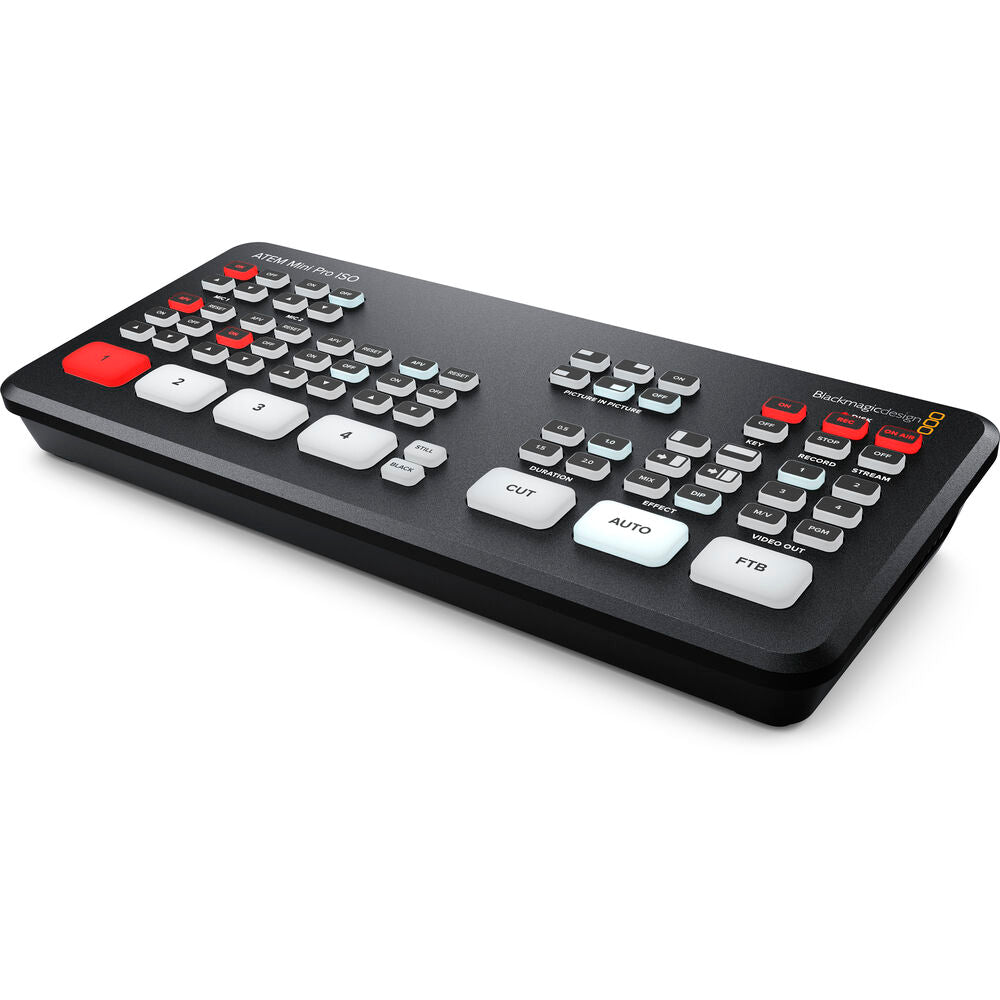

• Quick stream, on-air, and record buttons


• Hardware encoder so there's no need for additional streaming software


• Control and configure timecode, stream status


• Full support and control features for BMPCC 6K/4K cameras


• Simultaneous USB recording


• Integration with MultiDock for live hard drive switching


• Customize advanced settings with XML files


• Software multiview with program previews, graphics, record status, on-air status, and audio meters


• Program preview input and output buttons


• Tally light control for BMPCC 6K/4K cameras


• Automatic timecode sync for all cameras



Transitions

• Cut: When you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.


• Mix: The mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.


• Dip: Just like mix transitions, a dip transition is a gradual blend that includes either a solid color, a graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.


• Wipe: Built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened and can even have customized colored borders.


• DVE: With the powerful built-in digital video effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.



Upstream Keyer

Layer live video over other video sources or graphics with the upstream keyer. You can use the luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.

• Luma key: Luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.


• Linear key: Get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a gray scale mask to cut out, or mask, the area to be filled.


• Chroma key: Used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.


• Pattern key: Combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.



Downstream Keyers

The ATEM Mini switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.

Audio Mixer

The integrated audio mixer provides precise control over both camera and external audio, allowing for level and balance adjustments across all six audio inputs and two channels. This mixer includes options for selectable on/off functionality and audio-follow-video for each channel. Additionally, it offers individual gain control for each channel, along with level and peak metering. Enhanced by Fairlight audio features, it incorporates a compressor, gate, limiter, six bands of parametric equalization, and master gain control.

Monitor Output

The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.

Media Player

Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
