  • 8-Input 3G-SDI 1080p60 Live Switcher
  • Redesigned Buttons and Layout
  • Record Each Input to Separate Files
  • Supports Remote Internet Cameras
  • Streaming Support, USB & M.2 Recording
  • Blackmagic Cloud Integration
  • Up to 16 Multiview Output Sources
  • Audio Mixing, Transitions, T-Bar, AUX
  • Customizable Electronic LCDs
  • Camera Control, Timecode, Talkback

Enhance your television studio, remote production, or live venue with the ATEM Television Studio HD8 ISO from Blackmagic Design, an all-in-one live streaming switcher. This compact and newly designed live TV switcher is ideal for any streaming production, featuring eight 3G-SDI inputs that accommodate video resolutions of up to 1080p60. It includes built-in live streaming capabilities, USB webcam support, audio mixing, chroma keyers, DVE, transitions, media players, internal recording, and talkback functionality. The ISO model further enables the recording of each input to individual files and facilitates the control and integration of remote internet cameras. Additionally, the switcher is compatible with the Blackmagic Cloud, ensuring that your program recordings are accessible from anywhere in the world.





The switcher features an all-new button layout, and it's made from polycarbonate material, so it's much lighter than its predecessor. It provides numerous enhancements to the layout with professional buttons, LCD label displays, and an easy-to-navigate button layout.

Live Production

You get an incredibly powerful 8-input switcher with both program and two aux outputs, so you have everything you need for mobile production. That means you can connect up to 8 cameras. Plus, you get professional camera control, talkback, and audio mixing, all designed into a familiar broadcast panel.

Postproduction

The ISO model saves all inputs into distinct files, allowing for editing with any non-linear editor (NLE) that accommodates multicam functionality. This is feasible due to the flawless synchronization of timecodes across all files. Additionally, the integrated network storage enables editing during the recording process. Furthermore, multiple users can share media and collaborate effectively.

Distribution

With a built-in hardware streaming engine, you can live stream your event to a global audience. Recording to H.264 files with AAC audio means you get the correct format to upload to YouTube. Plus, you share live broadcasts with your audience by using the aux outputs and large screens and projectors.

Production Switcher Control

You get an advanced broadcast-grade switcher, with built-in ATEM Advanced Chroma Keyers, Fairlight audio mixer, DVE, still store for graphics, and more. Most of the features can be operated from the front panel, or you can use the free ATEM Software Control on macOS or Windows to access even more features.

Easy Setup and Usage

To switch between video sources, simply press any of the program row buttons located on the front panel. Alternatively, you may pre-select a source on the preview row and then choose between cut or effect transitions by selecting the appropriate cut or auto buttons. A variety of engaging transitions are available, including dissolve, as well as more dramatic effects such as dip to color, DVE squeeze, and DVE push. Additionally, you can incorporate a DVE for picture-in-picture effects featuring customized graphics. The system also includes media players that allow you to store graphics with alpha channels for titles and other visuals, which can be loaded as live video inputs. Subsequently, you can live stream the resulting output.

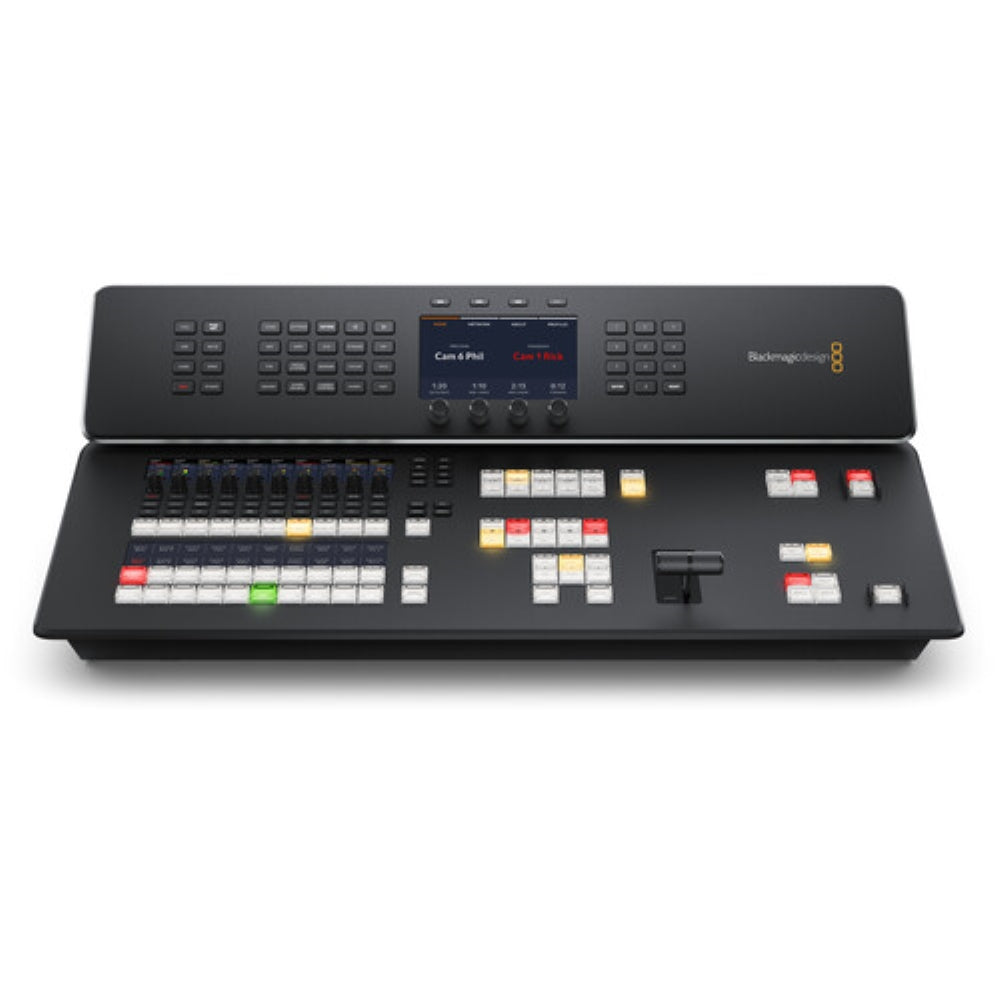

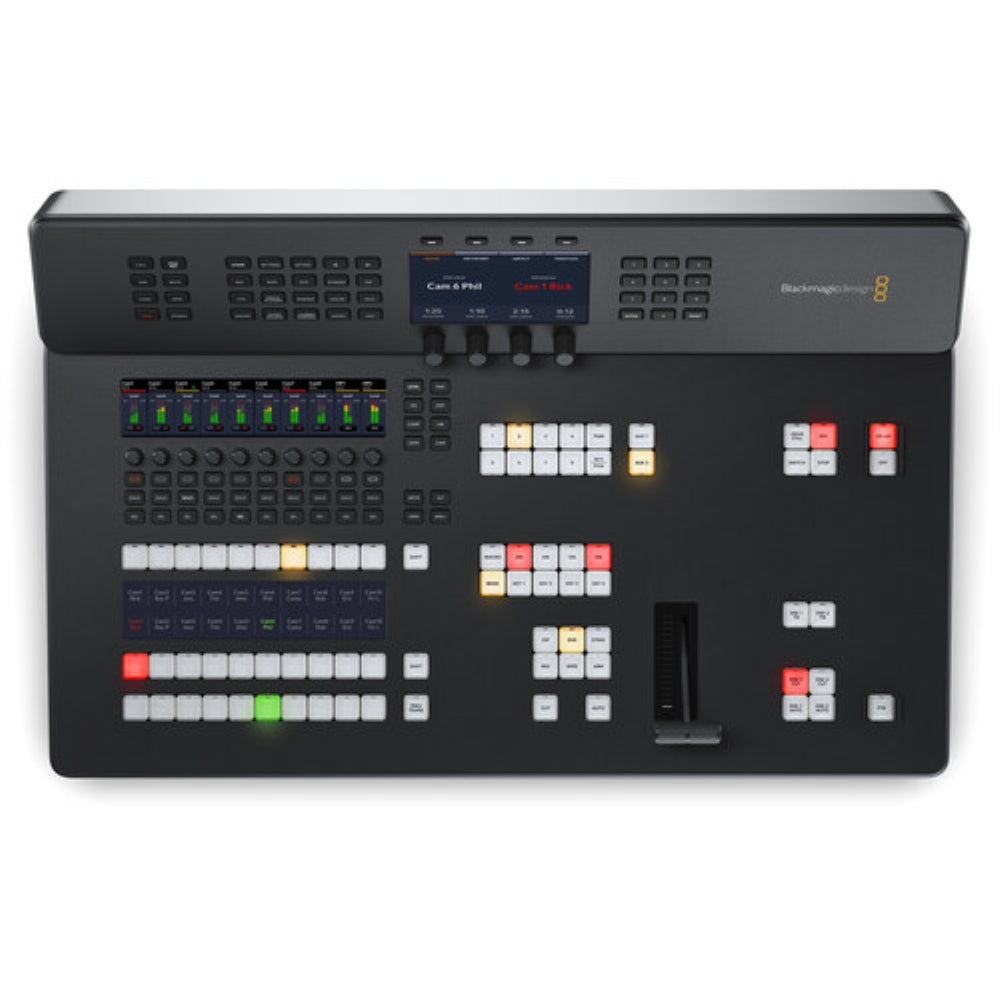

Redesigned Front Panel

The front panel is equipped with buttons designed for source selection, transition activation, and video effect configuration. Additionally, these buttons are of the premium quality typically found on high-end broadcast switchers. A built-in T-bar is provided for manual control of transitions. Furthermore, the front panel features a cutting-edge audio mixer control section, complete with live metering displayed on a dedicated LCD screen. It also includes buttons for managing recording and streaming, as well as live auxiliary switching, which allows for the adjustment of auxiliary outputs among all eight cameras, program, preview, or the multiview.

Connect 5G or 4G Phones for Mobile Data

When conducting live production on-site, the ATEM Television Studio HD facilitates mobile data connectivity by allowing an Apple or Android smartphone to be connected via the USB port. This feature serves as an excellent backup for the primary Ethernet connection. Tethering is compatible with the latest high-speed 5G smartphones as well as the more widely used 4G devices.

The ATEM switcher is designed to recognize when a phone is connected and will automatically switch its internet connection to utilize the phone if the Ethernet connection fails. Additionally, the phone will receive power through the USB port, ensuring it remains charged and ready for use. By leveraging phone tethering and mobile data, you achieve an optimal mobile production solution that is easily transportable.

Edit Live Production with Separate ISO Recordings

The ATEM Television Studio HD ISO model provides the capability to edit your live events by recording each input as distinct video files. It generates eight individual video input files, all synchronized with matching timecode, in addition to a separate master video file that contains the program video. This functionality allows for editing with any non-linear editing (NLE) software that accommodates multi-camera editing.

A DaVinci Resolve Project file is created and associated with the input video files, transforming your live switching into an editable timeline that can be easily accessed. This facilitates the re-editing of your production, enabling the application of new color grades and updated graphics. Furthermore, all audio is captured in separate WAV files, allowing for professional audio remixing.

Connect to Remote Internet Cameras

An additional noteworthy feature of the ATEM Television Studio HD ISO model is its capability to connect with remote cameras. The Blackmagic URSA Broadcast G2, Blackmagic Studio Camera 4K Pro G2, and Blackmagic Studio Camera 6K Pro are able to stream live in H.264 directly to the switcher. When connected to a local network, users can easily select the desired camera from the input menu.

In cases where the switcher is configured with a fixed external IP address, it is possible to export an XML file containing the camera settings, enabling live streaming from any location on the internet. This XML file can be uploaded to the camera. Additionally, users benefit from camera control and tally functionality. Program audio is also transmitted back to the camera, which is particularly advantageous for live interviews.

Broadcast Style Mix/Effects Switching

The ATEM Television Studio operates using a professional program/preview method, mirroring the practices of major broadcasters who utilize live production switchers. It also offers the option to switch to an A/B style, which is more user-friendly for volunteers or community organizations. For those wishing to manage the switcher in a manner akin to broadcast professionals, the program/preview mode is ideal. This approach ensures that a source is not broadcast until the cut or auto button is activated. This two-step procedure allows users to preview their selections before they go live, thereby reducing the likelihood of errors.

Add Exciting Video Effects

One of the advantages of the ATEM Television Studio is its array of professional built-in video effects. The cut button allows for an immediate switch between sources. The T-bar fader facilitates the transition of video effects, or you may opt for an automatic transition by pressing the auto button. The automatic function utilizes the transition duration configured in the system control. Additionally, you can choose the type of effect desired, such as mix, which provides a seamless transition between sources, or dip, which transitions through a third video source, like a color generator. The system includes a diverse selection of SMPTE wipes, as well as DVE effects that either slide or squeeze the image off-screen during transitions between video sources.

Creative Transitions

The ATEM Television Studio features transitions akin to those found in high-end broadcast switchers. This allows for extensive customization of effects and transitions, making them remarkably versatile. Users will continually discover innovative applications for these transitions. Each transition can be tailored by modifying various parameters, including duration, border color, border width, position, and direction. Additionally, the DVE can be utilized in conjunction with a wipe transition, enabling a graphic to move across the wipe edge, a technique known as a graphic wipe, frequently employed in sports broadcasting. The preview transition button facilitates offline setup of effects, which is beneficial for minimizing errors.

Built-In DVE

The ATEM Television Studio HD is equipped with an independent Digital Video Effects (DVE) system that allows for the repositioning of graphics and the creation of picture-in-picture layouts. It delivers exceptional quality, with real-time support for positioning, resizing, and scaling. This DVE enables the production of professional-grade picture-in-picture effects, complete with customizable 3D borders, shadows, and lighting effects. Additionally, DVEs can be utilized to craft impressive transitions, including squeeze, swoosh, and push effects, enhancing the dynamism of your programming. Users can also merge DVE transitions with custom graphics to design unique graphic wipe transitions. Furthermore, the system includes a SuperSource multilayer processing engine that features four additional DVEs.

Supports Internal Media

The integrated media pool is designed to store broadcast-quality graphics and animations, which can be accessed through the built-in media players. These media players function as separate sources, eliminating the need to utilize any of the SDI inputs for graphics. To ensure optimal quality, all media is compatible with the RGB color space and includes an alpha channel, facilitating transparency and layering effects. The media pool has the capacity to accommodate 20 still images at HD resolution. Additionally, motion graphics, animation clips, and stingers can consist of up to 400 frames in 720HD and 200 frames in 1080HD. The ATEM Software Control provides the functionality to upload and manage media content. Furthermore, graphics can be created in Adobe Photoshop and subsequently transferred to the media pool using the complimentary ATEM Photoshop plug-in.

Includes 4 ATEM Advanced Chroma Keyers

The ATEM Television Studio is ideally suited for news broadcasting and on-set presentations, as it is equipped with four ATEM Advanced Chroma Keyers designed for green screen keying effects. These chroma keyers are highly effective and come with features such as a color picker that allows users to sample background colors for the automatic generation of key parameters. Users benefit from precise controls for edge and flare adjustments, and a foreground color corrector is also included to ensure that the foreground and background layers blend seamlessly. Additionally, it can be utilized for title overlays by producing graphics with a green or blue background. With its four ATEM Advanced Chroma Keyers, the ATEM Television Studio is an excellent choice for creating fixed camera virtual sets.

SuperSource Processing

In addition to the Digital Video Effects (DVE) available in the ATEM Television Studio, there exists a robust SuperSource multilayer processor. SuperSource provides four additional DVE layers along with a background layer, all combined to function as an extra input source. Any video input can serve as a source for each DVE, which can then be overlaid on a media pool, a custom background, or live video. This feature is particularly advantageous for creating multiple picture-in-picture displays during interviews, as it allows for the configuration of effects that enable viewers to see each interviewee within an aesthetically pleasing graphic. SuperSource effectively operates as a fully independent multilayer visual effects switcher integrated into the system.

8 Standards Converted 3G-SDI Inputs

The ATEM Television Studio HD is equipped with eight independent 3G-SDI inputs, each featuring its own dedicated standards converter. This capability allows for the conversion of any 1080HD or 720HD input source to match the video standard of the switcher, enabling each SDI input to operate under a different television standard seamlessly.

Additionally, audio channels 1, 2, 3, and 4 from the SDI inputs can be manually assigned to various embedded audio channels in both the program and auxiliary outputs. Furthermore, audio channels 1 and 2 can be routed from the SDI inputs to the MADI digital audio output, facilitating the transfer of switcher input audio to an external audio engineer for mixing purposes.

3G-SDI Outputs with 16-Channel Embedded Audio

The ATEM Television Studio is equipped with nine 3G-SDI program outputs, providing ample connections to deliver a distinct program return feed to each of your cameras. This feature is crucial as the SDI program return facilitates the transmission of tally, talkback, and control signals back to the cameras. Additionally, the device offers two dedicated auxiliary outputs designed for operating stage monitors and master recorders. These auxiliary outputs can be live switched via specific buttons on the control panel. Notably, Aux 1 features an on-screen counter to assist presenters in monitoring their timing. Furthermore, users have the capability to manually route audio into all 16 embedded audio channels present in the SDI outputs. For camera monitoring purposes, there is a dedicated 3G-SDI and HDMI output available for multiview functionality.

16-Source Multiview on a Single Monitor

In larger live productions that utilize multiple cameras, it is essential to monitor all video sources simultaneously on a single display. The ATEM Television Studio HD features a professional multiview that allows for the observation of all video inputs, as well as preview and program feeds, on one SDI or HDMI monitor. Additionally, the multiview can be routed to the auxiliary outputs. Each camera feed is equipped with tally indicators to signal when a source is live, and each view can be customized with labels and audio meters. The multiview layout is fully adjustable, accommodating up to 16 views at once. Furthermore, users can opt for additional status views to monitor recording, streaming, and audio mixer status directly from the multiview interface.

Add Audio Expansion for More Microphones

For those establishing a podcasting studio or requiring additional microphones, the ATEM Microphone Converter facilitates the expansion of audio inputs. It interfaces with the ATEM Television Studio via the MADI port, eliminating the need for complicated configurations, and allows for daisy-chaining of units to increase input capacity. Each converter is equipped with four analog inputs that can be switched between microphone and line levels, and they provide phantom power.

The design boasts exceptional quality, featuring an impressively low noise floor of -129 dBV, a dynamic range of 131 dB(A), and minimal distortion at 0.002%, with consistent tolerances maintained across all channels. Additionally, it employs eight distinct ADCs for each input, enhancing the overall dynamic range. Furthermore, it includes an engaging HDMI monitoring output that displays scrolling audio waveforms.

Record Direct to Internal Cloud Storage or USB Disks

The ATEM Television Studio HD is capable of recording to external USB flash drives. Alternatively, if an optional M.2 flash drive is installed, recordings can be made directly to internal cloud storage. Both the internal storage and any connected external USB drives can be accessed over the local Ethernet network, allowing collaboration on postproduction tasks such as editing, color correction, and graphics preparation.

All recordings are produced in H.264 format with AAC audio, ensuring broadcast-quality video while maintaining compact file sizes. Additionally, multiple USB drives can be connected, allowing for uninterrupted recording even if one drive reaches capacity. The control panel is equipped with buttons to initiate recording, and the recording status can be monitored via the multiview display.

Outputs to Any Software that Supports USB Webcams

The ATEM Television Studio HD is compatible with any video software due to its USB connection, which simulates a webcam. This allows you to connect it to a computer and utilize any video application that supports webcam functionality. The software is led to believe that the ATEM Television Studio HD is a standard webcam, while it actually functions as a live production switcher. This ensures complete compatibility with all video software and maintains full 1080HD resolution quality.

Envision delivering a presentation from a professional broadcast studio using platforms like Zoom, Teams, or Skype. Additionally, the webcam output is also compatible with streaming software such as Open Broadcaster, XSplit Broadcaster, and others.

Includes Free ATEM Software Control Panel

The ATEM Software Control application reveals the full potential of the ATEM Television Studio HD by providing access to all functionalities of the switcher. It features a graphical user interface designed for the switcher, complete with parameter palettes for making necessary adjustments. While a USB connection is available, utilizing an Ethernet connection allows for the operation of multiple instances of ATEM Software Control on various computers.

This software enables live switching, audio mixing, camera color correction, and media management. Additionally, it allows users to create and execute intricate macros. Users can also save the switcher’s configuration as an XML file for future reference. Furthermore, it offers the capability to control and trigger external HyperDeck recorders.

Live Stream to a Global Audience

The ATEM Television Studio HD is equipped with an integrated hardware streaming engine that facilitates live streaming to a worldwide audience. This capability allows for high-quality live streaming to platforms such as YouTube, Facebook, and Twitch, ensuring minimal risk of dropped frames.

The streaming process utilizes an Ethernet connection to access the internet, or alternatively, a smartphone can be connected to utilize mobile data. Users can easily select their desired streaming service and input the streaming key through the ATEM Software Control. This user-friendly setup is further enhanced by a data-rate indicator that displays the necessary internet speed. For those with technical expertise, there is also the option to modify the streaming profiles within an XML settings file to incorporate additional services.

Localized for 13 Popular Languages

ATEM Television Studio HD offers a variety of language options in its menus and within the ATEM Software Control, allowing users to select their preferred language. The device supports a range of languages, including English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, and Ukrainian.

To change the language, simply navigate to the setup menu, and you can switch to a different language at any time in the future. Once a language is chosen, all menus displayed on the LCDs will reflect the selected language. This multilingual support makes the ATEM Television Studio HD an ideal choice for live production work globally, accommodating diverse teams.

Flexible and Redundant Power

The ATEM Television Studio features an integrated design that incorporates a built-in power supply, eliminating the need for an external power brick. You can easily connect it to any AC mains outlet to commence live production. The universal power supply operates seamlessly between 100 and 240 VAC, allowing for use in any global location. Additionally, the ATEM Television Studio is equipped with both AC and DC power connections.

A broadcast-standard XLR 12 VDC power connection is also provided, making it ideal for backup power or operation on batteries, which is particularly advantageous for use in remote areas. Furthermore, in the event of a failure of the internal power supply, an external DC supply can be connected to ensure continued operation.

Designed to Be Easy to Repair

The ATEM Television Studio is designed with numerous integrated features, making ease of repair a crucial aspect. It is equipped with significant redundancy, including four Ethernet connections, nine program SDI outputs, two USB ports, and two power connections. Nevertheless, in the event that a cable is accidentally tripped over and a connector is damaged, it is essential to facilitate a cost-effective repair solution.

All internal electronic printed circuit boards (PCBs) are modular, allowing any qualified technician to purchase a replacement and effortlessly replace the board. This modularity extends to the connector PCBs, which are available for separate purchase. The technician simply needs to remove the bottom cover to replace the PCB. Additionally, a large broadcasting organization could acquire these boards as part of a spare parts kit.

Applications

Compact Broadcast Vans

With the all-in-one design, you can build a new generation of ultracompact broadcast vans. You don't need racks of equipment, so you can eliminate clutter for a much nicer work environment. For stability, you can even mount the switcher inset into the desk.

Music Venues and Clubs

Some of the most exciting venues, such as downstairs music venues or comedy clubs, are too small for racks of video equipment. However, ATEM Television Studio can be carried into any venue. It's also easy to pack up, even if the venue is still crowded.

Online Education

ATEM Television Studio is perfect for creating education content. As the ISO model records the video inputs, you can finesse edits, replace shots, and even add color correction. Plus, you can even connect to Zoom to incorporate live chat with students.

Live Sports

ATEM Television Studio is perfect for live sports because it has a simple design that's easy for community volunteers to use. It can be installed into sports clubs or taken on the road with the team. With up to 8 cameras, you'll catch all the exciting angles.
