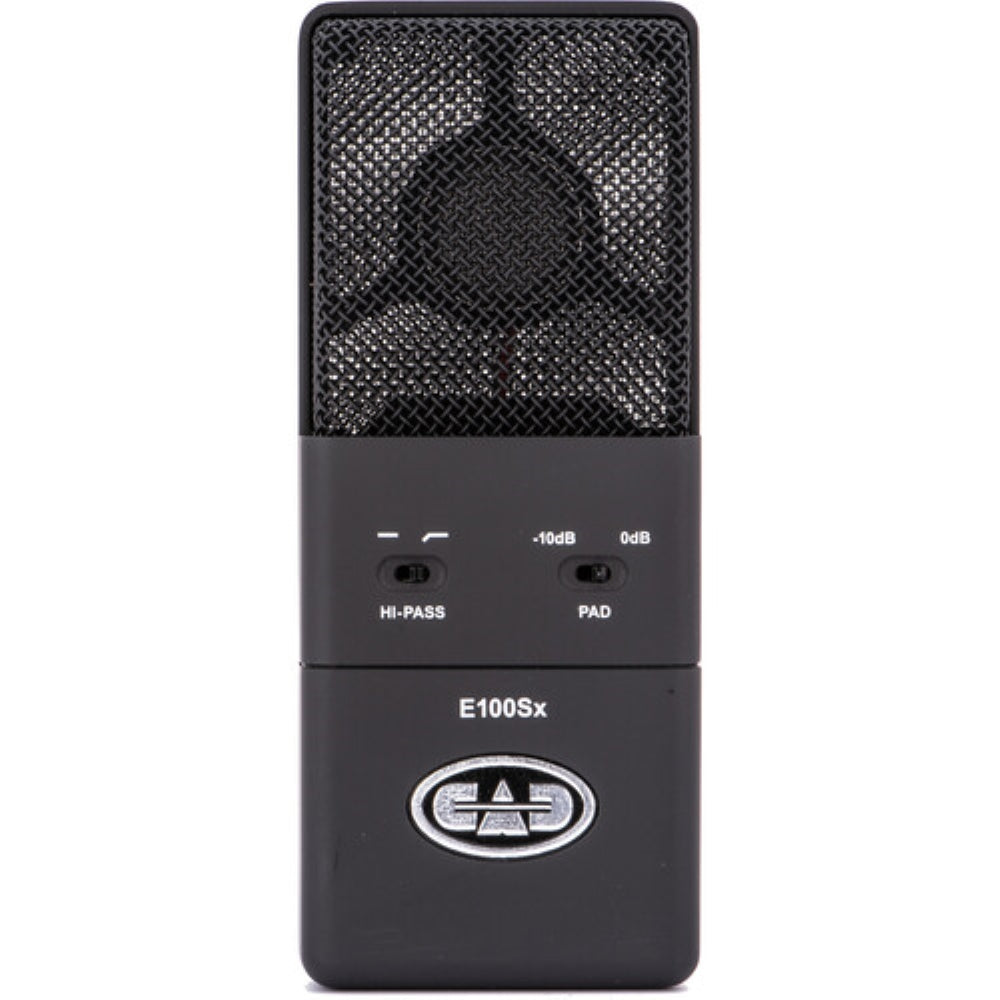

CAD E100Sx Large-Diaphragm Supercardioid Condenser Microphone

The CAD E100Sx is a versatile microphone with a large-diaphragm condenser element that can be used to record a wide variety of sources including vocals, percussion, and acoustic instruments. This fourth-generation version of the E100 features a narrow supercardioid pickup pattern that focuses audio capture tightly in front of the mic, helping to reject unwanted background sounds and making it well suited to studio, voice-over, and podcasting applications.

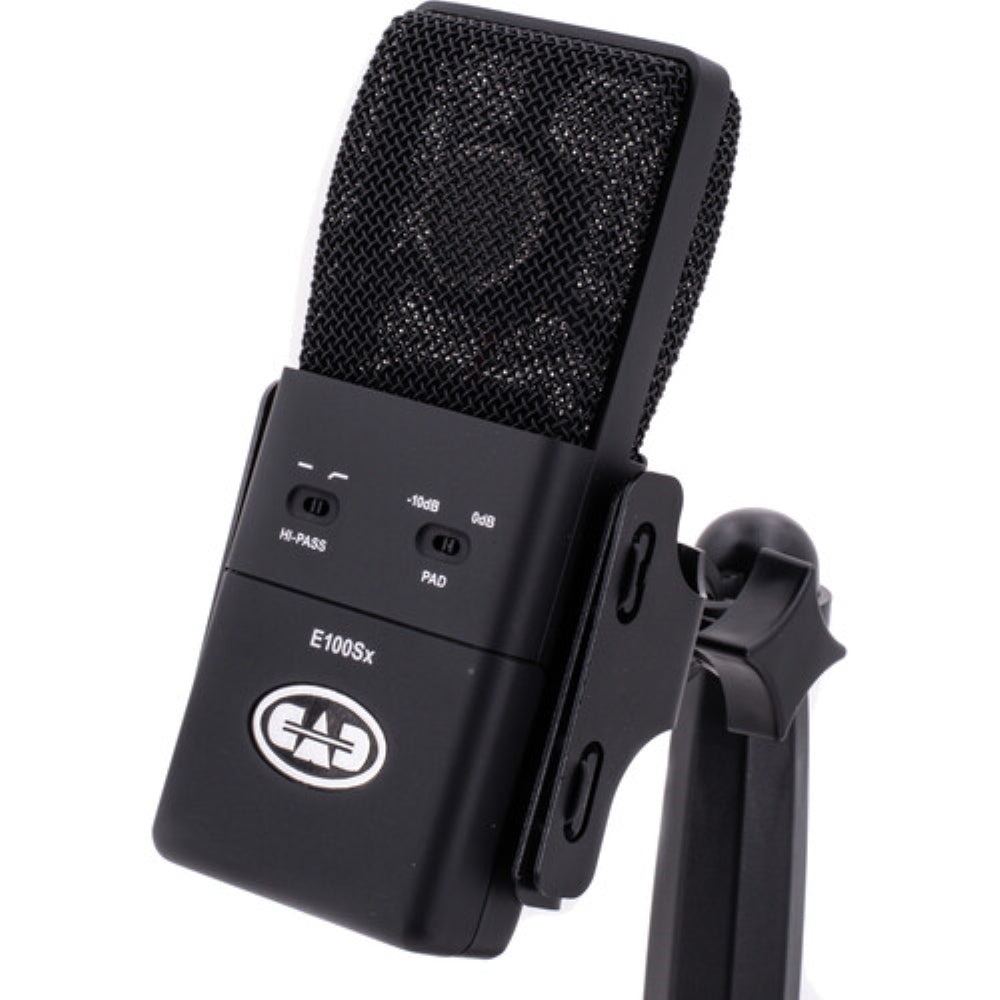

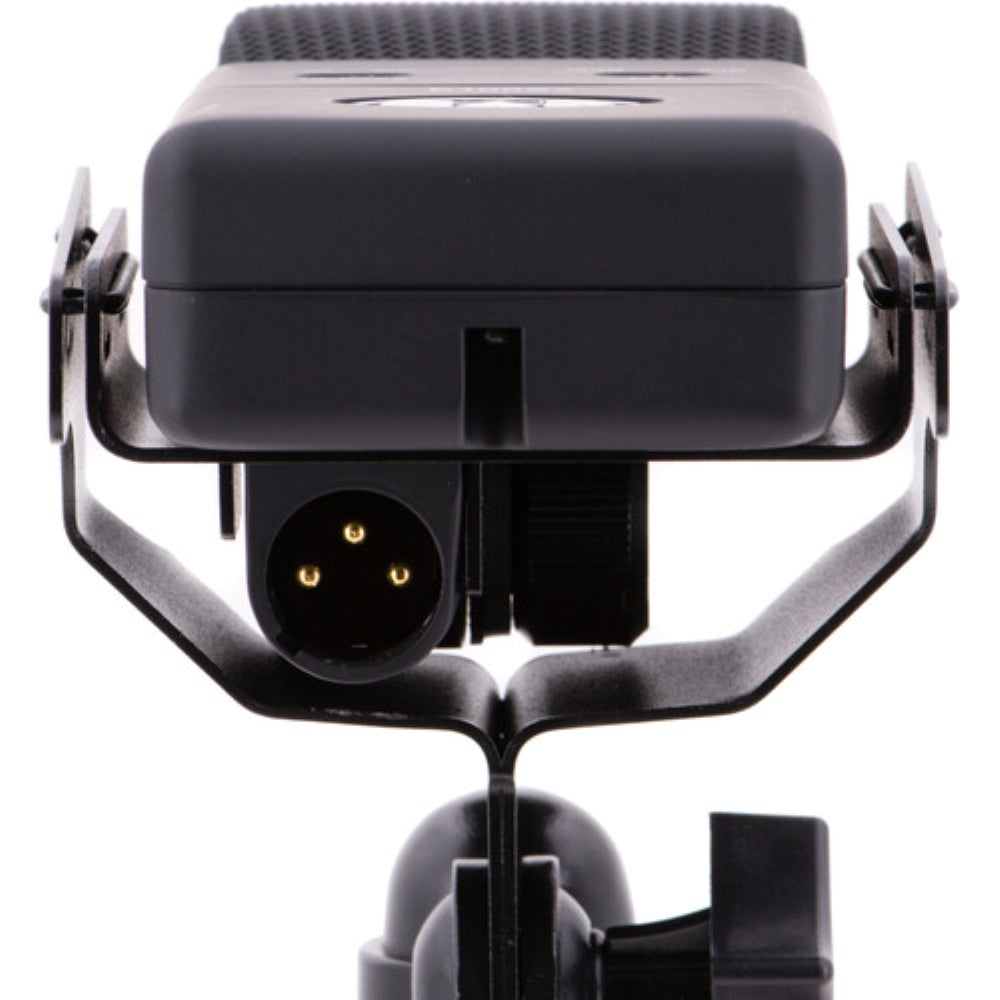

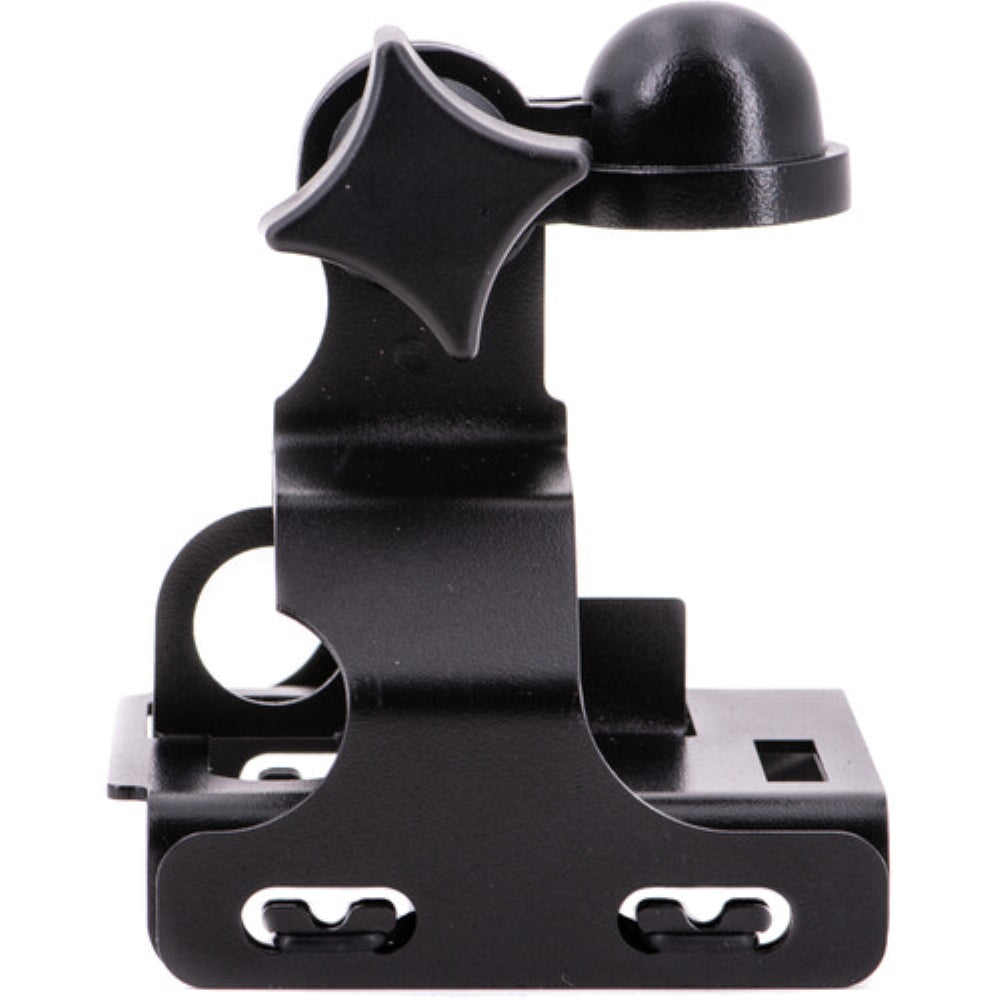

The mic's sensitive 1" nickle-plated diaphragm has been engineered to provide accurate phasing for a full, rich vocal sound with a hint of vintage coloration and extended low-end response. An optional 100 Hz high-pass filter with a 6 dB per octave slope can be engaged to filter out those low frequencies, if you prefer. The E100Sx offers a 10 dB pad switch for use on louder audio sources, allowing the mic to handle up to 136 dB SPL. The included shockmount offers a low-profile appearance and absorbs vibrations to reduce rumbling noise, helping the sensitive, low-noise capsule to deliver detailed, nuanced recordings. A 48V phantom power source is required to power the condenser microphone element.

Microphone
Primary Applications	Studio Recording, Podcast
Microphone Type	Large Diaphragm Mic / Stand/Boom Mount
Intended Sound Sources	Vocals, Speech/Voice-Over, Instruments
Sound Field	Mono
Element Type	1x Condenser
Diaphragm	1" / 25.4 mm
Polar Pattern	Supercardioid
Orientation	Side Address
Circuitry	Solid-State
Pad	-10 dB
High-Pass Filter	100 Hz, 6 dB/Octave

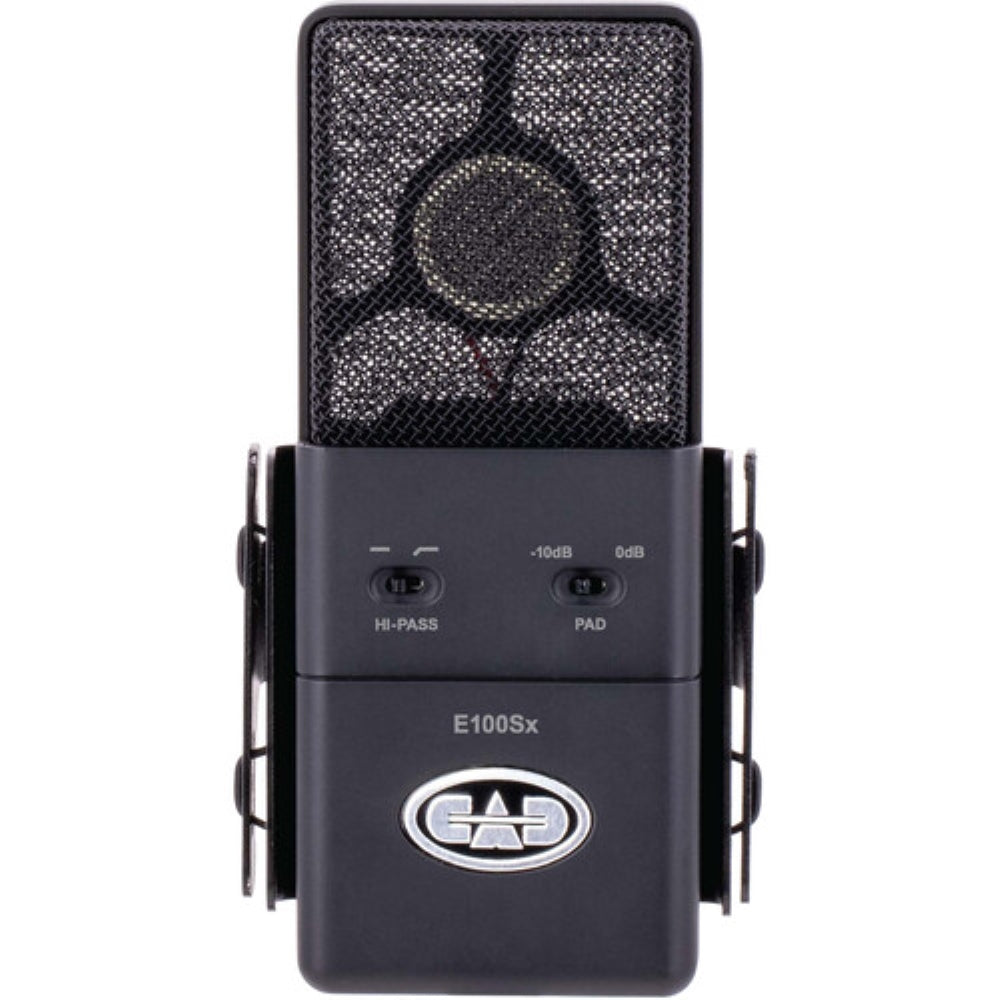

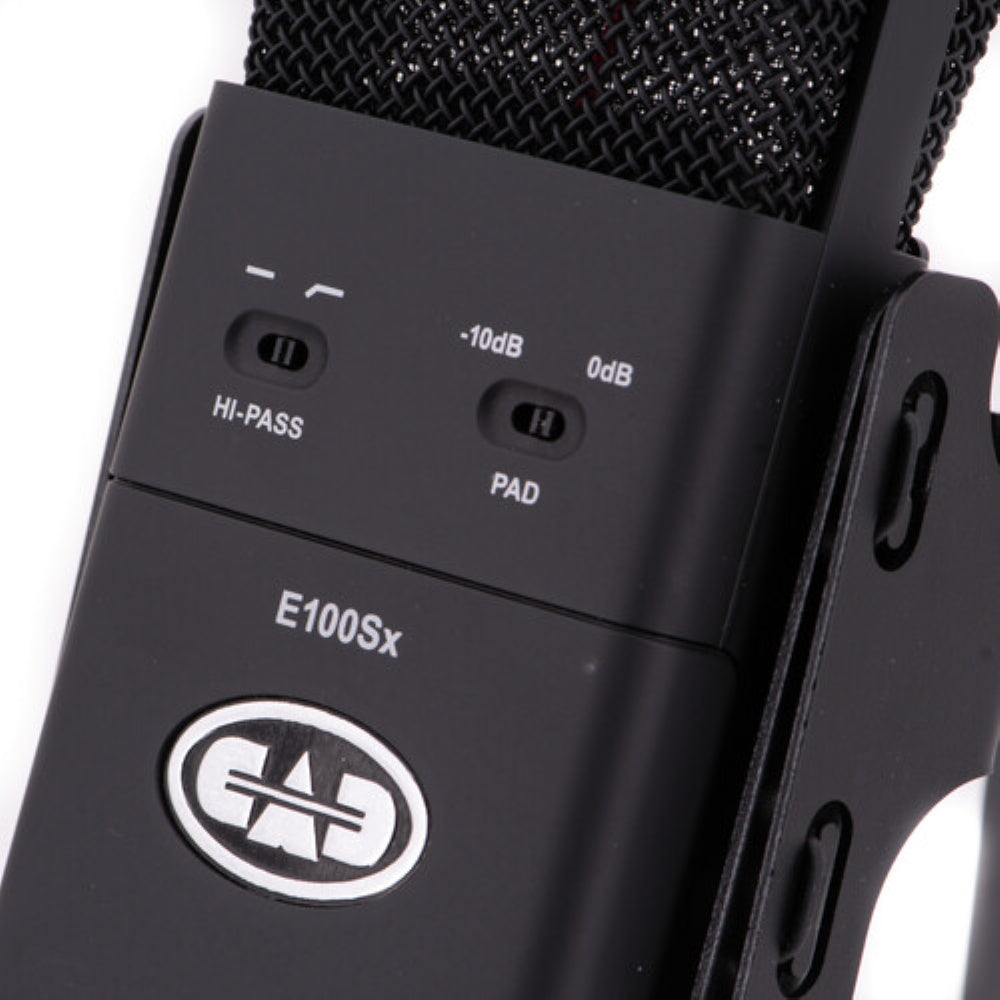

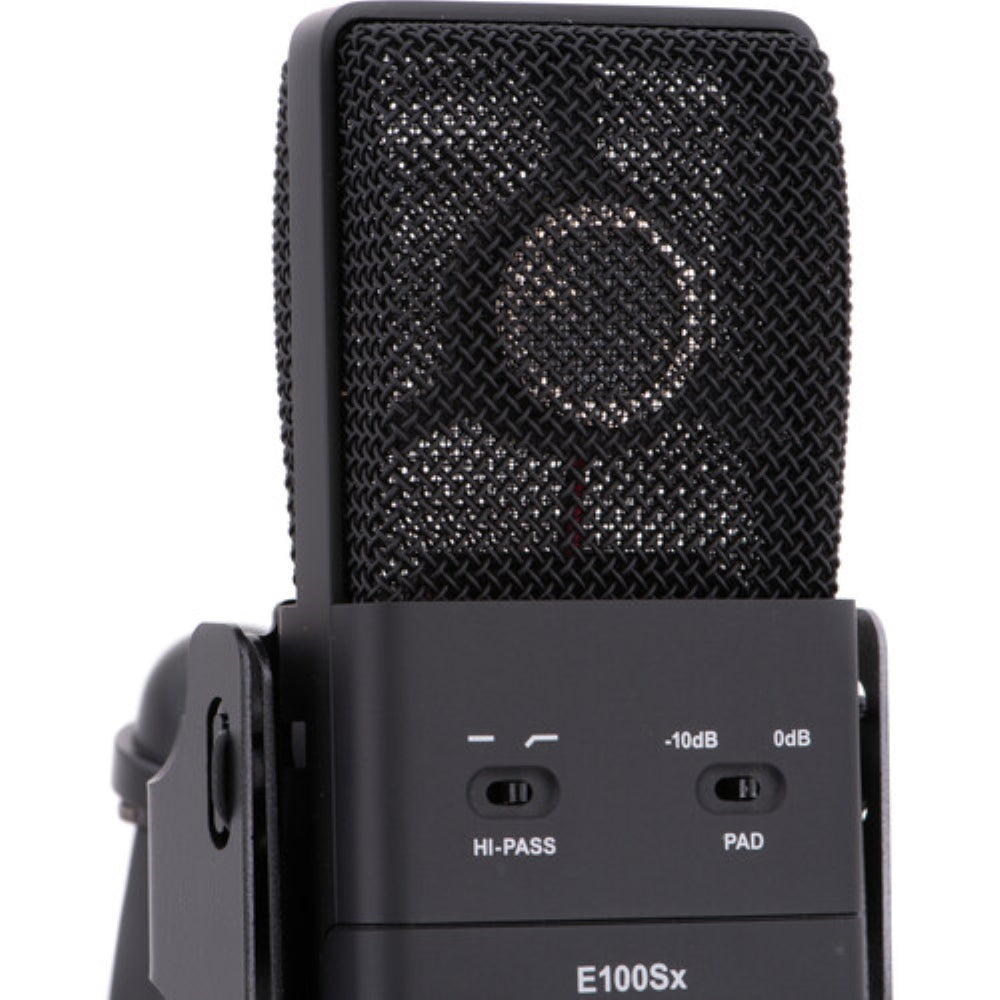

On-Board Controls	High-Pass Filter, Pad

Performance
Frequency Range	20 Hz to 18 kHz
Maximum SPL	136 dB SPL
Impedance	150 Ohms
Sensitivity	-32 dBV
Equivalent Noise Level	9.5 dB A-Weighted

Connectivity

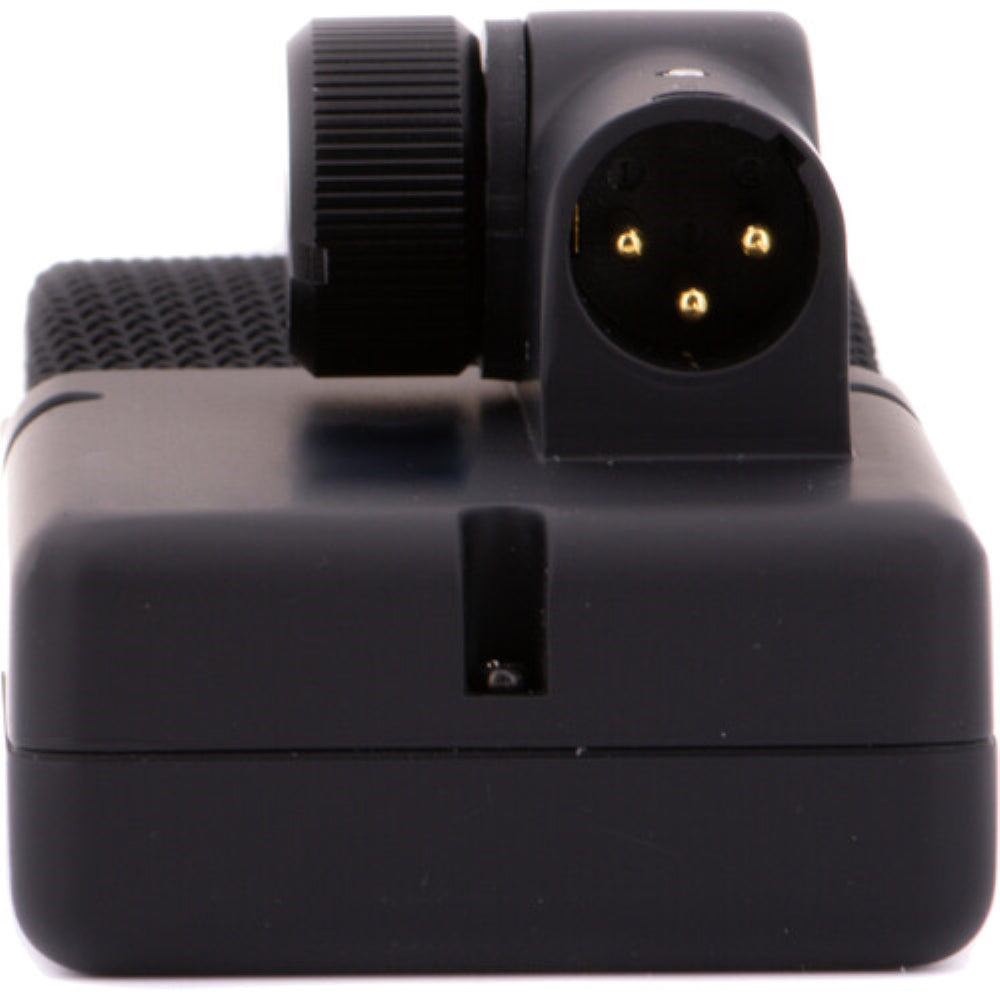

Analog Output	1x XLR 3-Pin Male (on Mic)

Power
Power Sources	Phantom Power

Physical
Mounting Thread Size	5/8"-27 Female
Dimensions	H: 6.1 x W: 2.9 x L: 5.44" / H: 15.4 x W: 7.37 x L: 13.81 cm (Microphone, with Mount)
Weight	1.98 lb / 0.9 kg
