CAD GXLIEM4 Quad-Mix In-Ear Wireless Monitoring System | T: 902 to 928 MHz
The CAD GXLIEM4 Quad-Mix Mono In-Ear Wireless Monitoring System provides musicians and actors with a cost-effective and easy-to-use solution for hearing themselves clearly, enhancing their performance during live shows. Added benefits to in-ear monitoring include consistent sound from venue to venue or wherever the performers go on stage, increased freedom of movement, and less feedback when working with quiet vocalists.
Quad-Mix Transmitter, Great for the Whole Band

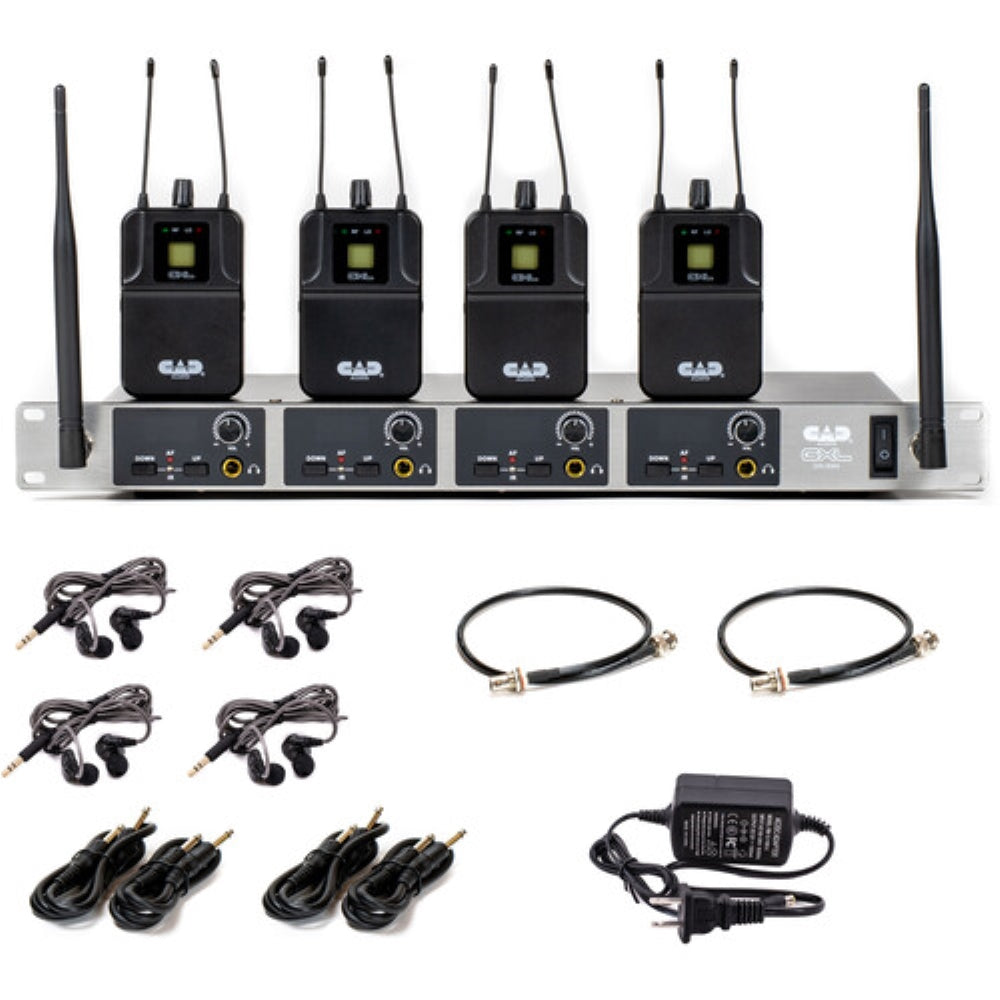

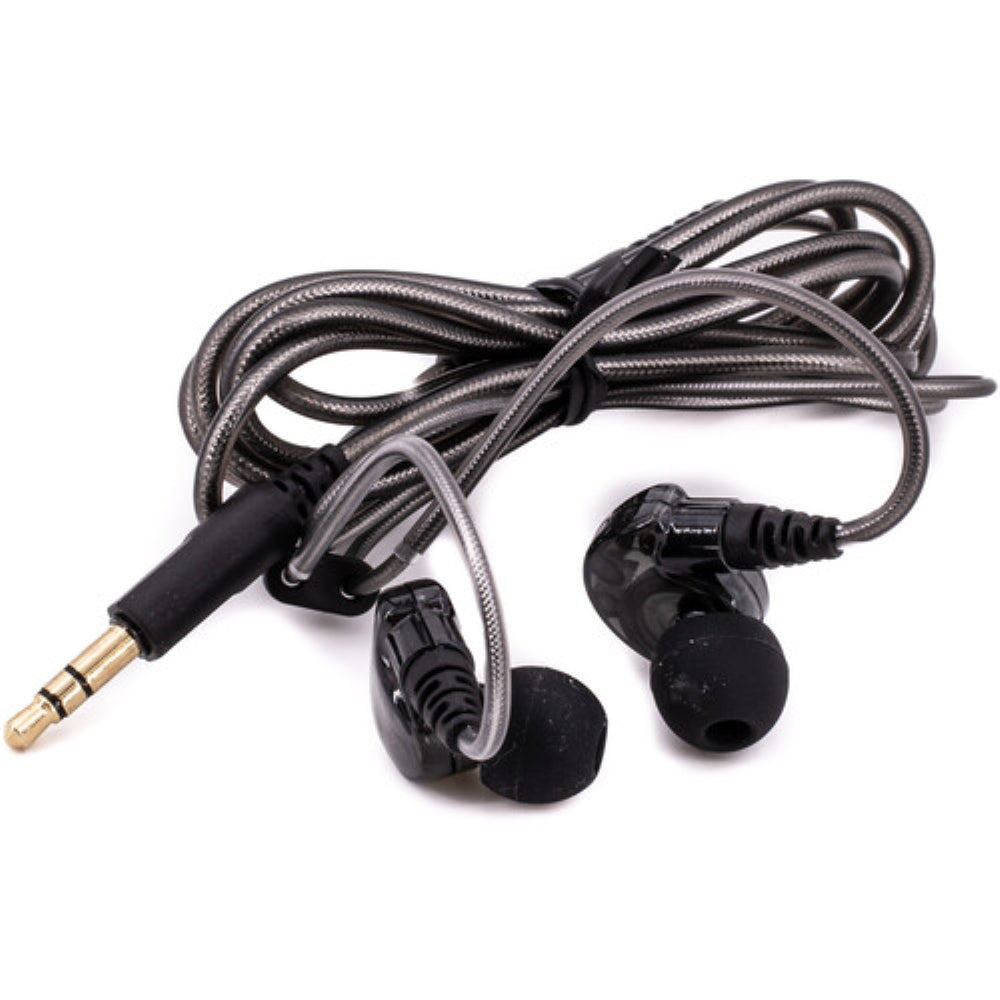

- The system comes with a GXLIEM4 base transmitter, four bodypack receivers, and four pairs of MEB1 earsets. The GXLIEM4 transmits four discrete mono mixes, one for each of the four performers wearing a bodypack receiver.
- For shows with even more performers, you can add as many receivers as needed to your system (additional receivers available separately).
Fast to Set Up and Easy to Use

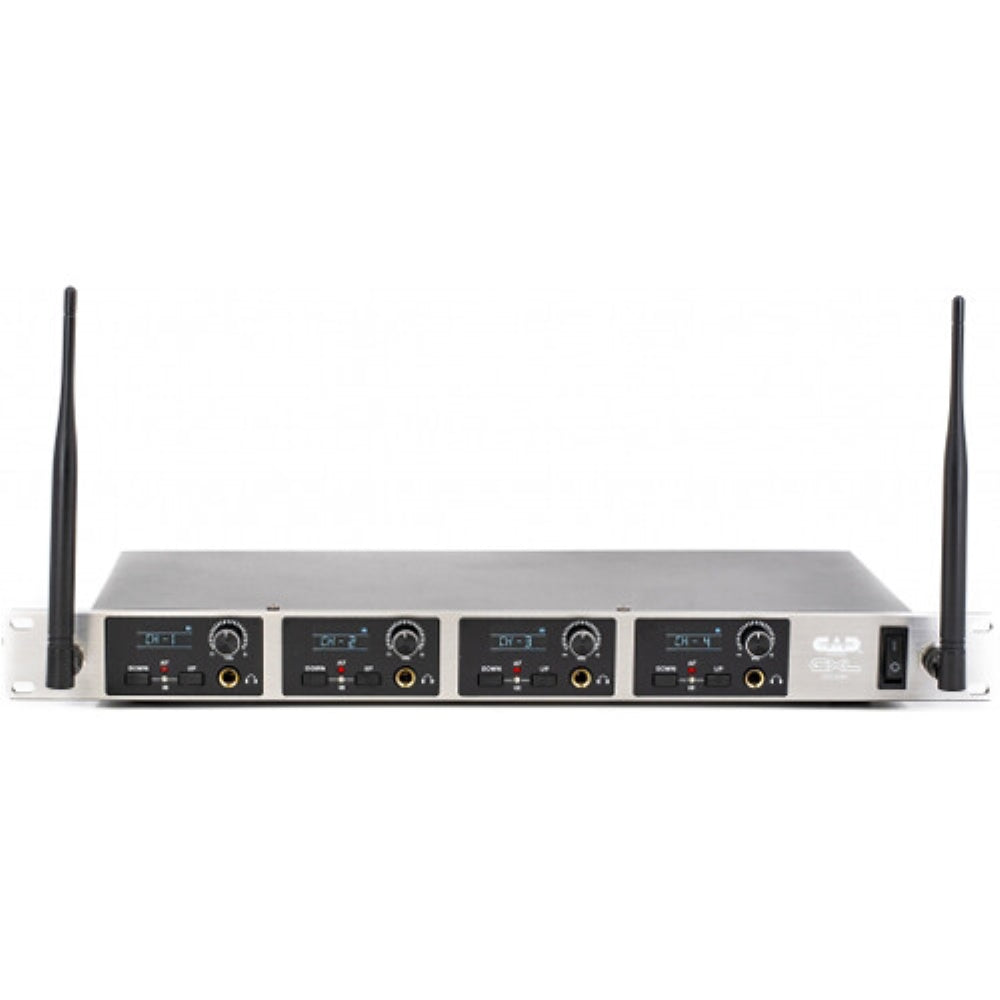

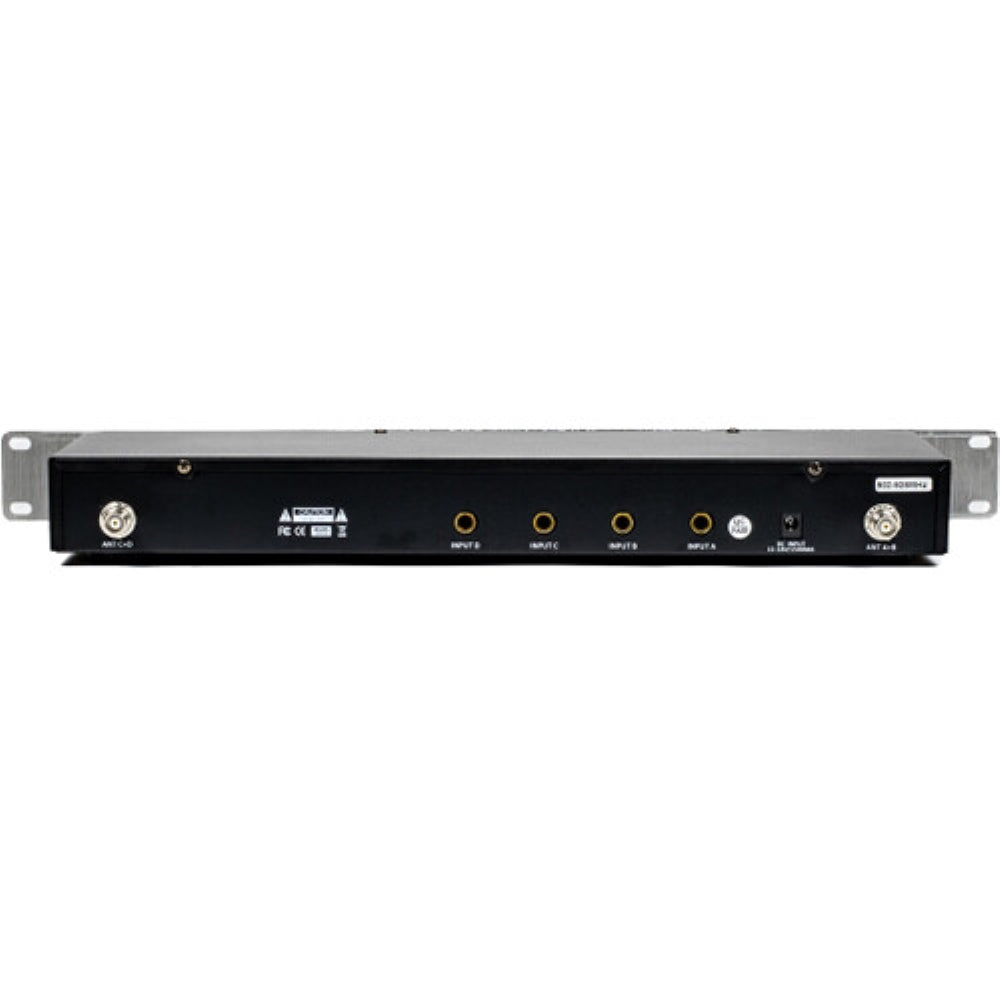

- The robust, all-metal 1 RU rack transmitter features removable antennas and can be rackmounted in flight cases or permanent installations using the included hardware.
- ScanLink technology with infrared transmitter setup precisely scans 16 frequencies and selects the cleanest channel for clear audio at a range up to 100'. Quickly pair the transmitter and receiver at the press of a button.
- The system operates in the 900 MHz band, free from TV signal interference.
- High-contrast LCD displays on the transmitter base and the receivers show frequency channel and battery level.

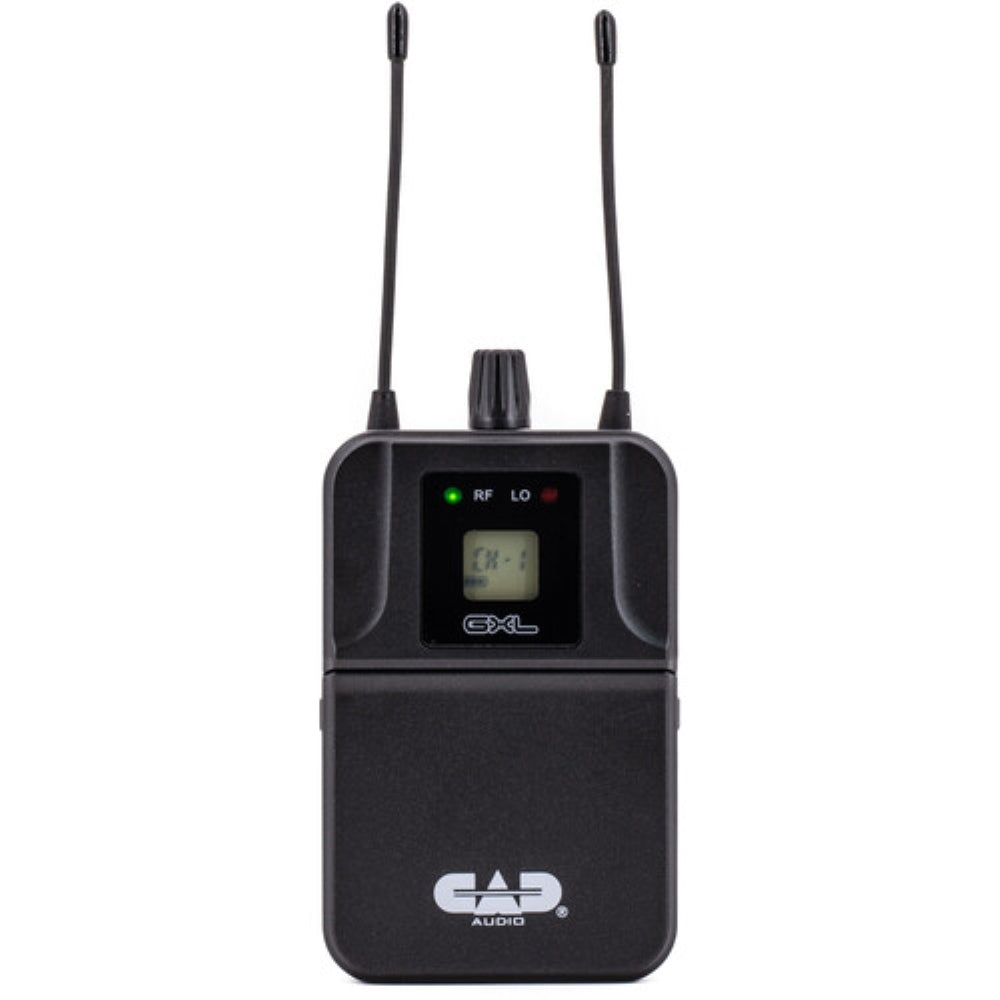

- The bodypack receivers are equipped with a volume knob for comfortable listening and operate for up to 10 hours on two AA batteries. The auto-lock feature prevents settings from being altered accidentally.
System |
|
|---|---|
| Frequency Band | T: 902 to 928 MHz |
| Channel Frequencies | 16 |
| Transmission Range | 100' / 30.5 m |
| Frequency Response | 20 Hz to 20 kHz |
| Dynamic Range | > 110 dB |
Transmitter |
|
|---|---|
| Type | Rackmount, 1 RU |
| Configuration | Quad-Mix |
| Display | High-Contrast LCD Display |

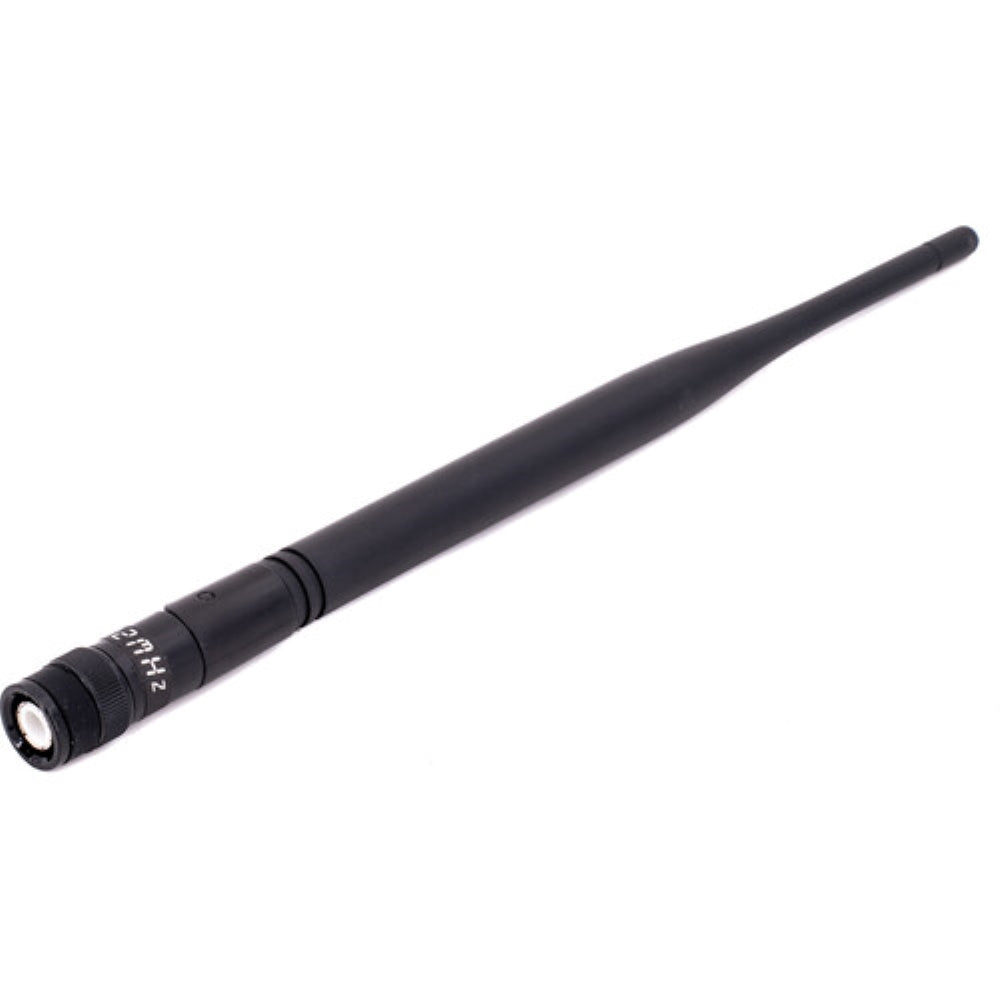

| Antennas | 2 x 1/2 Wave Antennas, Detachable |
| Construction | Metal |

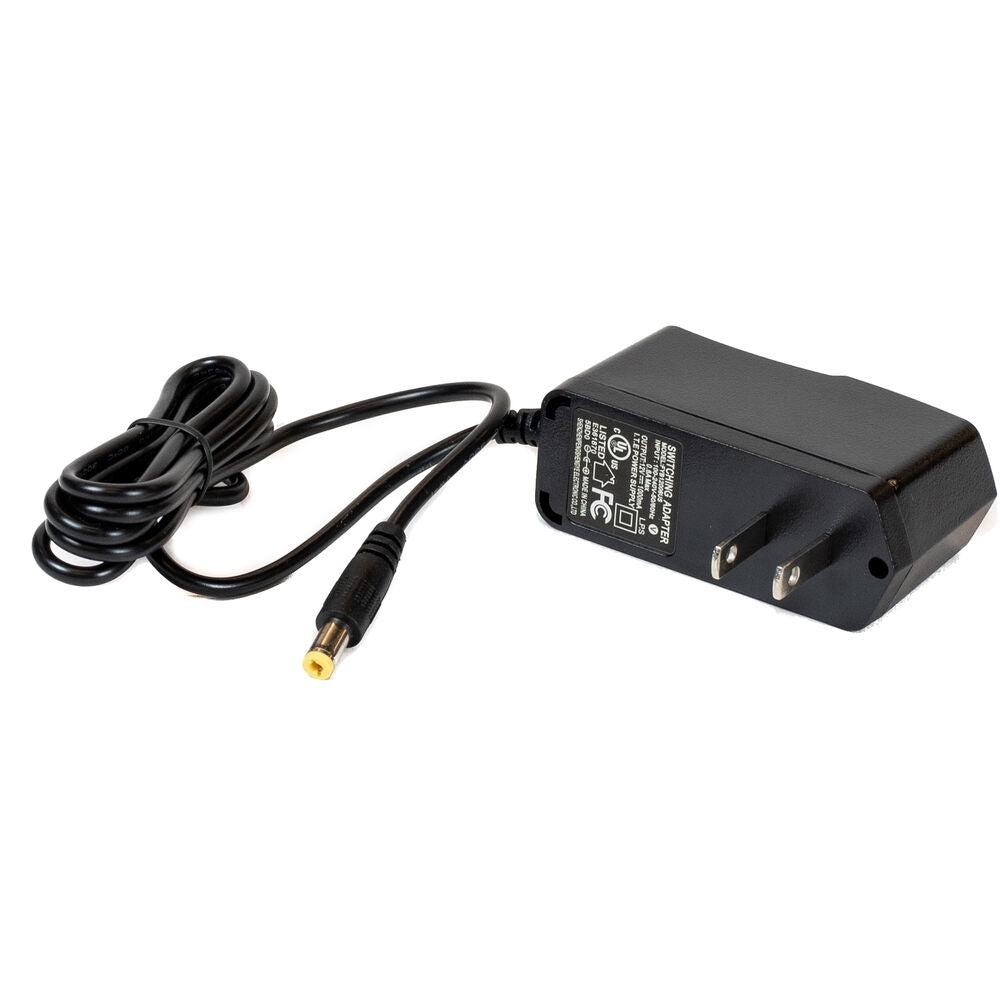

| Power | AC Power Adapter (Included) |
| AC Input Power Voltage | 110 V |
| Dimensions | 4 x 22 x 12" / 10.1 x 55.8 x 30.4 cm |
| Weight | 12 lb / 5.4 kg |

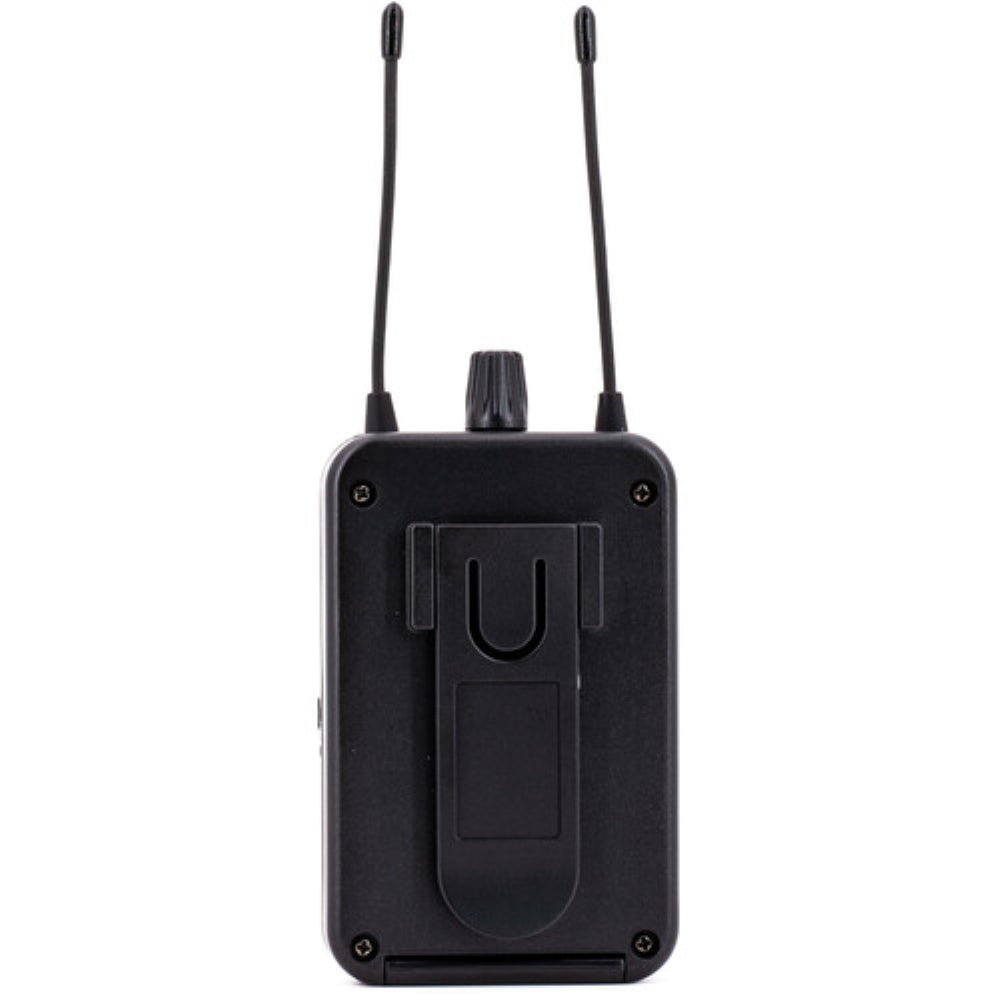

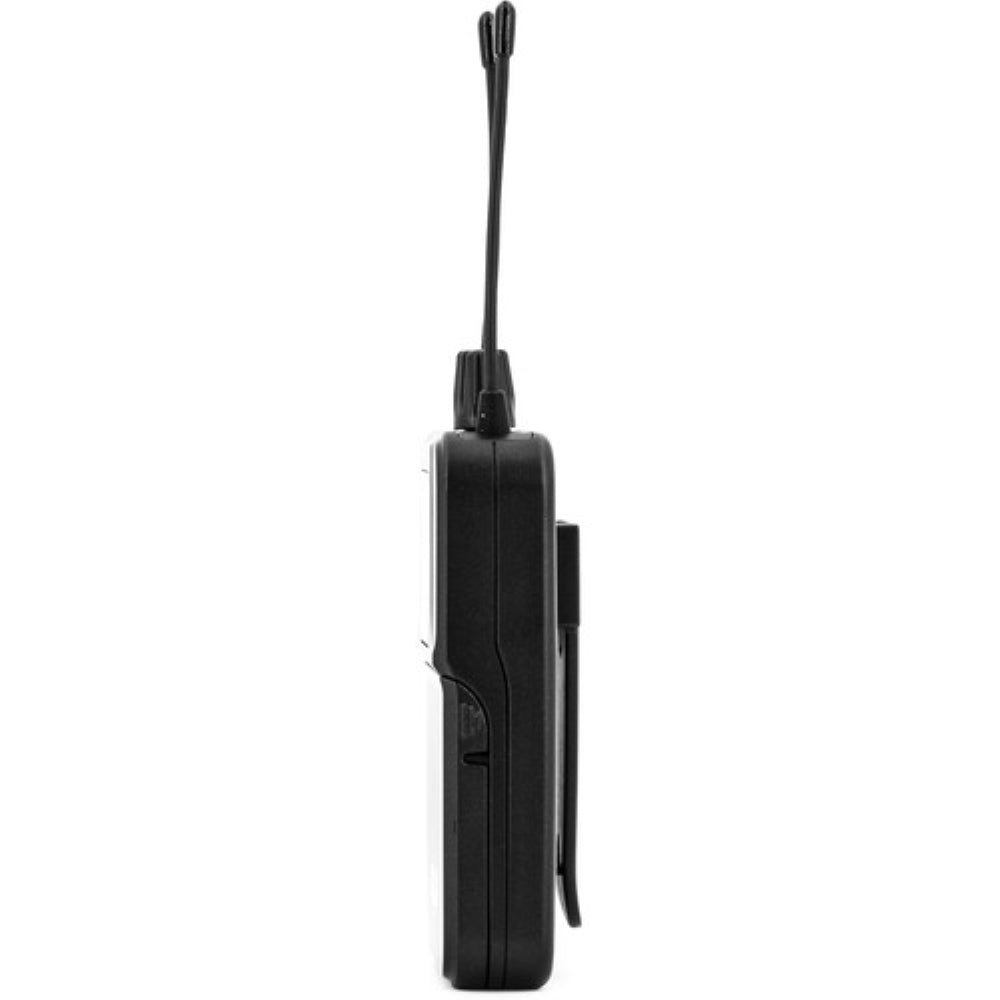

Receiver |
|
|---|---|
| Type | Bodypack |

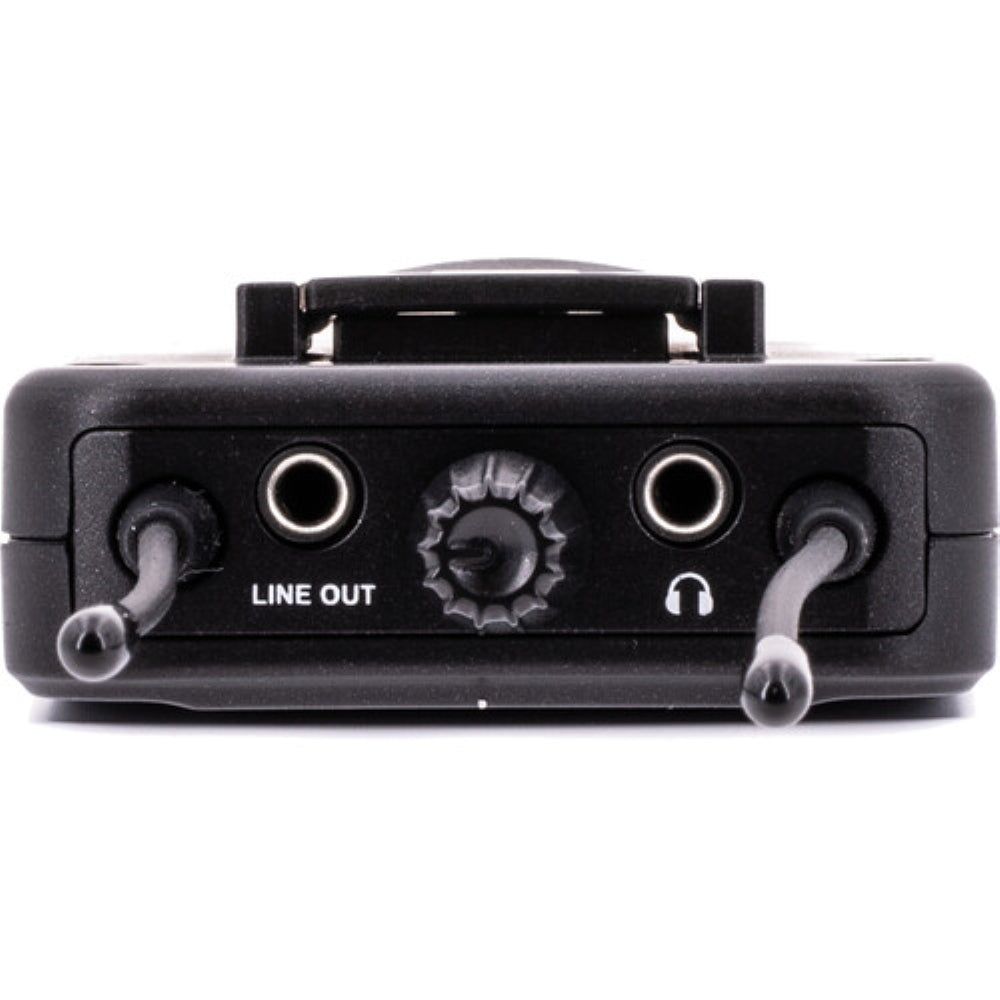

| Audio Output | 1/8" / 3.5 mm Headphone Output Jack |
| Display | High-Contrast LCD Display |
| Transmitting Power | 30 W |
| Antenna | Dipole Antenna |

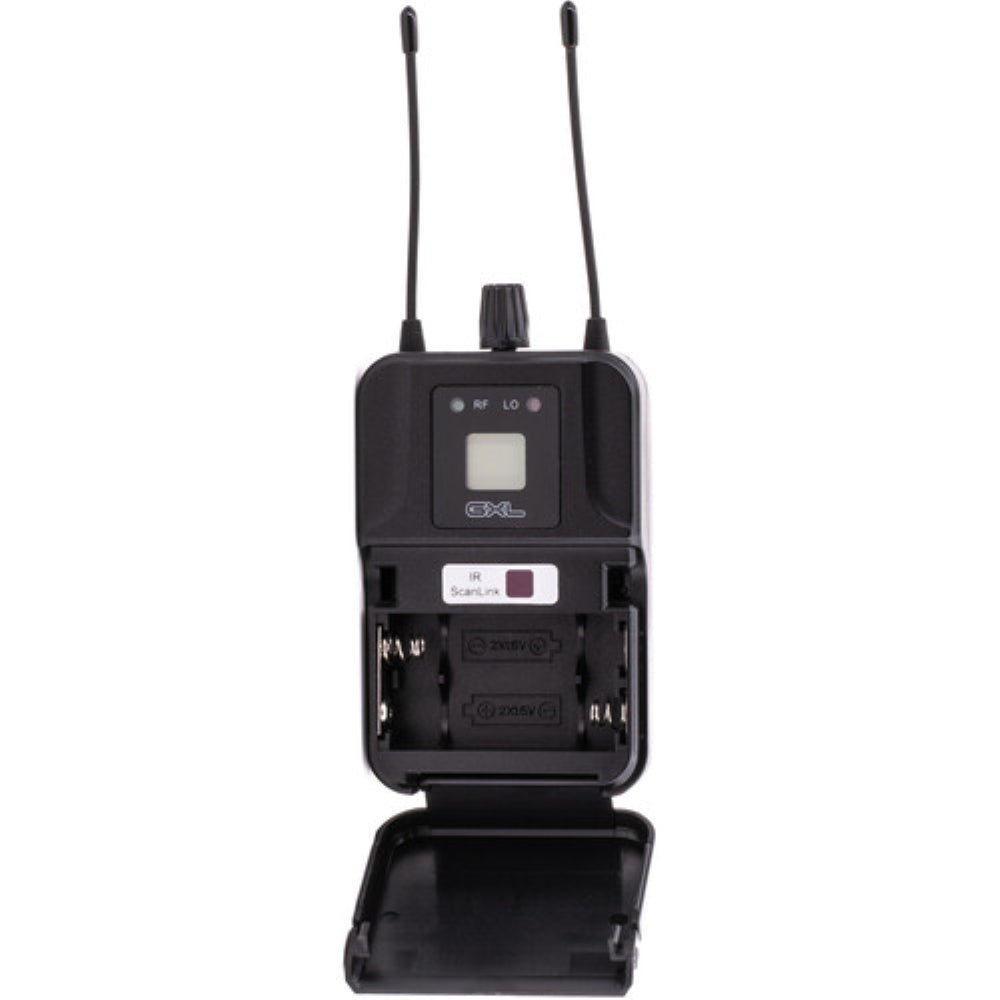

| Power | 2 x AA Batteries |
| Operating Time | Up to 10 Hours |
