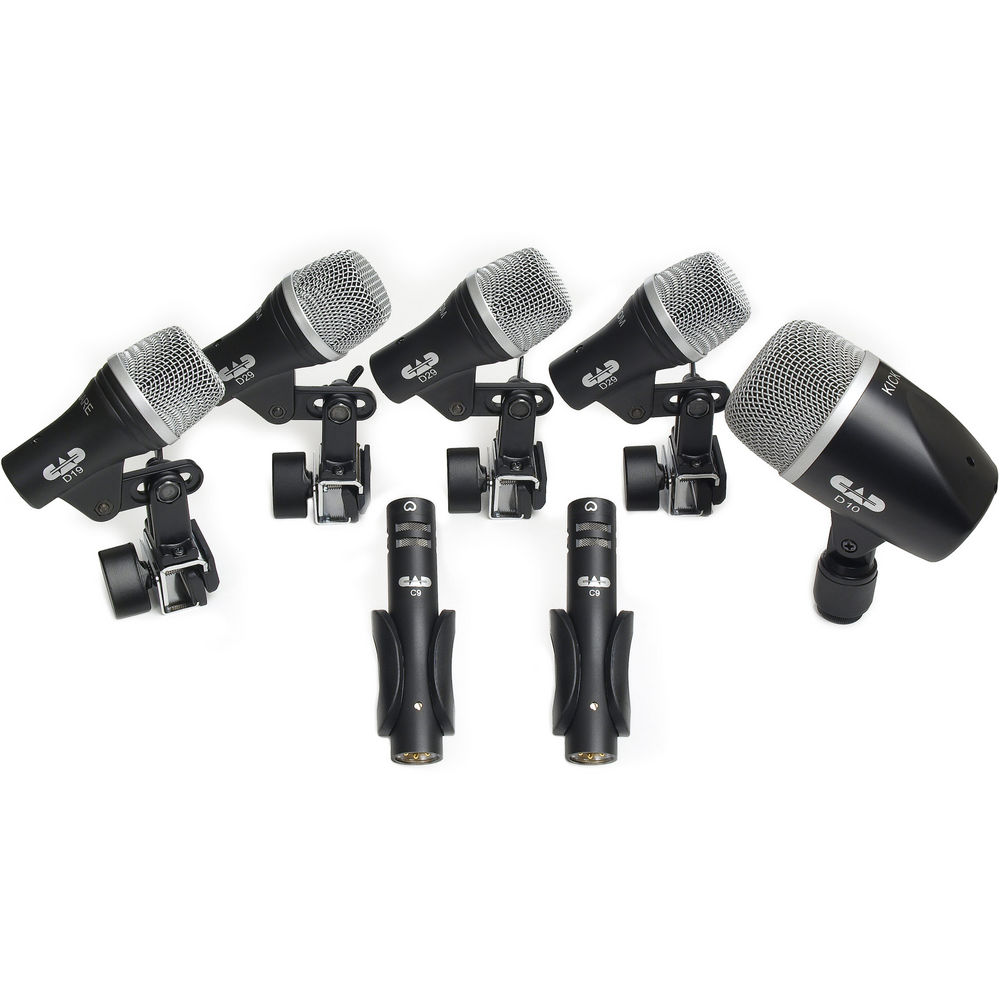

CAD Stage 7 Drum Microphone Pack
The CAD Stage 7 Drum Microphone Pack is an affordable 7-piece drum microphone package well suited for performing, rehearsing and project recording. The Stage 7 consists of the D10 dynamic kick drum microphone, 3x D29 tom microphones, a D19 snare drum mic and 2x C9 overhead microphones. All the microphones include mounting hardware and a vinyl carrying case for transport and storage.
Microphone |
|
|---|---|
| Primary Applications | Live Sound, Studio Recording |
| Microphone Type | Instrument-Mount |
| Intended Sound Sources | Drums |
| Sound Field | Mono |
| Element Type | 2x Condenser |
| Polar Pattern | Cardioid / Supercardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | No |
| High-Pass Filter | No |
Performance |
|
|---|---|
| Frequency Range | Cardioid Condenser: 40 Hz to 13 kHz Cardioid Dynamic: 90 Hz to 13 kHz Supercardioid Dynamic: 90 Hz to 14 kHz -6 dB Cardioid Dynamic: 50 Hz to 16 kHz |
| Maximum SPL | Cardioid: 140 dB SPL |
| Sensitivity | Cardioid: 2.2 mV/Pa (Phantom Power) Cardioid: 2.2 mV/Pa Supercardioid: 56 dBV Cardioid: 67 dBV |
| Equivalent Noise Level | Cardioid: 27 dB A-Weighted (Phantom Power) |
Connectivity |
|
|---|---|
| Analog Output | 7x XLR 3-Pin Male (on Mic) |
Power |
|
|---|---|
| Power Sources | Phantom Power |
| Operating Voltage | 12 to 48 V (Phantom Power) |
Physical |
|
|---|---|
| Mounting Thread Size | 5/8"-27 Female |
