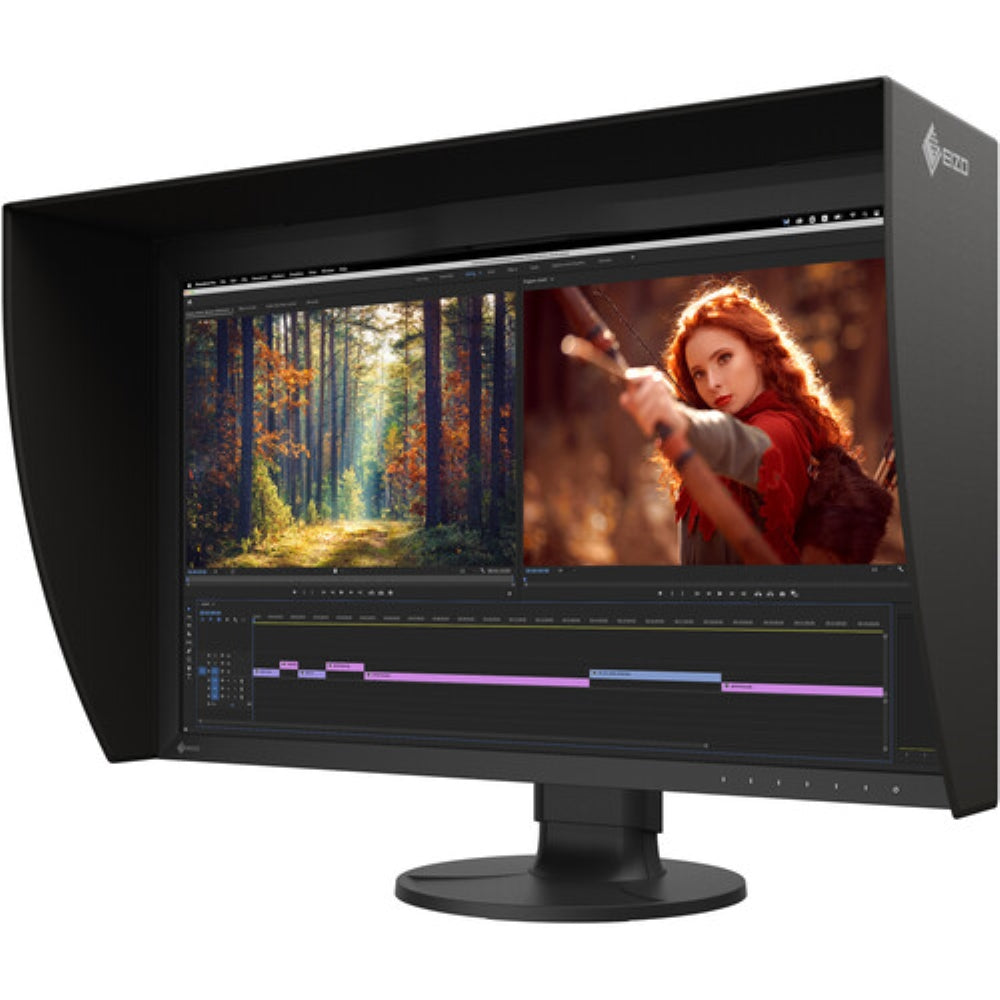

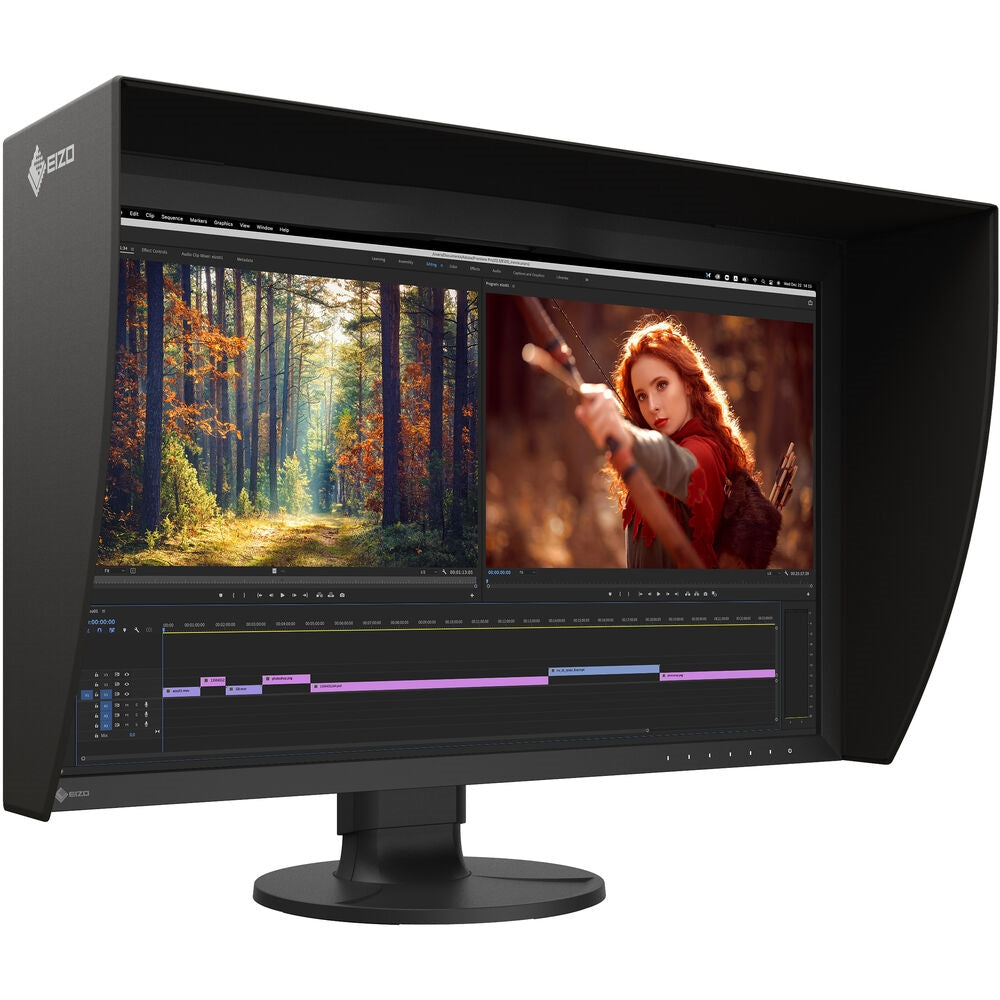

EIZO ColorEdge CG2700X 27" 4K HDR Monitor

The EIZO ColorEdge CG2700X is a 27-inch 4K HDR monitor that offers a resolution of 3840 x 2160, a brightness level of 500 nits, and support for HDR gamma. This enables the monitor to display content with exceptional detail. With USB-C connectivity, it ensures a seamless experience for professionals engaged in video editing, game development, photography, and other creative fields, allowing them to focus on their work.

EIZO designed the ColorEdge CG2700X with In-Plane Switching (IPS) technology, 10-bit support for 1.07 billion colors, a 16-bit LUT, a widescreen 16:9 aspect ratio, a static contrast ratio of 1450:1, 500 nits brightness, 164 pixels per inch, and a 13 ms (GtG) response time. Using the 178° horizontal and vertical viewing angles, it is possible to watch content from virtually any position. This display has one HDMI input and one DisplayPort input, plus a USB-C port that supports DP alt mode, data transfers of up to 5 Gb/s using the USB 3.2 Gen 1 standard, and up to 94W of power for device charging. Additional USB ports include one USB-B 3.2 Gen 1 input, two USB-A 3.2 Gen 1 outputs, and two USB-A 2.0 outputs. Additionally, there is an RJ45 Gigabit Ethernet port that provides network access when the CG2700X is connected to your host system via USB-C.

The ColorEdge CG2700X has been engineered to support 99% of the Adobe RGB and 98% of the DCI-P3 color gamuts as well as HLG (Hybrid Log Gamma) and PQ (Perceptual Quantization) for displaying and editing HDR video. To further help improve viewing and accessibility, there is a vertical tilt of -5 to 35°, a left/right swivel of 344° (±172°), a clockwise rotation of 90°, and a height adjustment of 6.1".

• The ColorEdge CG2700X features a 4K UHD (3840 x 2160) resolution, which is four times greater than that of Full HD. This high level of detail guarantees that high-resolution content is presented with exceptional clarity. The 27" screen offers sufficient space for natively displaying 4K content or for showcasing Full HD content in its entirety, while also allowing for the display of toolbars, palettes, and various other windows or applications. Consequently, this monitor proves to be highly adaptable for video editing, 3DCG creation, game development, photography, and numerous other creative disciplines.


• The ColorEdge CG2700X is equipped with USB-C connectivity, enabling you to display video, transmit USB signals, and provide power to a connected device, like a tablet or laptop. This versatile multi-purpose connectivity streamlines the process of connecting, making it quicker and more efficient when transitioning between workstations or working from a remote location.


• The ColorEdge CG2700X consistently provides a 94W power delivery, effectively charging a MacBook Pro or other premium laptops. This feature removes the necessity for a laptop's cumbersome power supply unit, thereby creating additional space in your bag and on your desk.


• Although numerous contemporary laptops lack a dedicated LAN port, the monitor features one integrated for a reliable wired connection. By connecting a laptop through USB-C, users can access the network via the monitor, facilitating the sharing of creative assets and files, conducting post-production tasks remotely, and allowing for network-based color management through ColorNavigator Network.


• The ColorEdge CG2700X's built-in sensor can be set to calibrate the monitor automatically at designated times. This eliminates the need for a third-party calibration device and ensures your screen stays color accurate. In addition, the sensor swings onto the screen, taking up minimal space and allowing you to continue working even during calibration.


  • EIZO does not recommend carrying out color-critical work during recalibration, as the screen's colors will be adjusted.


• A monitor must undergo calibration at regular intervals to ensure color accuracy. EIZO's exclusive ColorNavigator 7 software offers an intuitive and exceptionally precise approach to color management. It enables users to schedule automatic recalibrations, calibrate all color modes at once, and perform correlation with external sensors to align with the studio's internal color management system. Calibration data is stored directly on the monitor rather than the operating system, allowing users to avoid recalibration even when switching to a different PC.


• ColorNavigator Network offers centralized quality control (QC) for ColorEdge monitors utilized by studios, printing houses, and various enterprises that have multiple creators and editors collaborating on shared projects. By installing NetAgent or ColorNavigator 7 on the workstation, administrators are able to oversee several ColorEdge monitors through a web browser, facilitating quality control from remote locations. Additionally, ColorNavigator Network is hosted on a secure cloud server, relieving you of the initial investment and ongoing expenses associated with maintaining your own server.


• The monitor's extensive color range accurately reproduces 98% of the DCI-P3 standard utilized in digital cinema and is compatible with the BT.2020 standard employed in broadcasting. Furthermore, it encompasses 99% of the Adobe RGB color space, ensuring that images captured in Adobe RGB are displayed accurately. Additionally, it nearly covers the entire ISO-coated and US web-coated CMYK color spaces that are commonly used in printing.


• The monitor is equipped with a 3D LUT that modifies colors on an individual basis using an RGB cubic table. By utilizing the emulation feature of the compatible ColorNavigator 7 software, creators can preview how their content will be perceived by the audience. Additionally, the 3D LUT enhances the monitor's additive color mixture, which is the combination of RGB, playing a crucial role in its capacity to render neutral gray tones.


• Utilizing either the DisplayPort or HDMI input, the ColorEdge monitor provides a 10-bit simultaneous display derived from a 16-bit look-up table (LUT), enabling it to present over one billion colors at once. This represents a 64-fold increase in color range compared to an 8-bit display, leading to seamless color transitions and a minimized Delta-E between neighboring colors.


  • To achieve a 10-bit display, a graphics board and software that are compatible with 10-bit output are essential. Additionally, when connecting through HDMI, equipment that supports DeepColor is necessary for 10-bit display.


• The preset modes for DCI-P3, BT.709, and BT.2020 guarantee that you can operate within the correct color spaces and gamma values. Furthermore, preset modes for PQ (DCI and BT.2100) and HLG (BT.2100) are provided for the purpose of viewing HDR content. Utilizing the integrated calibration sensor, you can easily modify or sustain the brightness settings for each preset.


• The ColorEdge CG2700X boasts an impressive brightness level of 500 nits. It is compatible with HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve, facilitating the display and editing of HDR (high dynamic range) video content. The enhanced gamma curves allow images to be represented more accurately in accordance with human visual perception of the real world, in contrast to SDR (standard dynamic range). This capability guarantees that professional creators can consistently showcase HDR content for the purposes of editing and color grading.


• In accordance with the DCI standard, the monitor provides an impressive contrast ratio of 1450:1, enabling the display of true blacks that are often challenging to achieve on a conventional LCD monitor. Additionally, CG Series monitors feature a retardation film that helps maintain the depth of tones, even when viewed from an angle.


• The DCI 4K Cropping feature enables users to present a DCI 4K (4096 x 2160) signal while cropping content that extends beyond the limits of the panel's native 4K UHD (3840 x 2160) resolution. Users have the ability to choose from three options that dictate which section of the image will be cropped.


• The ColorEdge CG2700X provides an option for image scaling and resampling through the Nearest Neighbor interpolation setting. When performing upscaling, Nearest Neighbor duplicates and positions pixels to the nearest adjacent location, preserving color accuracy. If Nearest Neighbor is disabled, the monitor employs an interpolation technique that harmonizes the gradation of surrounding pixels, resulting in a smooth color transition. Editors can conveniently select the most appropriate interpolation method for their project using the monitor's OSD menu, ensuring that the content appears as intended when upscaled to 4K.


• The monitor features a function that highlights the regions of the image that cannot be accurately displayed under the current brightness settings. These regions are indicated in yellow or magenta and can be observed for brightness levels of 300, 500, 1000, and 4000 nits.


• Enlarge areas of the screen to confirm small details and check focus accuracy in images using the 4K zoom function. It is quickly and easily accessible using the monitor's front buttons.


• The monitor features a Gamut Warning preset which, when activated, highlights sections of a BT.2020 image that cannot be accurately reproduced in BT.709 by transforming them into shades of gray. Furthermore, there is a mode known as BT.709 Clipping that enables the editor to visualize BT.2020 images within the BT.709 color space, thereby simulating the appearance to their audience in an HDTV setting.


• To ensure color settings stay consistent throughout production, the monitor includes a Sync Signal function which automatically adjusts the monitor's settings, such as input range and input color format, according to the video signal.


• The gamma level for every ColorEdge monitor is calibrated at the factory by assessing the R, G, and B gamma values ranging from 0 to 255. Subsequently, the monitor's 16-bit look-up table (LUT) is utilized to choose the 256 most suitable tones, thereby attaining the desired value. This process guarantees the most seamless color transitions in your images.


• A standard monitor typically requires 30 minutes or longer for its brightness, chromaticity, and tonal characteristics to reach stability. In contrast, the ColorEdge CG2700X achieves this in just 3 minutes. Whether you are operating in a studio environment or transporting the monitor to a location, you can expect a dependable color display shortly after powering it on.


• The hue and luminosity of an LCD monitor may vary due to fluctuations in the ambient temperature and the monitor's own temperature. The ColorEdge CG Series monitors come with a built-in temperature sensor that accurately gauges the internal temperature of the monitor while also estimating the temperature of the surrounding environment. Utilizing this temperature sensing and estimation technology, the monitor makes real-time adjustments, ensuring that gradations, colors, brightness, and other attributes are displayed with precision. Additionally, EIZO incorporates AI (artificial intelligence) into the estimation algorithm of the CG2700X, enabling it to identify different temperature change patterns for even more precise corrections.


• LCD monitors frequently display variations in brightness and color consistency throughout the screen, which impacts color precision. To address this issue, ColorEdge monitors incorporate EIZO's proprietary digital uniformity equalizer (DUE) technology, which rectifies discrepancies in every hue across the screen to guarantee a stable display.

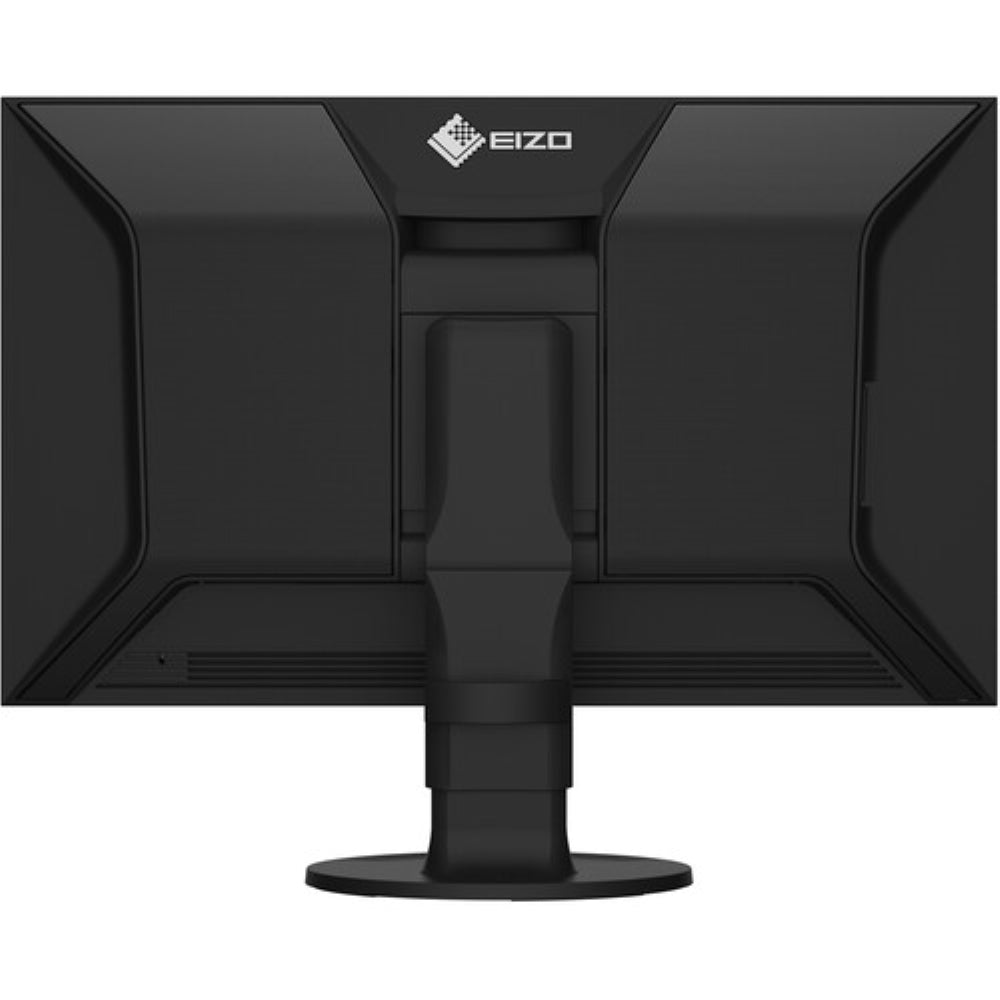

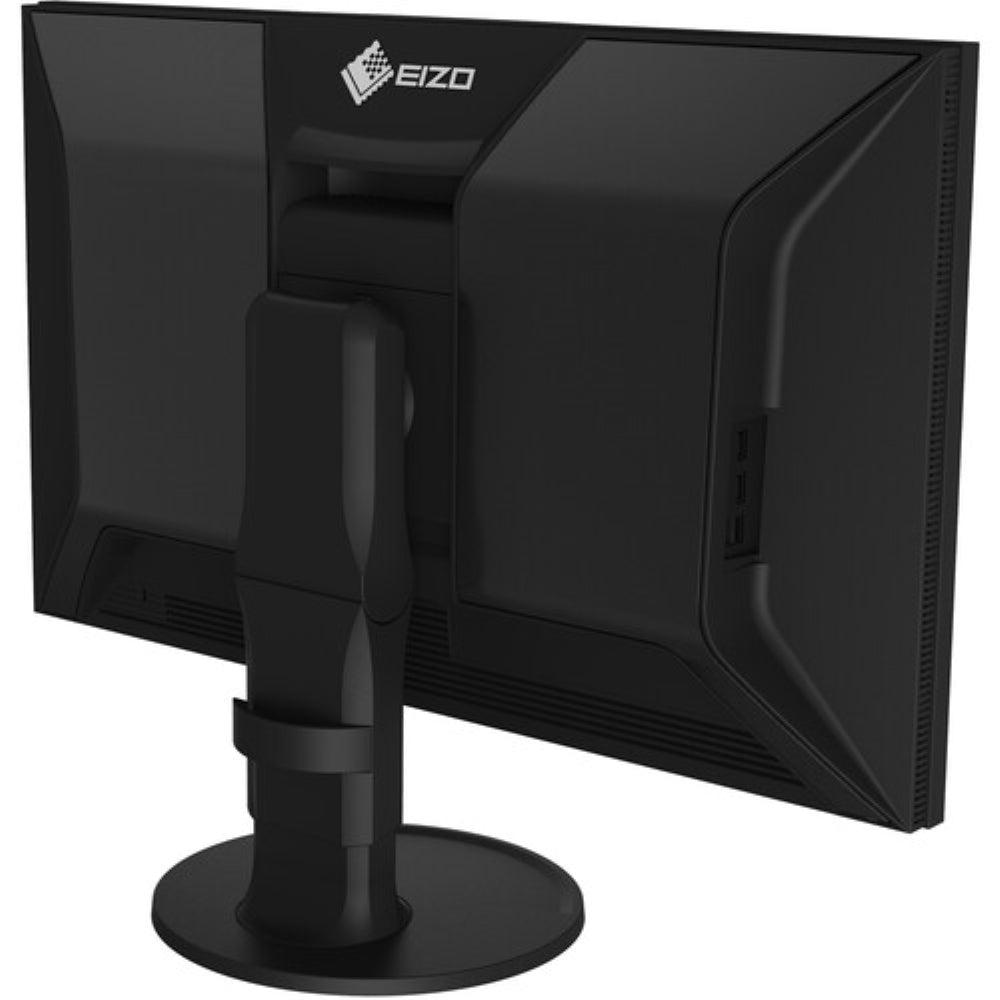

• The ColorEdge CG2700X's sleek, new design incorporates punched metal on the back side that allows for more airflow, keeping the monitor cool without a noisy fan. A carrying handle on the back of the monitor allows you to easily move it to other locations.

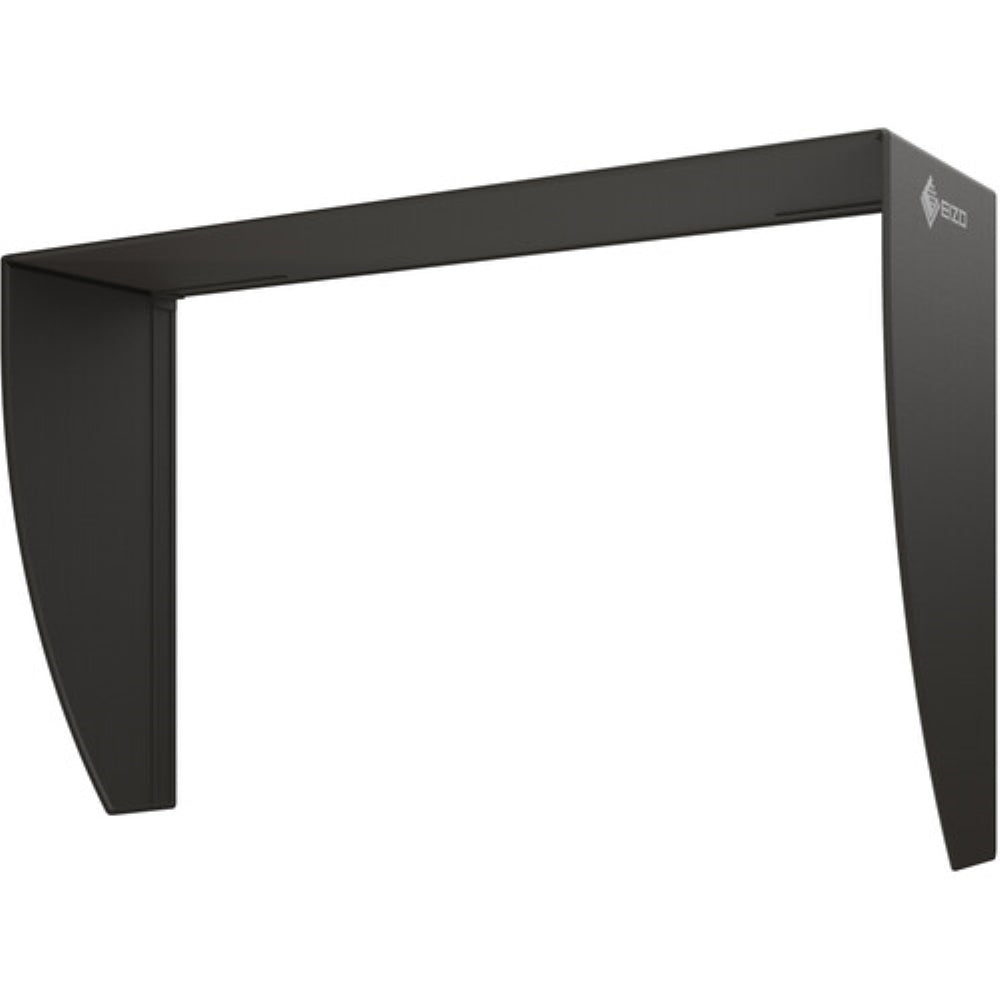

• The ColorEdge CG2700X comes bundled with a light shielding hood that effectively prevents glare on the screen caused by ambient lighting. The hood is newly designed to be lightweight and easily attaches to the monitor magnetically without needing to connect separate parts.

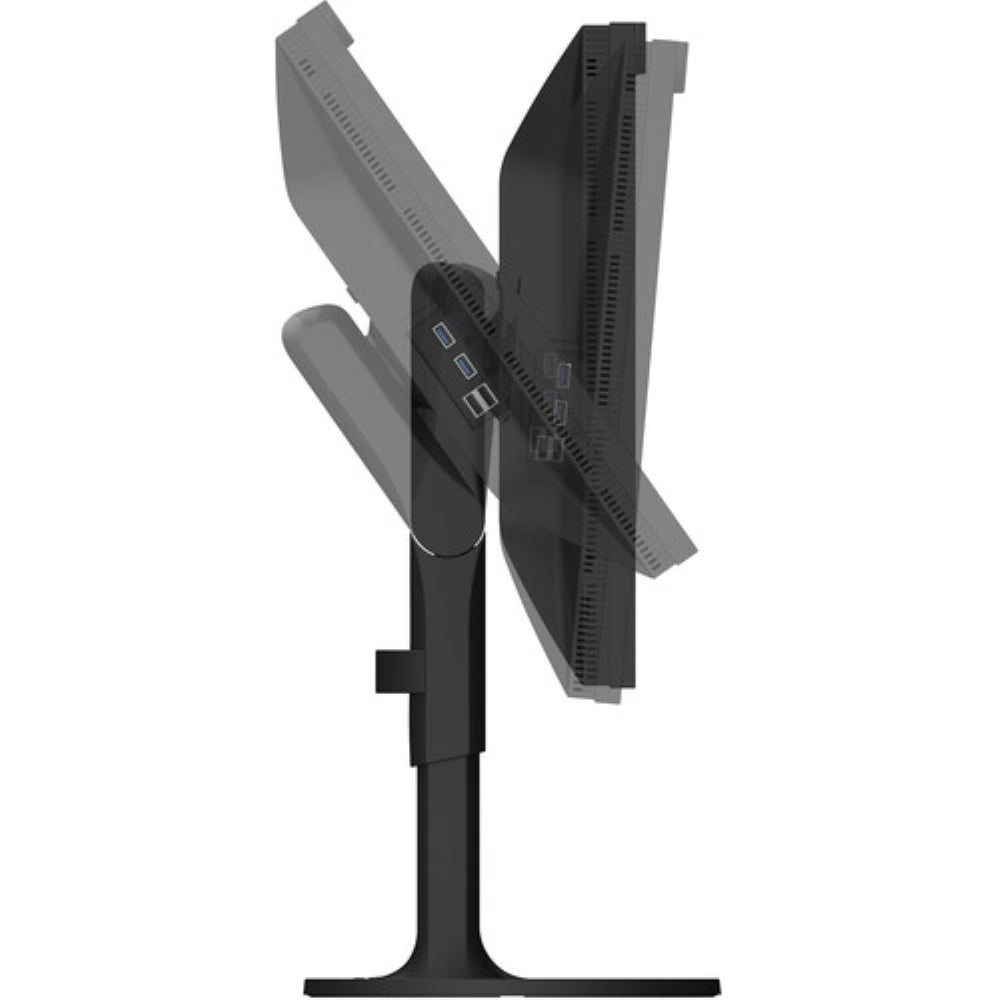

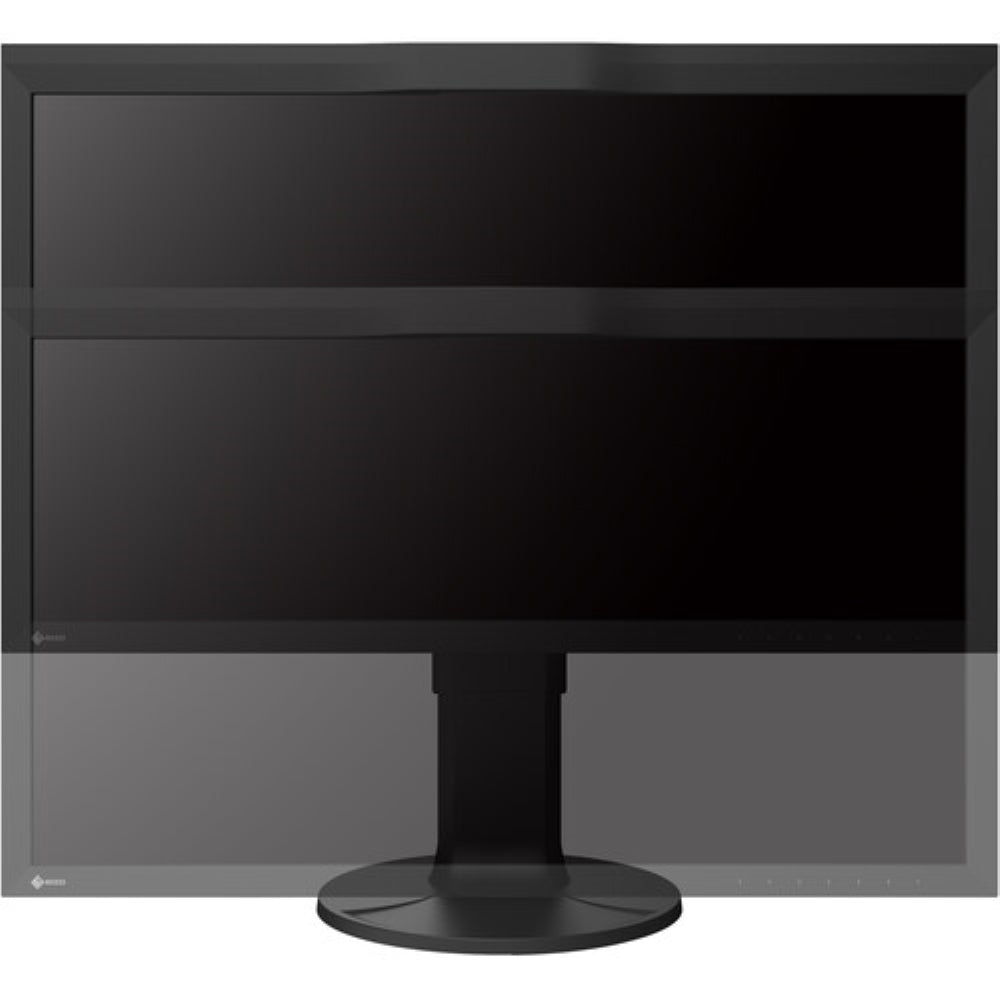

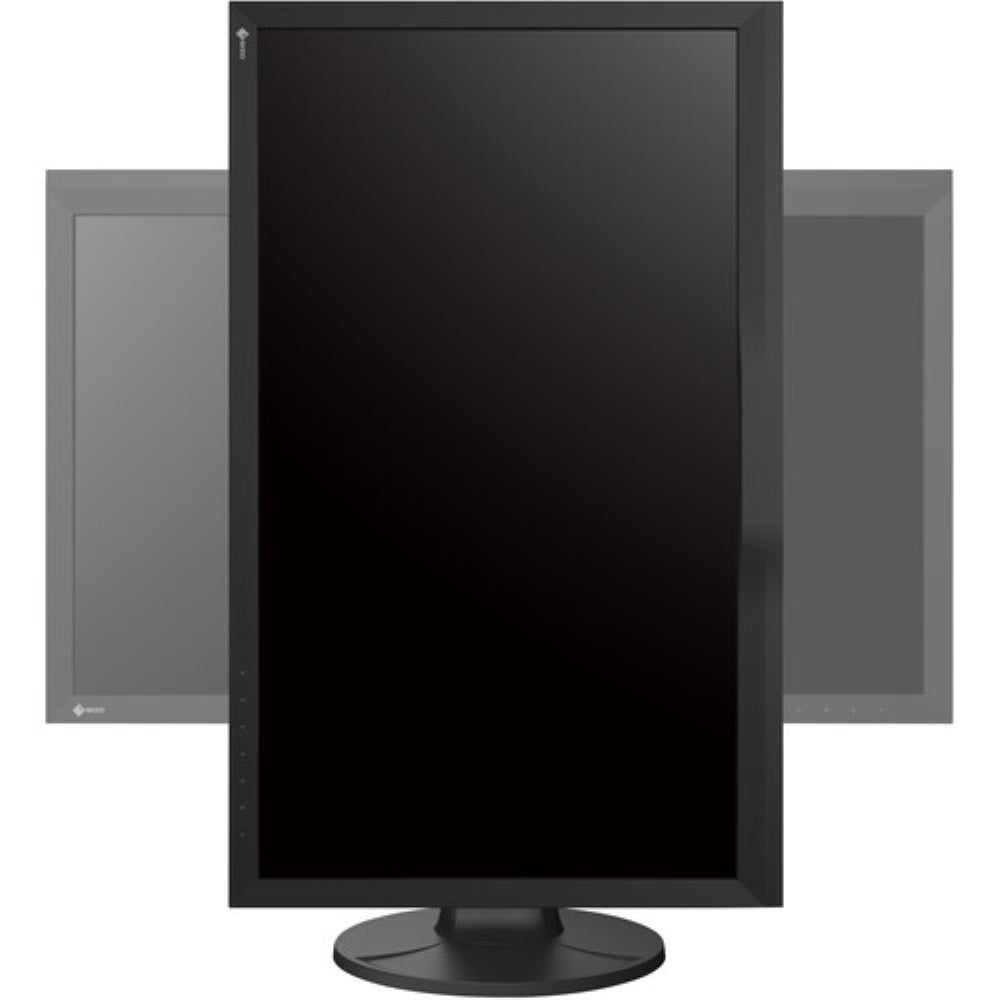

• Adjust the screen to the most comfortable angle and reposition it to show your work to a colleague or client. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with a single touch.

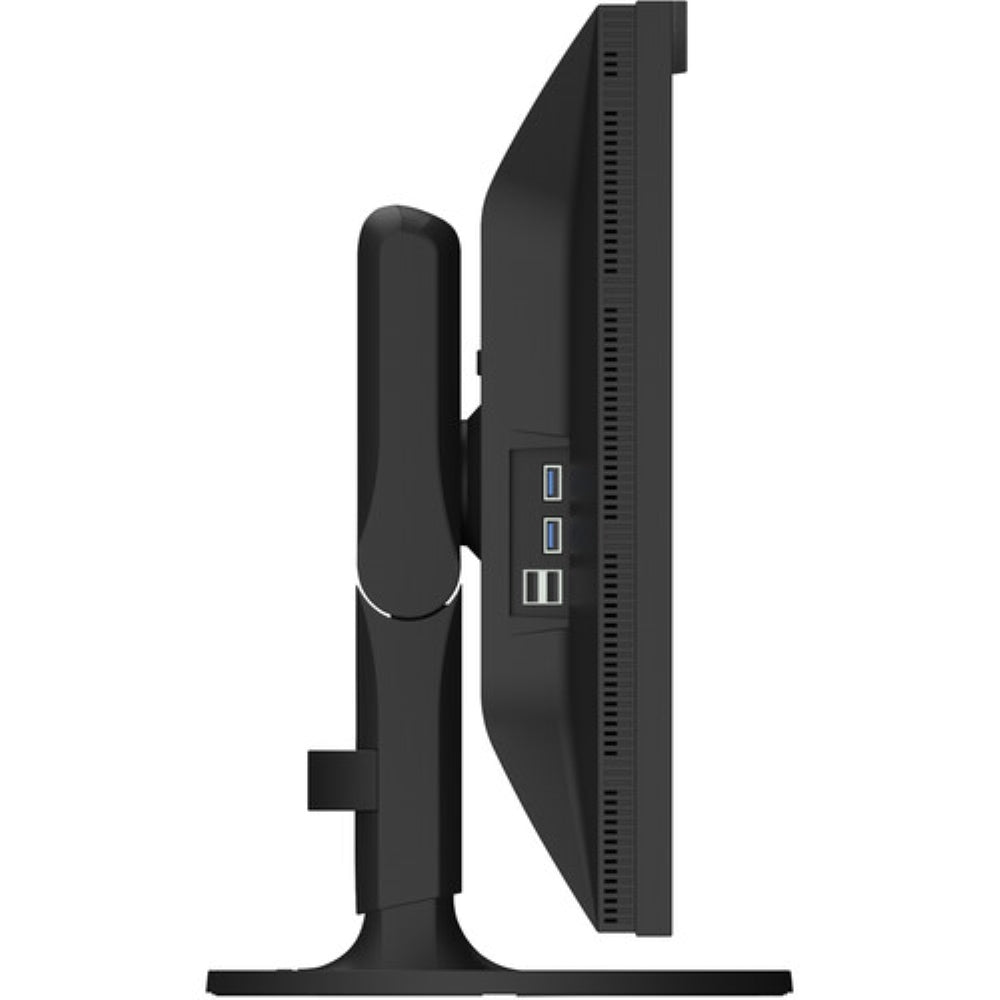

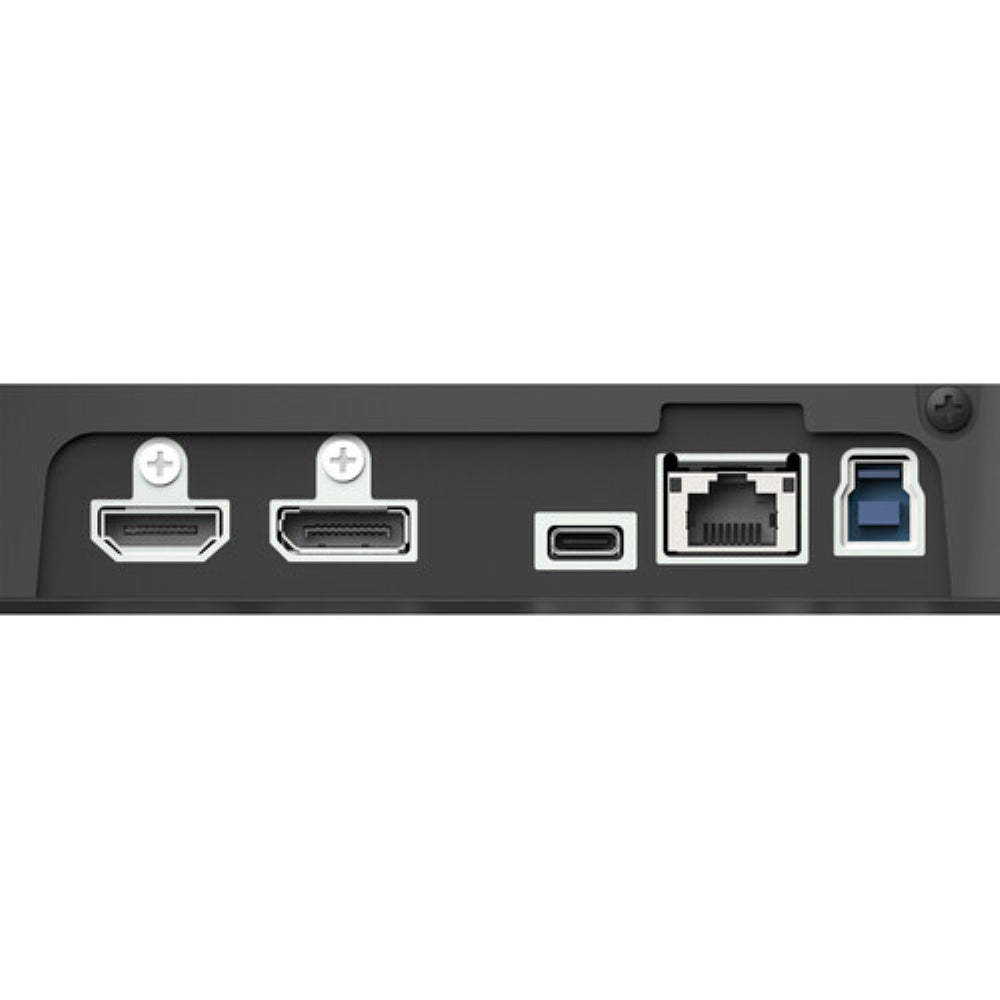

• In addition to USB-C, the monitor is equipped with DisplayPort and HDMI inputs. It also includes four USB ports (two USB-A 3.2 Gen 1 and two USB-A 2.0) for connecting additional devices or peripherals.


• ColorEdge monitors are backed by a limited 5-year manufacturer's that covers all components, including the LCD panel, with up to 30,000 hours of usage time. EIZO manufactures its products at its own factories to allow close control over production quality and ensure each monitor is built to last.


• EIZO guarantees its ColorEdge monitors will be free from bright sub-pixels for six months from the date of purchase.


• The brightness and color of the ColorEdge CG2700X is warranted for up to 10,000 hours from the date of purchase. When used at a color temperature of 5000 to 6500K, a brightness level of at least 120 nits is warranted.
