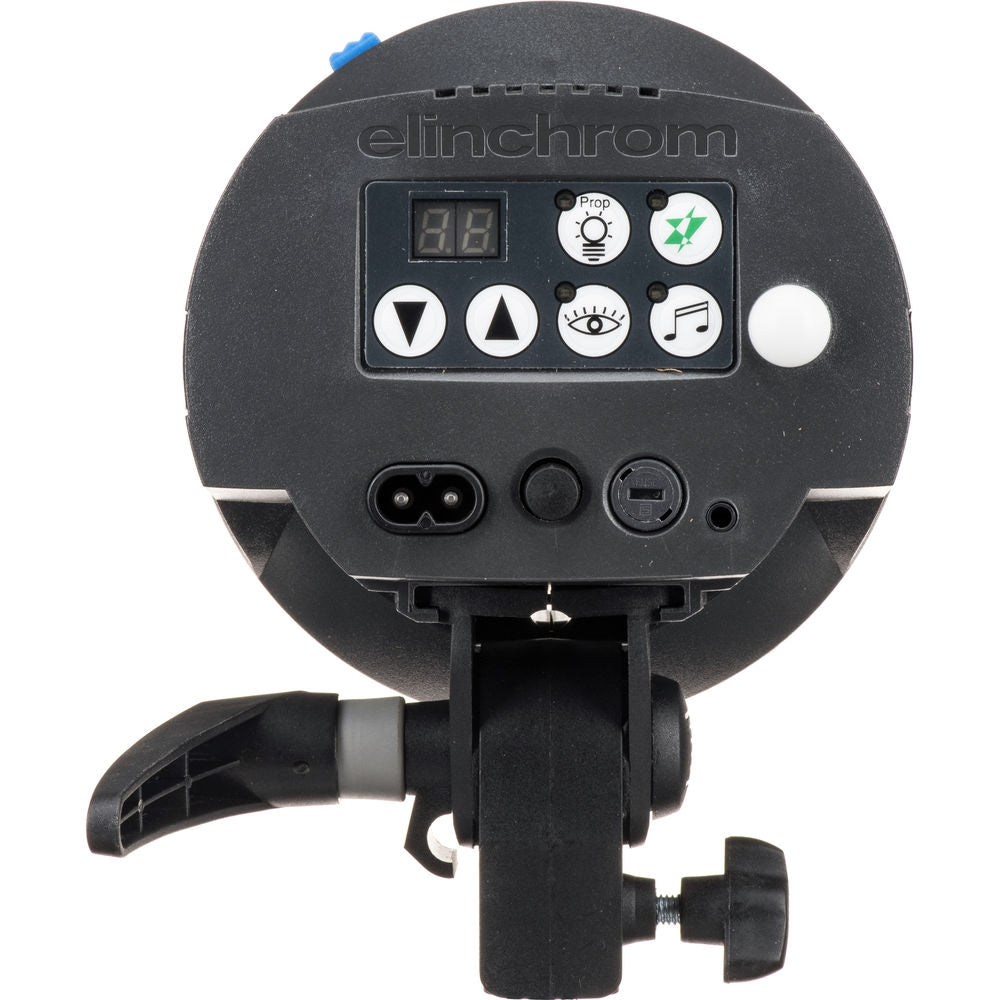

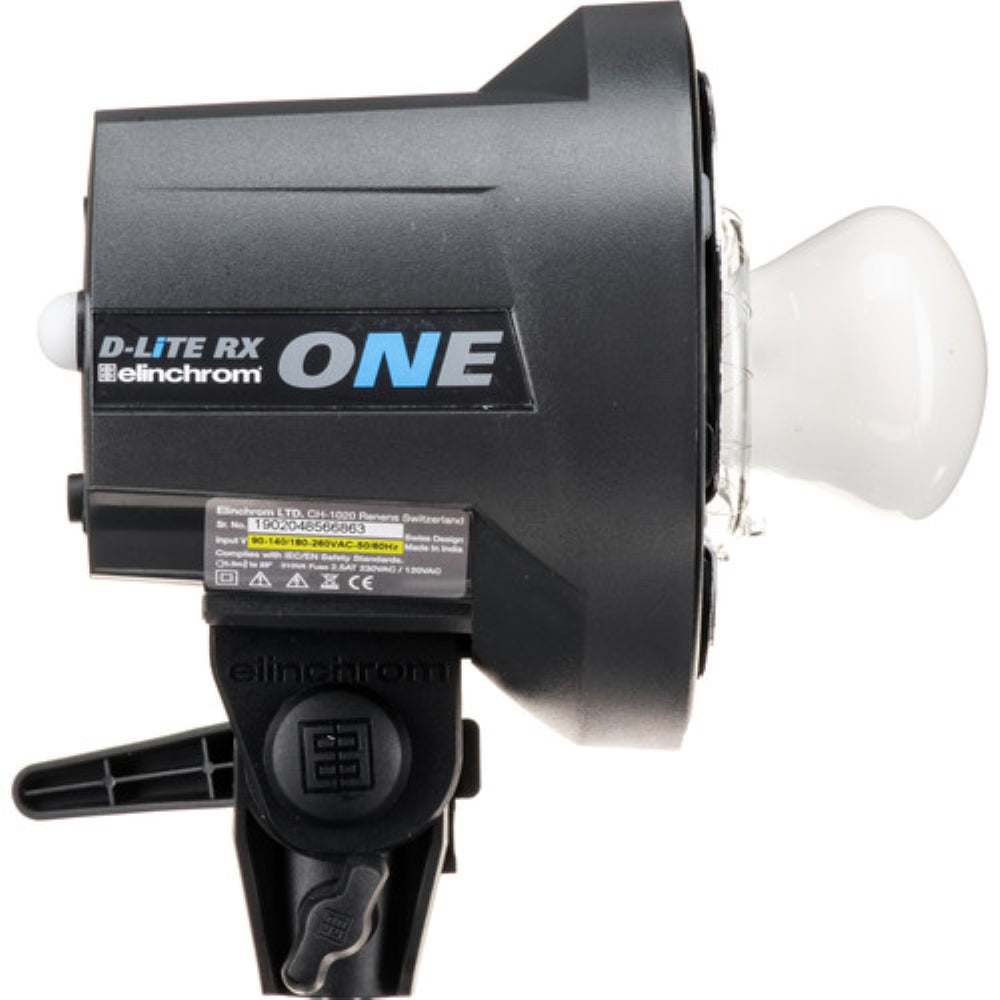

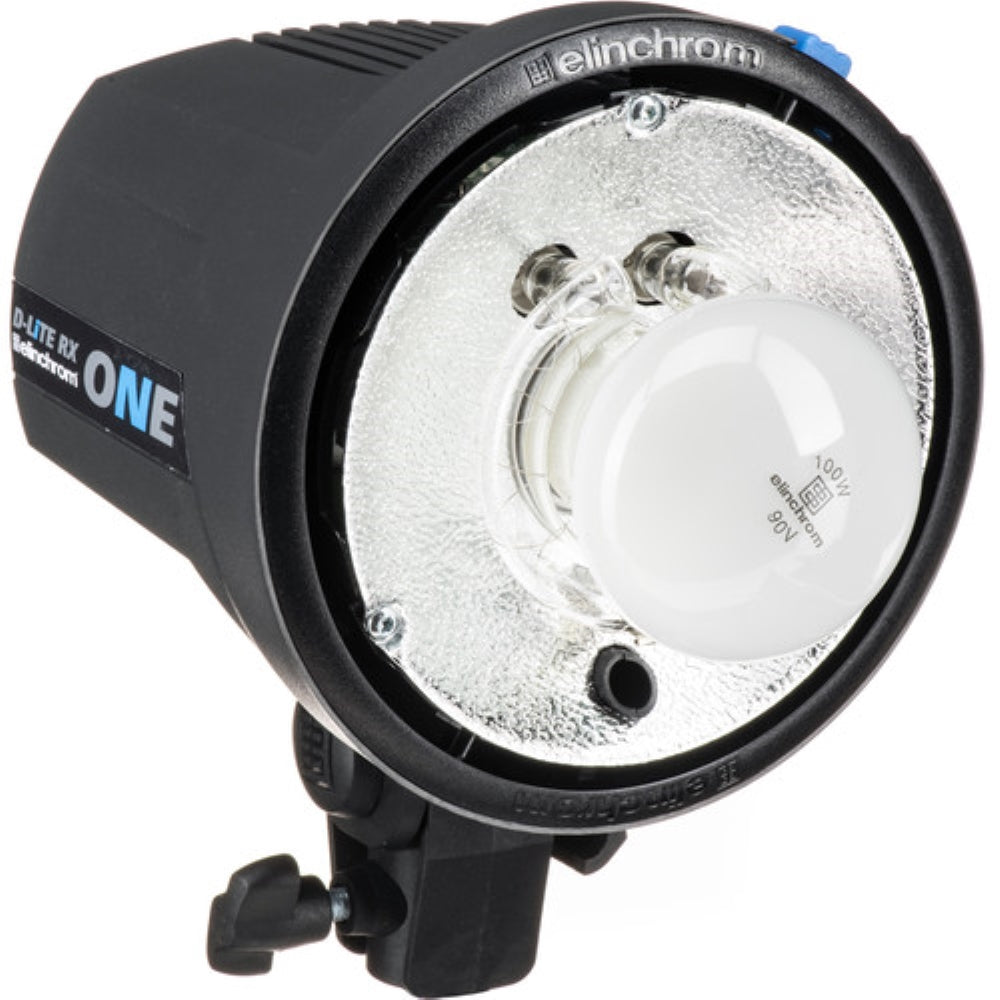

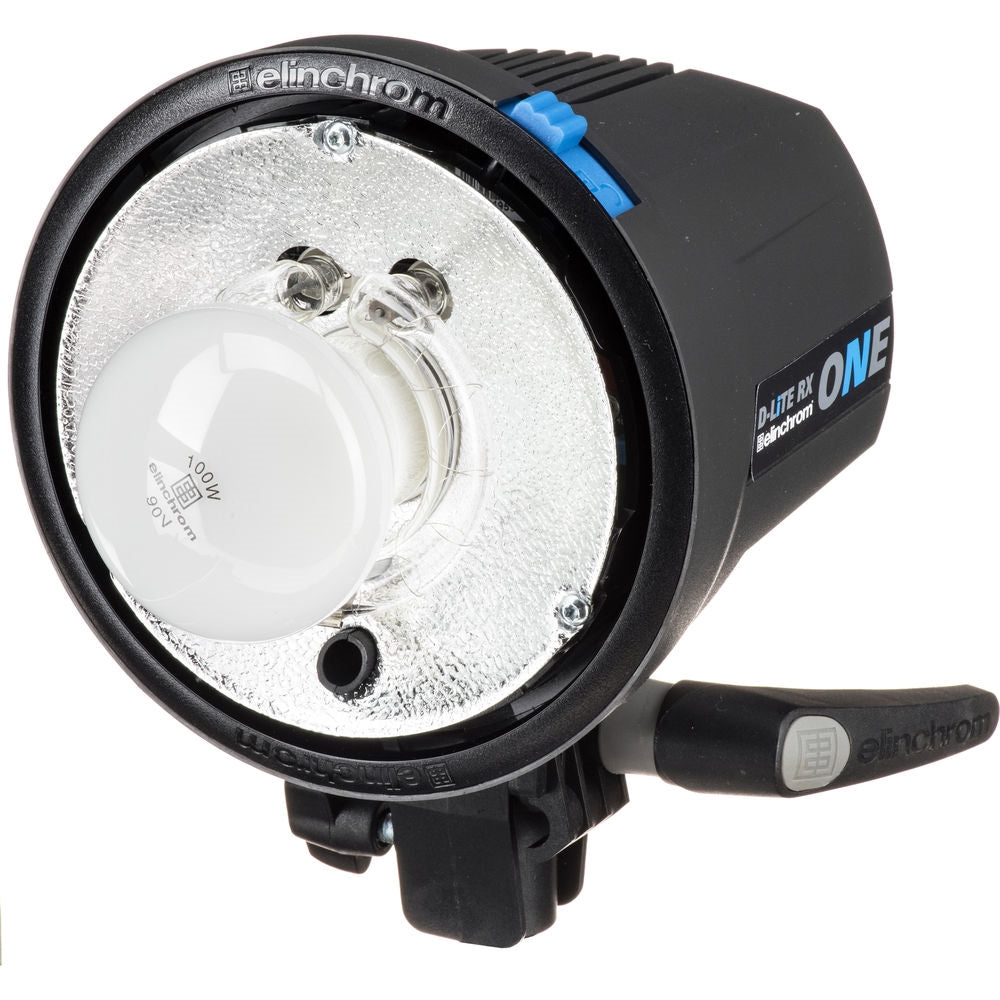

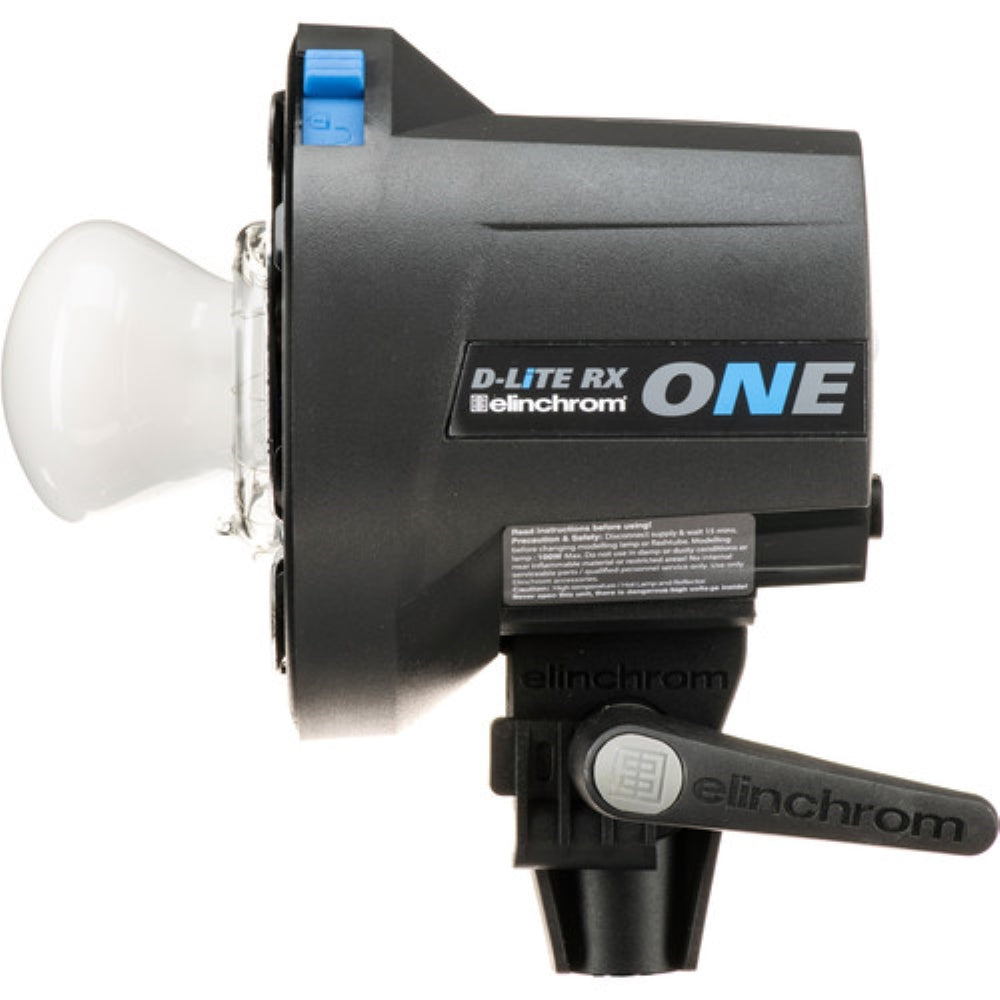

Elinchrom D-Lite RX One Flash Head
The Elinchrom D-Lite RX One Flash Head is a versatile 100W/s monolight that automatically detects and adapts to any AC power supply ranging from 90 to 260VAC. This feature enables a power adjustment capability of 5.0 stops in increments of 1/10 stop. The recycling time is impressively quick, ranging from 0.5 to 2.1 seconds at 115V, and it can achieve flash durations as brief as 1/2200 of a second at maximum power.
The D-Lite RX One is equipped with a range of professional and user-friendly features typically found in flash heads that are priced significantly higher. While it is compatible with a PC cord, it is not a necessity due to its integrated EL Skyport Receiver, which offers 8 frequency channels capable of managing 4 separate groups of flashes. By purchasing the EL Skyport Speed Transmitter, users can trigger their flash from distances of up to 393 feet, as well as control power on/off, modeling light functions, and Speed Sync activation. Additionally, complimentary software for both Mac and PC is available, which includes features like Flash-Delay for creating strobing effects. An optional WiFi module can be added to the transmitter, enabling full remote control through specially designed applications for iPhone, iPad, or iPod Touch.
The D-Lite RX One features a bayonet mount that is compatible with all Elinchrom accessories and softboxes measuring up to 53 inches (135 cm). It is supplied with a power cord featuring a U.S. plug, a sync cord, a flash tube, and a protective cap. The included 115V 100W modeling lamp must be replaced when operating the unit in standard 230V electrical environments.
Features
- Built-in EL Skyport receiver for triggering
 - 8 Frequency channels with 4 groups
 - Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
 - Pre-Flash detector system to enable the use with speedlights
 - Power Auto-dump
 - 5V sync socket for maximum protection of digital cameras
 - Automatic temperature controlled ventilation
 - Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
 - Lightweight but strong housing. Robust, functional and elegant
 - Accessory bayonet accepts all accessories and Rotalux softboxes up to 53" (135 cm)
 - Rubberized large handle with spare fuse storage
 - Stand bracket with extra umbrella fitting for larger umbrella shafts

            Light Fixture |
        |
|---|---|
| Item Type | 1x Monolight |
| Includes Flash Tube | Yes |
| Included Light Modifier | 1x Reflector |
| Included Storage Case | No |
| Power Range | 100 Ws |
| Power Control | 5-Stop Range in 1/10-Stop Increments |
| Recycle Time | 0.44 to 2.1 Sec |
| Color Temperature | Not Specified by Manufacturer |
| Flash Ready Indicator | Audio & Visual |
| TTL Metering | No |
| Cooling System | Fan |
| Umbrella Mount | Yes |
| Front Accessory Mount | Elinchrom |
| Replaceable Flash Tube | Yes (User Replaceable) |
            Modeling Light |
        |
|---|---|
| Modeling Light | 1x 100 W Tungsten Bulb Included (120 V) |
| Socket Type | E27 |
| Control Modes | Full, Off, Proportional |
| On/Off Switch | Yes (Requires Transmitter) |
            Connectivity |
        |
|---|---|
| Wireless | 2.4 GHz Radio/RF Bluetooth *Via Optional Adapter  |

| Wireless Remote Control Type | Radio/RF Receiver Built-In Bluetooth *Adapter Required (Not Included) Optical Receiver Built-In  |

| Mobile App Compatible | Yes, Adapter Required (Not Included): Android & iOS App Name: Elinchrom  |

| Wireless Channels | 8 |
| Wireless Groups | 4 |
| Wireless Frequency | 2.4 GHz |
| Wireless Range | 393' / 120 m (Radio/RF) |
| Sync Speed | 1/320 Sec |
| Sync Voltage | 5 V |
            Power & I/O |
        |
|---|---|
| Power Source | AC Power (Cable Included) |
| Inputs/Outputs | 1x Barrel / Coax Female Flash Sync Input 1x IEC Female Power Input (90 to 260 VAC, 50 / 60 Hz)  |

| Input Power | 90 to 260 VAC, 50 / 60 Hz |
| Included Adapter / Cable | 1x USA Type-A/B to IEC Male Cable |
| Auto Dump | Yes |
            Mounting |
        |
|---|---|
| Fixture Mounting | 1x 5/8" Receiver |
            General |
        |
|---|---|
| Display | No |
| Dimensions | 7.5 x 7 x 5.5" / 19.1 x 17.8 x 14 cm |
| Weight | 1.98 lb / 0.9 kg |
