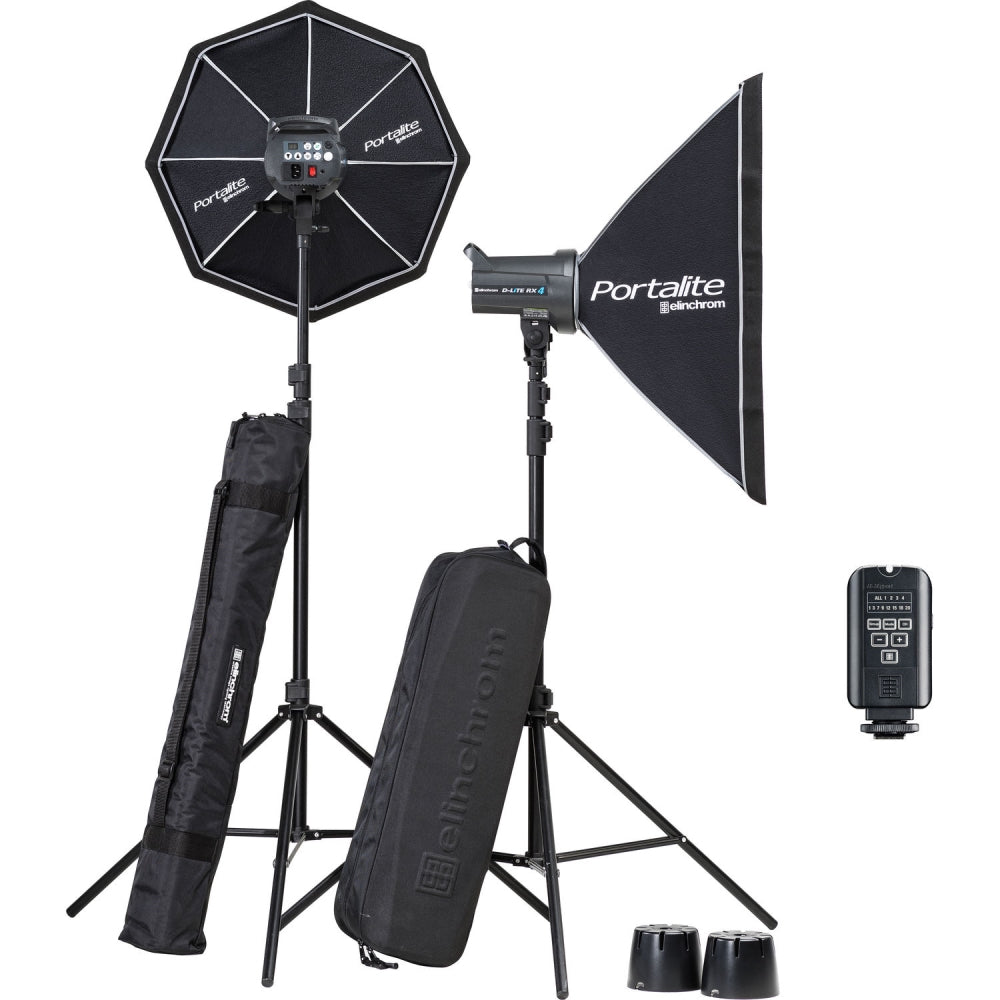

The D-Lite RX 4/4 Softbox To Go Kit from Elinchrom features an enhanced triggering system and is a flexible two-light kit that encompasses all essential components for fundamental lighting arrangements and wireless operation. In addition to the two lights and the EL-Skyport Plus wireless transmitter, this kit comprises one rectangular softbox, one octagonal softbox, a translucent deflector, a pair of light stands along with a light stand case, and a robust storage bag designed for the lights and light modifiers.
The D-Lite RX 4 is a versatile, portable monolight with a power output of 400Ws, offering five stops of power control in 1/10th step increments. It boasts rapid recycle times, reaching as low as 0.35 seconds, enabling continuous shooting without delay. With a flash duration of 1/800 seconds at full power, it effectively captures fast-moving subjects. This model features an integrated EL-Skyport receiver, which works seamlessly with the included EL-Skyport Transmitter Plus, allowing for wireless remote triggering and power adjustments from distances of up to 656 feet. The transmitter facilitates the triggering and power setting for up to four groups, in addition to an all groups option, and includes 16 channels divided into eight standard channels and eight high-speed channels. A locking metal accessory shoe connector ensures secure attachment to a camera, while a top hot shoe and a 2.5mm sync port provide options for connecting an additional strobe. The swiveling design enhances reception, ensuring more effective transmission.
NOTE: 100W/230V Modeling Lamps must be used for operation outside USA, Canada, and regions of South America. Please check destination regional specifications before traveling.

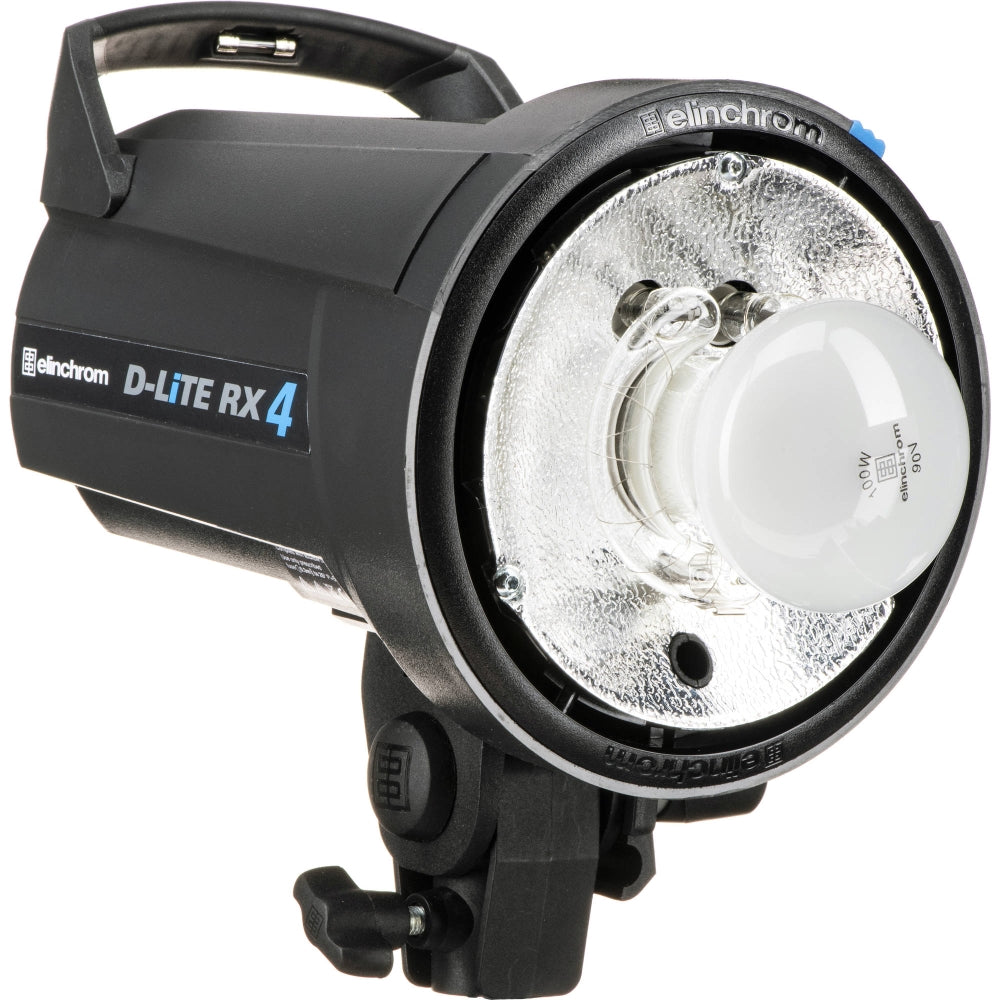

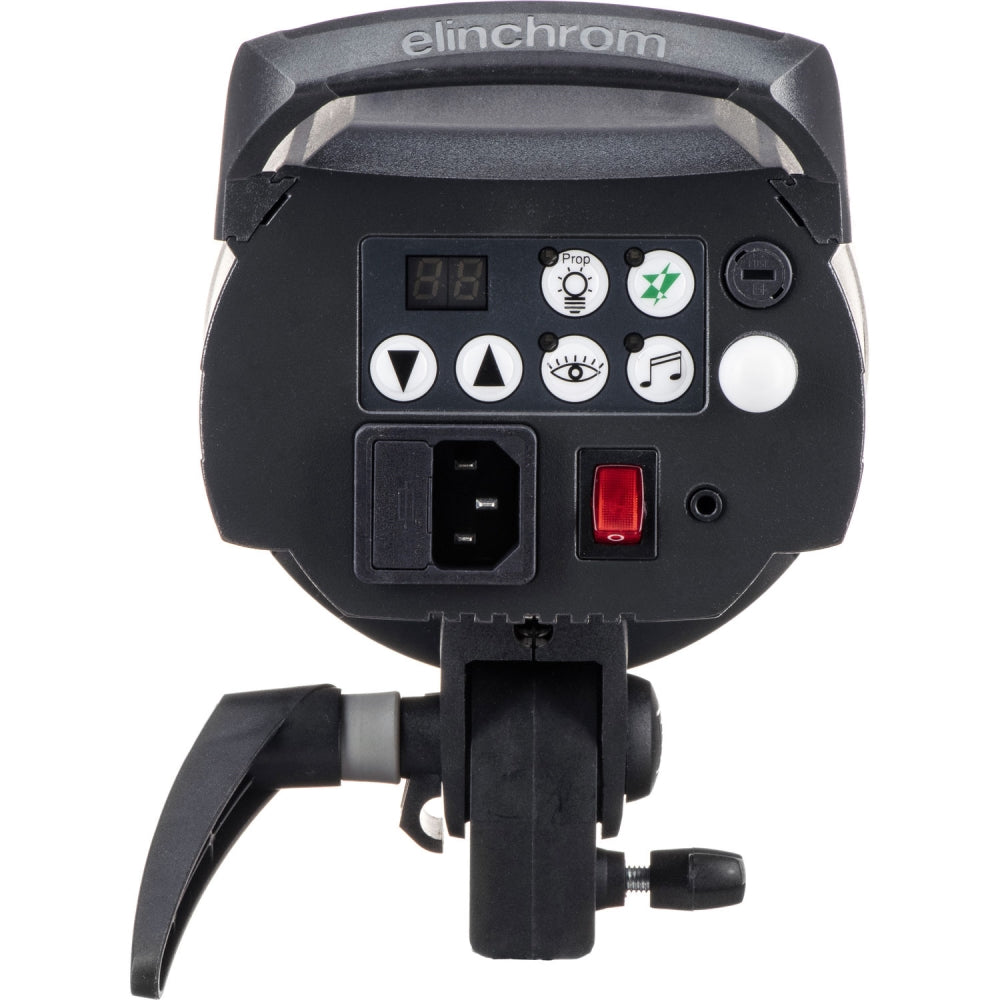

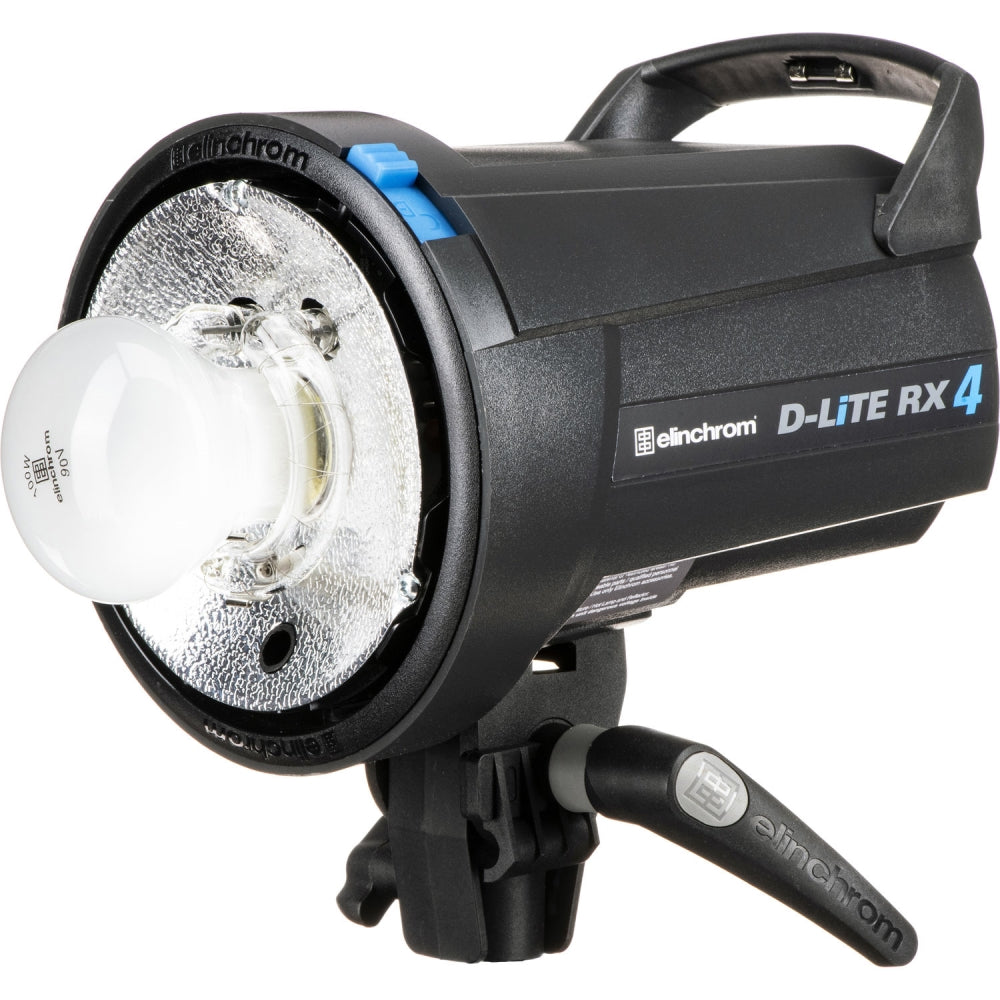

Elinchrom D-Lite 400W/s RX 4 Flash Head
The Elinchrom D-Lite 400W/s RX 4 Flash Head sets a new standard for lightweight, portable strobes. This auto-sensing, multi-voltage flash unit is capable of recognizing any AC power source ranging from 90-260VAC, offering a power variability of 5.0 stops in 1/10 stop increments. The recycling time is impressively quick, ranging from 0.35 to 1.6 seconds (at 115V), with flash durations as brief as 1/800 of a second at full power. This is merely the beginning of its capabilities.
The D-Lite 400W/s RX 4 is equipped with professional-grade features and conveniences typically found in more expensive flash heads. Eliminate the hassle of tripping over PC cords; while this unit does accept one, it also includes a built-in EL-Skyport Receiver with eight frequency channels, accommodating four separate groups of flashes. By purchasing the EL Skyport ELS Speed Transmitter, users can trigger their flash from distances of up to 393 feet, as well as control power on/off, modeling light functions, and Speed Sync activation. Additionally, free software for both Mac and PC is available, offering features such as Flash-Delay for strobing effects. An optional Wi-Fi module can be added to the transmitter, enabling full remote control through specially designed apps for iPhone, iPad, or iPod Touch.
The bayonet mount of the D-Lite 400W/s RX 4 is compatible with all Elinchrom accessories and softboxes up to 53 inches (135 cm). The package includes a power cord with a U.S. plug, a sync cord, a flash tube, and a protective cap. It is important to note that the included 120V 100W modeling lamp must be replaced when operating the unit in nominal 230V electrical environments.
Basic Features
- Built-in EL-Skyport receiver for triggering
- 8 Frequency channels with 4 groups
- Speed Sync mode for synchronization up to a 1/320 sec. on enabled SLR cameras
- Pre-Flash detector system to enable the use of D-Lite RX with speedlights
- Power Auto-dump
- 5V sync socket for maximum protection of digital cameras
- Automatic temperature controlled ventilation
- Multi-voltage auto-detection: 90-260VAC (excluding modeling lamp)
- Lightweight but strong housing. Robust, functional and elegant
- Accessory bayonet accepts all accessories and Rotalux softboxes up to 53" (135 cm)
- Rubberized large handle with spare fuse storage
- Stand bracket with extra umbrella fitting for larger umbrella shafts
Enhancements
- Take full control of your unit's settings with the optional EL-Skyport App for iPhone, iPad and iPod Touch via the optional WiFi module
- Additional features such as Flash-Delay for strobing-effects can be accessed via the free EL-Skyport Software
- Visual Flash Confirmation option. The modeling lamp comes on to confirm the flash has been triggered and goes off when recycling
- Proportional adjustment of the modeling lamp
- Variable f/stop steps: 1/1, 5/10, 4/10, 3/10, 2/10 or 1/10 steps are available
- Programmable ready beep function
- Firmware update option

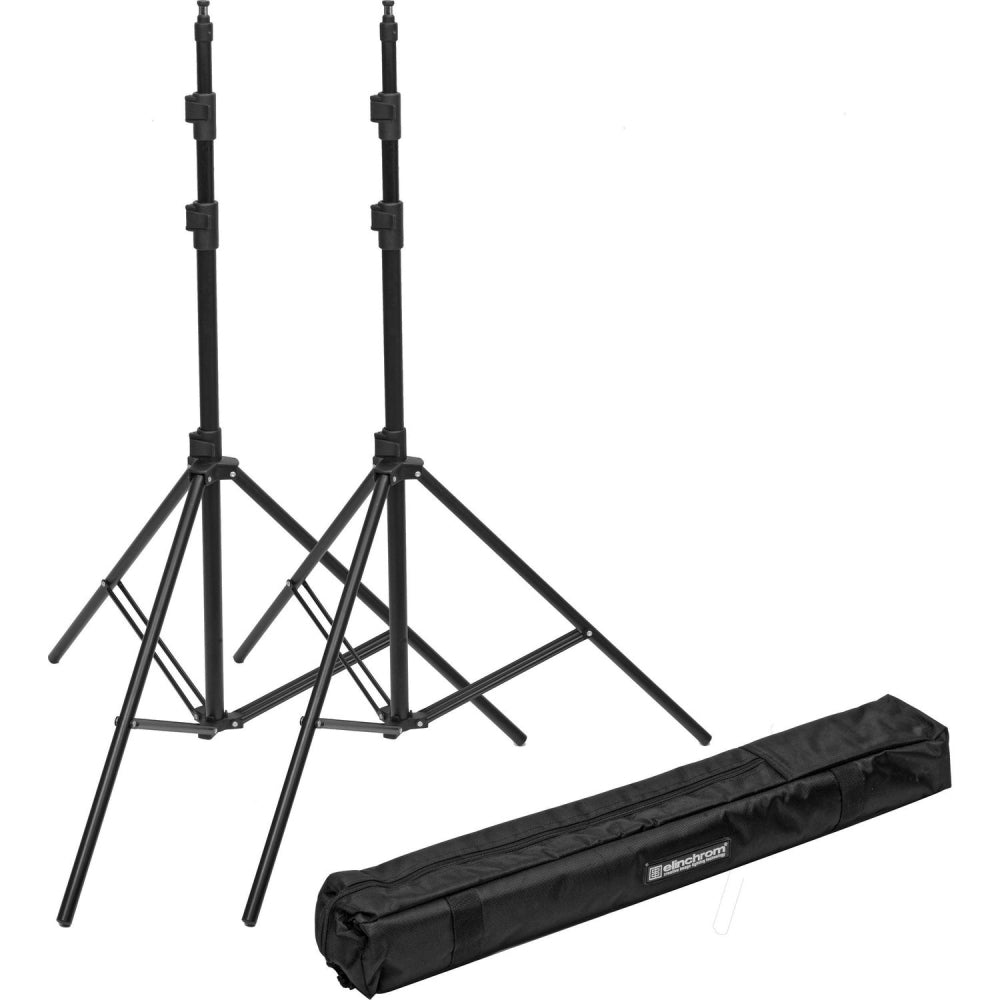

Elinchrom Stand Kit with Case | 7.7'
The 2 stands in this Elinchrom Stand Kit with Case are designed to support compact and standard flash heads. They have 5/8" top studs, and rise to a maximum height of 92.5" with a minimum height of 34.6". They will support up to 11 lb, and are stored and transported in the included nylon case with shoulder strap.

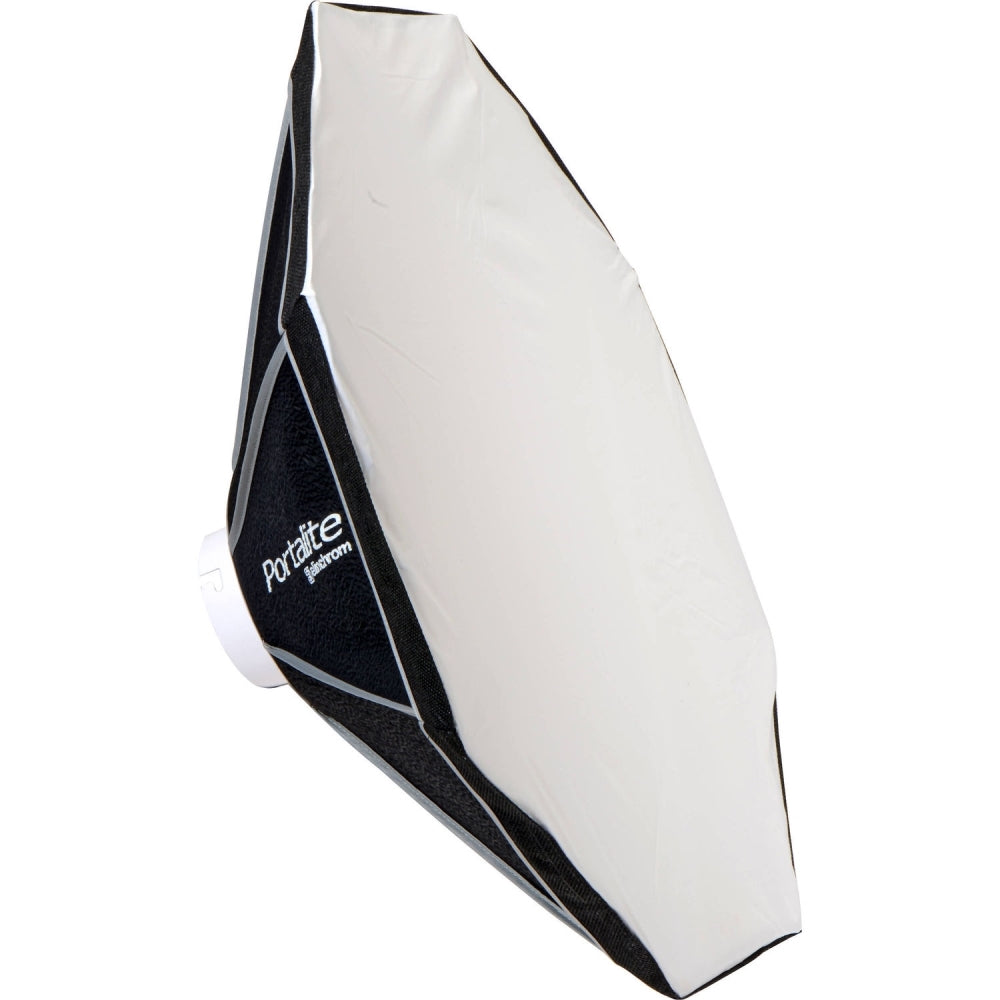

Elinchrom Portalite Softbox | 26 x 26"
This Elinchrom Portalite Softbox | 26 x 26" is usually sold as part of a D-Lite 4 or D-Lite 2 Monolight Kit. It has a flush-front diffuser that measures 26 x 26" (66 x 66 cm).

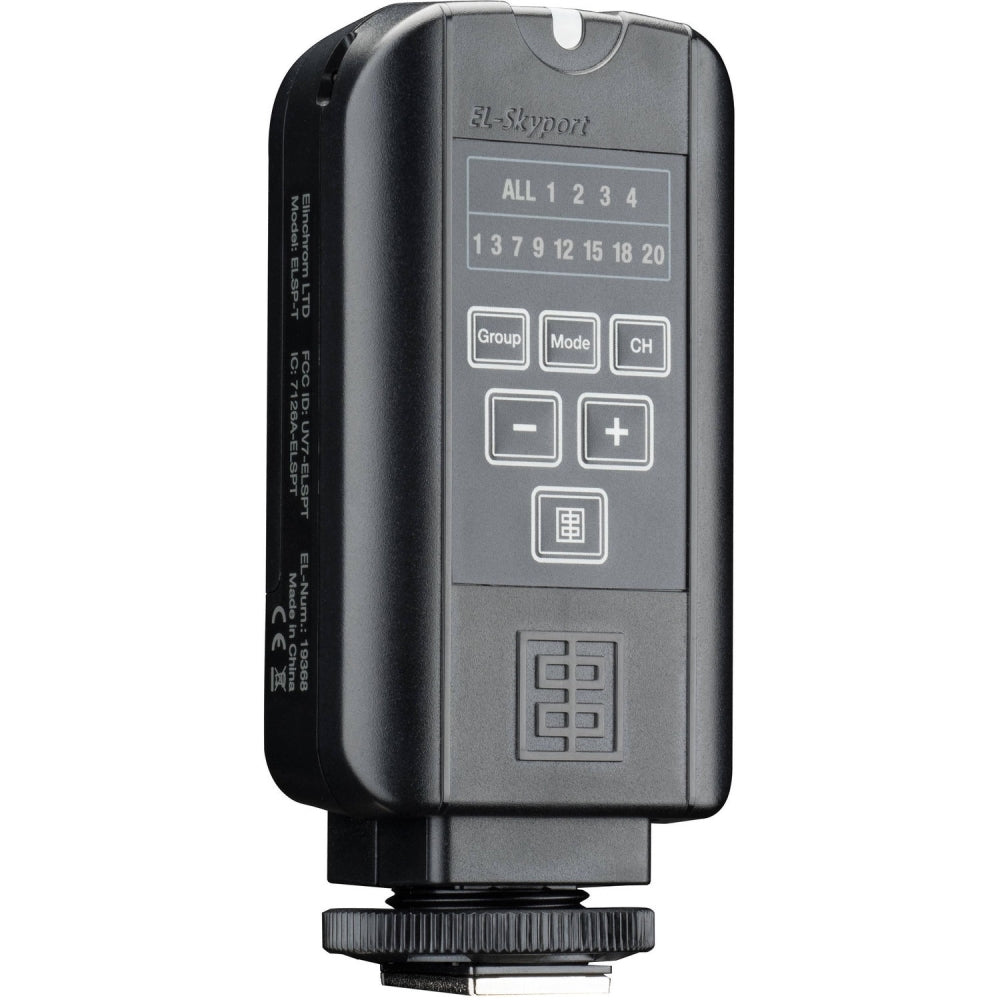

Elinchrom EL-Skyport Transmitter Plus
The EL-Skyport Transmitter Plus from Elinchrom is a wireless radio trigger with sixteen channels: 8 in normal and 8 in speed mode, with 4 discrete groups for different or sequentially triggered lighting setups at distances up to 656'. Channels 1, 3, and 7 are compatible with all enabled EL-Skyport units, while channels 1, 3, 7, 9, 12, 15, 18, and 20 are only compatible with the ELC Pro HD flash head and the ELB 400 battery pack system. A 2.5mm sync socket extends the transmitter's versatility to cameras without hot shoes or for hard-wired flash units. The EL-Skyport Transmitter Plus runs on easily sourced AA batteries. The transmitter does not come with batteries.
Details
- Trigger reliably and adjust flash power up to 656' away
- 4 groups and all selection
- 16 different channels available (8 in Normal mode and 8 in Speed mode)
- Quick increase or decrease of the flash power per group with Elinchrom studio strobes with built-in Elinchrom radio receivers
- Metal hot-shoe connector with screw lock
- 2.5mm sync socket
- Normal and Speed sync mode (for leaf shutter cameras)
- All functions can be easily adjusted
Benefits
- Reliable and consistent triggering
- Enhanced swivel function for improved reception
- Continued choices when setting up your strobes
- Multiple channels for more options when working with or in multiple setups
- Control light power at the camera
- No fussing with button batteries, uses AA batteries available everywhere
- Locking functionality while connected to your camera
- Flexibility of use with a 2.5mm sync socket
Elinchrom D-Lite 400W/s RX 4 Flash Head |
|
---|---|
Item Type | 1x Monolight |
Includes Flash Tube | Yes |
Included Light Modifier | 1x Reflector |
Included Storage Case | No |
Power Range | 25 to 400 Ws |
Power Control | 5-Stop Range in 1/10-Stop Increments |
Recycle Time | 0.35 to 1.6 Sec |
Color Temperature | Not Specified by Manufacturer |
Flash Ready Indicator | Audio & Visual |
TTL Metering | No |
Cooling System | Fan |
Umbrella Mount | Yes |
Front Accessory Mount | Elinchrom |
Replaceable Flash Tube | Yes (User Replaceable) |
Modeling Light | 1x 100 W Tungsten Bulb Included (120 V) |
Socket Type | E27 |
Control Modes | Full, Off, Proportional |
On/Off Switch | Yes (Requires Transmitter) |
Wireless | 2.4 GHz Radio/RF Bluetooth *Via Optional Adapter |
Wireless Remote Control Type | Radio/RF Receiver Built-In Bluetooth *Adapter Required (Not Included) Optical Receiver Built-In |
Mobile App Compatible | Yes, Adapter Required (Not Included): Android & iOS App Name: Elinchrom |
Wireless Channels | 8 |
Wireless Groups | 4 |
Wireless Frequency | 2.4 GHz |
Wireless Range | 393' / 120 m (Radio/RF) |
Flash Duration | 1/800 Sec |
Sync Speed | 1/250 Sec |
Sync Voltage | 5 V |
Power Source | AC Power (Cable Included) |
Inputs/Outputs | 1x Barrel / Coax Female Flash Sync Input 1x IEC Female Power Input (90 to 260 VAC, 50 / 60 Hz) |
Input Power | 90 to 260 VAC, 50 / 60 Hz |
Included Adapter / Cable | 1x USA Type-A/B to IEC Male Cable |
Auto Dump | Yes |
Fixture Mounting | 1x 5/8" Receiver |
Display | No |
Dimensions | 10.2 x 7.5 x 5.5" / 26 x 19 x 14 cm |
Weight | 3.3 lb / 1.5 kg |
Elinchrom Stand Kit with Case | 7.7' |
|
---|---|
Maximum Working Height | 92.5" / 235 cm |
Minimum Working Height | 34.6" / 88 cm |
Load Capacity | 11 lb / 5 kg |
Stand/Column Top Mount | 5/8" Stud |
Accepts Second Riser | No |
Air Cushioned | No |
Detachable Base | No |
Leveling Leg | No |
Reverse Legs | No |
Footprint Diameter | 3.14" / 8 cm |
Finish | Black |
Material | Aluminum |
Weight | 3.2 lb / 1.4 kg |
Elinchrom Portalite Softbox | 26 x 26" |
|
---|---|
Interior Color | Silver |
Light Compatibility | Includes Speed Ring with Elinchrom Mount: For Elinchrom D-Lite 4 / Elinchrom D-Lite 2 Monolights |
Quick Open Type | No |
Accepts Grids | No |
Removable Front Face | No |
Interior Baffle | Yes |
Dimensions | 26 x 26" / 66 x 66 cm |
Elinchrom EL-Skyport Transmitter Plus |
|
---|---|
Channels | 8 (Normal) |
Groups | 4 |
Wireless Range | 656' / 200 m |
Radio Frequency | 2.4 GHz |
Inputs/Outputs | 1x 2.5 mm (Camera) |
Battery Type | 2x AA |
Dimensions | Transmitter: 3.7 x 2 x 1.5" / 94.9 x 49.9 x 38.3 mm |
Weight | 2.2 oz / 63.5 g |
