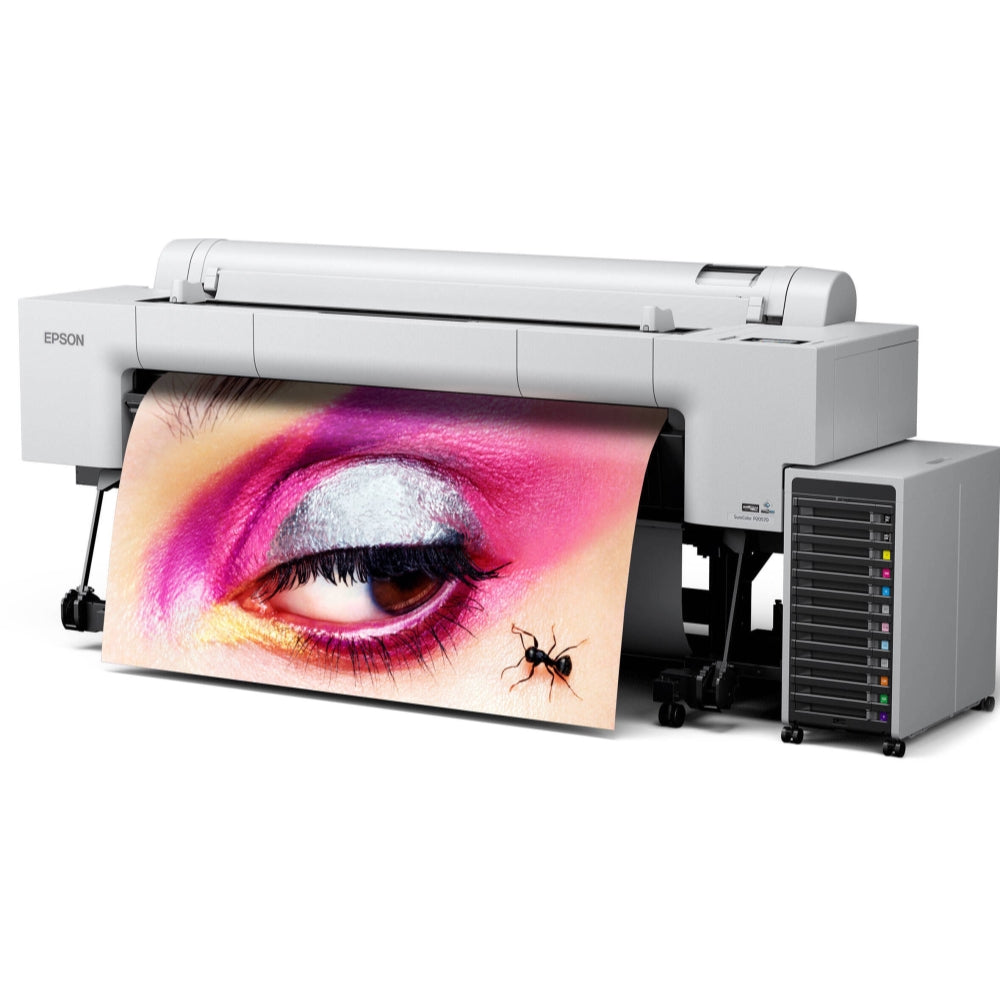

Epson SureColor P20570 64" Wide-Format Inkjet Printer
Epson SureColor P20570 64" Wide-Format Inkjet Printer
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The SureColor P20570 64" Wide-Format Inkjet Printer from Epson is specifically engineered for large-format printing, delivering reliable color consistency and rapid print speeds suitable for proofing, graphic design, as well as commercial and professional photography applications. It features a 12-channel PrecisionCore Micro TFP print head that achieves a maximum resolution of 2400 x 1200 dpi, supported by an array of 9600 nozzles arranged in a 12-chip configuration, ensuring exceptional color accuracy and detail. The printer includes dedicated channels for both matte and photo black inks, which eliminates the need for ink switching when transitioning between different media types. Additionally, an automatic maintenance function monitors nozzle performance without consuming ink, guaranteeing optimal print quality consistently. The device accommodates top-loading roll media up to 64" wide and is compatible with a variety of photographic, fine art, and other media types. It also features a front feeder capable of handling poster board media up to 1.5mm thick and supports single sheets up to 64" wide. For user convenience, the printer is equipped with a customizable 4.3" color touchscreen, and it seamlessly integrates into workflows, being compatible with most third-party RIP workflow software.
- Print head provides a max resolution of 2400 x 1200 dpi
- 9600 nozzles equipped with a 12-chip print head array provides outstanding color and sharpness
- Dedicated matte and photo black channels eliminate ink switching
- Top-loading roll media support up to 64" wide
- UltraChrome PRO12 Ink with orange, green and violet delivers a wide range of colors, with up to 99 percent coverage of the Pantone Plus Formula Guide solid-coated standard
- High capacity 1.6L ink pack system eliminates the need for frequent cartridge changes and uses up to 90% less plastic versus cartridges
- Compatible with most third-party RIP workflow software
- Retractable catch basket
- USB 2.0, Ethernet, and 6GB of internal memory
- Front feeder for poster board media up to 1.5mm thick
- Customizable 4.3" color LCD touchscreen allows for complete system control
- 12-channel PrecisionCore Micro TFP printhead includes Nozzle Verification Technology for automated printhead maintenance
- Includes Epson Cloud Solution PORT for remote monitoring and fleet management, as well as Epson Media Installer and Epson Edge Print Pro software for workflow and media management
- Ink not included
Printer |
|
---|---|
Printing Technology | Inkjet |
Color Type | Color |
Configuration | 12x Individual Cartridge |
Ink Type | Pigment-Based ( Cyan, Gray, Green, Light Cyan, Light Gray, Matte Black, Orange, Photo Black, Violet, Vivid Light Magenta, Vivid Magenta, Yellow ) |
Print Resolution | 2400 x 1200 dpi |
Borderless Printing | Yes |
Printer Language | ESC/P-R |
Minimum Ink Droplet Size | 3.5 pL |
Print Speed (By Time) | 200 ft² / 18.6 m² per Hour (Best Quality) 1314 ft² / 122.1 m² per Hour (Max Speed) |
Printer Media Handling |
|
---|---|
Media Handling | Media Bin, Media Cutter, Output Bin, Roll Feed |
Media Sizes | Width: 10 to 64" / 25.4 to 162.6 cm Length: 298' / 90.8 m |
Media Thickness | Sheet: 31.5 to 59.1 mil / 0.8 to 1.5 mm |
Media Roll Diameter | 6.69" / 17 cm (Outer) |
Margins | Roll 0.6" / 14 mm (Trailing) 0.1" / 3 mm (Leading, Sides) |
Connectivity |
|
---|---|
Inputs/Outputs | Unspecified USB, RJ45 |
Direct Printing | No |
Internal Memory | 6 GB |
Mobile App Compatible | No |
OS Compatibility | Windows 7 Windows 8 Windows 10 Windows 11 Windows Server 2008 R2 Windows Server 2008 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022 macOS 10.9.5 or Later |
Environmental |
|
---|---|
Operating Conditions | 50 to 95°F / 10 to 35°C at 20 to 80% Humidity |
Storage Conditions | -4 to 104°F / -20 to 40°C at 5 to 85% Humidity |
General |
|
---|---|
Display Size | 4.3" |
Display Type | Color Touchscreen |
Power Source | AC Adapter (Included) |
Battery | No |
Input Power | 100 to 220 VAC, 50 / 60 Hz at 1.6 to 3.4 A |
Power Consumption | 95 W (Maximum) 40 W (Ready) 2.2 W (Sleep) 0.3 W (Off) |
Max Acoustic Noise | 7 BA (Power) 55 dBA (Pressure) |
Certifications | ENERGY STAR qualified, RoHS |
Dimensions (W x H x D) | 107.9 x 45.1 x 38.5" / 274.1 x 114.6 x 97.8 cm (Fully Assembled) 107.9 x 45.1 x 29.9" / 274.1 x 114.6 x 75.9 cm (Storage) |
Weight | 494 lb / 224.1 kg (with Stand) |
