Focusrite ISA ADN2 Two-Channel A-D Card for ISA One

The Focusrite Pro ISA ADN2 is a dual-channel analog-to-digital card designed to deliver superior conversion quality for the ISA One microphone preamp and direct input. It supports sample rates of up to 24-bit / 192 kHz and is equipped with S/PDIF, AES3, Dante, and ADAT connectivity options. The Dante outputs facilitate network integration with all Focusrite RedNet devices and Red interfaces, as well as other Dante-compatible equipment. Configuration of routing is managed through the Dante Controller, while metering and settings can be accessed via RedNet Control.

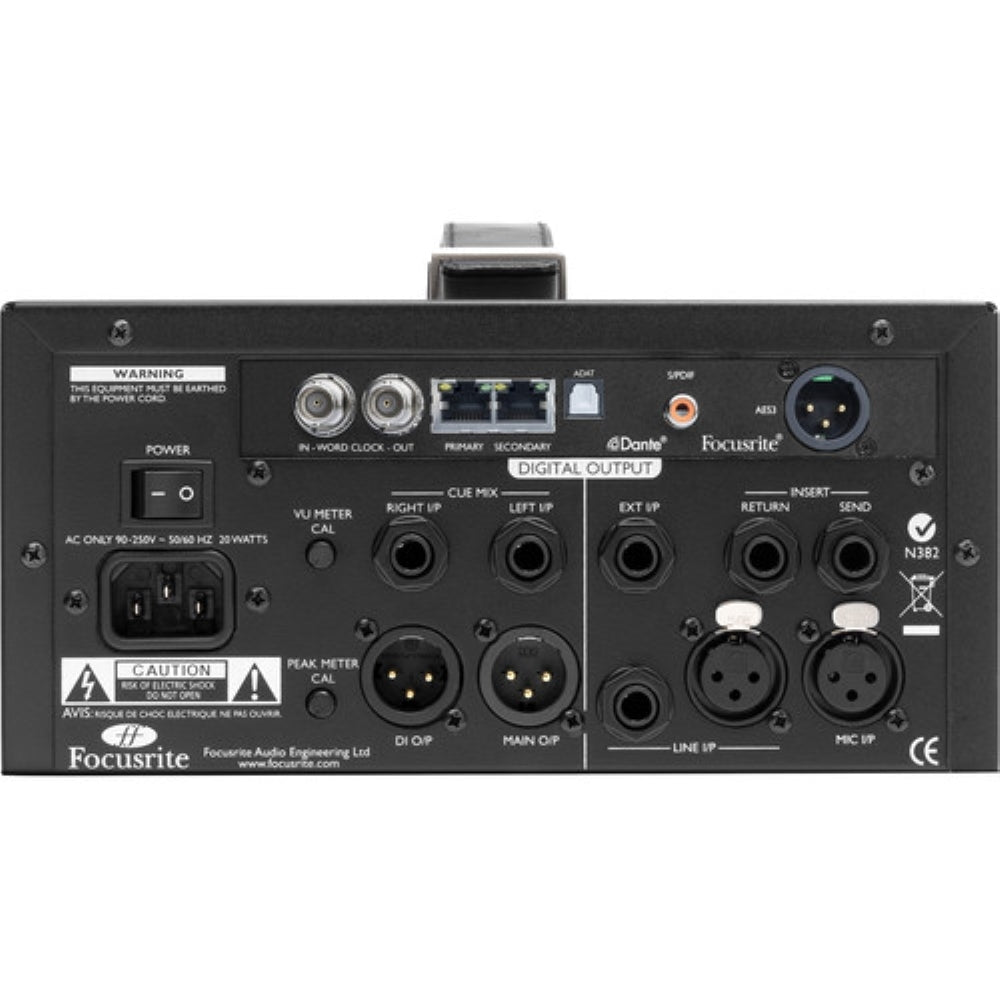

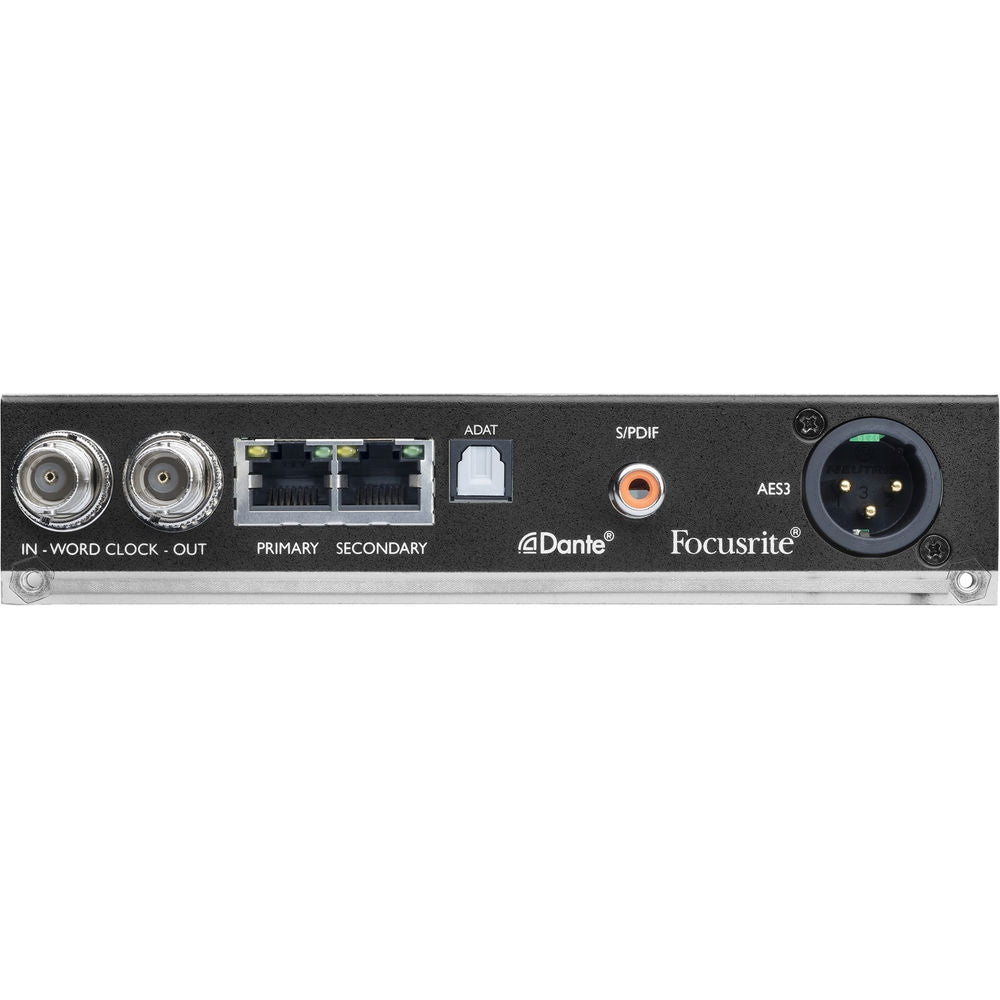

The device features primary and secondary RJ45 ports for Dante output, an XLR connector for AES3 output, a TOSLINK connector for ADAT output, and an RCA connector for S/PDIF output. Additionally, it includes Word Clock I/O on BNC connectors, enabling synchronization with various digital sources. This functionality also allows for the synchronization of the Dante network with a house clock or the alignment of external equipment to the Dante network.

• Two-channel analog-to-digital converter for ISA One


• Up to 24-bit / 192 kHz sample rate


• Dante connectivity via Primary and Secondary Ethernet ports with redundancy and auto switchover in case of failure


• Two-channel XLR connection for AES3 output


• Two-channel RCA connection for S/PDIF output


• Two-channel TOSLINK connector for ADAT output


• Word Clock I/O on BNC connectors allows synchronization to multiple digital sources, for syncing the Dante network to house clock, or for syncing external equipment to the Dante network


• RedNet Control and Dante Controller software allow Dante routing and control from a computer; no hardware patching required
