Godox LED1000D II Daylight Video LED Light Panel
The Godox LED1000D II Daylight Video LED Light Panel is designed to be daylight-balanced, featuring a color temperature of 5600K with a variance of ±300K. The dimming options range from 0% to full power, which can be modified via the light's integrated LCD panel. Additionally, the LED1000D II Daylight DMX LED Video Light is equipped with connectivity for DMX controllers.
This video light is capable of producing an output of up to 5400 Lux at a distance of 3.3 feet, while consuming a maximum power of 70W during operation. The LED1000D II Daylight DMX LED Video Light is supported by a yoke that includes a standard light stand receiver and a locking knob, and its design features a built-in filter slot for convenient light adjustments. An AC adapter is included for studio use, but separately sold Sony 14.8V BP-L V-mount batteries can also be utilized to supply power when working on location.
- Portable LED panel outputs up to 70W of power, rated for 5400 Lux at 3.3'
- Daylight-balanced with a color temperature of 5600K with a ±300K variance
- Brightness can be dimmed from 0 to 100%
- Separately available RC-A5 II remote control allows for easy wireless adjustments, runs on two AAA batteries, and works from up to 65.6' away
- On-board control with an LCD screen for viewing settings
- Connectivity for DMX controllers provides enhanced versatility

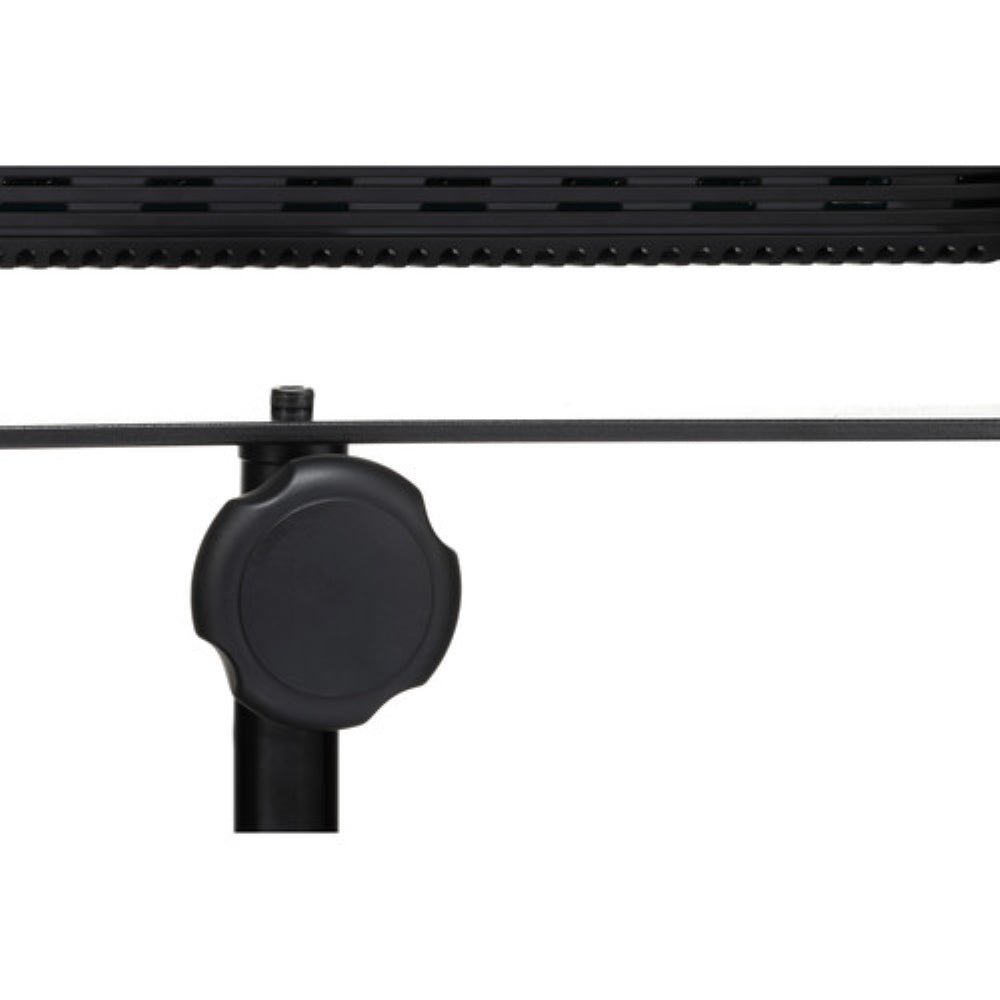

- Yoke is compatible with most light stands and offers tightening knob for a secure fit
- Built-in filter slot for use with three included filters: a diffusion panel, as well as blue and yellow colors

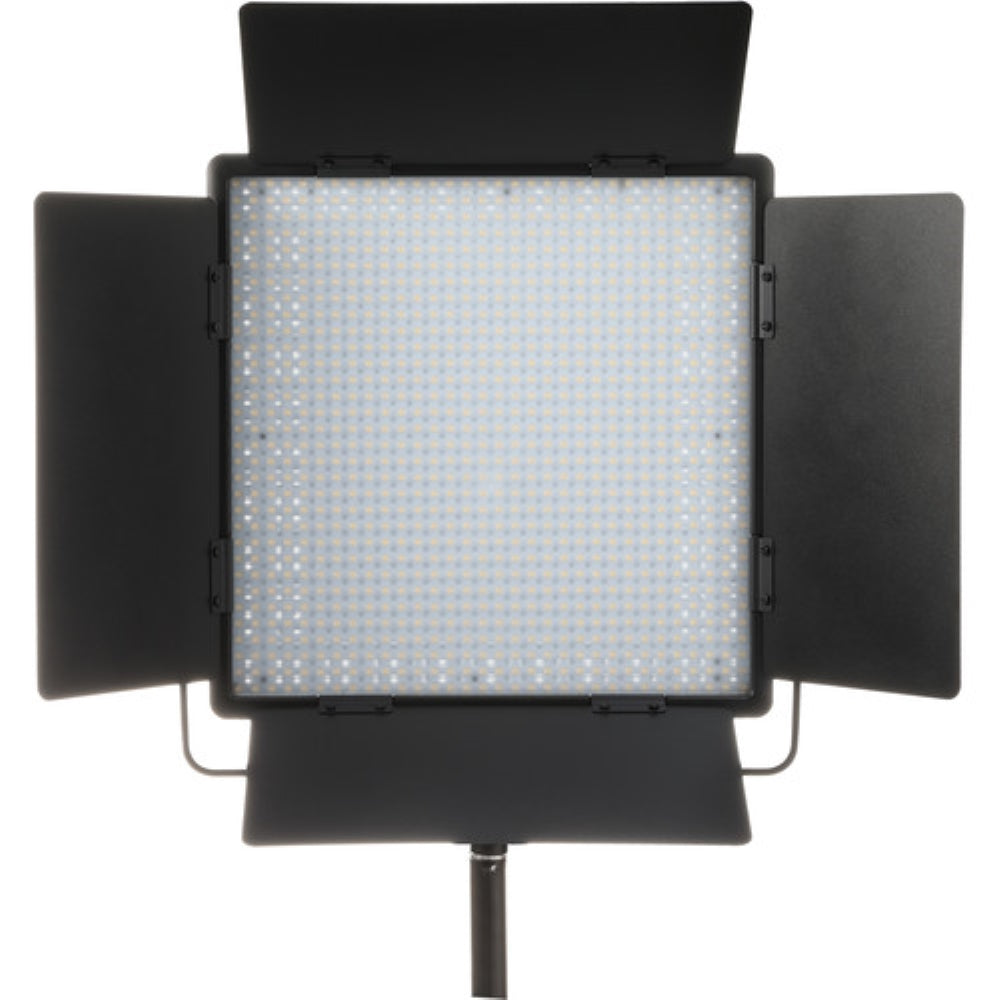

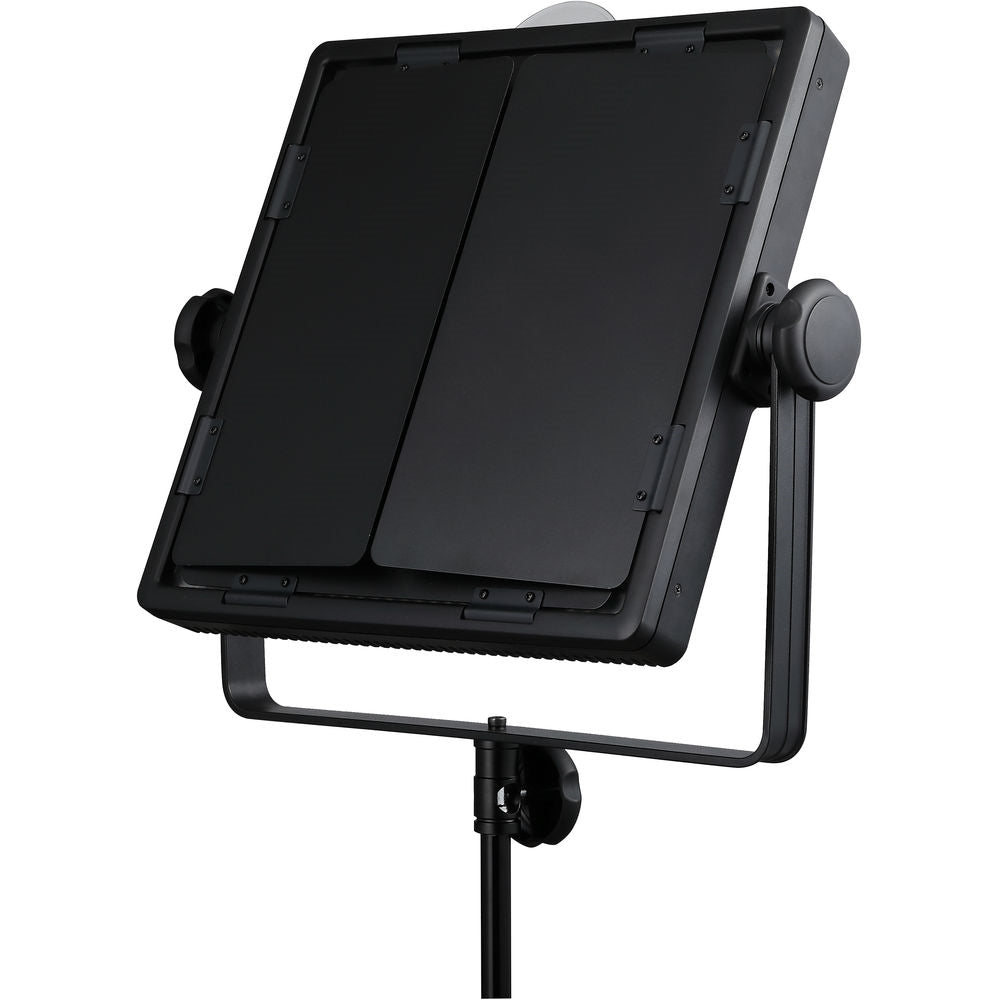

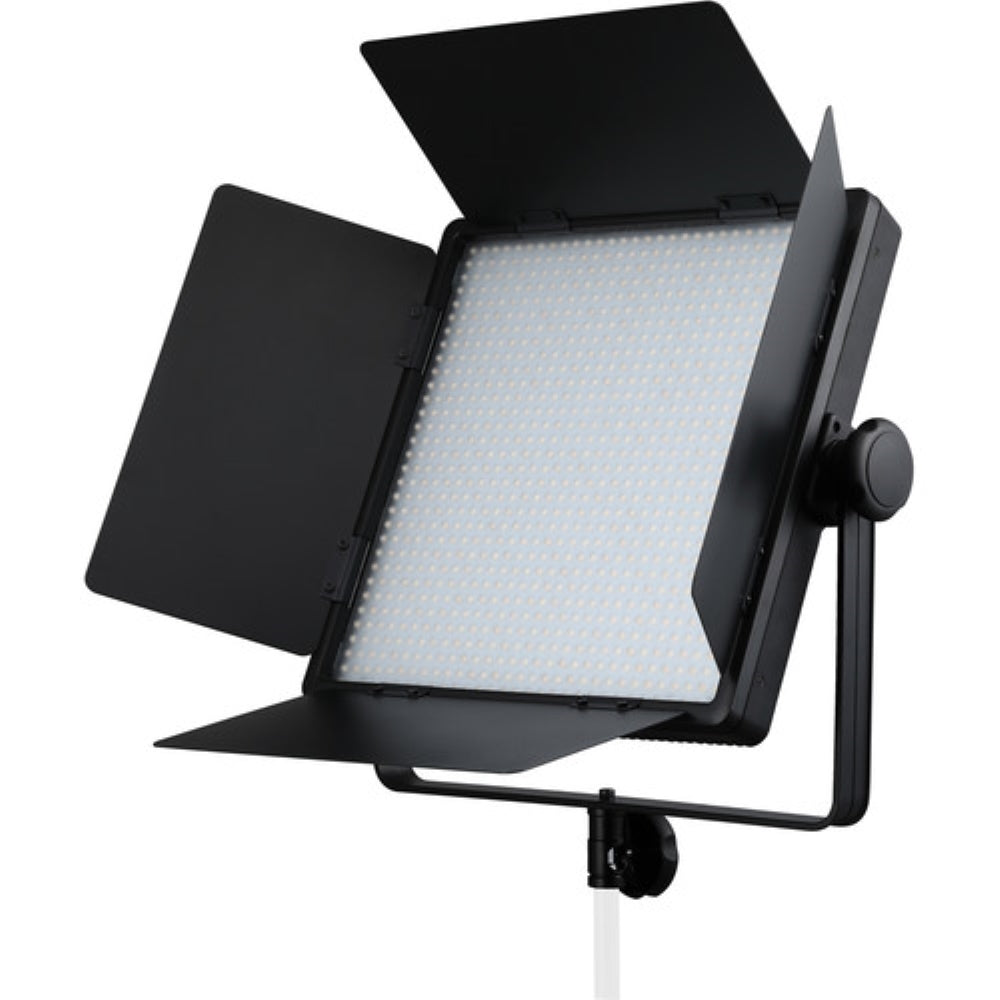

- Four reflective barndoors to shape and direct light output
- Built-in 13 to 16.8V DC power supply and included AC adapter for wired use with a power outlet

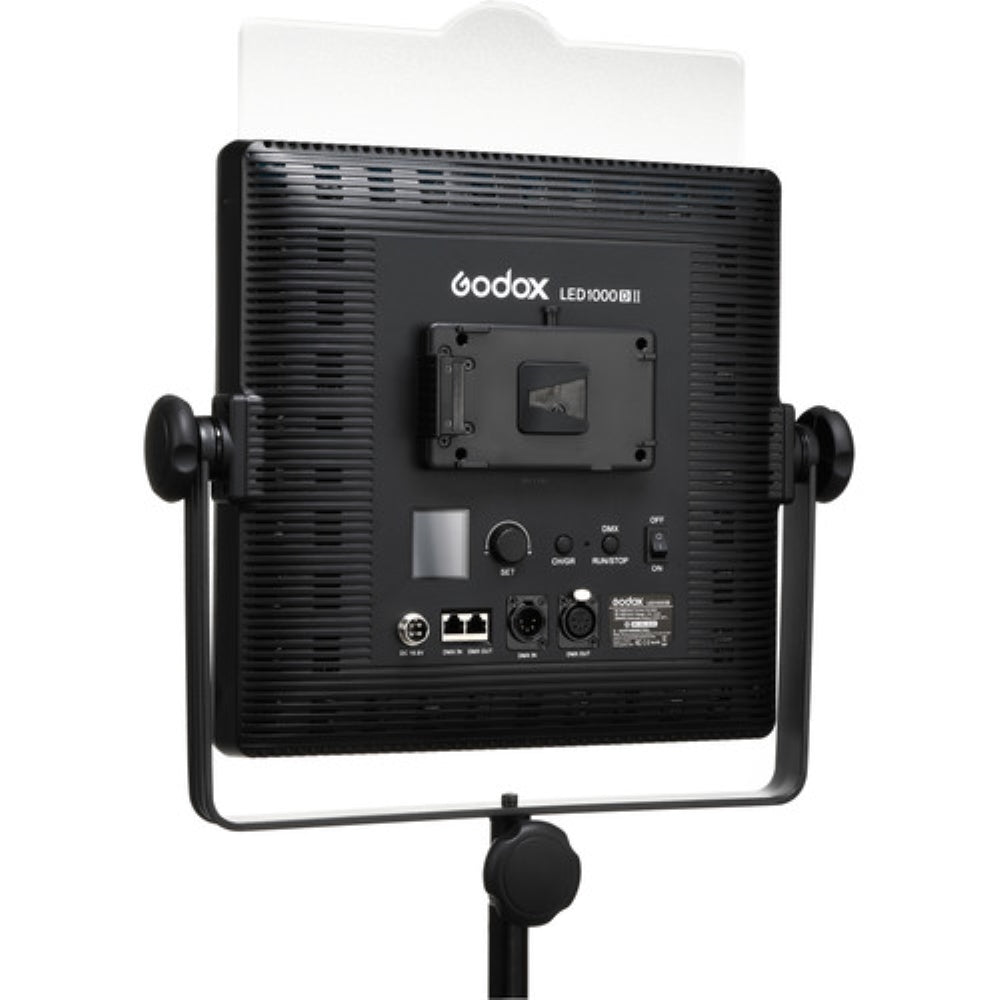

- V-mount battery plate accepts a Sony BP-L battery for truly portable operation
Light Fixture |
|
---|---|

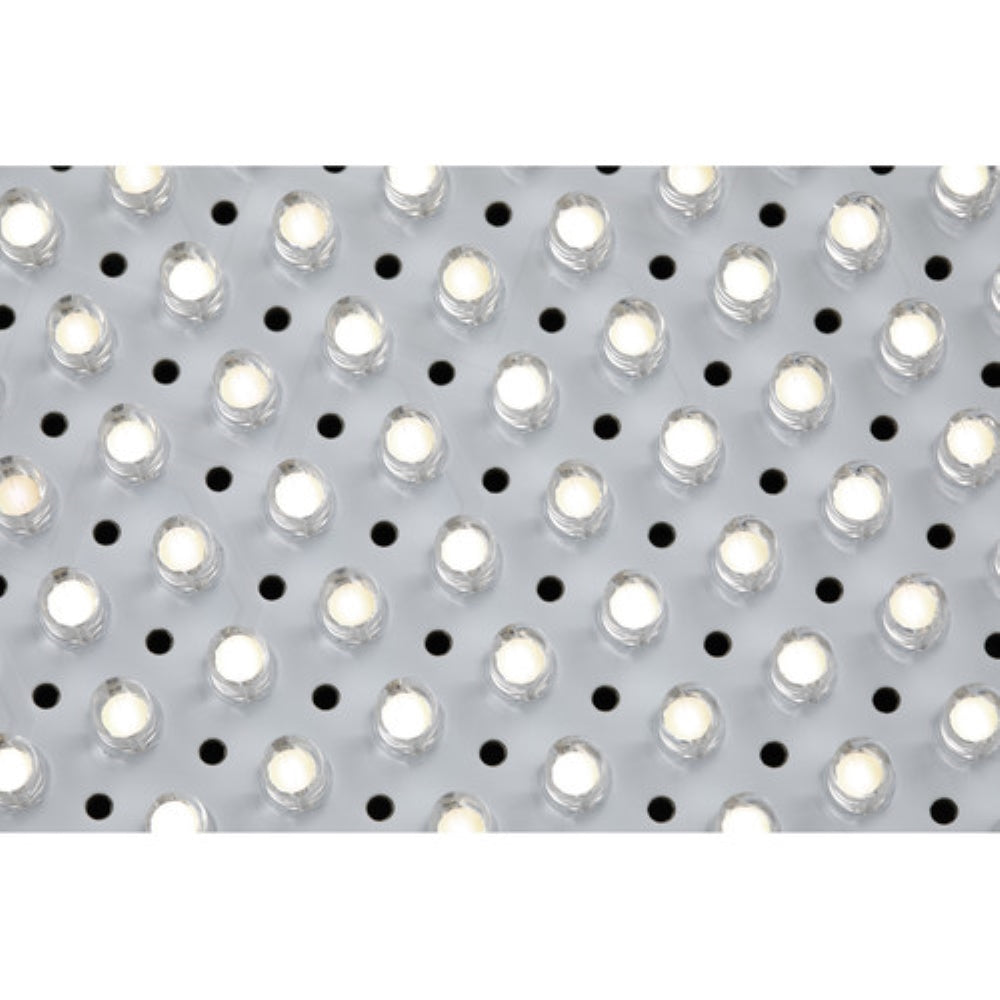

Item Type | 1x LED Array LED Light Panel |
Included Light Modifier | 1x Barndoors |
Included Filters | Soft Diffusion |
Included Storage Case | No |
Photometrics | 5600K: |
Color Temperature | 5600K +/- 300K |
Color Modes | Daylight |
Color Accuracy Standard | CRI 96 |
Dimming | Built-In Dimmer / DMX |
Cooling System | Passive |
Built-In Flash | No |
Umbrella Mount | No |
Front Accessory Mount | Proprietary |
Connectivity |
|
---|---|
Wireless Remote Control Type | Proprietary Wireless *Remote Not Included |
Mobile App Compatible | No |
Wireless Channels | 16 |
Wireless Groups | 6 |
Wireless Range | 65.6' / 20 m |
Power & I/O |
|
---|---|
Power Source | AC to DC Adapter (Included) Battery (Not Included) |

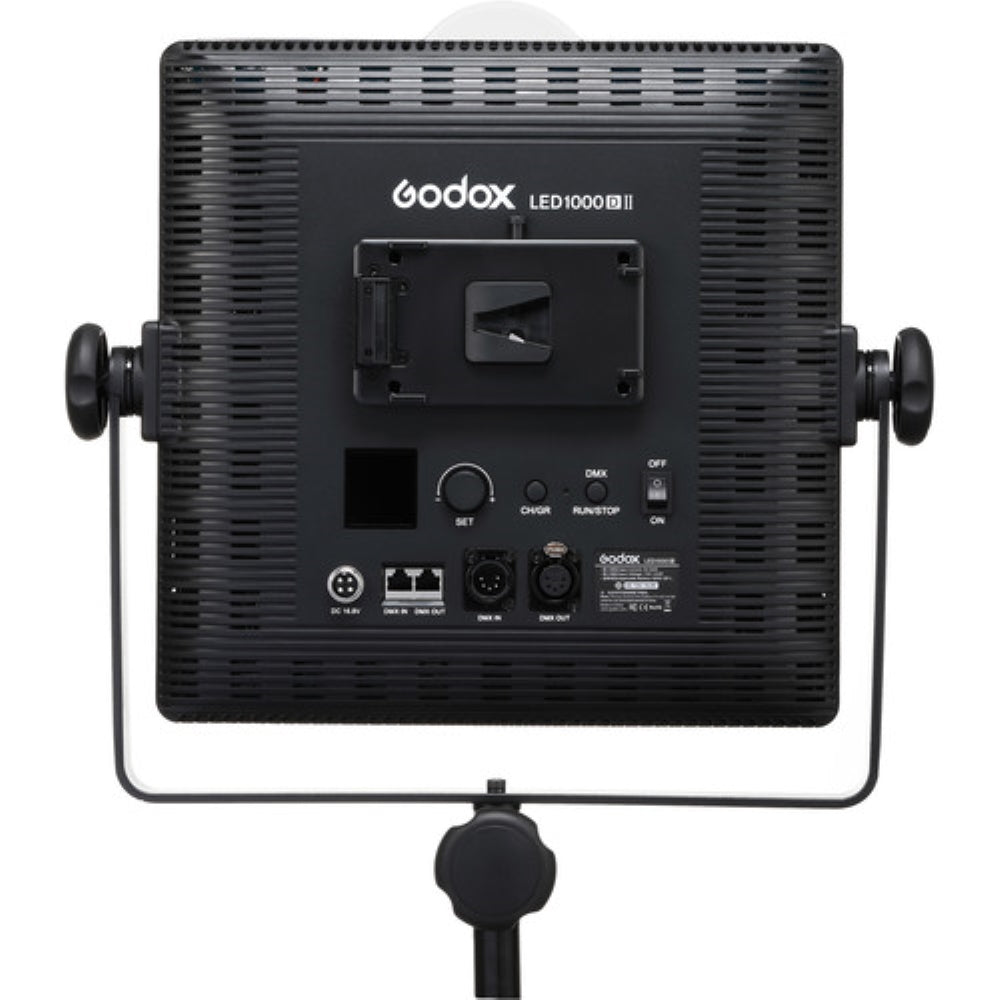

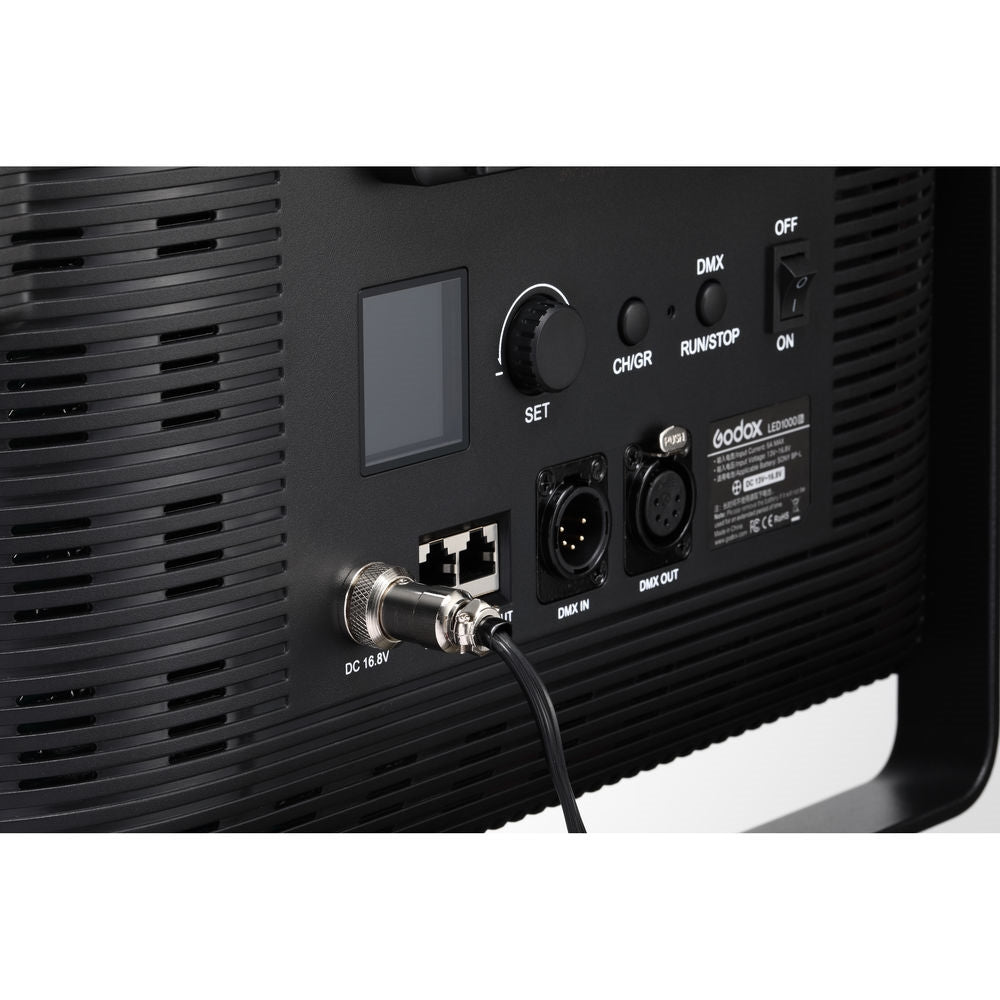

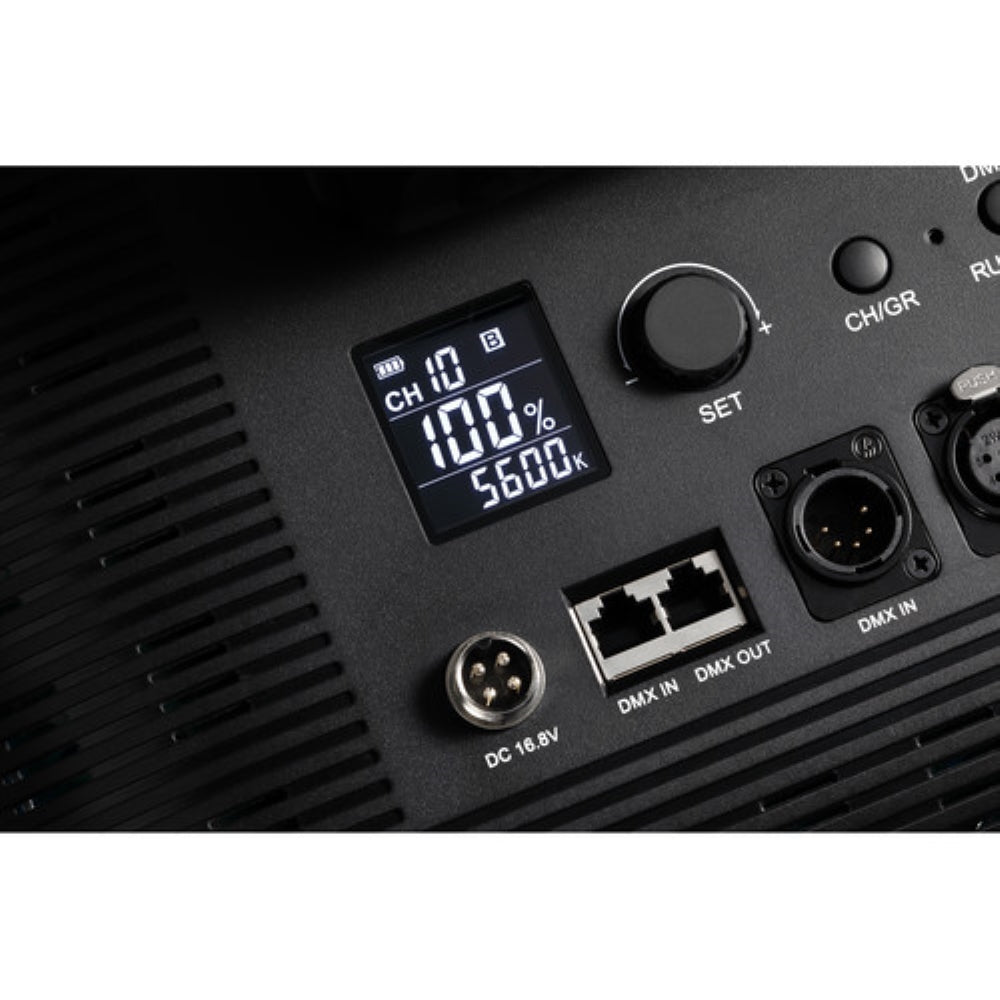

Inputs/Outputs | 1x Proprietary 4-Pin Power Input (13 to 16.8 VDC) 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output 1x RJ45 DMX Input 1x RJ45 DMX Output |
Battery Plate Type | 1x V-Mount (Built-In) |
Battery | 1x V-Mount Rechargeable, 14.8 VDC (Not Included) |
Input Power | 13 to 16.8 VDC 120 to 240 VAC, 50 / 60 Hz |
Included Adapter / Cable | 1x USA Type-A/B to Proprietary 4-Pin AC to DC Adapter |
Inline Switch | No |
Power Pass-Thru | No |
Power Consumption | 70 W |
Mounting |
|
---|---|
Yoke Type | Manually-Operated Yoke |
Fixture Mounting | 1x 5/8" Receiver (Via Yoke Mount) |
General |
|
---|---|
Display | LCD |
Environmental Resistance | No |
Operating Conditions | 14 to 104°F / -10 to 40°C |
Certifications | CE, FCC, RoHS |
Dimensions | 18.1 x 16.9 x 3.9" / 46 x 43 x 10 cm (Fixture) |
Weight | 5.53 lb / 2.51 kg |
