Hasselblad XCD 20-35mm f/3.2-4.5 E Lens | Hasselblad X
Among the broadest lenses offered for the Hasselblad X system, the XCD 20-35mm f/3.2-4.5 E stands out as an ultra-wide zoom that provides an impressive field of view, making it ideal for capturing landscapes, cityscapes, and architectural subjects. This lens, which is equivalent to a 16-27mm zoom on full-frame cameras, features a relatively bright maximum aperture range of f/3.2-4.5, high-performance autofocus, and a leaf shutter that allows for flash synchronization at all shutter speeds.
Immense Field of View
Featuring a truly broad zoom range, this lens is ideal for photographing natural landscapes, expansive cityscapes, and vast interior spaces. The optical design includes a trio of aspherical elements, too, that reduce distortion and ensure high sharpness and accurate rendering to match the demands of 100MP medium format sensors.
Fast and Intuitive Operation
- An upgraded focus system utilizes both a stepping motor and a small, lightweight focusing group to realize fast and responsive autofocus performance. This internal focusing design also benefits manual focus operation for smoother, more predictable handling.
- A small-but-powerful leaf shutter system offers a range of shutter speeds from 1/2000 sec to 68 min with flash sync possible at all speeds.
Elegant and Reliable Design

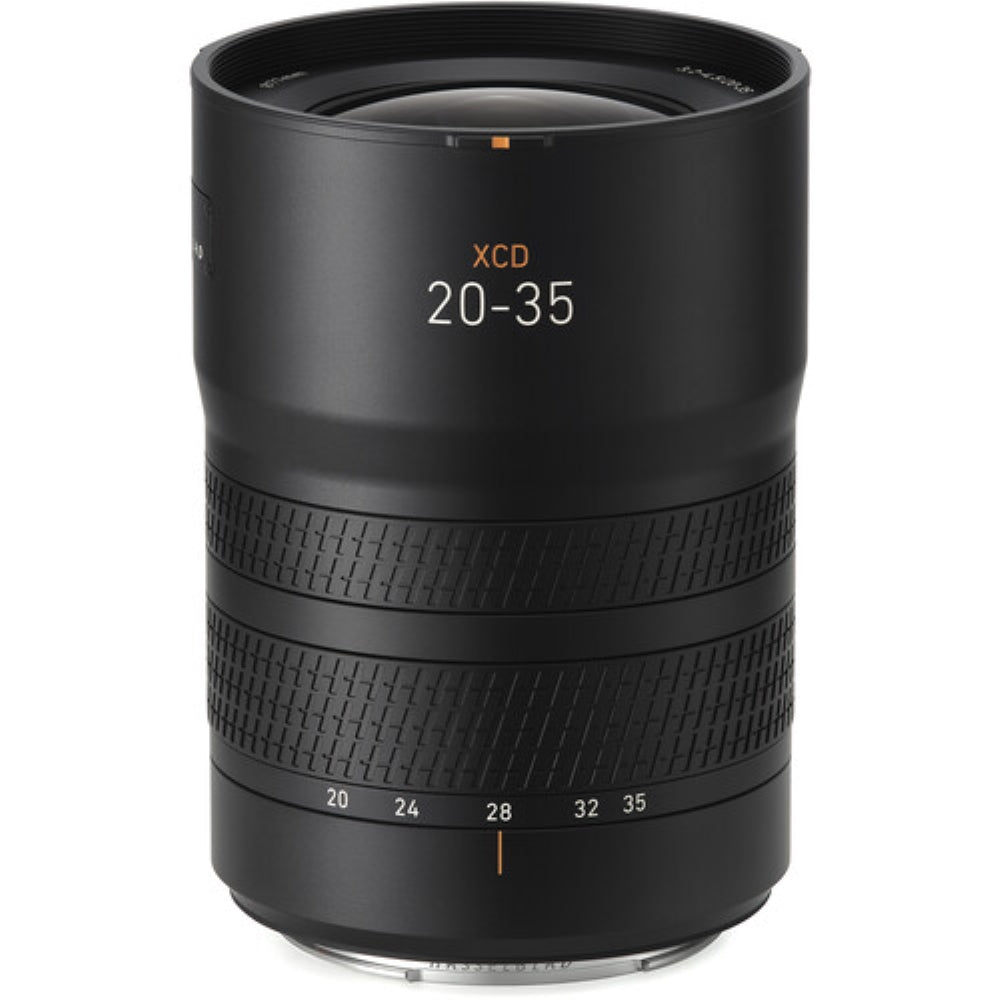

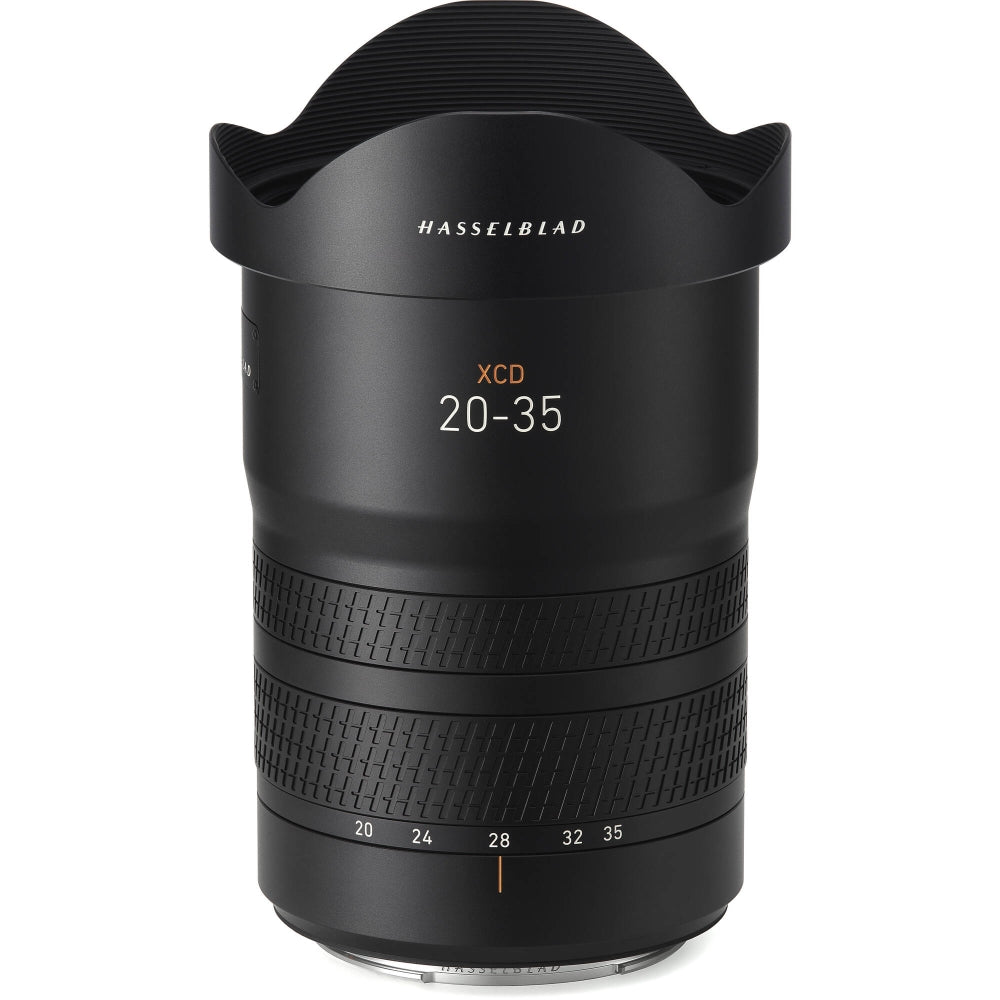

Streamlined metal lens barrel includes dual control rings to adjust both focus and zoom; the rings are engraved with the 'H' logo for improved feel. The lens also features a 'Hasselblad V' insignia nameplate and the lens's name is engraved on top of the barrel.
Lens |
|
|---|---|
| Focal Length | 20 to 35mm (35mm Equivalent: 16 to 27mm) |
| Aperture | Maximum: f/3.2 to 4.5 Minimum: f/32 |
| Lens Mount | Hasselblad X |
| Angle of View | 108° to 76° |
| Area of Coverage | 47 x 35 cm |
| Minimum Focus Distance | 1' / 32 cm |
| Magnification | 1:6.25 Macro Reproduction Ratio 0.09 to 0.16x Magnification |
| Optical Design | 16 Elements in 12 Groups |
| Focus Type | Autofocus |
| Image Stabilization | No |
| Leaf Shutter | Yes: up to 1/2000-Second Sync Speed |
| Filter Size | 77 mm (Front) |
| Dimensions | 3.2 x 4.6" / 81 x 117 mm (Diameter x Length) |
| Weight | 1.8 lb / 805 g |
