Hollyland Pyro S 4K HDMI/SDI Wireless Video Transmission System

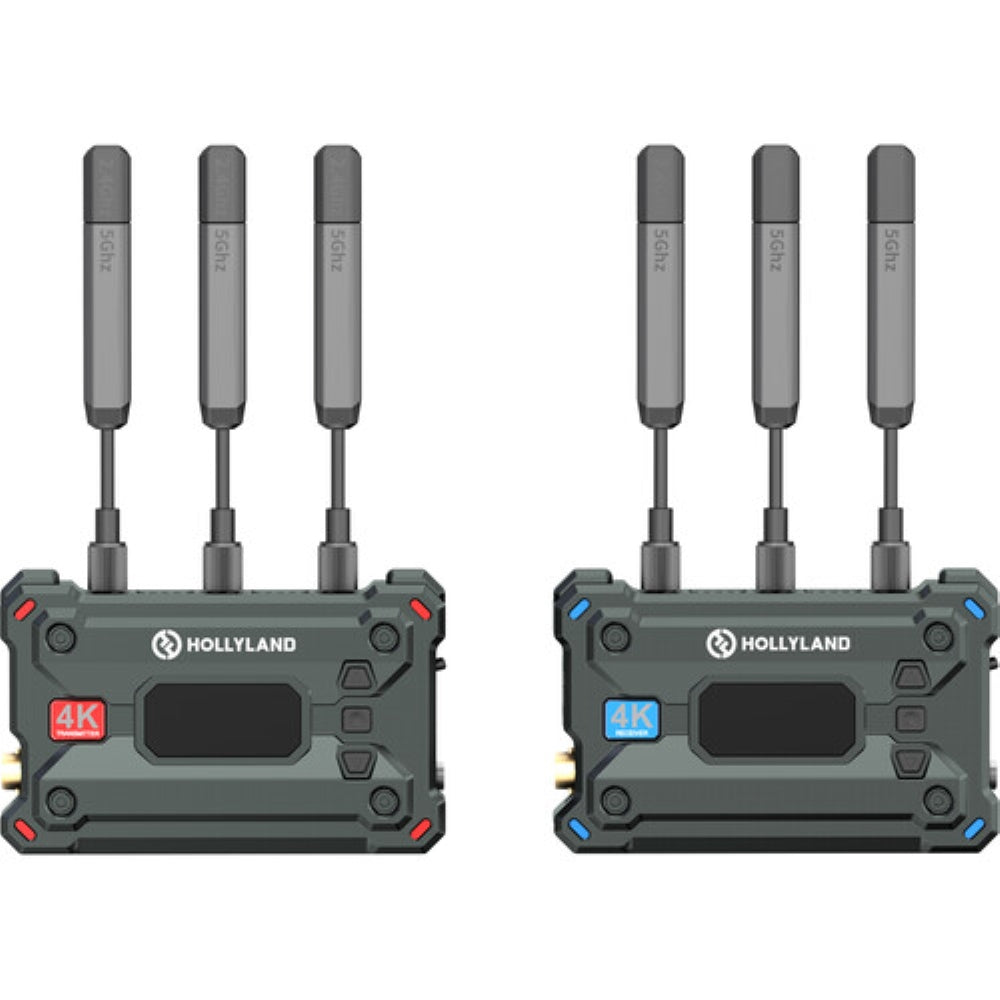

Enhance your production capabilities with 4K30 wireless video transmission by utilizing the adaptable Pyro S 4K HDMI/SDI Wireless Video Transmission System from Hollyland. This system comprises a wireless transmitter, a wireless receiver, seven antennas, a USB-C adapter, a DC power adapter, and an adjustable shoe adapter mount. The transmitter is equipped with HDMI and SDI inputs and boasts an impressively low latency of 50 ms, enabling line-of-sight transmission from distances of up to 1300 feet to the included receiver. In broadcast mode, which accommodates up to four receivers and two mobile devices, the system can operate effectively at distances of up to 650 feet. The receiver provides outputs for both HDMI and SDI.

Each Pyro S unit comes with a USB-C port that facilitates plug-and-play UVC functionality, enabling it to connect effortlessly to a computer and leverage wireless video for streaming and conferencing purposes. Additionally, a built-in frequency scanner enables the selection of the clearest frequency for transmission and includes a bright LCD for configuration. Each unit can be powered by a separately sold locking DC power adapter or an L-series type battery through an optional battery plate.

Long Distance, High Quality

The Pyro S Wi-Fi broadcasting technology allows a single transmitter to connect with four receivers, providing stable signals and greater flexibility for additional monitoring requirements on set. When the Broadcast mode is turned on, the transmitter can send signals to a maximum of four receivers, with a line-of-sight range of 650 feet. Conversely, when the Broadcast mode is turned off, the transmitter can connect to a maximum of two receivers and two mobile devices, extending the line-of-sight range to 1300 feet.

Strong Signal Strength

With a consistent transmission range reaching up to 1300 feet, the Pyro S boasts a latency as low as 50 milliseconds. In contrast to the Mars series, which sacrifices image quality and latency for an extended transmission range, the Pyro S stands out by offering a greater transmission distance while maintaining video quality and reducing latency. Additionally, the transmitter/receiver combination offers two modes that allow users to adjust the balance between image quality and latency: HD mode, which enhances image quality with a bitrate of up to 12 Mb/s, and Smooth mode, which facilitates a dynamic adjustment in latency.

Crisp and Sharp Images

With the ability to transmit up to 4K30 through HDMI and 1080p60 via SDI, the Pyro S delivers images with exceptional clarity, detail, and realism, positioning it as an excellent option for professional uses such as broadcasting and filmmaking.

USB Video Class

UVC enables effortless compatibility with numerous devices, including computers, without the need for extra drivers or software installations. This plug-and-play capability streamlines both setup and operation, providing convenience for users in diverse situations, such as live streaming and video conferencing.

RTMP

Input your wireless key and connect a network card to stream video directly to live platforms like Zoom, YouTube, Twitch, and TikTok.

Smart Channel Scan

Upon initialization, Pyro S automatically selects a premium frequency channel, enhancing the user experience right from the beginning. Furthermore, users have the option to enable the smart channel scan feature on the receiver, which provides real-time updates on the frequency status, thereby guaranteeing a seamless and dependable experience.

Easy Setup

The Pyro S supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.
