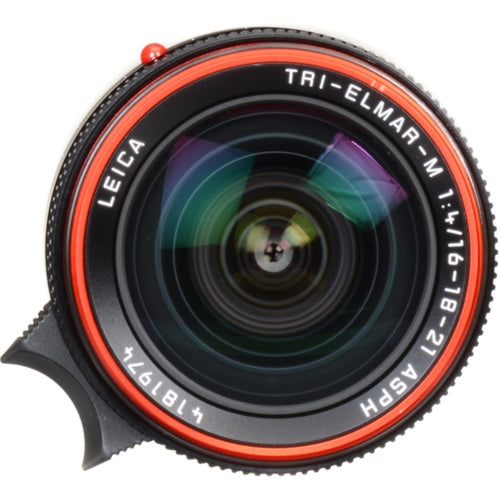

Leica Tri-Elmar-M 16-18-21mm f/4 ASPH. Lens
The Tri-Elmar-M 16-18-21mm f/4 ASPH. from Leica is an exceptionally adaptable super-wide lens that enables the use of three distinct focal lengths within a single unit. Its optical configuration, featuring two aspherical elements, significantly minimizes distortion, ensuring precise and clear representation of interior and architectural scenes. Additionally, these aspherical elements contribute to a more compact design. Users can effortlessly transition between the 16mm, 18mm, and 21mm focal lengths while maintaining a minimum focusing distance of 1.6 feet, and the incorporation of floating elements ensures high image quality even at close distances.
- Unique three-focal-length lens gives you the option to seamlessly switch between the 16mm, 18mm, and 21mm focal length positions to adjust your field of view.
- Super wide-angle lens has been designed to notably reduce distortion and field curvature to suit photographing interior and architectural subjects.
- Two aspherical elements are featured to limit spherical aberrations and improve sharpness and clarity throughout the aperture range and at each focal length setting.
- An internal manual focusing design is used along with a floating elements system to achieve consistent image quality throughout the focusing range at each focal length, even at the minimum focusing distance of 1.6'.
- The aspherical elements also contribute to a more compact form factor.
- The front of the lens is male threaded to accept the included lens hood or an optional 67mm filter holder.
Lens |
|
---|---|
Maximum Aperture | f/4 |
Minimum Aperture | f/22 |
Lens Mount | Leica M |
Angle of View | 107° to 92° |
Minimum Focus Distance | 1.6' / 48.8 cm |
Macro Reproduction Ratio | 1:30 |
Optical Design | 10 Elements in 7 Groups |
Focus Type | Manual Focus |
Filter Size | 67 mm (via Adapter) |
Dimensions (ø x L) | 2.1 x 2.4 / x |
Weight | 11.8 oz / 335 g |
