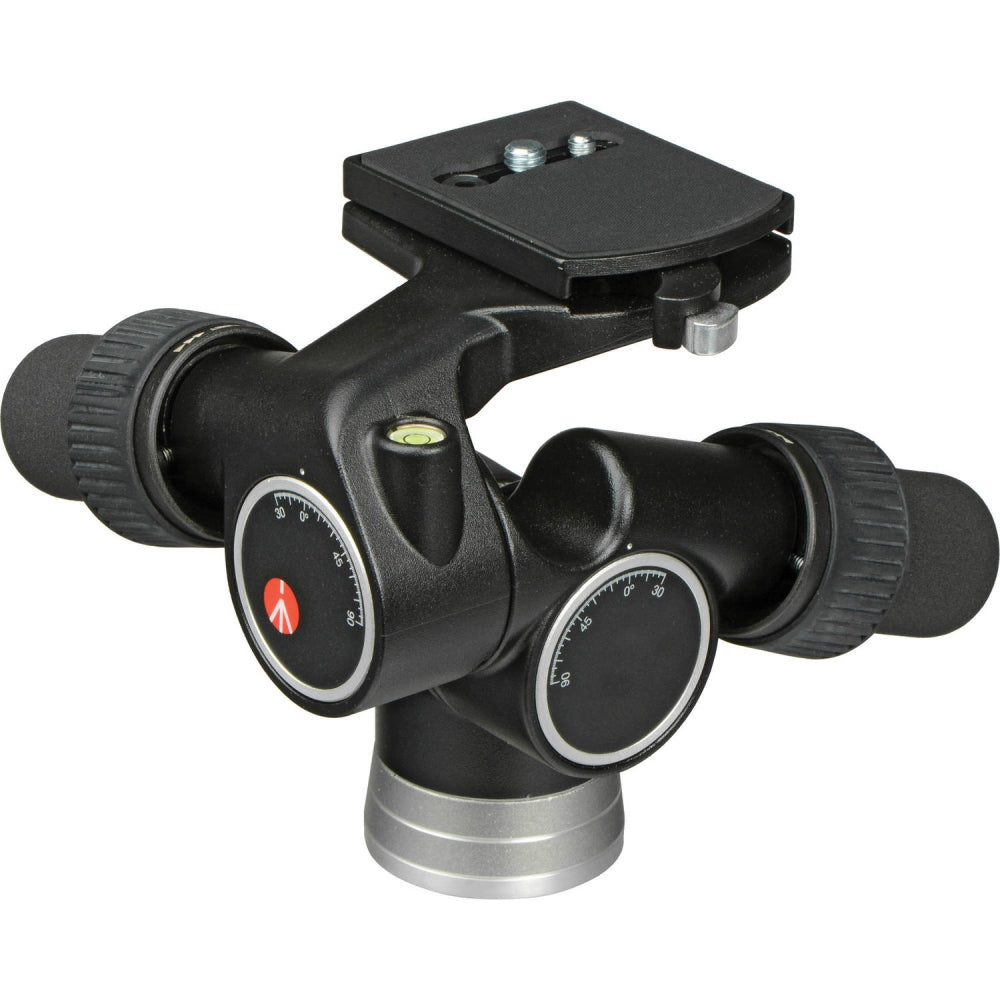

Manfrotto 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
This 405 3-Way, Geared Pan-and-Tilt Head from Manfrotto has a load capacity of 16.5 lb and can be attached to tripods or other support systems that feature a 3/8"-16 mount. It includes an integrated RC4 quick release cam lock and a 410PL Quick Release Plate. RC4 compatible quick release plates such as the 410PL can removed from the head by pulling the cam lock's spring-loaded lever, which also allows the plate to be instantly reattached.
Cameras or accessories that are compatible with a 1/4"-20 or 3/16"-20 mount can be connected to the 410PL Quick Release Plate, which measures 2.5 x 3.3 x 0.5" and has a rubberized, non-slip surface. The head can be rotated 360°, tilted 90° forwards or 30° backwards, as well as 90° sideways for portrait orientation. Each of these three movements function independently of each other and have individual, snap-lock knobs with easy-to-turn, fluted grips. Turning each snap-lock knob allows the corresponding movement to be rapidly adjusted, and once the knob is released, the adjustment is locked into place. An additional, rubberized knob set within each snap-lock knob allows incremental, geared adjustments, which help to ensure that any device mounted to this 405 3-Way, Geared Pan-and-Tilt Head is precisely positioned relative to the subject. To further promote fast and repeatable device positioning, this 405 3-Way, Geared Pan-and-Tilt Head also includes dedicated angle scales for each movement that are designed for easy visibility.
Key Features
- Load Capacity: 16.5 lb
- 3 Independent Movements with Locks
- Snap-Lock Controls for Fast Movements
- Integrated Incremental, Geared Movements
- 90° Forwards and 30° Backwards Tilt
- Up to 90° Portrait Angle Tilt
- 360° Rotation, Three Bubble Levels
- RC4 Quick Release Cam Lock
- 410PL Quick Release Plate
- 1/4"-20 Mount, 3/8"-16 Mount
- Manfrotto 405 3-Way, Geared Pan-and-Tilt Head with 410PL Quick Release Plate
- Manfrotto 410PL Quick Release Plate - for RC4 Quick Release System
- Limited 6-Month Warranty, Extendable to 10 Years with Product Registration
