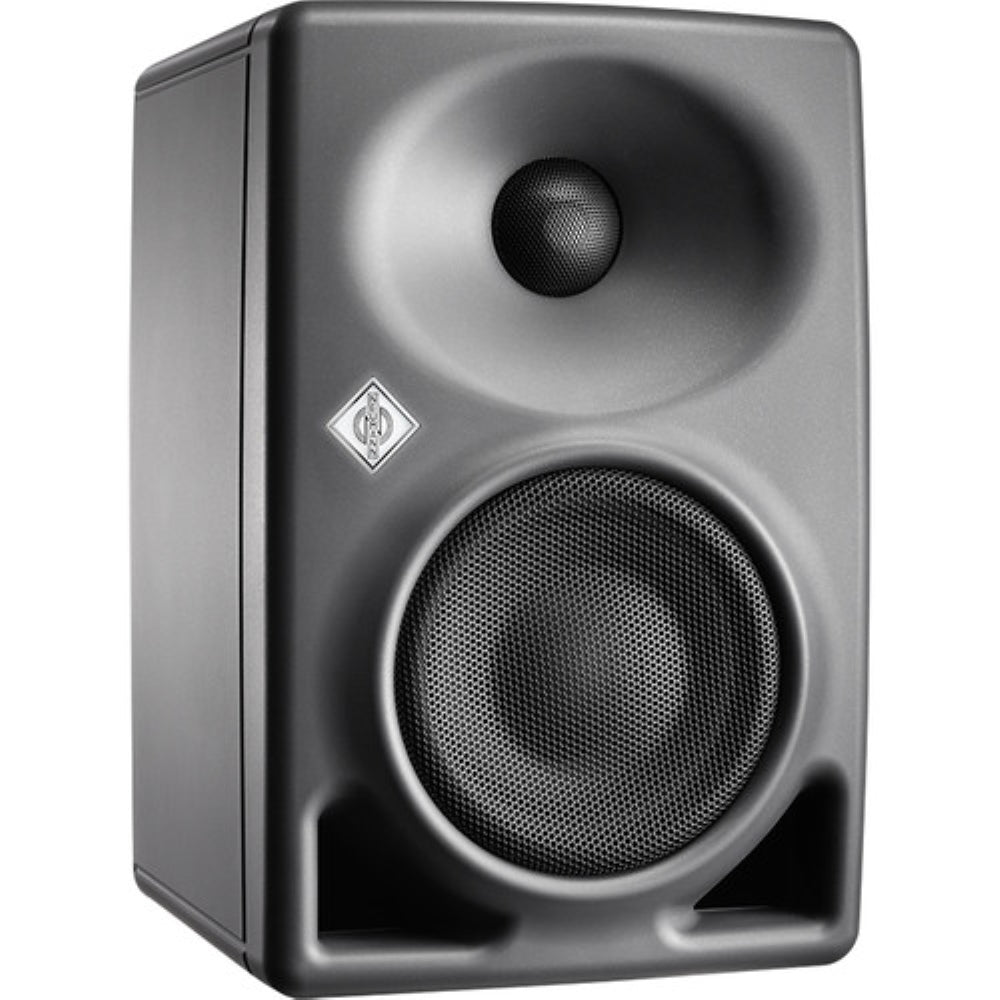

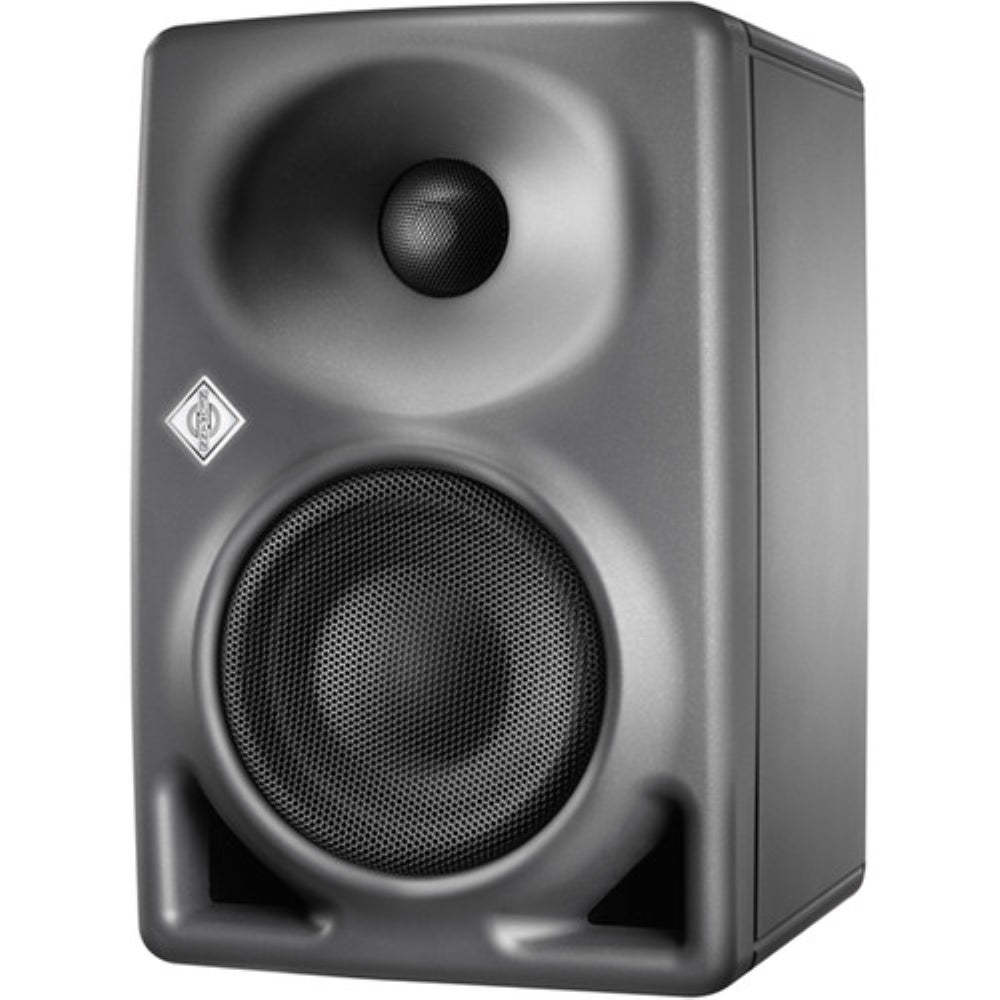

Neumann KH 80 DSP 4" + 1" Active 2-Way Studio Monitor | Gray, Single

The gray Neumann KH 80 DSP is a 2-way active studio monitor designed for near-field monitoring and multichannel configurations in music studios, broadcast facilities, and mobile setups, as well as for home studios and desktop audio applications. This model features two amplifiers (120W for the woofer and 70W for the tweeter) that drive a 4" woofer and a 1" tweeter, respectively. It is equipped with an onboard DSP engine, a Mathematically Modeled Dispersion (MMD) waveguide, an analog input, and a comprehensive selection of optional mounting hardware. The DSP capabilities can be accessed through a standard IP network connection, enabling control of the monitoring system via the Neumann.Control application, compatible with Windows/Mac computers and iOS/Android tablets. Utilizing advanced acoustic and electronic simulation and measurement technologies, the KH 80 is adaptable to various acoustic environments and compatible with a wide range of source equipment, ensuring precise sound reproduction.

Setup:

• 1, 2, 4, 5, 7, and 9 loudspeakers


• Identify loudspeakers on the network that are in the room


• Assign the identified loudspeakers to positions in the room



Align:

• Guided Alignment: A process where you are asked very simple questions about the room and the loudspeaker position, and then the app adjusts the response of each loudspeaker accordingly


• Manual Alignment: 8-band fully parametric equalizer for expert users. Expert users have complete freedom to adjust an 8-band parametric equalizer, levels and delays in each loudspeaker as they wish. Manual Alignment can also be used to edit Guided Alignments in a more detailed way



Operate:

• System and alignment selection


• Volume control, preset levels, dim, mute all


• Groups, solos, mutes


• Other system settings such as delay, standby level, and logo brightness



In-house simulated 1" tweeter with alloy fabric dome

• Latest modeling techniques used to minimize non-linear (harmonic and intermodulation) distortion


• Low-distortion high frequency reproduction


• Powered by highly efficient 70W amplifier



Elliptical Mathematically Modeled Dispersion (MMD) waveguide

• Smoother off-axis response


• More forgiving of diverse acoustical environments



Wide horizontal dispersion

• Freedom of movement across the mixing console



Narrow vertical dispersion

• Reduces reflections off the mixing console



Two-color + dimmable Neumann logo

• Displays operation status and activation of the extensive protection system


• Dimmable for low-lighting conditions or behind the screen applications



In-house modeled long-throw composite sandwich 4" cone bass driver with Extremely Linear Force Factor (ELFF), magnetic shielding and flow optimized die cast basket

• Damping of break up modes brings low distortion at high sound levels


• Linear pistonic motor gives a very low harmonic distortion even at high excursions


• Reduced air noise and improved rocking modes


• Powered by highly efficient 120W amplifier



Robust metal grilles

• Protects against mechanical damage



Large high-capacity flow-optimized bass reflex ports with pipe resonance damping

• Fast bass transient response


• Reduced bass compression at high output levels


• No coloration from organ pipe resonance


• Easier to mount in tight spaces



Compact polycarbonate composite cabinet

• Robust package for a long life


• No standing wave resonances



One-piece front panel with no discontinuities

• Reduced diffraction and smoother frequency response



Standby function

• Reduces power consumption when product is not in use

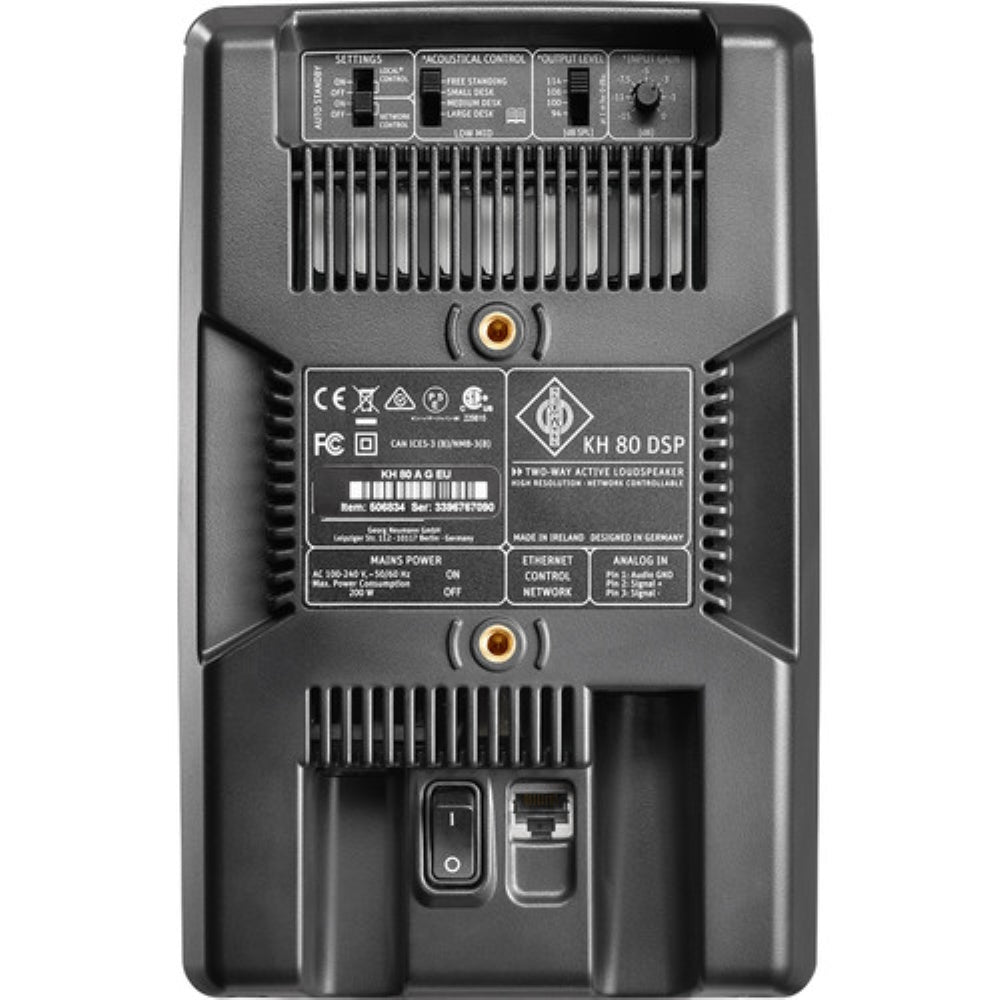

Control function

• Use the back panel controls or the control set defined by the Neumann.Control software

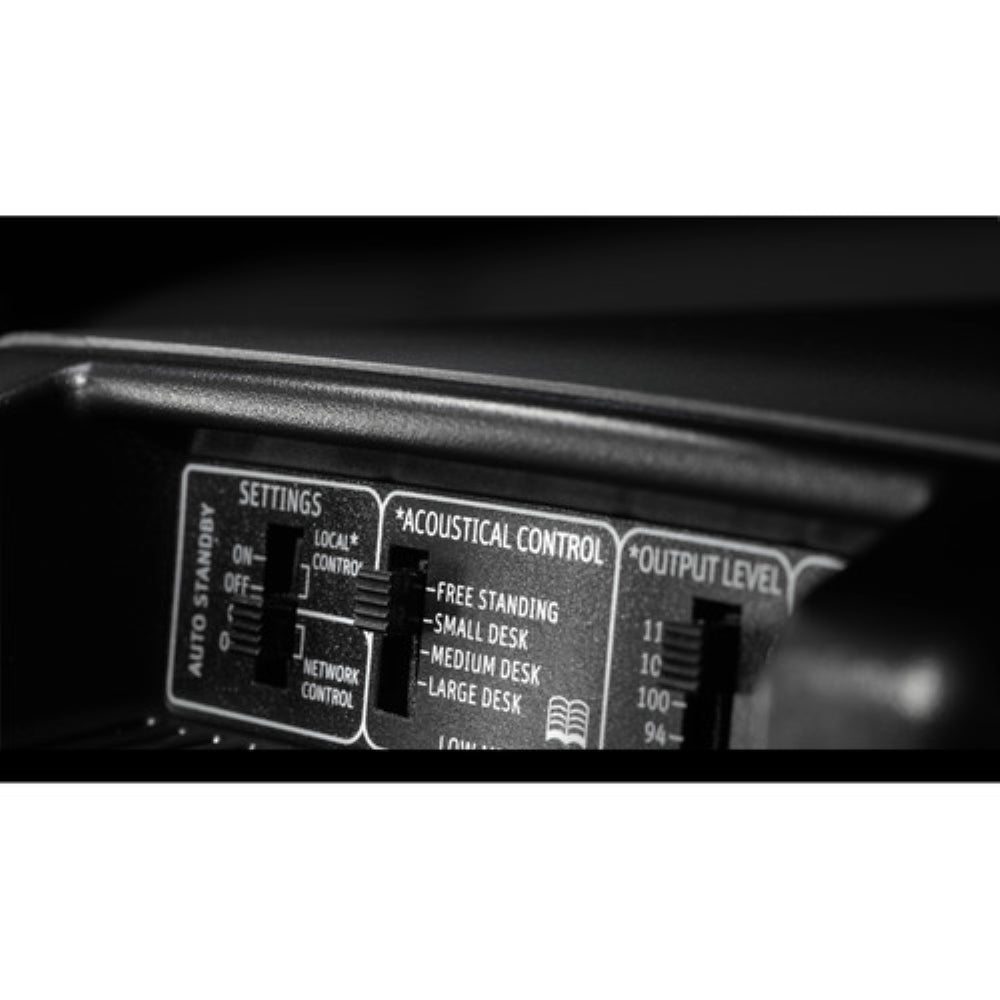

4-position low-mid acoustical control

• Compensates for nearby desktops


• Fast acoustical set up in mobile applications


• Repeatable acoustical settings after moving loudspeakers



Wide range input gain and output level controls

• Easier interfacing with signal sources



Fully documented extensive mounting hardware range

• More flexibility in mounting cabinets in more diverse locations and backwards compatible to previous products


• Easy advanced planning for installations



Universal double-insulated switched-mode power supply (100 to 240V)

• One version works in any country and robust to poor quality mains supply


• Ground loops are impossible



Network connector using standard IP protocol and your existing network infrastructure

• No additional special equipment needed


• Loudspeaker system can be controlled via the Neumann.Control software



Analog input socket can accept XLR or 6.3 mm (1/4”) jack plugs, electronically balanced with completely symmetrical internal signal chain

• Completely symmetrical internal signal routing minimizes noises caused by external electromagnetic interference



Production consistency due to automated computer optimized alignment in final testing

• Any KH 80 DSP is pair matched to any other KH 80 DSP



Separate fast acting thermo limiters for woofer and tweeter to protect the voice coils and power amplifiers

• Woofer soft clip and excursion limiters


• Fast acting and highly reliable


• Allows extraction of the maximum performance



Low heat dissipation amplifiers with large headroom and overheat limiting

• Improved transient response


• Assured reliability and safety



8 Precision Alignment acoustical controls accessible via control network

• Accurate and flexible alignment of the loudspeaker in the room and within systems

Delay (0 to 70 ms)

• Lip-sync: To align audio and video signals up to 1.75 frames at 50 Hz or 2.1 frames at 60 Hz


• Time-of-flight: To compensate for listening distance differences up to 24 m (79 ft.)



Linear phase crossover

• Flat phase response for timing transparency
