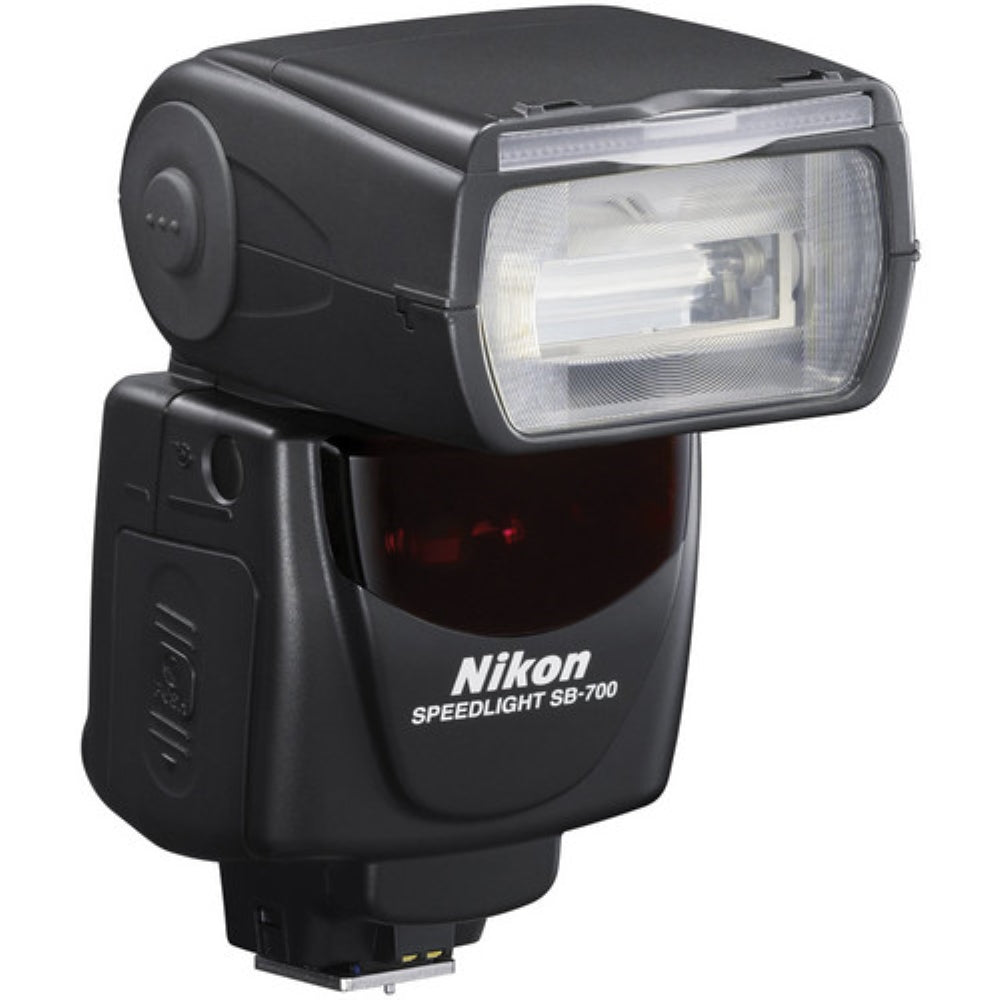

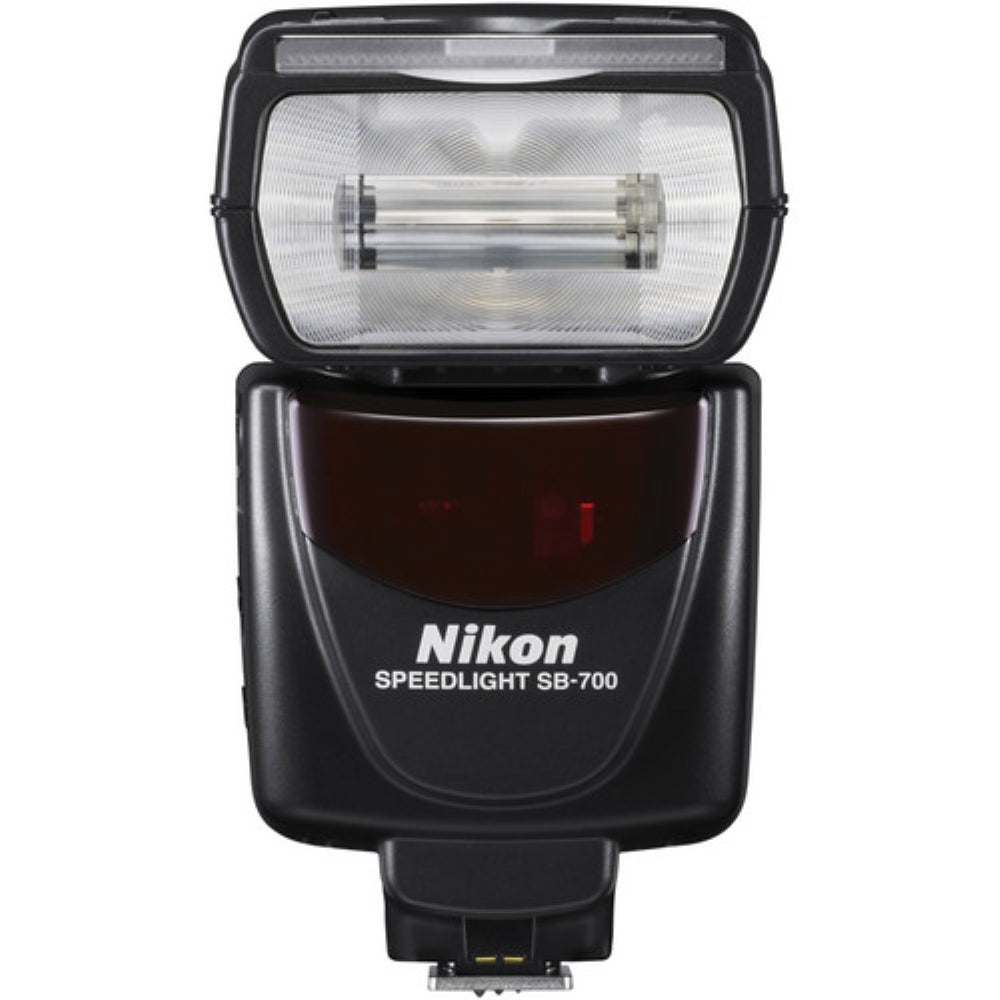

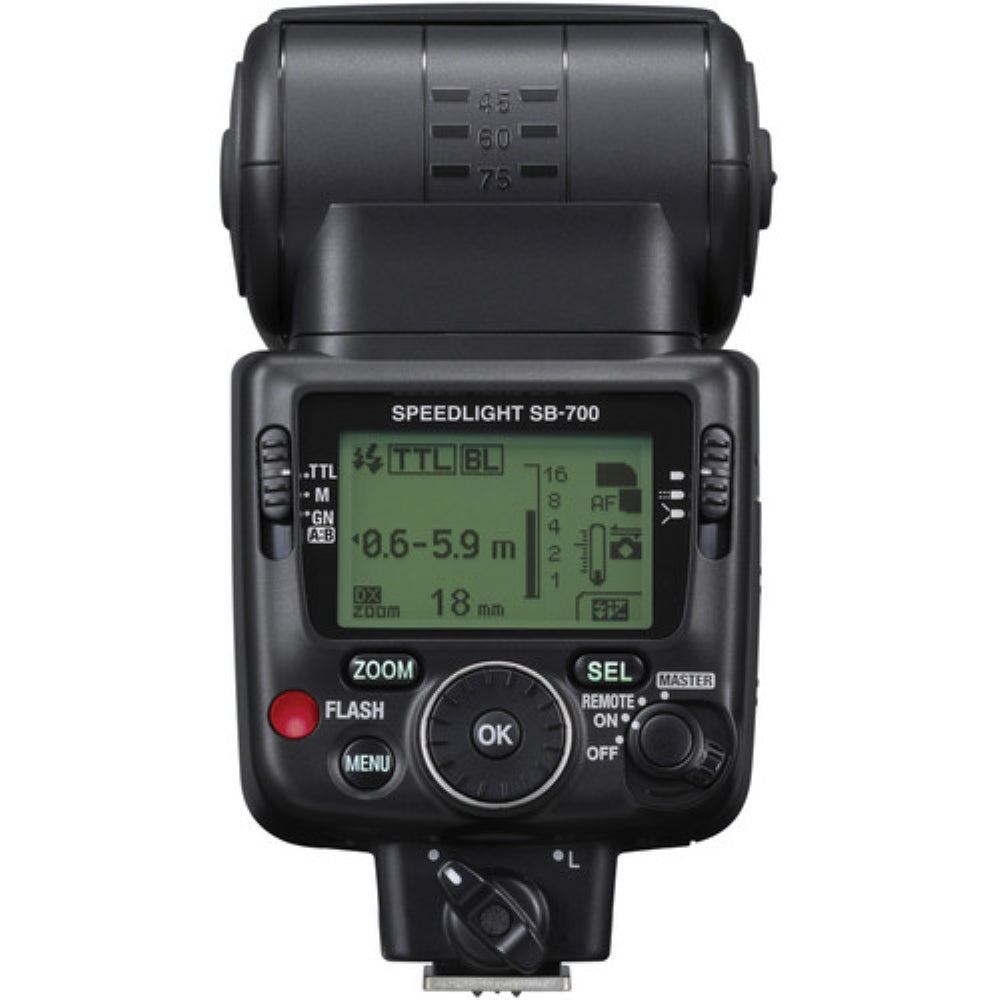

Nikon SB-700 AF Speedlight
With a rated guide number of 92' at ISO 100 and 35mm, the SB-700 AF Speedlight from Nikon is a moderately compact flash unit packed with features for high-performance on-camera lighting capabilities. The flash is compatible with the i-TTL system for automatic metering with both FX- and DX-format cameras and is optimized for use with Nikon's Creative Lighting System for complete control over your lighting setup. Additionally, the auto zoom head has a coverage range of 24-120mm with FX-format cameras which can be extended down to 12mm with the use of the built-in wide-angle diffusion panel.
Complete bounce and swivel functionality is available for working in a variety of shooting situations. This allows users to tilt down to -7° and up to 90° as well as rotate left or right 180° for complete 360° coverage. Also, the SB-700 has three different illumination patterns, standard, even, and center-weighted, which help shape the light output for your specific needs. For wireless master TTL functionality, the speedlight utilizes a Commander Mode. In this mode users can access Advanced Wireless Lighting settings for controlling multiple off-camera flashes that can be set up in two groups (A, B) and one of four channels. The SB-700 also has a quick wireless control A:B ratio setting for quickly setting up and controlling multiple remote flashes.
Many other abilities are packed into this unit, including a stroboscopic repeating flash mode that can be set from 1-100 Hz. The SB-700 also has slow, Auto FP high-speed, first, and second curtain sync modes for achieving the desired creative look in your image. There are even red-eye reduction and red-eye reduction slow sync settings available. The flash itself is mounted to the camera or stand via a locking hot shoe and is powered by four AA batteries. And, depending on the type of battery used and the power setting, users can expect a recycle time of 2.5-3.5 seconds.
Included with the SB-700 AF Speedlight are a variety of useful tools and accessories. First, built into the flash alongside the wide-angle diffusion panel is a white slide-out bounce card for bouncing some light directly to the subject and creating catch lights. Also, there is a diffusion dome for softening the output of the flash and fluorescent and incandescent color correction filters for balancing the flash to ambient light. All of this, along with a stand, is packaged in the SS-700 Soft Case, designed specifically for the flash and accessories.
Flash Head |
|
|---|---|
| Guide Number | 92' / 28.04 m at ISO 100 (35 mm Position) |
| Coverage | Full-Frame 24 to 120 mm 12 mm (with Wide-Angle Adapter) |
| Angle of Coverage | 18 to 60° Vertical 25 to 78° Horizontal 100 to 120° Vertical (with Wide-Angle Adapter) 110 to 130° Horizontal (with Wide-Angle Adapter) |
| Auto Zoom Head | Yes |
| Bounce/Vertical Adjustment | -7 to +90° |
| Swivel/Horizontal Adjustment | 360° |
| Flash Duration | 1/1042 to 1/40000 Second |
| Recycle Time | Approx. 2.5 to 3.5 Seconds |
| Secondary Illumination | No |
Exposure Control |
|
|---|---|
| Exposure Control | Manual, Nikon i-TTL |
| Flash Modes | Hi-Speed Sync, Second-Curtain Sync, Slow Sync |
| Power Range | 1/1 to 1/128 |
| Flash Compensation | -3 to +3 EV (1/3 EV Steps) |
Wireless |
|
|---|---|
| Wireless Operation | Optical Pulse (TTL/Manual) Up to 32.81' / 10 m (Commander, Slave) |
| Wireless Channels | 4 |
| Wireless Groups | 2 |
Power |
|
|---|---|
| Internal Power | 4x AA Alkaline/Lithium/NiMH (Not Included) |
| External Power Pack Compatible | No |
General |
|
|---|---|
| Mount | Shoe |
| Off-Camera Terminal | Proprietary |
| Dimensions (W x H x D) | 2.8 x 5 x 4.1" / 71 x 126 x 104.5 mm |
| Weight | 12.7 oz / 360 g (without Batteries) |
