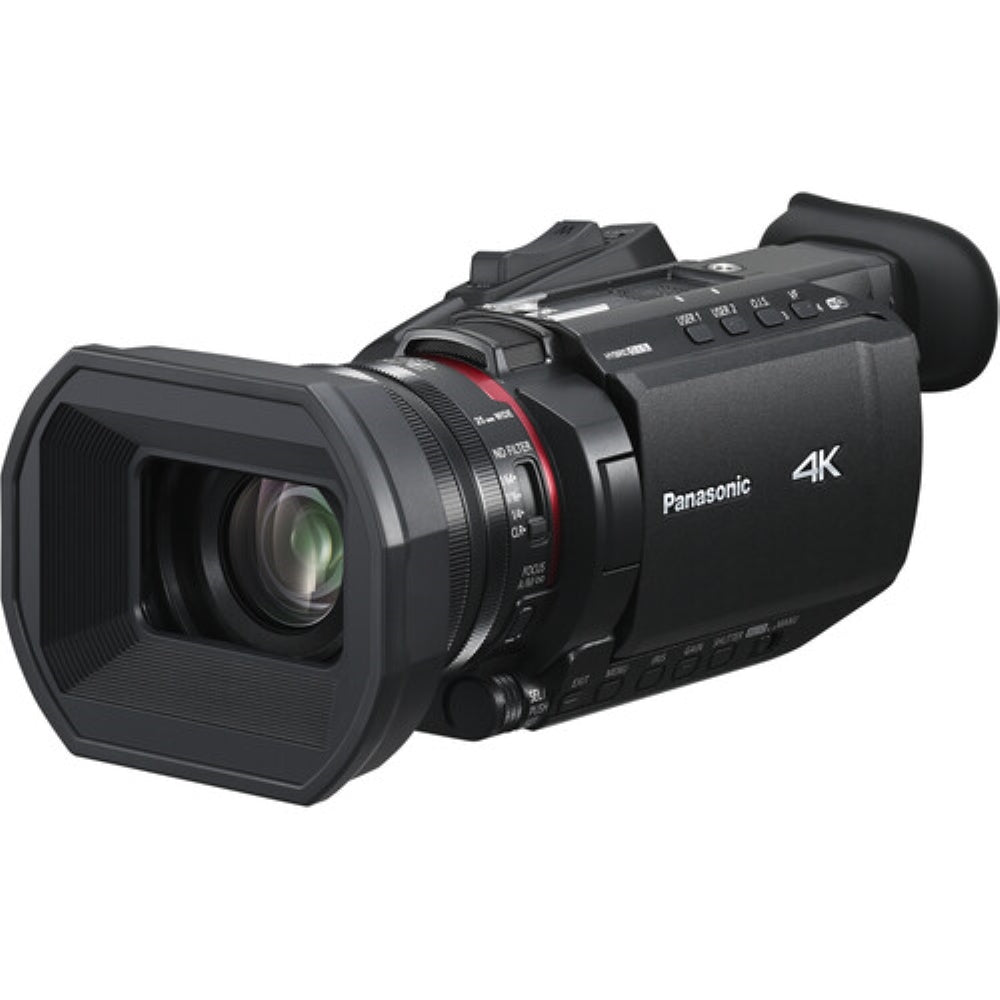

Panasonic HC-X1600 UHD 4K HDMI Camcorder with 24x Zoom
Capture stunning UHD 4K60 video and high-resolution still images almost anywhere with the Panasonic HC-X1600 UHD 4K Camcorder, which boasts a lightweight and compact design. Whether you are documenting behind-the-scenes footage for a music video or creating content for your latest social media endeavor, the HC-X1600 serves effectively as either a primary or secondary camera. This camcorder is equipped with a 1/2.5" 8.29MP MOS sensor and offers a variety of recording modes. Additionally, it supports live streaming of video at resolutions up to 1080p across various protocols.
Versatile Recording
The HC-X1600 is capable of recording video in UHD 4K60 using MOV, MP4, and AVCHD codecs. It supports a high bit rate of 200 Mb/s when capturing UHD 4K at 59.49/50p with the HEVC codec, as well as Full HD 120/100 fps Super Slow Motion. The built-in 25mm lens achieves a telephoto focal length of 600mm and offers a broad viewing angle. You can capture intricate details with the 24x optical zoom or the 48x digital i.ZOOM in Full HD resolutions.
Live Streaming, Wireless Control
The integrated dual-band Wi-Fi connectivity enables you to stream footage live to your preferred sources. The camera is compatible with RTSP, RTP, RTMP, and RTMPS protocols. It is capable of streaming Full HD resolution video in both unicast and multicast formats. You can connect to the HC ROP application on a tablet or smartphone for remote control and live image preview.
Interface and Connectivity

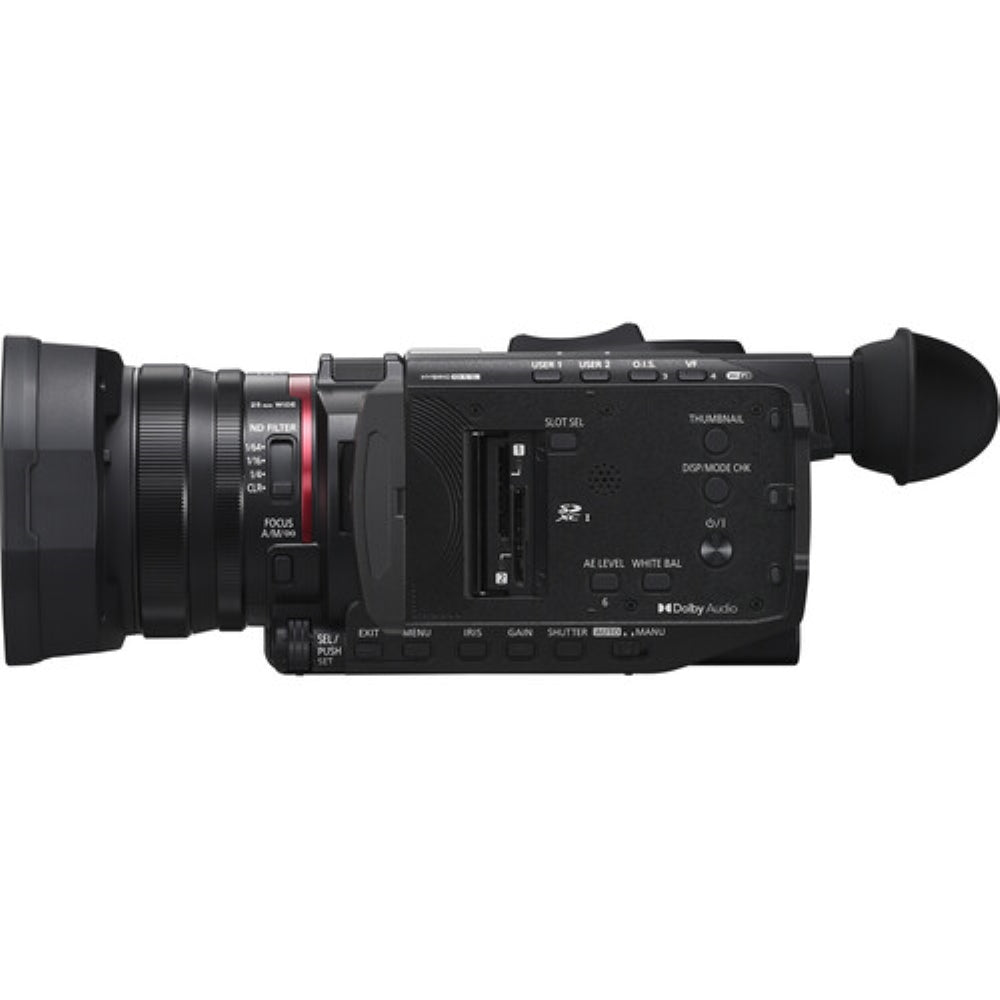

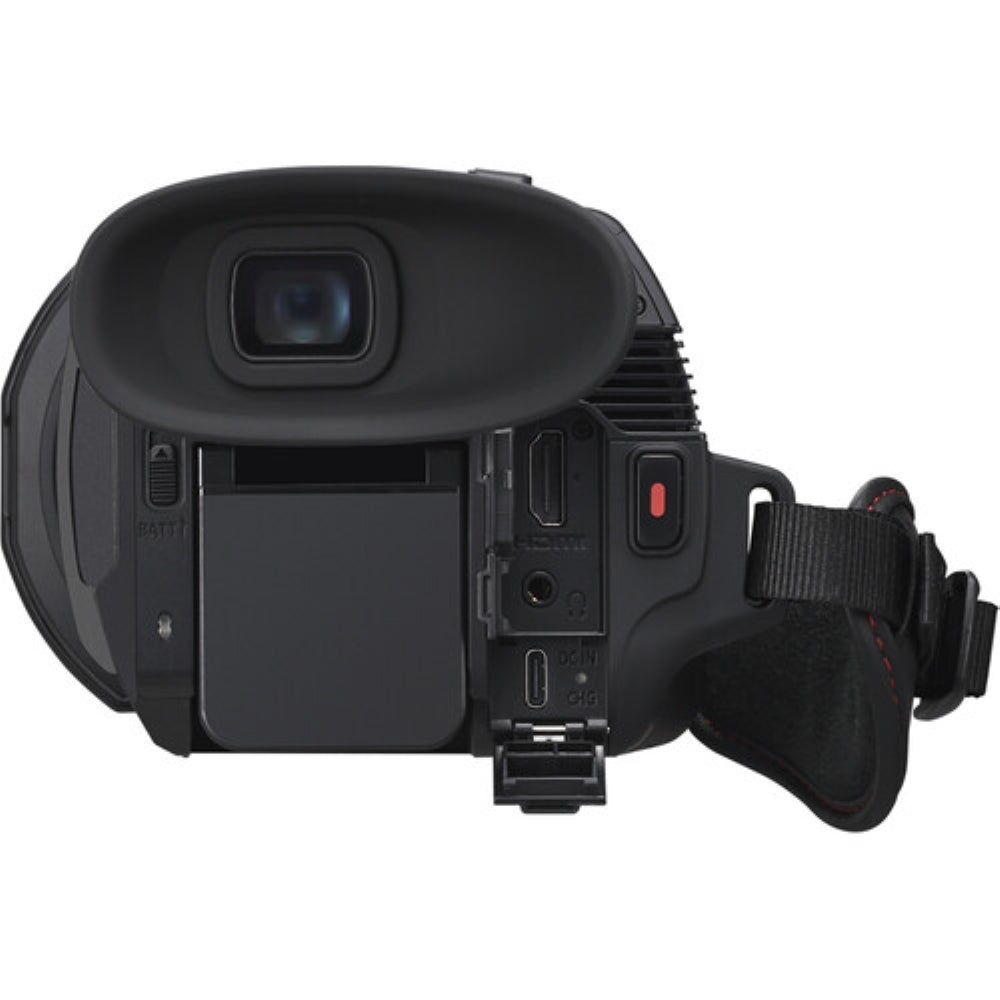

An HDMI output port provides UHD 4K video to a selected source. You can record directly to two SD cards at the same time in MOV/MP4 formats. An integrated stereo microphone captures audio at 48 kHz 16-bit in AVCHD/MP4 formats and 48 kHz 24-bit in MOV formats. You can connect your own microphone using the 3.5mm stereo mini jack or the 3-pin XLR input, which supports phantom power, and monitor your overall audio through the headphone jack. Additionally, there is an audio output available for a speaker. The camera can be controlled remotely via a 2.5mm mini jack.
Hybird OIS, Face Detection Autofocus

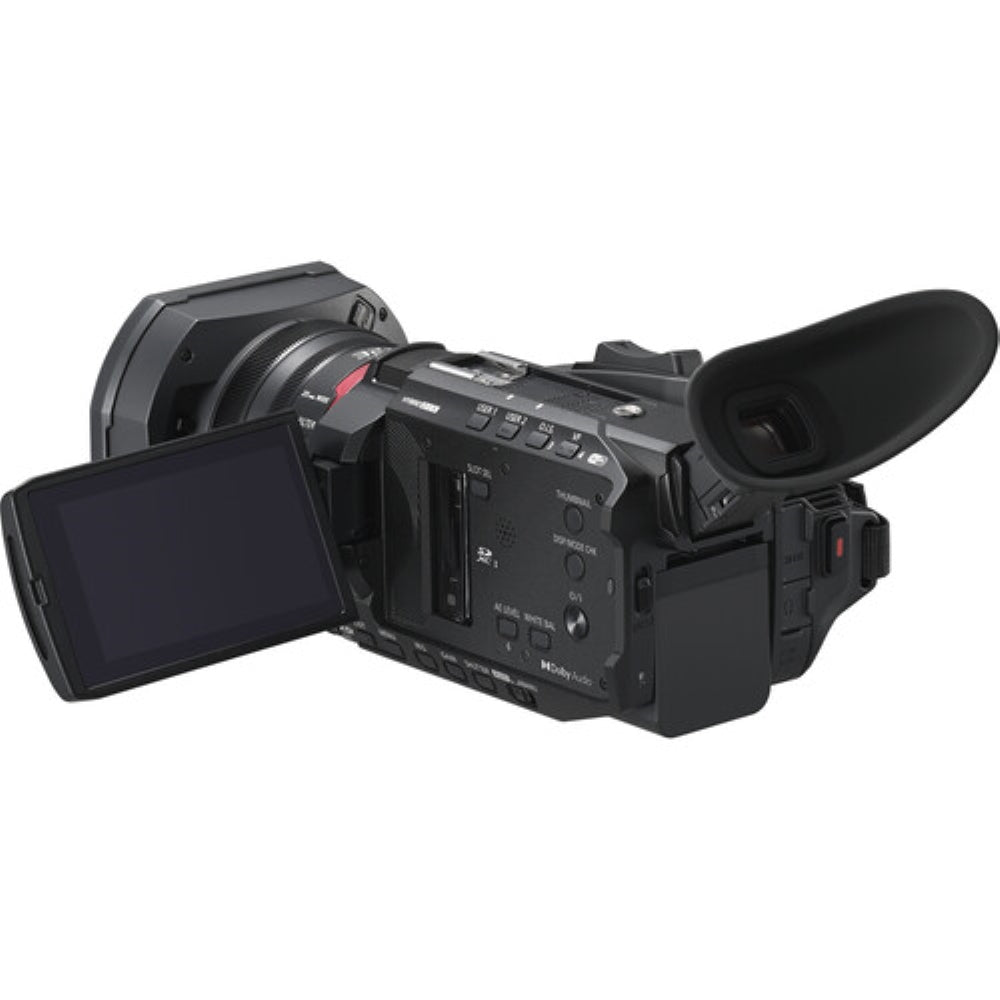

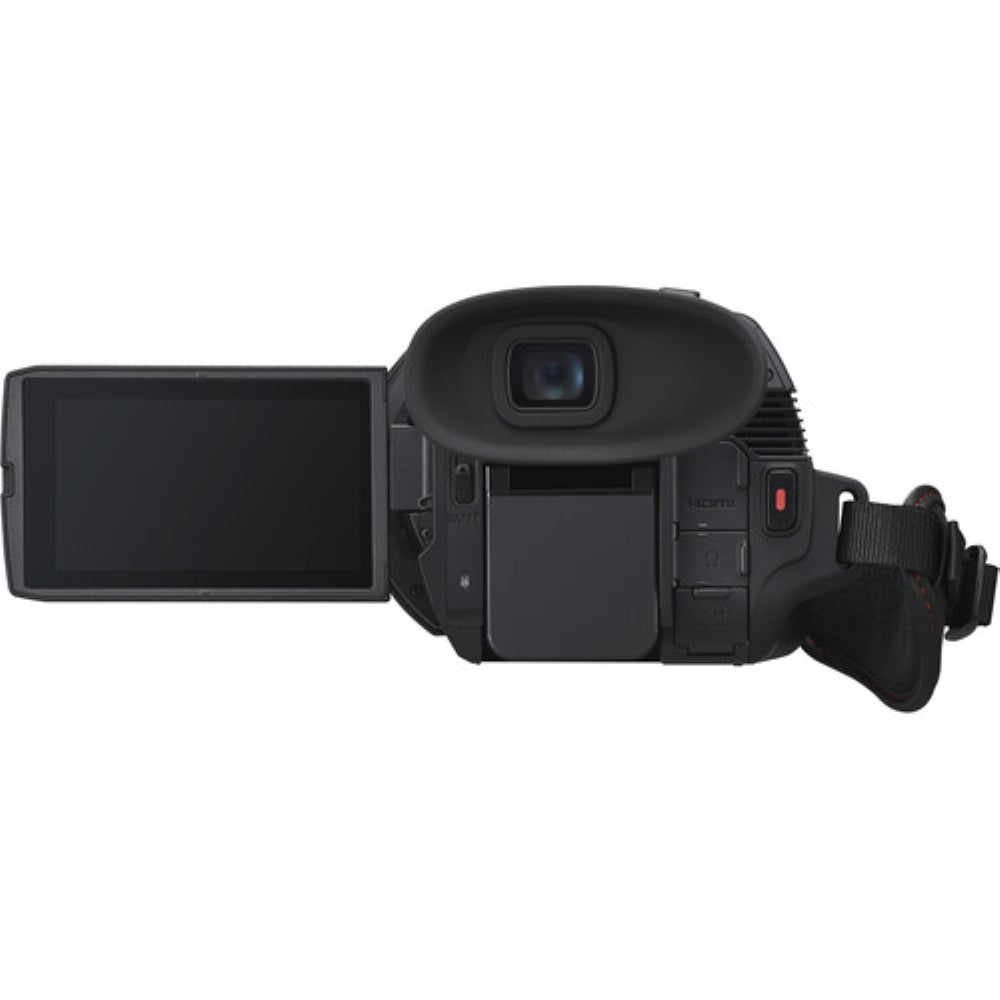

Hybrid 5-axis OIS (optical image stabilization) guarantees that your footage stays stable by utilizing both optical and electronic stabilization methods. Additionally, a Ball OIS system enhances the reduction of small-amplitude blurring. The high-precision autofocus, equipped with face detection technology, effectively locks onto subjects for accurate focusing while ensuring proper exposure. You can utilize the articulating 3.5" LCD touchscreen to initiate precise tracking, along with the OLED EVF viewfinder for monitoring images while handheld.
ND Filters

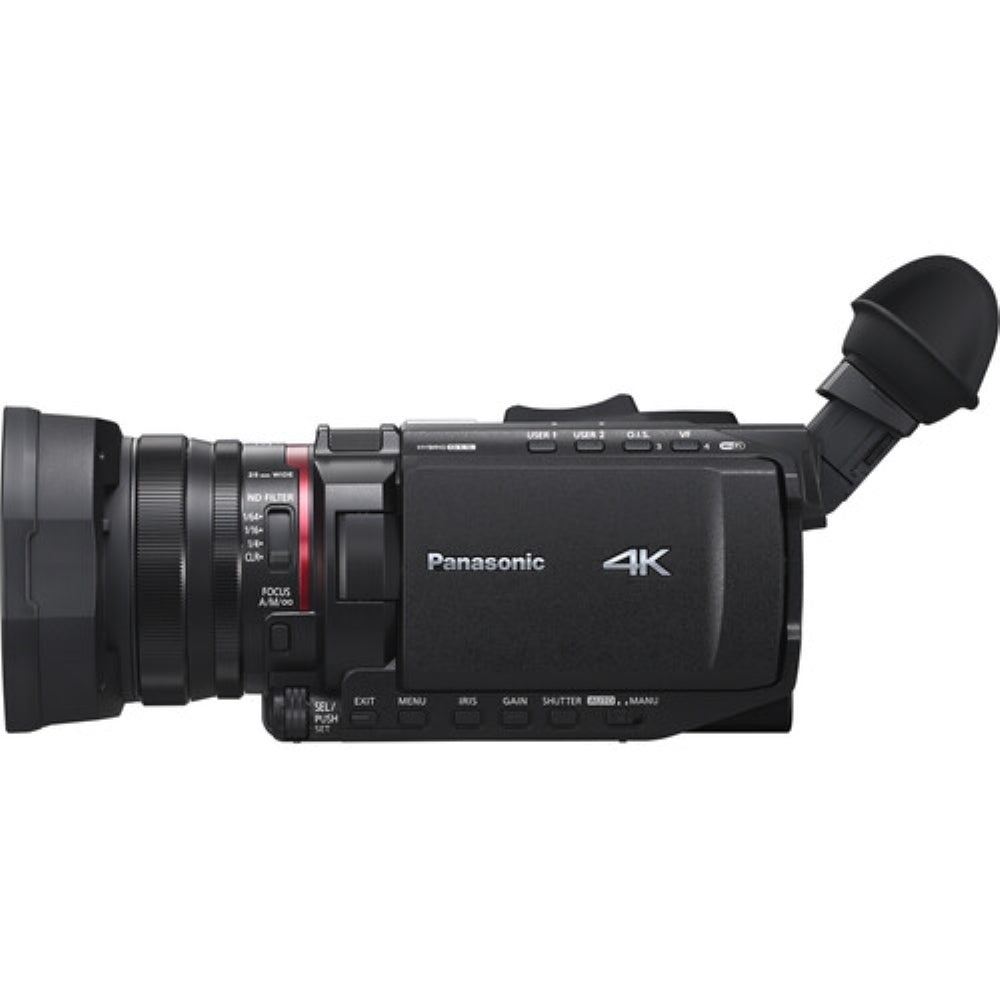

The camera features built-in selectable clear, 1/4, 1/16, and 1/64 ND mechanical filters for quick adjustments during changing lighting conditions.
Long Battery Life
A 5900mAh rechargeable battery ensures that the camera operates continuously for as long as 6 hours and 10 minutes while shooting in UHD 4K. Additionally, the USB-C input can be utilized to power the camera through DC sources.
Imaging |
|
|---|---|
| Image Sensor | 1/2.5"-Type MOS |
| Effective Sensor Resolution | 8.29 Megapixel |
| Image Stabilization | Digital |
| Built-In ND Filter | Mechanical Filter Wheel with 6-Stop (1/64), 2-Stop (1/4), 4-Stop (1/16), Clear ND Filters |
| Capture Type | Stills & Video |
Exposure Control |
|
|---|---|
| Shutter Type | Electronic Rolling Shutter |
| Shutter Speed | 1/8000 to 1/6 Second in Movie Mode |
| Sensitivity | f/1.8 at 4 lux |
| Minimum Illumination | 1.5 Lux |
| White Balance | Range: 2000 to 15,000K Presets: ATW, Auto |
Lens |
|
|---|---|
| Focal Length | 4.12 to 98.9mm (35mm Equivalent: 25 to 600mm) |
| Zoom | 24x Optical |
| Maximum Aperture | f/1.8 |
| Minimum Aperture | f/4 |
| Filter Size | 62 mm |
| Control Rings | Zoom Focus |
Focus |
|
|---|---|
| Focus Mode | Automatic, Manual Focus |
Video Capture |
|
|---|---|
| Internal Recording | MOV 4:2:2 10-Bit 3840 x 2160 at 25/29.97/23.98 fps 1920 x 1080p at 23.98/50/25/29.97/59.94 fps 1920 x 1080i at 50/59.94 fps MOV 4:2:0 8/10-Bit 3840 x 2160 at 25/29.97/50/59.94/23.98 fps MP4 4:2:0 10-Bit 3840 x 2160 at 25/29.97/50/59.94/23.98 fps MP4 4:2:0 8-Bit 3840 x 2160 at 25/29.97/23.98 fps 1920 x 1080p at 23.98/50/59.94 fps AVCHD 4:2:0 8-Bit 1920 x 1080p at 50/59.94 fps 1920 x 1080i at 50/59.94 fps 1280 x 720 at 50/59.94 fps |
| Video Output | 4:2:2 10-Bit 3840 x 2160 at 25/29.97/50/59.94/23.98 fps 1920 x 1080p at 59.94/23.98/25/29.97/50 fps 1920 x 1080i at 59.94/50 fps 1280 x 720 at 59.94/50 fps 720 x 576p at 50 fps 720 x 480p at 59.94 fps |
| Fast-/Slow-Motion Support | Yes |
| Built-In Microphone | Stereo |
| Audio Recording | AVCHD, MP4: 2-Channel, 16-Bit at 48 kHz |
| IP Streaming | H.264, RTSP, RTMP, RTP, RTMPS 1920 x 1080 1280 x 720 640 x 360 320 x 180 |
Interface |
|
|---|---|
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) [512 GB Maximum] |
| Internal Storage | No |
| Video I/O | 1x HDMI Output |
| Audio I/O | 2x XLR 3-Pin Mic/Line Input (+48 V Phantom Power) 1x 1/8" / 3.5 mm TRS Stereo Microphone Input 1x 1/8" / 3.5 mm TRS Stereo Headphone Output |
| Power I/O | 1x USB-C (9VDC at 3 A) Input |
| Other I/O | 1x 2.5 mm Sub-Mini (Remote) Control 1x USB-C |
| Wireless | 5.8 GHz Radio/RF / 2.4 GHz Radio/RF |
| Mobile App Compatible | Yes: Android & iOS App Name: HC ROP |
| Global Positioning (GPS, GLONASS, etc.) | No |
Monitor |
|
|---|---|
| Display Type | Primary Monitor: Articulating 3.5" Touchscreen LCD |
Viewfinder |
|
|---|---|
| Type | Electronic (OLED) |
| Resolution | 1,770,000 Dot |
Power |
|
|---|---|
| Battery | Panasonic AG-VBR Series |
| Power Consumption | 12.3 W |
General |
|
|---|---|

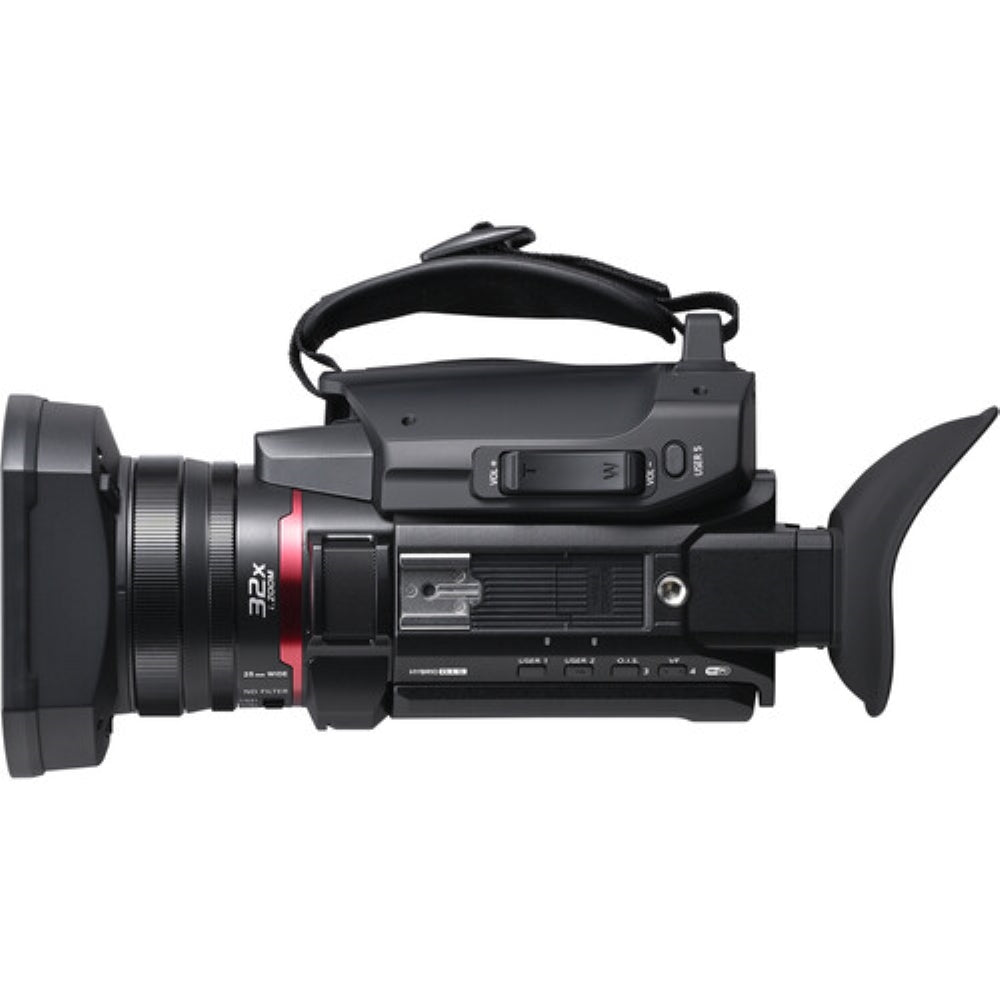

| Shoe Mount | 1x Cold Shoe |
| Built-In Video Light | No |
| Dimensions (W x H x D) | 5.1 x 3.7 x 10.5" / 129 x 93 x 267 mm (With Included Lens Hood) |
| Weight | 1.87 lb / 0.85 kg (Body Only) |
