PocketWizard PlusX Transceiver
PocketWizard PlusX Transceiver
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States

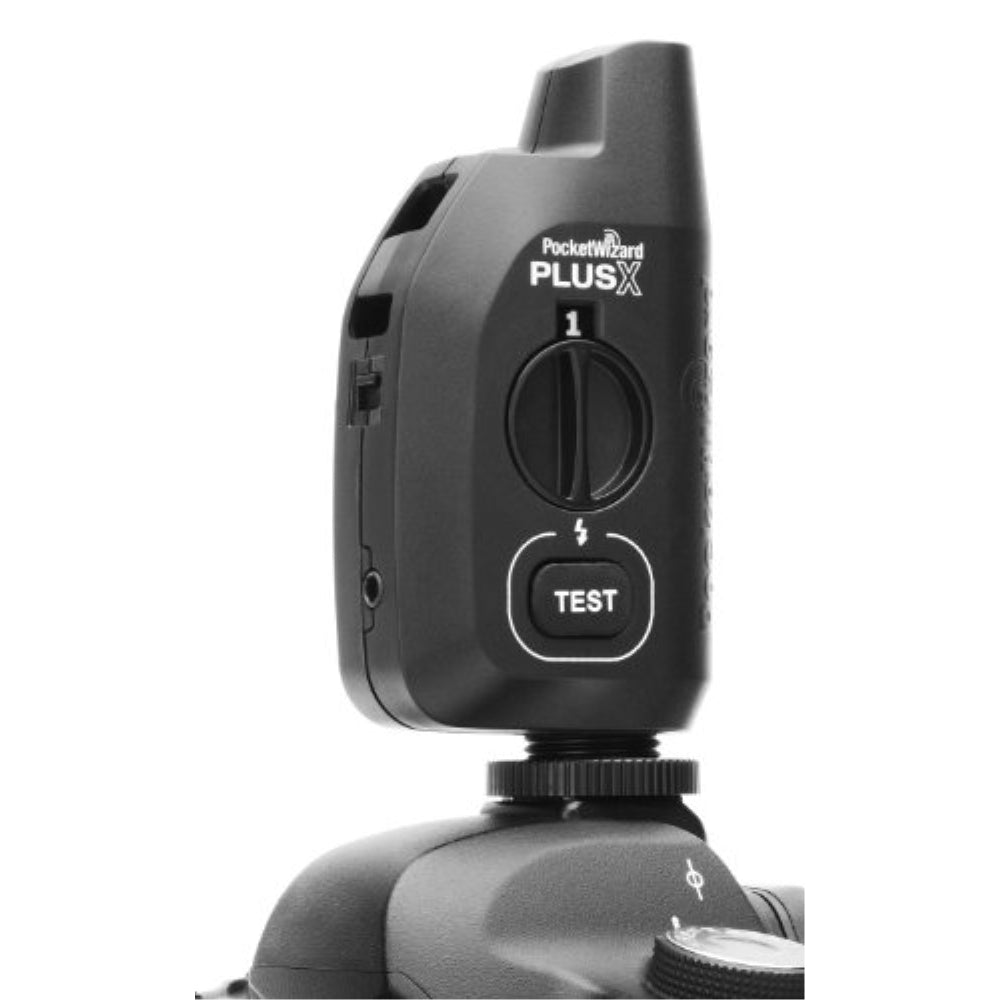

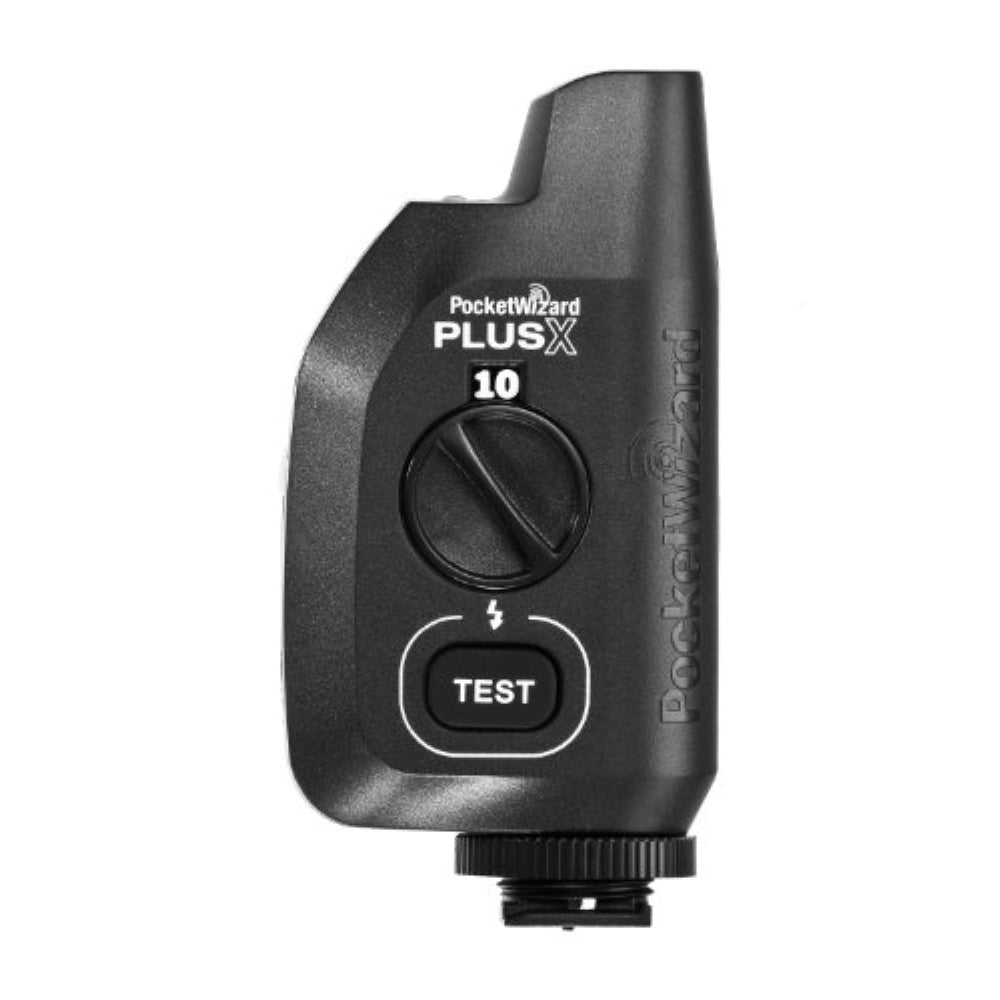

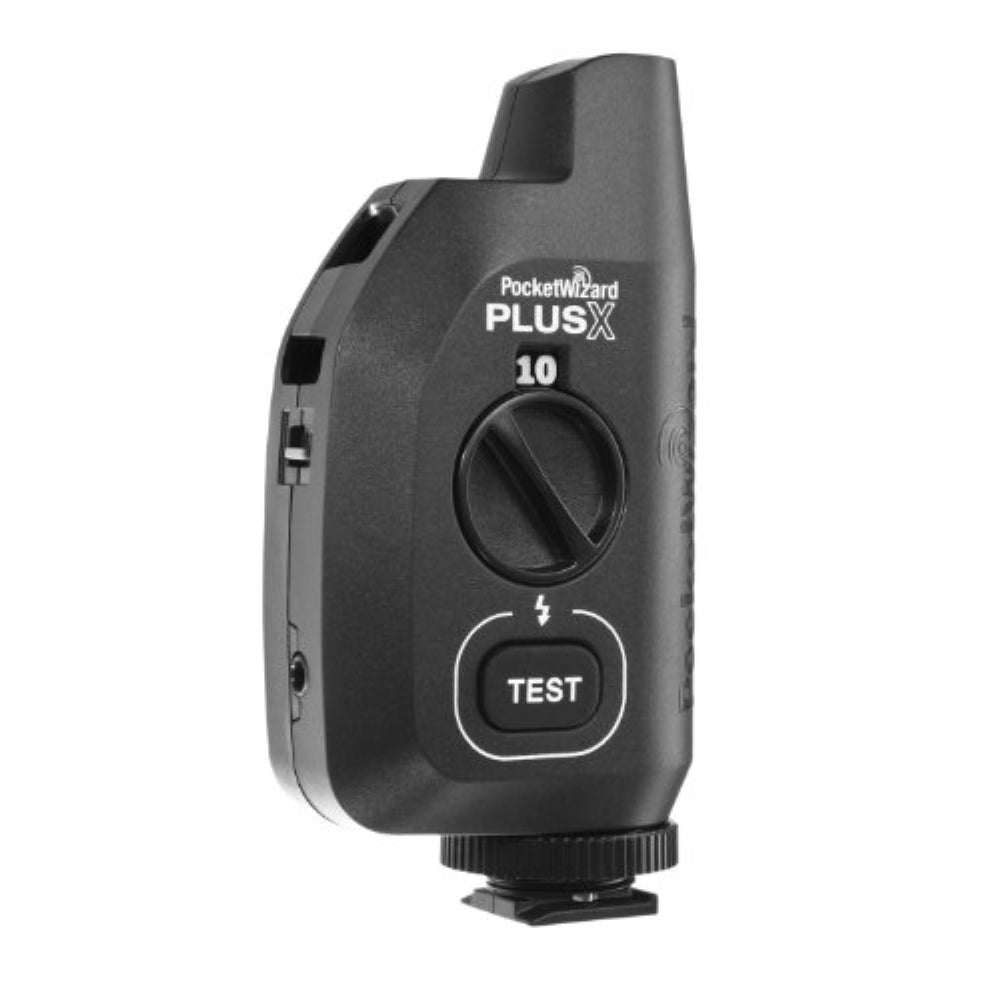

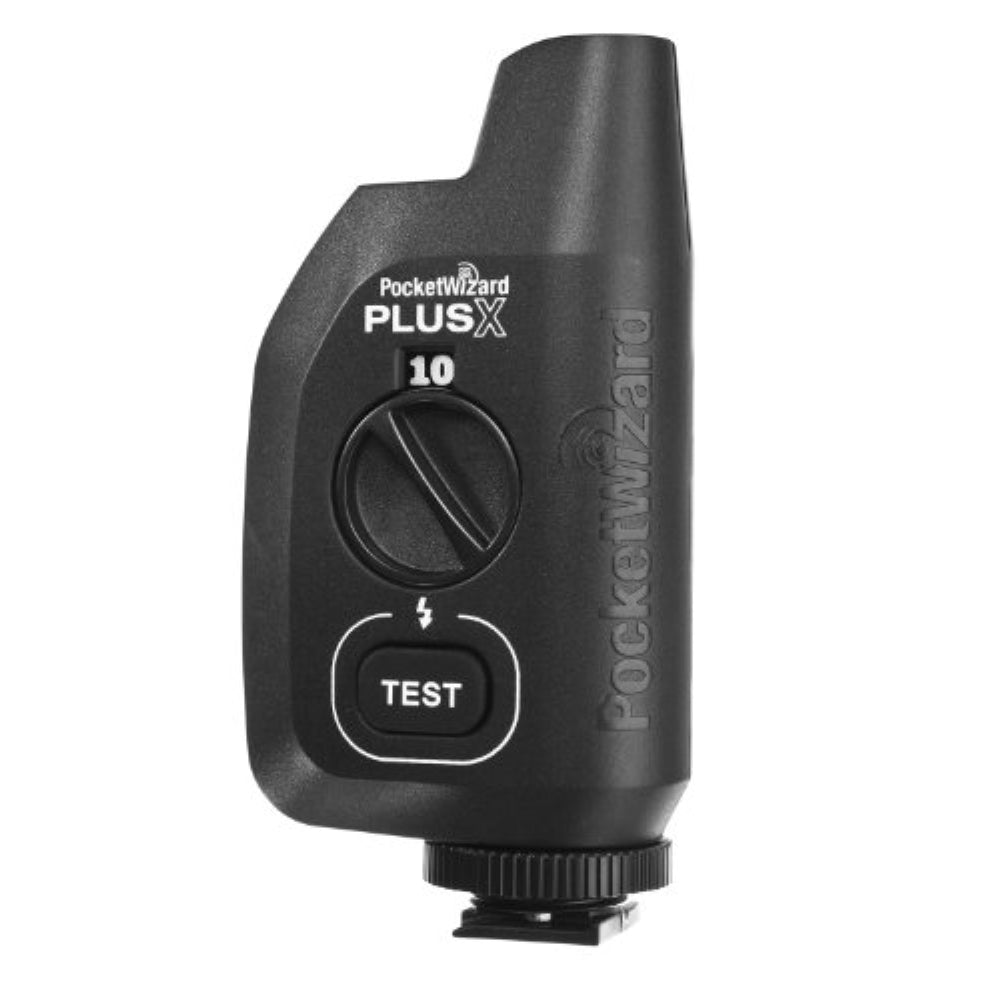

The PocketWizard PlusX Transceiver is a versatile radio trigger that features a wealth of functionality within a simple-to-use and intuitive design. This transceiver offers 10 standard channels from which to use, and navigation between these channels is easily controlled by a backlit channel dial. These 10 channels are fully backward-compatible with all other PocketWizard radios and PocketWizard-enabled devices for maximum efficiency with existing radio setups. Contributing to its functional abilities, the PlusX also features intelligent Auto-Sensing technology, which allows the device to instantly fluctuate between transmitter and receiver duties. Auto-relay is also supported in order to promote a completely remote workflow.
The PlusX features 10 standard channels for use to provide greater availability when working amongst other photographers or for greater control over complex lighting situations. These channels are compatible with all other PocketWizard of the same frequency. An analog dial is used to quickly and easily switch between the 10 available channels. A full-time amber backlight is used to illuminate the selected channel for convenience and greater visibility when working in dimly-lit conditions. A tri-color LED is also incorporated into the design and provides a visual means for gauging the PlusX battery life when it is sending or receiving a transmission.

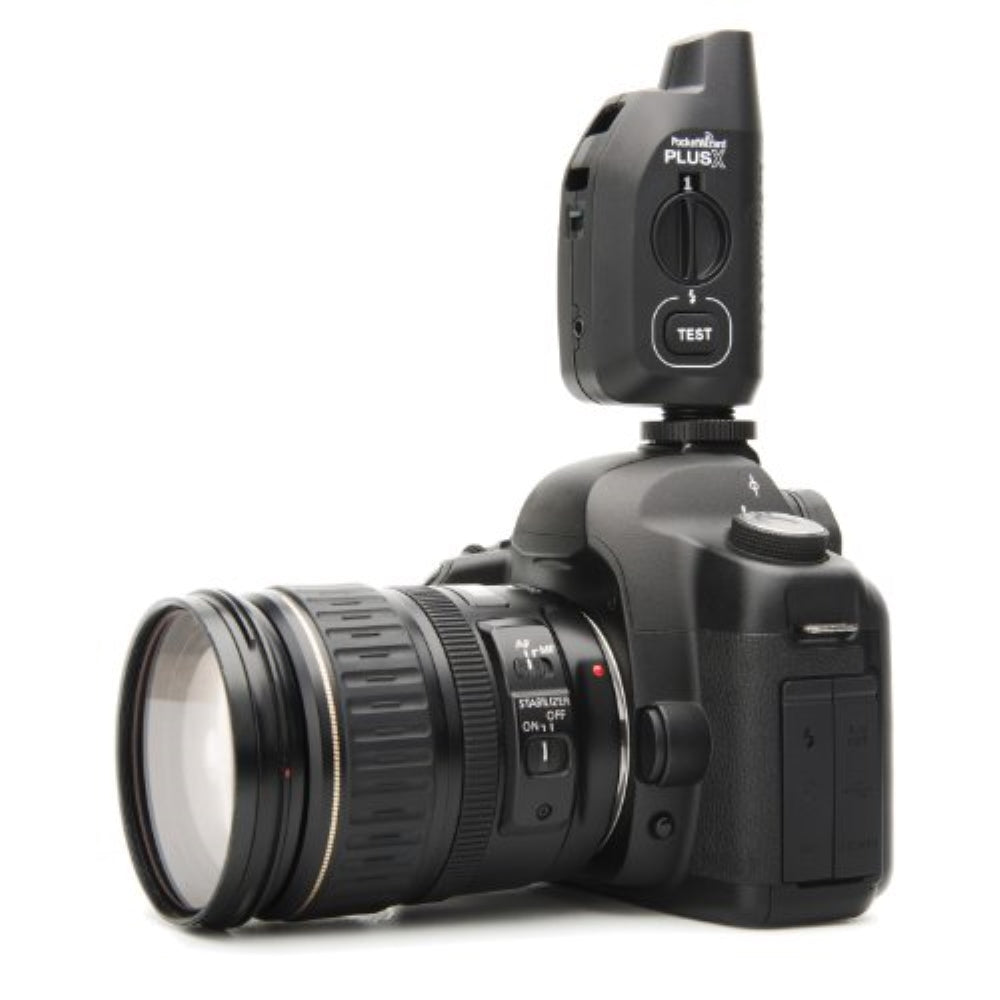

The internal antenna provides greater durability and eliminates the possibility or bending or breaking it during use. It also produces a more streamlined appearance when in use, and corresponds well to the side-profile design to create an overall visually unobtrusive look. The transceiver is easily attached to most cameras through the hot shoe, with no extraneous cables required. For attaching to remotes and lights, there is an all-in-one sync port for wide compatibility. Cables are included for attaching from miniphone-to-miniphone, miniphone-to-phono, and miniphone-to-PC sync for cameras without a hot shoe. It is also compatible with all PocketWizard transmitters and receivers (of the same frequency) as well as PocketWizard-enabled lighting and metering equipment.
The PlusX is automatically set to intelligently and instantly switch between transmitter and receiver modes for the greatest amount of flexibility. You can also manually override this function and choose to have it act as a dedicated transmitter only, which will cancel its ability to receive or relay signals. When using three PocketWizard radios, you can remotely trigger a camera to fire and trigger a flash simultaneously. Utilizing the Auto-Sensing technology, the transceiver mounted to the camera can instantly receive a signal from an auxiliary transceiver, and then instantly convey the transmission to a remote flash. This provides a simple and highly efficient remote workflow. When used in ideal conditions, this transceiver is capable of producing and receiving a signal up to 1600' away. It supports sync speeds up to 1/250 sec. with focal plane shutters and 1/500 sec with leaf shutters with a maximum triggering speed up to 14.5fps.
Wireless |
|
---|---|
Channels | 10 |
Groups | 1 |
Wireless Range | 1600' / 487.7 m |
Radio Frequency | 344 MHz |
General |
|
---|---|
Flash Interval | 14.5 Flashes per Sec |
Sync Speed | 1/250 Sec (Normal) 1/500 Sec (Leaf) |
Connectivity |
|
---|---|
Inputs/Outputs | 1x 1/8" / 3.5 mm (Flash) |
Mounting |
|
---|---|
Bottom Mount | Hot Foot (Locking) 1/4"-20 Thread |
Electrical |
|
---|---|
Battery Type | 2x AA |
Sync Voltage | 300 V |
Physical |
|
---|---|
Operating Conditions | 5 to 120°F / -15 to 49°C |
Storage Conditions | -22 to 185°F / -30 to 85°C |
Dimensions | Transmitter: 4.2 x 2.1 x 1.2" / 10.7 x 5.3 x 3 cm |
Weight | 3.9 oz / 110.5 g |
