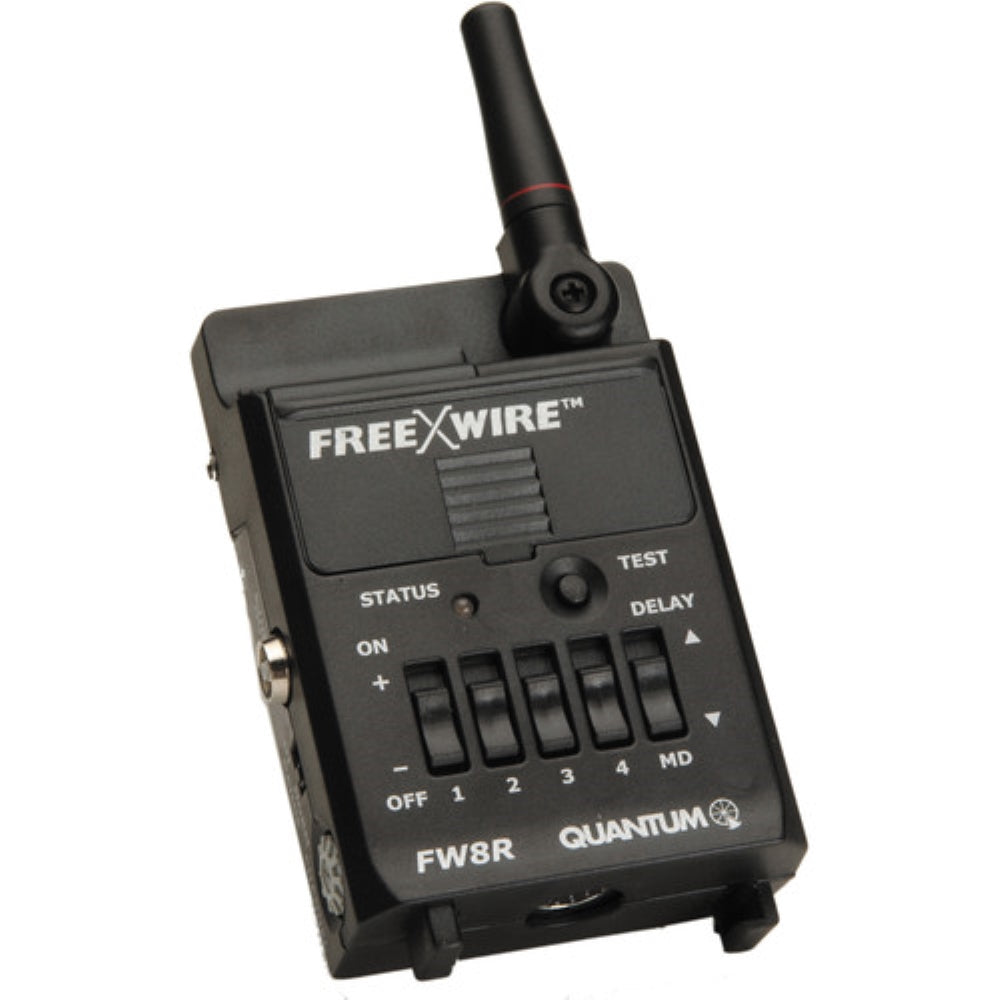

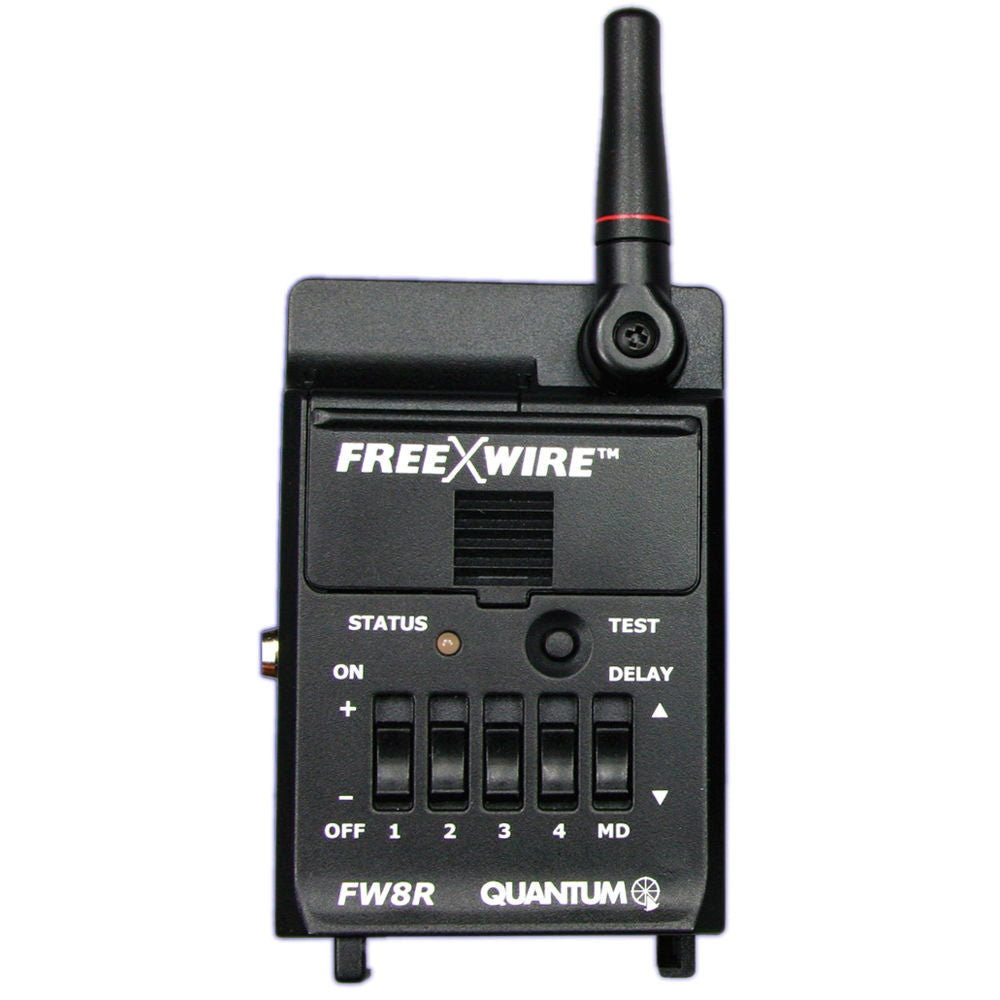

Quantum Instruments FW8R FreeXwire Wireless Digital TTL Receiver
The Quantum FreeXwire FW8R Receiver can be used to receive a wireless radio flash trigger signal from an FW10w or FW9T transmitter connected to the camera. Or can be used to receive wireless TTL information when connected to the Qflash T5d and a Dw series QTTL adapter on the camera. The FW8R receiver can also be used as a receiver hooked up to the camera with a Quantum Two-Step Motor Drive cord to allow for remote wireless triggering of the shutter release. With a 2-step cord you keep your camera's meter and focus function continuously on (as in pressing the shutter button half way).
FreeXwire has eight unique Channel Codes. FreeXwire units set to one Channel cannot activate FreeXwires set to different Channels. You control the Channel Code to make FreeXwire units work together or independently, as required. There are 32 individual Channel/Zone settings at your disposal, and 256 possible lighting combinations. FreeXwire controls one Local Zone and four wireless Zones for flash or motor drive. You can activate any one Zone, or any combination of Zones 1,2,3,4 and Local. Switch your lighting instantly, remotely. Select and trigger flashes, cameras, or combinations of them, from your remote position.
A FreeXwire connected to a "Dw" series adapter transmits the camera's f/stop, ISO, and TTL information to any number of remote FreeXwire /Qflash combinations. A "local" Qflash will synchronize also. Without a TTL adapter, a local Qflash & FreeWire can control exposures of any number of remote Qflash/FreeXwire combinations. Two-step cord keeps your camera meter and focus function continuously on (as in pressing the shutter button half way). The camera will be ready for instant shutter release. Or, select motor drive "delay" to command a camera to "wake up", focus and meter, then release the shutter.
Key Features
- Compact and light, and antenna folds out of the way for compact storage.
- Quantum Instruments FW8R FreeXwire Wireless Digital TTL Receiver
- 2 x Duracell AAA 1.5V Alkaline Coppertop Battery
- Pole Mounting Kit
- Touch Fastener Mounting Pads
- Limited 1-Year Warranty
