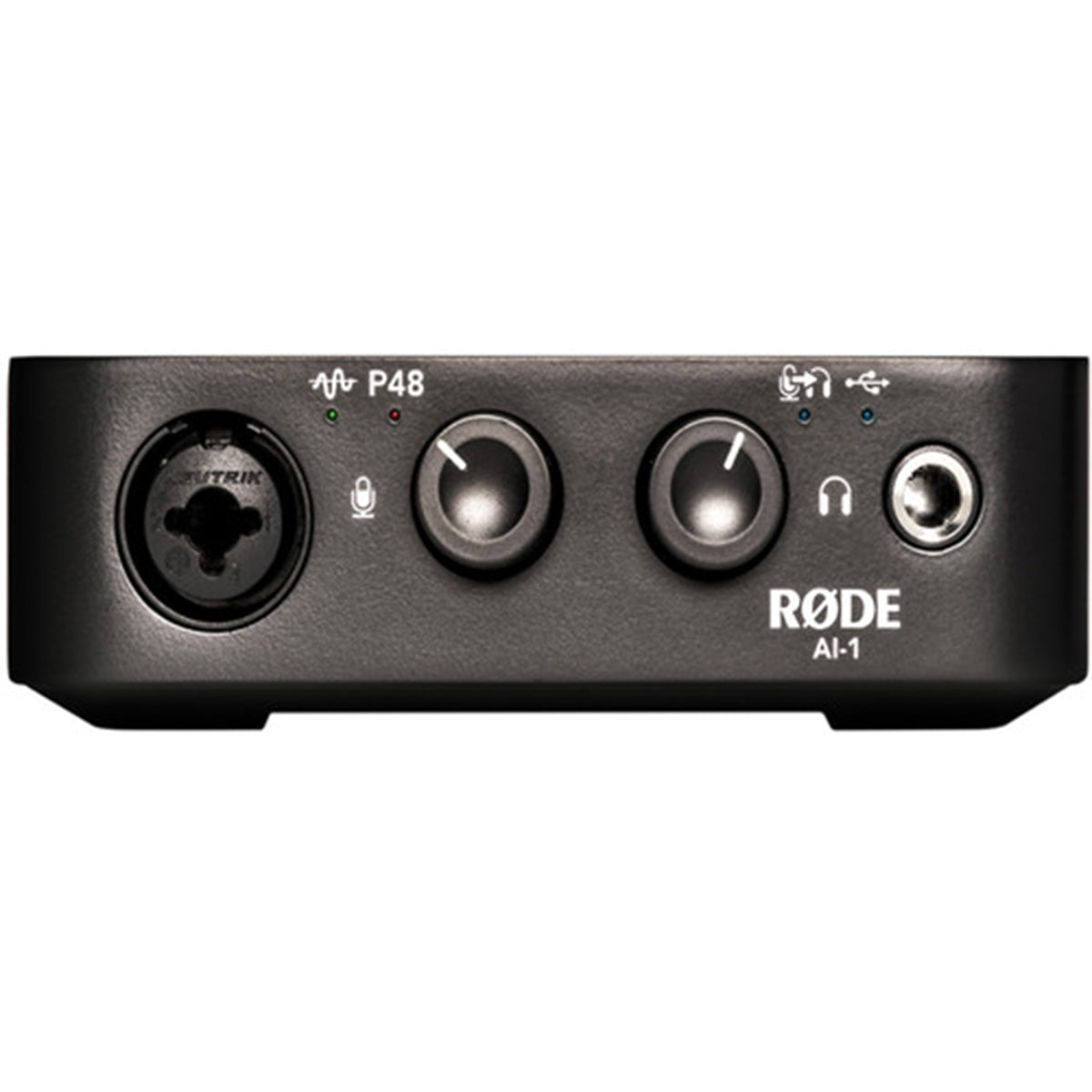

The Rode AI-1 is a high-quality audio interface designed for recording vocals, instruments, and voiceovers on both Mac and Windows computers. It is equipped with a single combo XLR-1/4" input that includes phantom power, two balanced 1/4" monitor outputs, and a discrete headphone output with level control, all of which contribute to its studio-grade performance. The device supports zero-latency monitoring, allowing the preamp to connect directly to the headphone output, ensuring real-time performance without delay during recording sessions. When the headphone input is in use, the monitor outputs are automatically bypassed. To activate the monitor outputs, simply disconnect the headphone plug from the jack.
The durable aluminum chassis is coated with a satin black finish and is equipped with substantial rubber feet, ensuring that the desktop interface remains stable during use. The class-compliant AI-1 does not require any drivers and is equipped with a USB-C connector, which facilitates both connection to your computer and power supply. The Rode AI-1 is delivered with a USB cable and includes a license for Ableton Live Lite.
- Desktop USB audio interface with low-noise Class-A discrete preamplifier
- Sampling rate of up to 96 kHz / 24-bit
- One combo XLR-1/4" combo input
- Two balanced 1/4" monitor outputs
- One discrete studio-quality headphone output
- Phantom power for condenser microphones
- Zero-latency monitor mode
- USB bus powered
- USB-C connector for future proof operation
- Rugged body with Satin Black finish
- Class compliant—no drivers required
- Includes Ableton Live Lite
- Includes USB cable
Audio & MIDI Interface |
|
---|---|
Channels of I/O | 1 Input / 2 Output |
Built-In DSP | No |
Maximum Sampling Rate | 96 kHz / 24-Bit |
Number of Microphone Inputs | 1 |
Built-In Microphone | No |
Input Level Adjustment | 2x Knob |
Signal Processing |
|
---|---|
Pad | No |
Gain/Trim Range | Inputs: 0 to 45 dB |
High-Pass Filter | No |
Solo/Mute | No |
Connectivity |
|
---|---|
Analog Audio I/O | 1x Combo XLR-1/4" TRS Mic/Line Input 2x 1/4" TRS Balanced Line Output 1x 1/4" TRS Headphone Output |
Phantom Power | 48 V |
Digital Audio I/O | No |
Host Connection | USB-C |
Host Connection Protocol | Not Specified by Manufacturer |
USB (Non-Host) | No |
Sync I/O | No |
Network I/O | No |
MIDI I/O | No |
Expansion Slots | No |
Wireless | No |
Performance |
|
---|---|
Frequency Response | 20 Hz to 20 kHz ±1 dB |
Maximum Output Level | Monitor Outputs: -6 dBu |
Headphone Output Power | 24 mW into 32 Ohms 245 mW into 300 Ohms |
Impedance | Mic Inputs: 1.3 Kilohms Hi-Z Inputs: 0.9 Megohm |
Dynamic Range | 104 dBu |
EIN | -128 dBA |
Digital Audio |
|
---|---|
Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
Sample Rate Conversion | No |
Bit Depths | 24-Bit |
Latency | Zero-Latency Direct Monitoring |
Sync Sources | No |
Clocking | Internal |
Audio Storage & Playback |
|
---|---|
Media/Memory Card Slot | No |
Compatibility |
|
---|---|
OS Compatibility | macOS 10.11 or Later / Windows 7 or Later |
Mobile App Compatible | No |
Power |
|
---|---|
Power Requirements | USB Bus Power |
Physical |
|
---|---|
Dimensions | 4.9 x 3.9 x 1.5" / 124 x 100 x 38 mm |
Weight | 19.8 oz / 561.3 g |
