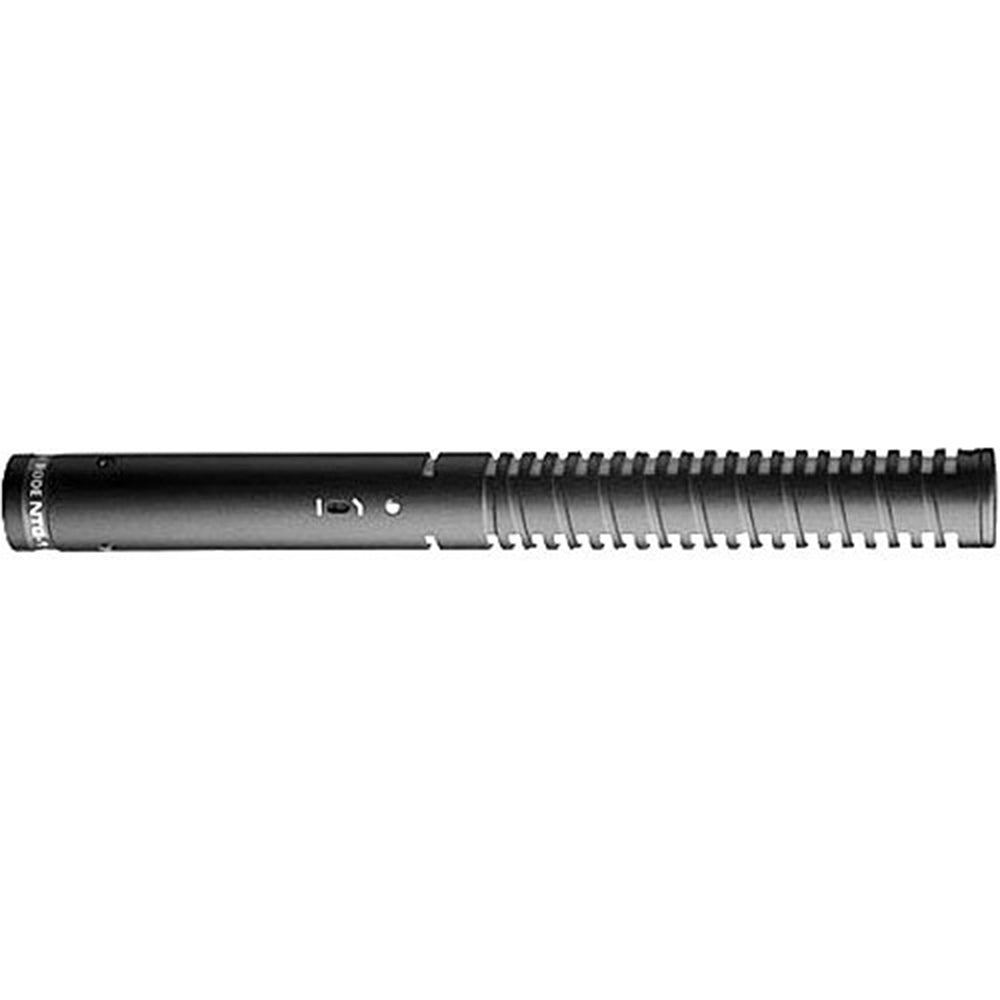

Rode NTG1 Shotgun Microphone
Capture quality sound indoors or outside for your next indie film, TV shoot, or documentary project with the Rode NTG1 shotgun microphone. With low handling noise and the ability to endure loud sound sources before distortion, the NTG1 offers a cost-effective solution for recording clean dialogue and sound effects. The NTG1's elevated sensitivity allows it to produce strong output levels without having to apply extreme gain at your mic preamp. Sonically, the NTG1 delivers consistently clear sound due in part to its gentle rise in high frequencies and its rumble-reducing selectable low-cut filter. The durable and lightweight high-grade aluminum housing is finished in hard-wearing epoxy paint to withstand the stress of location recording.
Quality Sound Capture
The combination of the NTG1's 8.6" long body and supercardioid polar pattern yields focused front-facing directionality and enhanced attenuation of sound entering from the sides. Its low self-noise of 18 dBA and sensitive condenser element communicate detailed audio unburdened by the hiss that plagues many low-cost microphones. Plus, its balanced output allows longer cable runs than most camera-mount shotgun microphones.
Phantom Powered
Thanks to its 3-pin XLR output and compliance with 24V or 48V phantom power, the NTG1 is compatible with a variety of handheld audio recorders, field recorders, and mixer adapters, as well as built-in preamps on many camcorders and cinema cameras.
Ideal for Boompole Mounting

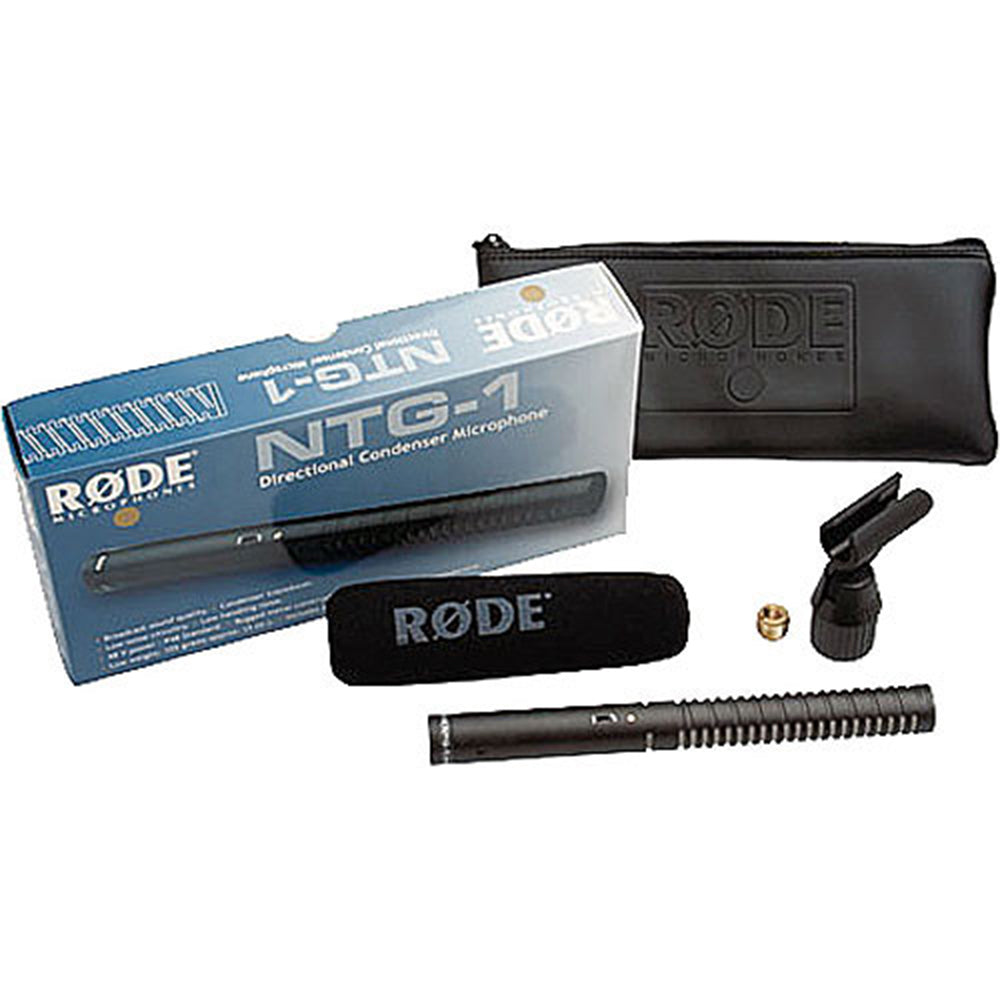

The NTG1 includes a mic clip for easy placement on a mic stand or boompole. Alternatively, mount the NTG1 in the Rode SM4-R shockmount or Rode PG2-R pistol grip (both available separately) to impede the transfer of vibrations in boompole or handheld applications.
Windscreen Minimizes Wind Noise
The NTG1 has a foam windscreen to reduce unwanted wind noise from breezes, fans, heaters, and air conditioners. For maximum reduction of handling noise and wind noise in indoor or outdoor environments, consider the Rode Blimp furry windshield and shockmount suspension system (available separately).
Microphone |
|
---|---|
Sound Field | Mono |
Element Type | Condenser |
Diaphragm | 0.5" / 12.70 mm |
Polar Pattern | Supercardioid |
Orientation | End Address |
Circuitry | Solid-State (JFET) |
Pad | No |
High-Pass Filter | 80 Hz, 12 dB/Octave |
Filter & EQ | Low-Cut Filter: 80 Hz, 12 dB/Octave |
Gain Adjustment | No |
On-Mic Controls | Low Cut/HPF |
Performance |
|
---|---|
Frequency Response | 20 Hz to 20 kHz |
Maximum SPL | 139 dB (1 kHz, 1% THD, 1-Kilohm Load) |
Off-Axis Rejection | 14 dB at 60° 16 dB at 120° 12 dB at 180° |
Sensitivity | -36 dBV/Pa (at 1 kHz) |
Dynamic Range | 121 dB |
Equivalent Noise Level | 18 dB (A-Weighted) |
Analog Output | 1x XLR 3-Pin |
Power |
|
---|---|
Power Sources | Phantom Power |
Operating Voltage | 24 to 48 V |
Physical |
|
---|---|
Color | Black |
Mounting Thread Size | 5/8"-27 Female (3/8"-16 Female with Included Adapter) |
Dimensions | ø: 0.87 x L: 8.62" / ø: 22 x L: 219 mm |
Weight | 3.7 oz / 105 g (Microphone) |
