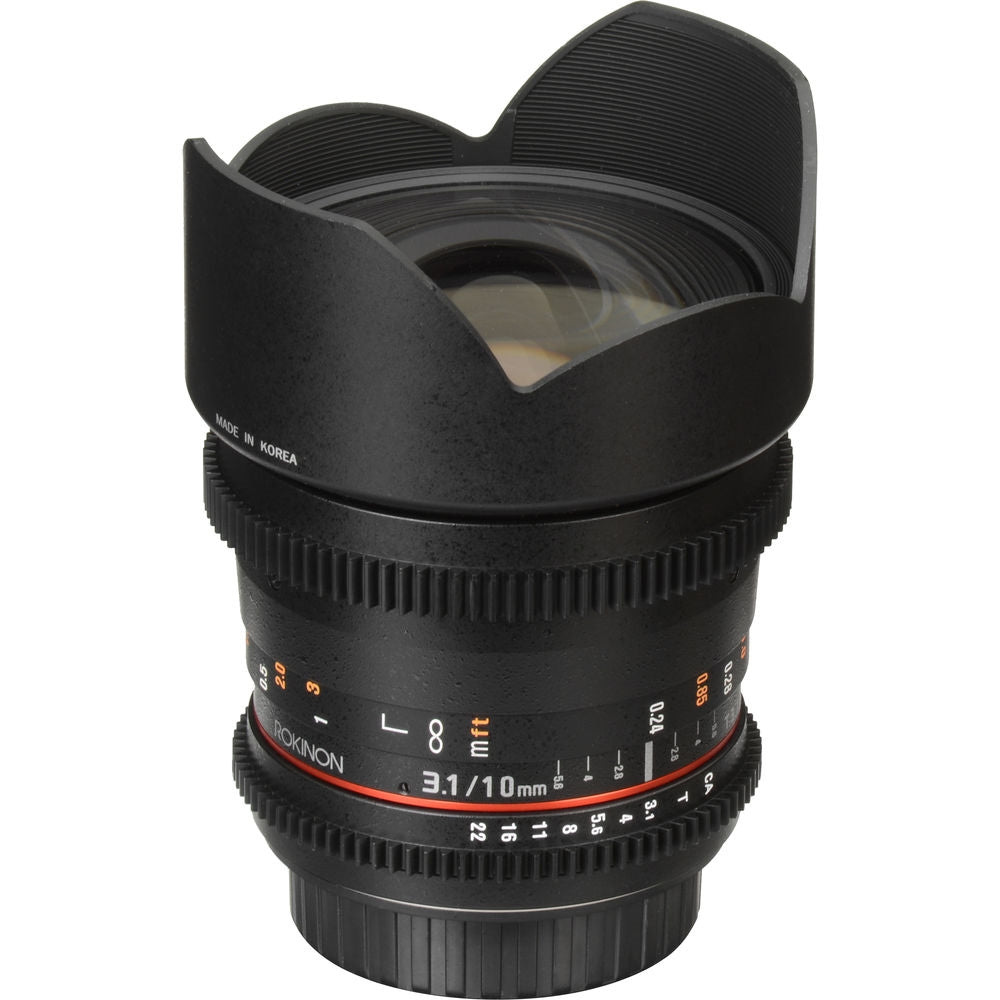

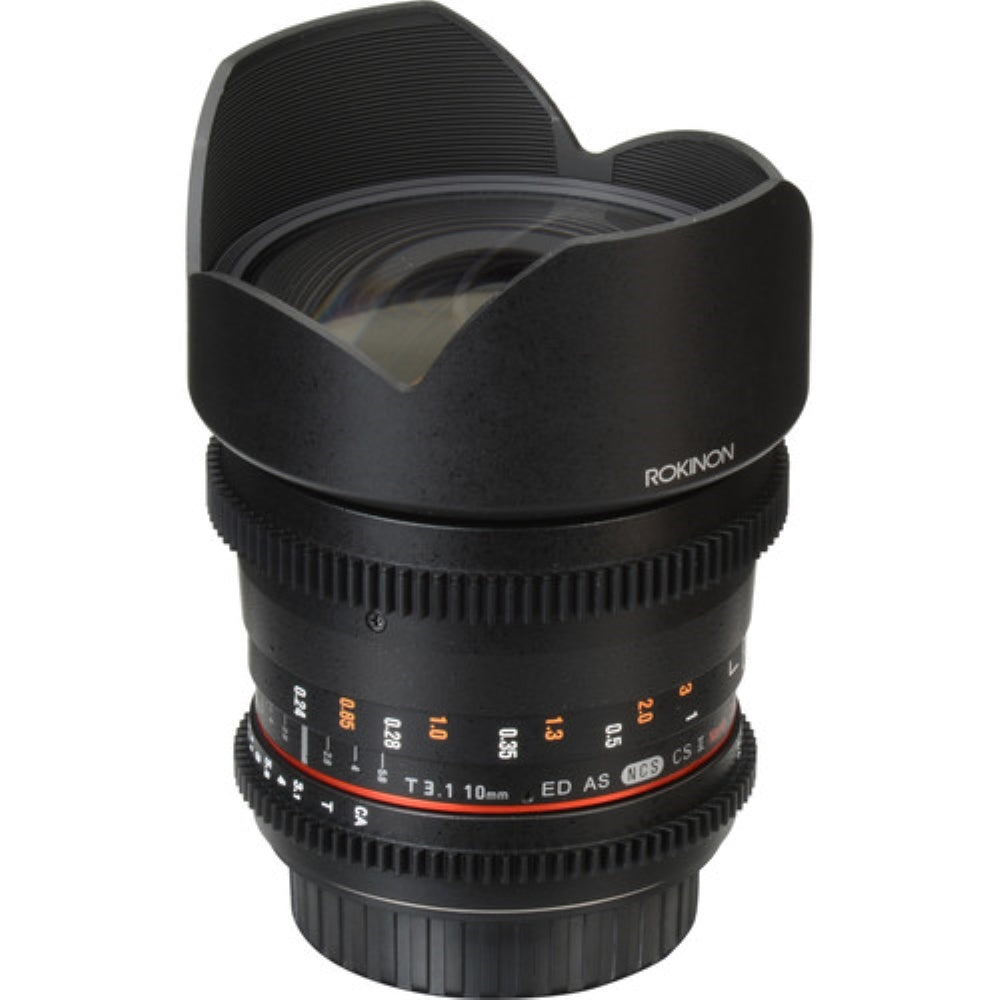

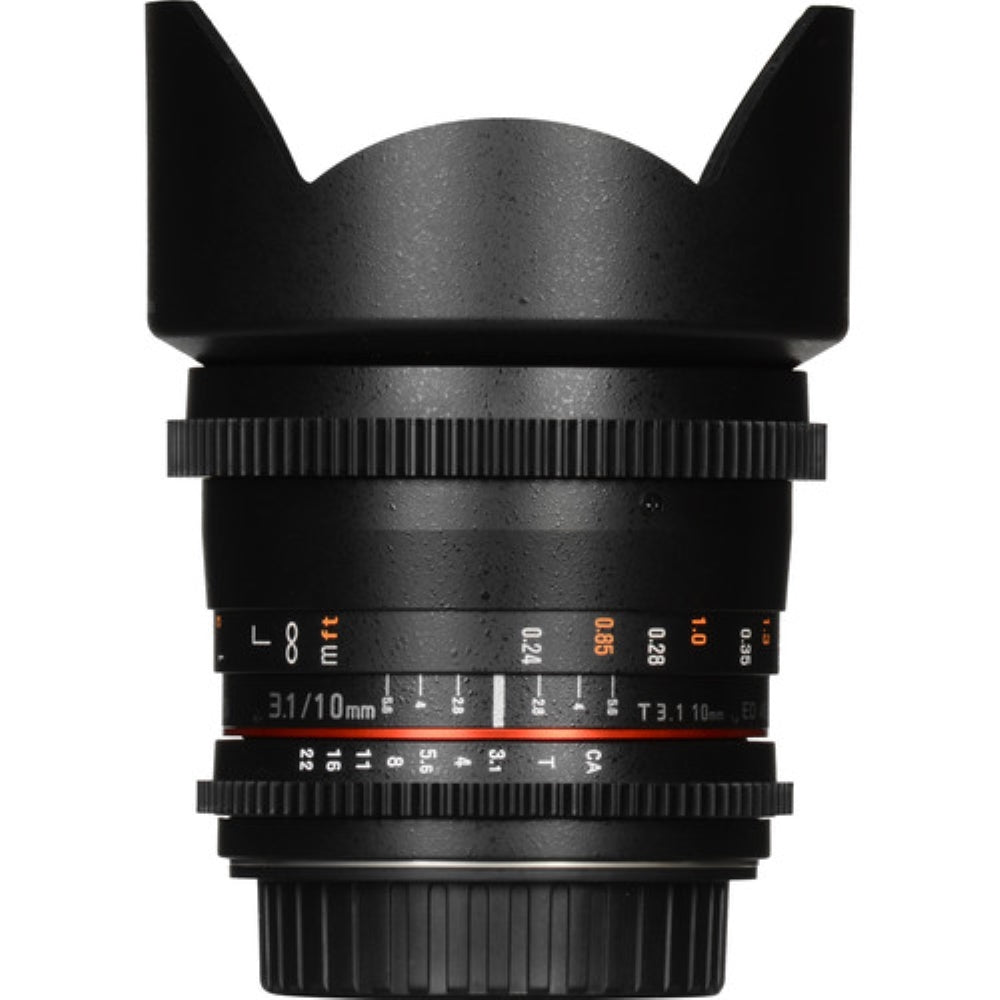

Rokinon 10mm T3.1 Cine DS Lens with Canon EF Mount for APS-C
Rokinon 10mm T3.1 Cine DS Lens with Canon EF Mount for APS-C
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The Rokinon 10mm T3.1 Cine DS Lens employs a nano coating technique to ensure uniform color reproduction across different lenses, effectively addressing the challenge of assembling a cohesive lens set over time. Designed with a Canon EF mount, this lens incorporates industry-standard geared focus and iris rings that align with those of other Rokinon Cine DS lenses. To facilitate focus pullers operating from either side of the lens, both the aperture and focus scales are clearly marked on both sides.
When mounted on cameras equipped with APS-C-sized sensors, this 10mm lens offers a wide angle of view measuring 105.9°. The use of hybrid aspherical lenses guarantees sharply defined images while minimizing distortion and chromatic aberrations, with a close focus capability of 7.9 inches from the lens. Additionally, a built-in petal-shaped lens hood provides effective flare protection during shooting sessions that do not utilize a matte box.
- Nano Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard, eliminating the need to acquire an entire set of lenses at the same time.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories, such as follow focus units or iris motors, don't have to be re-positioned.
- The lens features an internal focus mechanism, so the front of the lens doesn't rotate when changing focus, allowing you to use filters and clip-on matte boxes without vignetting as you change (pull) focus.
- The lens features a 6-bladed iris that provides round out of focus highlights and a natural looking Bokeh. The declicked aperture ring allows for smooth iris pulls.
- A built-in lens hood provides flare protection without a matte box.
Lens |
|
---|---|
Maximum Aperture | T3.1 |
Minimum Aperture | T22 |
Lens Mount | Canon EF |
Interchangeable Mount | No |
Lens Format Coverage | Super35/APS-C |
Image Circle | Not Specified by Manufacturer |
Angle of View | Super 35 Diagonal: 105.9° |
Optical Design | 14 Elements in 9 Groups |
Minimum Focus Distance | From Unspecified Point in Lens: 9.45" / 24 cm |
Diaphragm Blades | 6 |
Image Stabilization | No |
Gear Standard | Not Specified by Manufacturer |
Electronic Communication | No |
Length | 4.18" / 106.1 mm |
Weight | 21.2 oz / 600 g |
