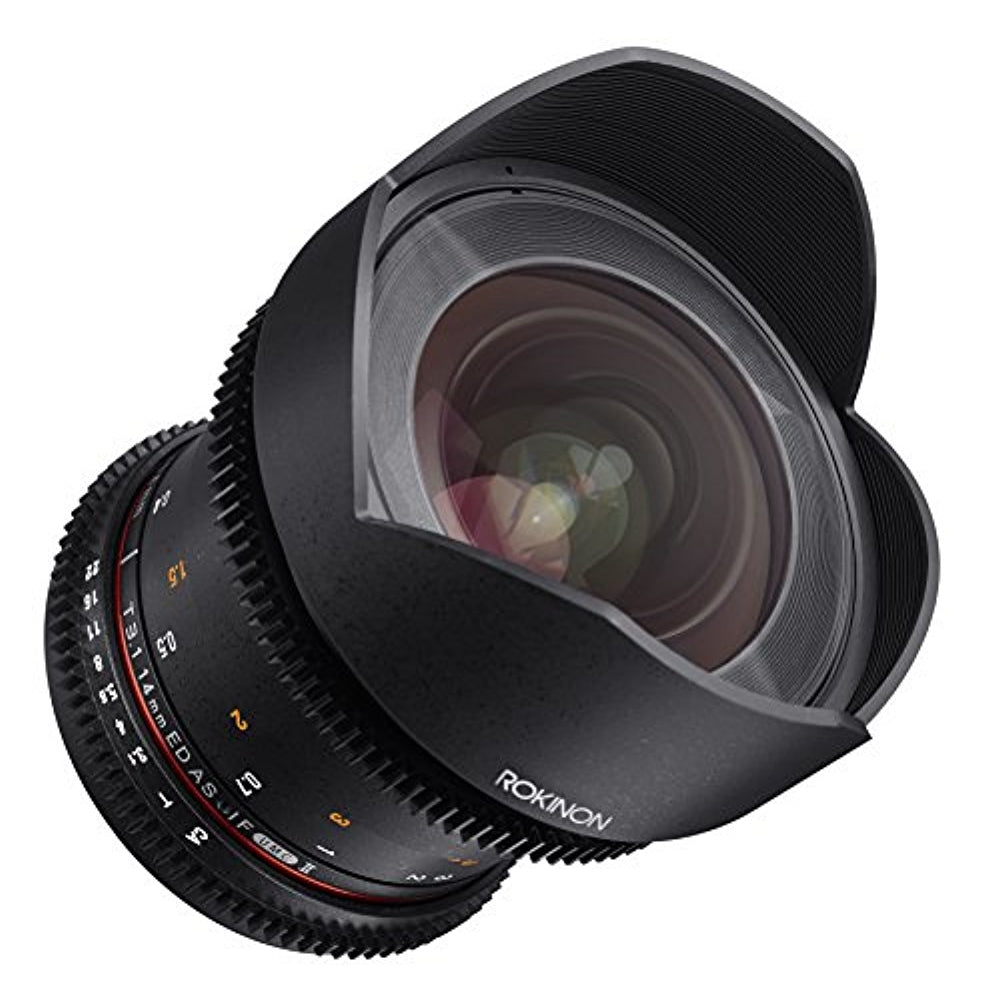

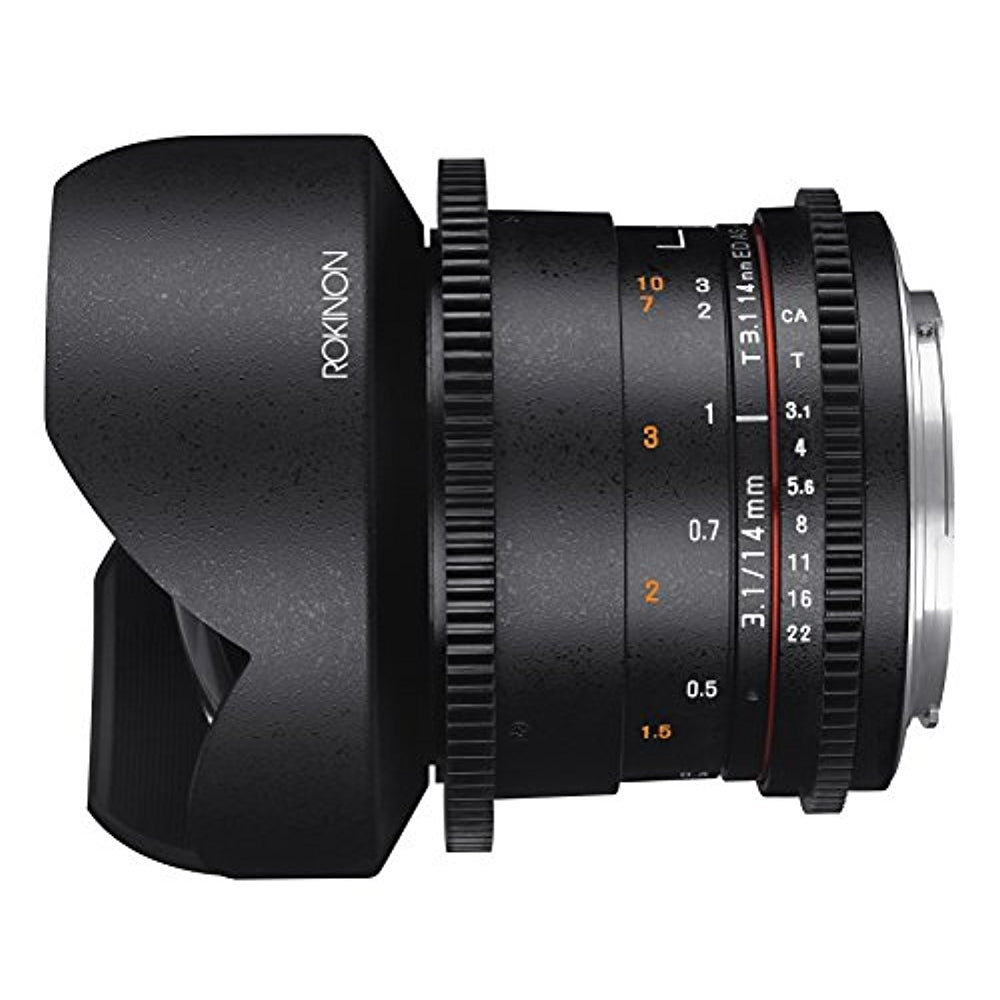

Rokinon 14mm T3.1 Cine DS Lens for Sony E-Mount
Rokinon 14mm T3.1 Cine DS Lens for Sony E-Mount
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The Rokinon 14mm T3.1 Cine DS Lens for Sony E-Mount addresses the complexities involved in assembling a set of lenses over time. Designed for full-frame sensors, it incorporates a multi-layer coating process that ensures consistent color reproduction across different lenses. This lens is equipped with industry-standard geared focus and iris rings, which are positioned uniformly with other Rokinon Cine DS lenses. When utilized with a full-frame sensor, this 14mm lens offers an impressive ultra-wide angle of view at 115.7°. The hybrid aspherical lenses contribute to producing sharply defined images while minimizing distortion and chromatic aberrations, with a minimum focusing distance of 11 inches from the lens.
Multi-Coating for Consistent Performance
The optical design features three elements with a high refractive index, two elements with extra-low dispersion, one hybrid aspherical element, and one aspherical element, all aimed at minimizing chromatic aberration and distortion, thereby enhancing image sharpness. The Ultra Multi Coated lens significantly reduces flare and ghosting, and the lenses are calibrated to a specific color standard, which negates the necessity of purchasing a complete set of lenses simultaneously.
Industry-Standard Gearing
The Rokinon DS lenses are designed with industry-standard gearing for both focus and aperture rings. Each lens within the Rokinon DS series features consistent positioning of the focus and iris gear rings, facilitating quicker lens changes since accessories like follow focus units or iris motors do not require realignment. The de-clicked aperture ring enables seamless iris adjustments, while a minimum focusing distance of 11 inches permits close proximity to the subject.
Ready for Cinematic Applications
This 14mm lens has been specifically designed for film and video use, offering an approximate angle of view of 115.7° when utilized with full-frame cameras. Additionally, it features a built-in petal-type lens hood that effectively protects against flare without the need for a matte box.
Lens |
|
---|---|
Maximum Aperture | T3.1 |
Minimum Aperture | T22 |
Lens Mount | Sony E |
Interchangeable Mount | No |
Lens Format Coverage | Full Frame |
Image Circle | Not Specified by Manufacturer |
Angle of View | Full Frame Diagonal: 115.7° Super 35 Diagonal: 93.9° |
Optical Design | 14 Elements in 10 Groups |
Minimum Focus Distance | From Unspecified Point in Lens: 11" / 28 cm |
Diaphragm Blades | 6 |
Image Stabilization | No |
Gear Standard | Not Specified by Manufacturer |
Electronic Communication | No |
Diameter | Maximum: 3.43" / 87.1 mm |
Length | 4.81" / 122.1 mm |
Weight | 22.6 oz / 640 g |
