Rokinon 24mm T1.5 Cine DS Lens for Micro Four Thirds Mount
Rokinon 24mm T1.5 Cine DS Lens for Micro Four Thirds Mount
STORE
54 Orchard Street
Ground Floor
New York NY 10002
United States
The Rokinon 24mm T1.5 Cine DS Lens employs a multi-layer coating technique to ensure uniform color reproduction across different lenses, effectively addressing the challenge of building a cohesive lens set over time. Designed with a Micro Four Thirds Mount, this lens incorporates industry-standard geared focus and iris rings that align with those of other Rokinon Cine DS lenses. To facilitate focus pullers operating from either side of the lens, both the aperture and focus scales are clearly marked on both sides.
When utilized with Micro Four Thirds cameras, this 24mm lens offers a field of view of 47.6°. The hybrid aspherical lenses deliver sharply defined images while minimizing distortion and chromatic aberrations, with a minimum focusing distance of just under 10 inches. Additionally, a removable petal-shaped lens hood is included to protect against flare when shooting without a matte box, and the lens features a threaded front that accommodates a 77mm filter ring.
Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
- 24mm lens with approximate angle of view of:
- MFT: 47.6°
- MFT: 47.6°
- Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
- ED, extra-low dispersion glass, helps reduce chromatic aberration and can improve contrast and color saturation.
- Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
- "De-clicked" aperture ring for smooth iris pulls.
- A minimum focusing distance of 9.8" allows you to get up close to your subject.

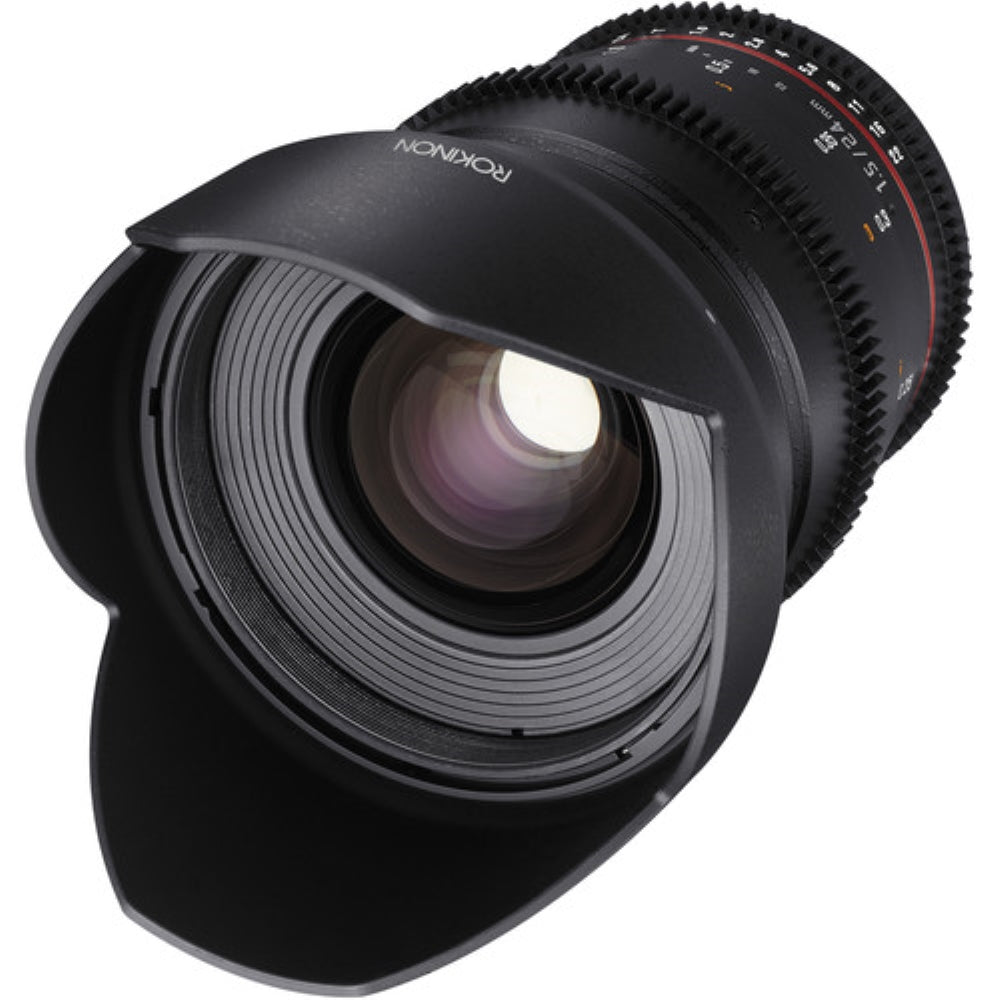

- A removable petal-type lens hood provides flare protection without a matte box.
Lens |
|
---|---|
Maximum Aperture | T1.5 |
Minimum Aperture | T22 |
Lens Mount | Micro Four Thirds |
Interchangeable Mount | No |
Image Circle | Not Specified by Manufacturer |
Angle of View | MFT Diagonal: 47.6° |
Focus Scales | Imperial, Metric |
Optical Design | 13 Elements in 12 Groups |
Filter Thread | 77 mm |
Minimum Focus Distance | From Unspecified Point in Lens: 9.8" / 25 cm |
Maximum Magnification Ratio | Not Specified by Manufacturer |
Diaphragm Blades | 8 |
Image Stabilization | No |
Gear Standard | 0.8 MOD / 32 Pitch |
Electronic Communication | No |
Diameter | Maximum: 3.27" / 83.1 mm Front: 3.2677183" / 83 mm |
Length | 4.82" / 122.3 mm |
Weight | 22.4 oz / 635 g |
